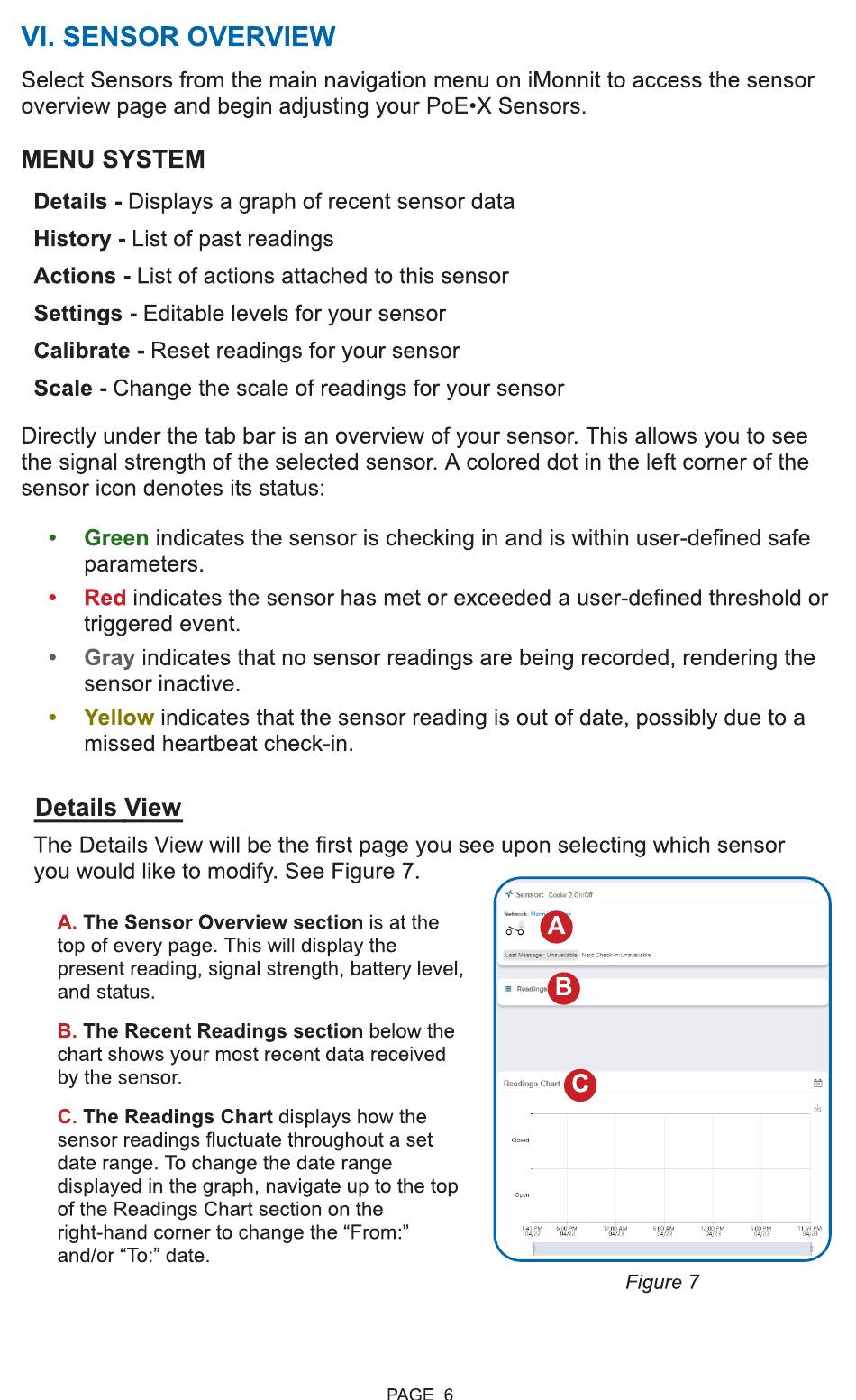

VI. SENSOR OVERVIEW
Select Sensors from the main navigation menu on iMonnit to access the sensor
overview page and begin adjusting your PoE-X Sensors.
MENU SYSTEM
Details - Displays a graph of recent sensor data
History - List of past readings
Actions - List of actions attached to this sensor
Settings - Editable levels for your sensor
Calibrate - Reset readings for your sensor
Scale - Change the scale of readings for your sensor
Directly under the tab bar is an overview of your sensor. This allows you to see
the signal strength of the selected sensor. A colored dot in the left corner of the
sensor icon denotes its status:
- Green indicates the sensor is checking in and is within user-defined safe
parameters.
- Red indicates the sensor has met or exceeded a user-defined threshold or
triggered event.
- Gray indicates that no sensor readings are being recorded, rendering the
sensor inactive.
- Yellow indicates that the sensor reading is out of date, possibly due to a
missed heartbeat check-in.
Details View
The Details View will be the first page you see upon selecting which sensor
you would like to modify. See Figure 7.
PAGE 6
A. The Sensor Overview section is at the
top of every page. This will display the
present reading, signal strength, battery level,
and status.
B. The Recent Readings section below the
chart shows your most recent data received
by the sensor.
C. The Readings Chart displays how the
sensor readings fluctuate throughout a set
date range. To change the date range
displayed in the graph, navigate up to the top
of the Readings Chart section on the
right-hand corner to change the ? From:?
and/or ? To:? date.
Figure 7
A
B
C
