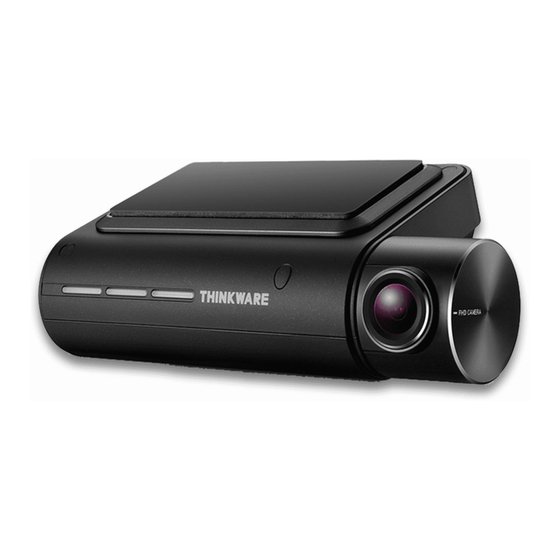

Thinkware F800pro User Manual

Dashboard camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Guide
This product records videos while the vehicle is operating.
Read and follow the instructions in this guide to properly use and maintain the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F800pro and is the answer not in the manual?

Questions and answers

Related Manuals for Thinkware F800pro

Summary of Contents for Thinkware F800pro

  • Page 1 User Guide This product records videos while the vehicle is operating. Read and follow the instructions in this guide to properly use and maintain the product.
  • Page 2 THINKWARE is not responsible for any loss caused by an accident, nor is it responsible for providing any support regarding the outcome of an accident.
  • Page 3 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 4: Table Of Contents

    Contents Safety information 5. Using the PC viewer 5.1 System requirements 1. Product overview 5.2 Installing the PC viewer 1.1 Included items 5.3 PC viewer screen layout 1.1.1 Standard items 5.4 Playing recorded videos on the PC viewer 1.1.2 Accessories (sold separately) 5.5 Video control menu overview 1.2 Part names 1.2.1 Front camera (main unit) - front view...
  • Page 5 6.4.5 Setting the lane departure warning sensitivity 6.4.6 Setting the lane departure detection speed 6.4.7 Setting the forward collision detection sensitivity 6.4.8 Setting the low speed forward collision detection sensitivity 6.4.9 Setting front vehicle departure warning 35 6.5 Configuring the system settings 6.5.1 Setting the display language 6.5.2 Adjusting the system volume 6.5.3 Setting the Security LED...

  • Page 6: Safety Information

    Safety information Read the following safety information to properly use the product. Safety symbols in this guide "Warning" - Indicates a potential hazard which, if not avoided, may result in injury or death. "Caution" - Indicates a potential hazard which, if not avoided, may result in minor injury or property damage. "Note"...
  • Page 7 • Do not modify or cut the power cable. Also, do not place heavy objects on the power cable or pull, insert, or bend the power cable using excessive force. Doing so may result in electrical fire or electrocution. • Use only genuine accessories from THINKWARE or an authorized THINKWARE dealer. THINKWARE does not guarantee compatibility and normal operation of third-party accessories.
  • Page 8 • THINKWARE is NOT responsible for the loss of any recorded video during operation. • Although the device was designed to withstand high-impact car collisions, THINKWARE does not guarantee the recording of accidents when the device is damaged as a result of the accident.

  • Page 9: Product Overview

    1. Product overview 1.1 Included items Ensure that all the items are included when you open the product box. 1.1.1 Standard items Front camera (main unit) Mount Car charger Adhesive cable holder MicroSD memory card Quick start guide & Warranty USB MicroSD card reader with adapter / CS information / User guide...

  • Page 10: Part Names

    Product overview 1.2 Part names 1.2.1 Front camera (main unit) - front view Voice recording button Press to enable or disable voice recording. GPS LED Manual recording button Indicates the GPS Press to start manual recording. connection status. Format button Press and hold to Recording LED format the memory...

  • Page 11: Front Camera (Main Unit) - Rear View

    Product overview 1.2.2 Front camera (main unit) - rear view Microphone Used for voice recording. Memory card slot Insert a memory card to save recordings. Reset button Insert the tip of a sharp object to reset the product when an error occurs.

  • Page 12: Removing And Inserting The Memory Card

    • Ensure that the memory card is in the correct direction before inserting it into the product. The memory card slot or the memory card may be damaged if it is inserted incorrectly. • Use only authentic memory cards from THINKWARE. THINKWARE does not guarantee compatibility and normal operation of third-party memory cards.

  • Page 13: Installing The Product

    2. Installing the product 2.1 Installing the front camera (main unit) Follow the instructions to properly install the product. 2.1.1 Selecting an installation location Select an installation location that can record the entire view in front of the vehicle without obstructing the driver’s vision.
  • Page 14 Installing the product Remove the protective film from the adhesive mount, and then press the mount to the installation location. Remove the product from the mount and push the mount against the windshield to ensure that the mount is firmly fixed. Align the product to the mount, and then slide it into the locking position until you hear a click.

  • Page 15: Connecting The Power Cable

    The location and specifications of the power socket may differ by vehicle make and model. • Use the authentic THINKWARE car charger. Use of third party power cables may damage the product and result in electrical fire or electrocution due to the voltage difference.

  • Page 16: Installing The Rear Camera (Optional)

    Installing the product 2.2 Installing the rear camera (optional) Refer to the following instructions to properly install the rear camera. 2.2.1 Selecting an installation location Select a location on the rear windshield where there is no defrost grid wire and the camera can record the entire rear view.

  • Page 17: Securing The Rear Camera

    Remove the protective film from the adhesive mount and camera lens. Attach the product with the THINKWARE logo facing indoors and press the adhesive tape firmly to secure the camera. If the product is fixed in reverse, the rear view will be recorded upside down.

  • Page 18: Connecting The Rear Camera Cable

    Installing the product 2.2.3 Connecting the rear camera cable Power off the product and connect the rear camera cable to the front camera (main unit). Connect one end of the rear camera cable to the front camera’s V-IN port. Connect the other end of the rear camera cable to the rear camera's connection port.

  • Page 19: Using Recording Features

    3. Using recording features 3.1 Turning the product on or off The product is turned on automatically and continuous recording starts when you turn on the ACC or start the engine. Wait until the product is completely booted up after turning it on, and then begin operating the vehicle. The video recording does not begin until the product is completely turned on (booted up).

  • Page 20: Recording Manually

    Using recording features During continuous recording, the product operates as follows. Mode Operation description Recording LED (REC) Continuous During driving, videos are recorded in 1 minute segments and stored (light on) recording in the "cont_rec" folder. Incident When an impact to the vehicle is detected, a video is recorded for 20 continuous seconds, from 10 seconds before the detection to 10 seconds after (flickers)
  • Page 21 Using recording features If you do not want to use parking mode or you want to change the mode settings, from the mobile viewer, click Dash Cam Settings Record Settings. > Refer to the following table to set the Parking Mode options. Option Operation description Recording LED (REC)

  • Page 22: Using The Mobile Viewer

    • iOS 7.0 or higher 4.1 Connect the product to a smartphone On your smartphone, run Play Store or App store, and download and install THINKWARE CLOUD. Run THINKWARE CLOUD. Tap Dash cam connection is required. at the bottom of the screen and follow the on-screen instructions to connect the product to an smartphone.

  • Page 23: Playing Recorded Videos On The Mobile Viewer

    On your smartphone, run the Thinkware Cloud application and connect the product to the smartphone. From the home screen of the mobile viewer, tap File List. The categories will be displayed.

  • Page 24: Using The Pc Viewer

    Insert the memory card into a memory card reader connected to your PC. Run the installation file, and complete the installation according to the instructions given in the installation wizard. After the installation is complete, there will be a shortcut icon to THINKWARE Dashcam Viewer.

  • Page 25: Pc Viewer Screen Layout

    Move the file named "Dashcam Viewer.zip" to the desktop. Right-click the Dashcam Viewer.zip and click Open With > Archive Utility. The THINKWARE Dashcam Viewer opens. 5.3 PC viewer screen layout The following provides brief information about the PC viewer's screen layout.

  • Page 26: Playing Recorded Videos On The Pc Viewer

    Using the PC viewer 5.4 Playing recorded videos on the PC viewer Follow the instructions to play recorded videos. Turn off the product and remove the memory card. Insert the memory card into a memory card reader connected to your PC. Double-click the shortcut to the PC viewer ( ) to open the program.

  • Page 27: Video Control Menu Overview

    Using the PC viewer 5.5 Video control menu overview The following provides brief information about the PC viewer's video control menu. ➐ ➑ ➒ ➓ ➊ ➋ ➌ ➍ ➎ ➏ Number Item Description Play the previous file Play the previous file in the currently selected folder. ➊...

  • Page 28: Settings

    6. Settings You can set the product features according to your needs to your needs and preferences using the mobile viewer or the PC viewer. The following procedures are based on the mobile viewer. The product will stop recording while configuring settings on the mobile viewer. 6.1 Managing the memory card 6.1.1 Partitioning the memory card You can partition the memory card to adjust the storage space for different types of video recordings.

  • Page 29: Setting The Camera

    Settings 6.2 Setting the camera You can adjust the brightness of the front and rear view or reverse left and right of the rear view. 6.2.1 Setting the brightness of the front camera You can set the brightness of the front view recording. Refer to the following instructions to set the brightness.

  • Page 30: Setting Recording Features

    Settings 6.3 Setting recording features You can set and adjust various features for recording, including the detection sensitivity for recording when the product detects an impact during continuous recording. 6.3.1 Setting the continuous impact detection sensitivity You can set the detection sensitivity for recording when an impact is detected while driving. When you set the sensitivity, you must consider the road conditions, traffic situation, and your driving style.

  • Page 31: Setting The Impact Sensitivity In Parking Mode

    Settings 6.3.4 Setting the impact sensitivity in parking mode You can set the detection sensitivity for recording when impact is detected while parking. Refer to the following instructions to set the parking impact sensitivity. From the mobile viewer, tap Dash Cam Settings Record Settings.

  • Page 32: Setting The Battery Protection Feature

    Settings 6.3.7 Setting the battery protection feature You can set to use the battery protection feature. Follow the instructions to activate the feature. From the mobile viewer, tap Dash Cam Settings Record Settings. > From Battery Protection, select Enabled or Disabled. The new setting is applied automatically. 6.3.8 Setting the battery cutoff voltage feature You can set the voltage limit to stop recording at when using the Low Voltage Off feature.

  • Page 33: Setting Road Safety Features

    Settings 6.4 Setting road safety features You can activate or deactivate a safety camera alert system, a lane departure warning system (LDWS), a forward collision warning system (FCWS), a low speed Forward collision warning system (low speed FCWS), and a front vehicle departure warning (FVDW) and set their options. 6.4.1 Setting the safety cameras When the vehicle approaches or passes the speed limit zone, the safety camera alert system will collect GPS signals and safety camera data.

  • Page 34: Setting The Lane Departure Warning Sensitivity

    Settings 6.4.5 Setting the lane departure warning sensitivity When the vehicle departs its lane, the LDWS will detect the lane departure via the real-time video image and warn the driver. Refer to the following instructions to set the detection sensitivity or activate or deactivate this feature.

  • Page 35: Setting Front Vehicle Departure Warning

    Settings 6.4.9 Setting front vehicle departure warning When the vehicle is stopped in traffic, this feature will detect the departure of the vehicle in front and notify the driver. Refer to the following instructions to enable or disable this feature. From the mobile viewer, tap Dash Cam Settings Road Safety Settings.

  • Page 36: Setting The Rear Camera Led

    Settings 6.5.4 Setting the rear camera LED Follow the instructions to turn on or off the rear camera LED. From the mobile viewer, tap Dash Cam Settings System Settings. > From Rear Camera LED, select Enabled or Disabled. The new setting is applied automatically. 6.5.5 Setting the time zone Follow the instructions to set the time zone.

  • Page 37: Accessing The Product Information

    7. Accessing the product information New users may benefit from the basic product information that can be accessed from the Menu screen. 7.1 Viewing the product information From the mobile viewer, tap Dash Cam Info to view product information. The following product information will be displayed on the screen.

  • Page 38: Upgrading The Firmware

    Follow the instructions to upgrade the firmware. On your PC, open a web browser and go to http://www.thinkware.com/Support/Download. Select the product and download the latest firmware upgrade file.

  • Page 39: Troubleshooting

    • Ensure that the memory card is an authentic product distributed by THINKWARE. THINKWARE does not guarantee compatibility and normal operation of third-party memory cards. The recorded video cannot be The recorded videos are stored as MP4 video files. Ensure that the video player played on a PC.

  • Page 40: Specifications

    10. Specifications To see the product specifications, refer to the following table. Item Specification Remarks Model name F800 PRO 107 x 60.5 x 30 mm / 104.5 g Dimensions / Weight 4.2 x 2.4x 1.18 inch /0.23 lb Memory microSD memory card 16 GB, 32 GB, 64 GB, 128 GB (UHS-I) Records videos in 1-minute segments (dual Continuous Rec...
  • Page 41 Specifications Item Specification Remarks Operating temperature 14 – 140℉ / -10 – 60℃ Storage temperature -4 – 158℉ / -20 – 70℃ Connection Interface 1 x V-IN port...
  • Page 42 Every product requested for repair is regarded as a device that has had its data backed up. The customer service center does not back up your data. THINKWARE is not responsible for any loss, such as data loss.
  • Page 43 Ver. 1.0 (Jul. 2017)
