User Guide
This product records videos while the vehicle is operating.
Read and follow the instructions in this guide to properly use and maintain the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F100 and is the answer not in the manual?

Questions and answers

Related Manuals for Thinkware F100

Summary of Contents for Thinkware F100

  • Page 1 User Guide This product records videos while the vehicle is operating. Read and follow the instructions in this guide to properly use and maintain the product.
  • Page 2 THINKWARE is not responsible for any loss caused by an accident, nor is it responsible for providing any support regarding the outcome of an accident.

  • Page 3: Fcc Statement

    FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 4: Table Of Contents

    Contents Safety information 5. Settings 5.1 Managing the memory card 1. Product overview 5.1.1 Partitioning the memory card 1.1 Included items 5.1.2 Formatting the memory card 5.1.3 Configuring the video overwriting 1.1.1 Standard items function 1.1.2 Accessories (sold separately) 5.2 Setting recording features 1.2 Part names 5.2.1 Setting the continuous impact 1.2.1 Front camera (main unit) - front view...

  • Page 5: Safety Information

    Safety information Read the following safety information to properly use the product. Safety symbols in this guide "Warning" - Indicates a potential hazard which, if not avoided, may result in injury or death. "Caution" - Indicates a potential hazard which, if not avoided, may result in minor injury or property damage. "Note"...
  • Page 6 • Do not modify or cut the power cable. Also, do not place heavy objects on the power cable or pull, insert, or bend the power cable using excessive force. Doing so may result in electrical fire or electrocution. • Use only genuine accessories from THINKWARE or an authorized THINKWARE dealer. THINKWARE does not guarantee compatibility and normal operation of third-party accessories.
  • Page 7 • THINKWARE is NOT responsible for the loss of any recorded video during operation. • Although the device was designed to withstand high-impact car collisions, THINKWARE does not guarantee the recording of accidents when the device is damaged as a result of the accident.

  • Page 8: Product Overview

    1. Product overview 1.1 Included items Ensure that all the items are included when you open the product box. 1.1.1 Standard items Front camera (main unit) Mount Car charger Adhesive cable holder MicroSD memory card Quick start guide & Warranty with adapter / CS information / User guide (consumable)

  • Page 9: Part Names

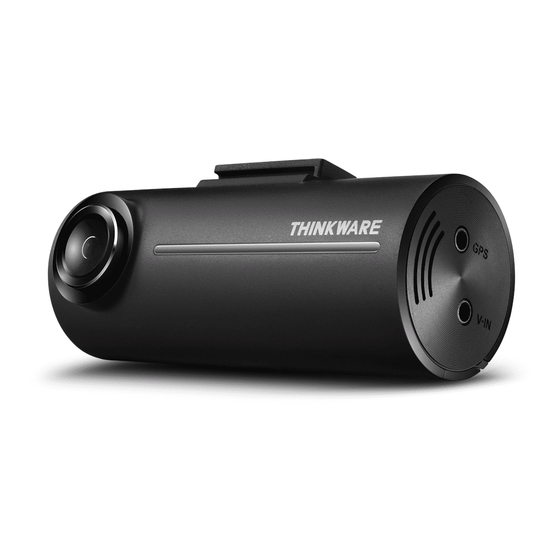

    Product overview 1.2 Part names 1.2.1 Front camera (main unit) - front view Mount connector Used to connect the mount. DC-IN power port Used to connect the power cable. Front camera lens Records the front view. GPS port Used to connect the external GPS receiver (optional) for additional features.

  • Page 10: Front Camera (Main Unit) - Rear View

    Product overview 1.2.2 Front camera (main unit) - rear view Speaker Outputs the voice guide and buzzer sounds to indicate the product’s status. REC button • Short Press: Starts manual recording • Press and hold for 3 seconds: Audio recording ON/OFF • Press and hold for 5 seconds: Memory card format Microphone...

  • Page 11: Removing And Inserting The Memory Card

    • Ensure that the memory card is in the correct direction before inserting it into the product. The memory card slot or the memory card may be damaged if it is inserted incorrectly. • Use only authentic memory cards from THINKWARE. THINKWARE does not guarantee compatibility and normal operation of third-party memory cards.

  • Page 12: Installing The Product

    2. Installing the product 2.1 Installing the front camera (main unit) Follow the instructions to properly install the product. 2.1.1 Selecting an installation location Select an installation location that can record the entire view in front of the vehicle without obstructing the driver’s vision.
  • Page 13 Installing the product Remove the protective film from the adhesive mount, and then press the mount to the installation location. Remove the product from the mount and push the mount against the windshield to ensure that the mount is firmly fixed. Align the product to the mount, and then slide it into the locking position until you hear a click.

  • Page 14: Connecting The Power Cable

    The location and specifications of the power socket may differ by vehicle make and model. • Use the authentic THINKWARE car charger. Use of third party power cables may damage the product and result in electrical fire or electrocution due to the voltage difference.

  • Page 15: Installing The Rear Camera (Optional)

    Installing the product 2.2 Installing the rear camera (optional) Refer to the following instructions to properly install the rear camera. 2.2.1 Selecting an installation location Select a location on the rear windshield where there is no defrost grid wire and the camera can record the entire rear view.

  • Page 16: Securing The Rear Camera

    Remove the protective film from the adhesive mount and camera lens. Attach the product with the THINKWARE logo facing the rear windshield and press the adhesive tape firmly to secure the camera. If the product is fixed in reverse, the rear view will be recorded upside down.

  • Page 17: Connecting The Rear Camera Cable

    Installing the product 2.2.3 Connecting the rear camera cable Power off the product and connect the rear camera cable to the front camera (main unit). Connect one end of the rear camera cable to the front camera’s V-IN port. Connect the other end of the rear camera cable to the rear camera's connection port.

  • Page 18: Installing The External Gps Receiver (Optional)

    Installing the product 2.3 Installing the external GPS receiver (optional) To activate the safety camera feature or record driving information (the speed and location), follow the instructions and install the external GPS receiver on the upper part of the front windshield. Install the external GPS receiver near the product, taking the receiver's cable length into account.

  • Page 19: Using Recording Features

    3. Using recording features 3.1 Turning the product on or off The product is turned on automatically and continuous recording starts when you turn on the ACC or start the engine. Wait until the product is completely booted up after turning it on, and then begin operating the vehicle. The video recording does not begin until the product is completely turned on (booted up).

  • Page 20: Recording Manually

    Using recording features • Wait until the product is completely booted up after turning it on, and then begin operating the vehicle. The video recording does not begin until the product is completely turned on (booted up). • When incident continuous recording starts, the buzzer sounds as a notification. This function saves you time when checking the status LED to know the operating status of the product.

  • Page 21: Checking The Video File Storage Location

    Using recording features 3.5.1 Checking the video file storage location You can insert the memory card used for recording into a PC to check the video file storage location. Also, you can play the videos on a PC using the PC viewer. For more information about how to play videos via the PC viewer, refer to "4.

  • Page 22: Using The Pc Viewer

    Insert the memory card into a memory card reader connected to your PC. Run the installation file, and complete the installation according to the instructions given in the installation wizard. After the installation is complete, there will be a shortcut icon to THINKWARE Dashcam Viewer.

  • Page 23: Pc Viewer Screen Layout

    Move the file named "Dashcam Viewer.zip" to the desktop. Right-click the Dashcam Viewer.zip and click Open With > Archive Utility. The THINKWARE Dashcam Viewer opens. 4.3 PC viewer screen layout The following provides brief information about the PC viewer's screen layout.

  • Page 24: Playing Recorded Videos On The Pc Viewer

    Using the PC viewer 4.4 Playing recorded videos on the PC viewer Follow the instructions to play recorded videos. Turn off the product and remove the memory card. Insert the memory card into a memory card reader connected to your PC. Double-click the shortcut to the PC viewer ( ) to open the program.

  • Page 25: Video Control Menu Overview

    Using the PC viewer 4.5 Video control menu overview The following provides brief information about the PC viewer's video control menu. ➐ ➑ ➒ ➓ ➊ ➋ ➌ ➍ ➎ ➏ Number Item Description Play the previous file Play the previous file in the currently selected folder. ➊...

  • Page 26: Settings

    5. Settings You can set the product features according to your needs and preferences using the PC Viewer. 5.1 Managing the memory card 5.1.1 Partitioning the memory card You can partition the memory card to adjust the storage space for different types of video recordings. Refer to the following instructions to partition the memory card.

  • Page 27: Setting Recording Features

    Settings 5.2 Setting recording features You can set and adjust various features for recording, including the detection sensitivity for recording when the product detects an impact during continuous recording. 5.2.1 Setting the continuous impact detection sensitivity You can set the detection sensitivity for recording when an impact is detected while driving. When you set the sensitivity, you must consider the road conditions, traffic situation, and your driving style.

  • Page 28: Setting Parking Mode

    Settings 5.2.3 Setting parking mode You can set the operating mode of the product while the vehicle is parked. Follow the instructions to set parking mode. To use parking mode, you must install the hardwiring cable (optional). If continuous power is not supplied to the product, the product will stop recording when the vehicle engine is turned off.

  • Page 29: Setting The Record Timer Feature

    If you have installed the hardwiring cable to record the video for an extended period during parking, connect the authentic THINKWARE external dashcam battery. 5.2.7 Setting the battery cutoff voltage feature You can set the voltage limit to stop recording at when using the Low Voltage Off feature.

  • Page 30: Configuring The System Settings

    Settings 5.3 Configuring the system settings This menu allows you to configure the hardware settings that are globally applied to the system during operation, such as the display language and screen brightness. 5.3.1 Setting the display language Select a language (English, French, or Spanish) to display on the screen. Follow the instructions to select a language.

  • Page 31: Setting The Date And Time

    Settings 5.3.4 Setting the date and time Follow the instructions to set the date and time. From the PC Viewer, click Settings Dashcam Setting System Settings. > > From Date / Time, select the checkbox and set the date and time. To get the current date and time automatically from your PC, click Get Current Time.

  • Page 32: Setting The Safety Cameras

    Settings 5.3.8 Setting the safety cameras When the vehicle approaches or passes the speed limit zone, the safety camera alert system will collect GPS signals and safety camera data. Refer to the following instructions to enable or disable this feature. From the PC Viewer, click Settings Dashcam Setting System Settings.

  • Page 33: Upgrading The Firmware

    Follow the instructions to upgrade the firmware. On your PC, open a web browser and go to http://www.thinkware.com/Support/Download. Select the product and download the latest firmware upgrade file.

  • Page 34: Troubleshooting

    • Ensure that the memory card is an authentic product distributed by THINKWARE. THINKWARE does not guarantee compatibility and normal operation of third-party memory cards. The recorded video cannot be The recorded videos are stored as MP4 video files. Ensure that the video player played on a PC.

  • Page 35: Specifications

    8. Specifications To see the product specifications, refer to the following table. Item Specification Remarks Model name F100 78 x 34.6 x 31.5 mm / 42.4 g Dimensions / Weight 3.1 x 1.4x 1.2 inch /0.1 lb Memory microSD memory card...
  • Page 36 Every product requested for repair is regarded as a device that has had its data backed up. The customer service center does not back up your data. THINKWARE is not responsible for any loss, such as data loss.
  • Page 37 Ver. 1.0 (Mar. 2017)
