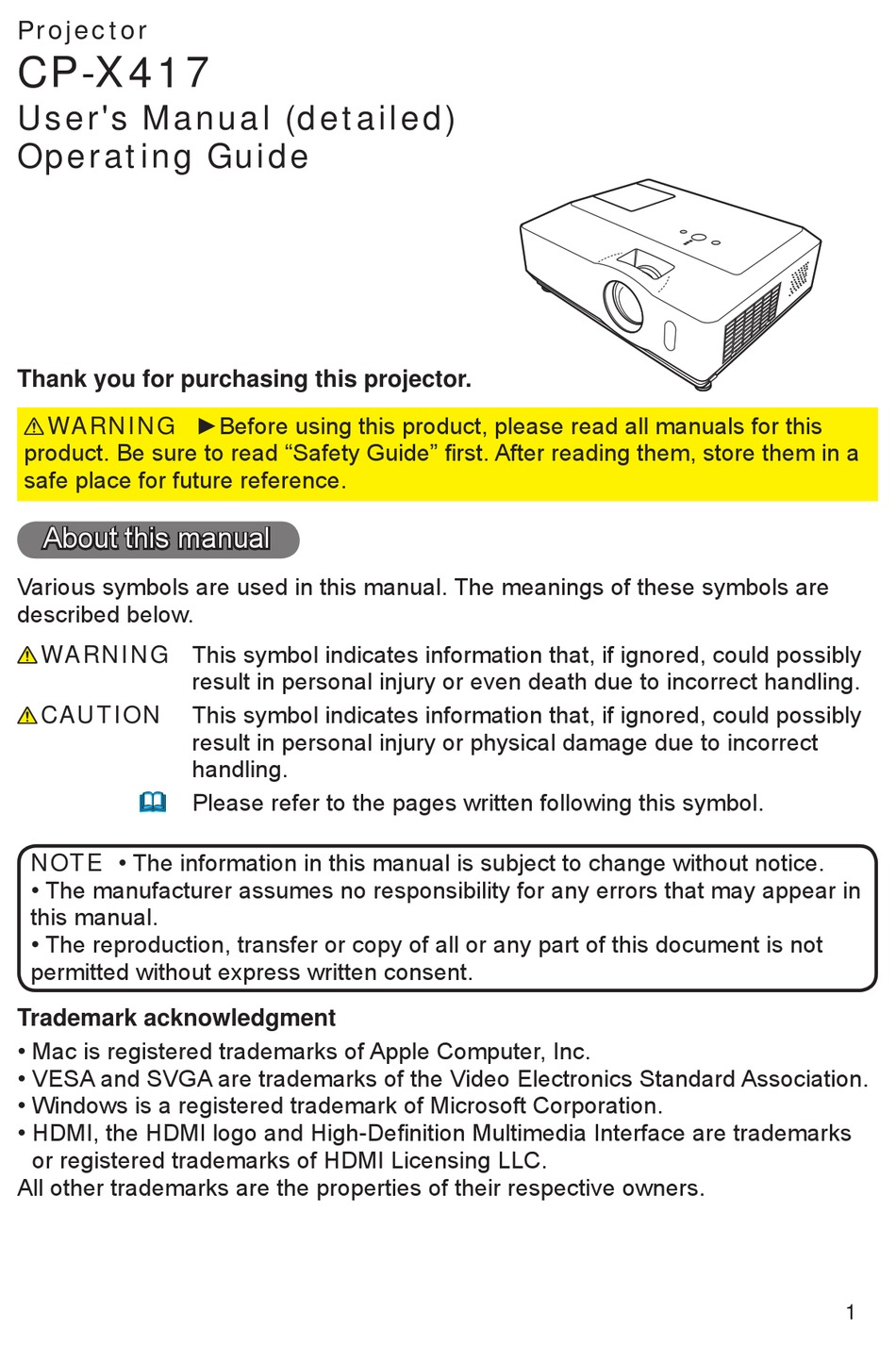

Projector
CP-X417
User's Manual (detailed)
Operating Guide
Thank you for purchasing this projector.
WARNING
product. Be sure to read "Safety Guide" first. After reading them, store them in a
safe place for future reference.

About this manual

Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING
CAUTION
NOTE
• The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
Trademark acknowledgment
• Mac is registered trademarks of Apple Computer, Inc.
• VESA and SVGA are trademarks of the Video Electronics Standard Association.
• Windows is a registered trademark of Microsoft Corporation.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing LLC.
All other trademarks are the properties of their respective owners.
►Before using this product, please read all manuals for this
This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.
This symbol indicates information that, if ignored, could possibly
result in personal injury or physical damage due to incorrect
handling.
Please refer to the pages written following this symbol.


Advertisement

Table of Contents
loading

Related Manuals for Hitachi CP-X417

Summary of Contents for Hitachi CP-X417

  • Page 1: About This Manual

    Projector CP-X417 User's Manual (detailed) Operating Guide Thank you for purchasing this projector. WARNING ►Before using this product, please read all manuals for this product. Be sure to read “Safety Guide” first. After reading them, store them in a safe place for future reference.

  • Page 2: Table Of Contents

    Contents Contents   About this manual . . . . . . . . . . . 1 PICTURE menu . . . . . . . . . . . . 27 Contents .

  • Page 3: Projector Features

    Projector features / Preparations Projector features This product realizes the large projection image of various image signals, even if in a small space. This product also can offer you convenience and various uses by the following features. ü It is possible to project the images from an SD memory card or USB memory by the PC-LESS Presentation function of this projector.

  • Page 4: Part Names

    Part names Part names (2) (3) HOT! Projector (1) Lamp cover (64). The lamp unit is inside. (2) Focus ring (19) (3) Zoom ring (19) (11) (4) Control panel (5) (5) Elevator buttons (x 2) (19) (10) (6) Elevator feet (x 2) (19) (7) Remote sensor (14) (8) Lens (16, 69) (9) Lens cover (3)

  • Page 5: Control Panel

    Part names Control panel (1) STANDBY/ON button (16) (2) INPUT button (17, 23) (3) MENU button (23) It consists of four cursor buttons. (4) POWER indicator (16, 71) (5) TEMP indicator (71) (6) LAMP indicator (71) Rear panel (1) AUDIO IN1 port (9) (10) COMPONENT (2) AUDIO IN2 port (9) (Y, Cb/Pb, Cr/Pr) ports (9)

  • Page 6: Remote Control

    Part names Remote control (1) VIDEO button (18) (2) COMPUTER button (17) COMPUTER VIDEO SEARCH (3) SEARCH button (18) (10) ASPECT AUTO BLANK (4) STANDBY/ON button (16) (12) MAGNIFY PAGE UP VOLUME HOME (5) ASPECT button (18) (14) (6) AUTO button (20) PAGE DOWN MUTE (11)

  • Page 7: Setting Up

    Setting up Setting up Install the projector according to the environment and manner the projector will be used in. Arrangement Refer to the illustrations and tables below to determine screen size and projection distance. The values shown in the table are calculated for a full size screen: 1024×768 a Screen size (diagonal) b Projection distance (±10%) c1 , c2 Screen height (±10%)
  • Page 8 Setting up Arrangement (continued) WARNING ►Place the projector in a stable horizontal position. If the projector falls or is knocked over it could cause injury and/or damage to the projector. Using a damaged projector could then result in fire and/or electric shock.

  • Page 9: Connecting Your Devices

    Setting up Connecting your devices Be sure to read the manuals for devices before connecting them to the projector. Make sure that all the devices are suitable to be connected with this product, and prepare the cables required to connect. Please refer to the following illustrations to connect them.
  • Page 10 Setting up Connecting your devices (continued) To use MIU (Multi Information processing Unit) function, please connect at least one of the devices drawn in the following illustration to the projector. USB storage SD card WARNING ►Do not disassemble or modify the projector and accessories. ►Be careful not to damage the cables, and do not use damaged cables.
  • Page 11 Setting up Connecting your devices (continued) NOTE • Be sure to read the manuals for devices before connecting them to the projector, and make sure that all the devices are suitable to be connected with this product. Before connecting to a PC, check the signal level, the signal timing, and the resolution. - Be sure to consult to the administrator of the network.

  • Page 12: Using A Usb Storage

    Setting up Connecting your devices (continued) Using a USB storage In order to view images stored in a USB storage, such as a USB memory, insert the device into the USB STORAGE slot. Before removing the USB storage, be sure to perform the REMOVE MEDIA procedure using the PC-LESS PRESENTATION menu under the MIU menu.

  • Page 13: Connecting Power Supply

    Setting up Connecting power supply At first, make sure that the power switch of the projector is set to OFF position (marked "O"). Put the connector of the power cord into the AC inlet of the projector. Firmly plug the power cord’s plug into the outlet.

  • Page 14: Remote Control

    Holding the hook part of the battery cover, remove it. Align and insert the two AA batteries (HITACHI MAXELL, Part No.LR6 or R6P) according to their plus and minus terminals as indicated in the remote control. Replace the battery cover in the direction of the arrow and snap it back into place.

  • Page 15: Changing The Frequency Of Remote Control Signal

    Remote control Changing the frequency of remote control signal The accessory remote control has the two choices on signal frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote control COMPUTER VIDEO SEARCH does not function properly, attempt to change the signal frequency. ASPECT AUTO BLANK...

  • Page 16: Power On/Off

    Power on/off Power on/off Turning on the power STANDBY/ON button POWER indicator Make sure that the power cord is firmly and correctly connected to the projector and the outlet. Remove the lens cover, and set the power switch to ON position (marked “ I ”). The POWER indicator will light up in steady orange (71).

  • Page 17: Operating

    Operating VOLUME button Operating Adjusting the volume COMPUTER VIDEO SEARCH BLANK ASPECT AUTO Press VOLUME button on the remote control. MAGNIFY HOME PAGE UP VOLUME A dialog will appear on the screen to aid you in adjusting the volume. PAGE DOWN MUTE Use the ▲/▼...

  • Page 18: Searching An Input Signal

    Operating VIDEO button Selecting an input signal (continued) Press VIDEO button on the remote control. Each time you press the button, the projector switches its input COMPUTER VIDEO SEARCH port from the current port as below. ASPECT AUTO BLANK MAGNIFY PAGE UP HOME VOLUME...

  • Page 19: Adjusting The Projector's Elevator

    Operating Adjusting the projector's elevator When the place to put the projector is slightly uneven to the left or right, use the elevator feet to place the projector horizontally. Using the feet can also tilt the projector in order to project at a suitable angle to the screen, elevating the front side of the projector within 10 degrees.

  • Page 20: Using The Automatic Adjustment Feature

    Operating Using the automatic adjustment feature Press AUTO button on the remote control. AUTO button Pressing this button performs the following.  For a computer signal or MIU signal COMPUTER VIDEO SEARCH The vertical position, the horizontal position and the BLANK ASPECT AUTO...

  • Page 21: Correcting The Keystone Distortions

    Operating COMPUTER VIDEO SEARCH Correcting the keystone distortions KEYSTONE button BLANK ASPECT AUTO MAGNIFY HOME PAGE UP VOLUME Press KEYSTONE button on the remote PAGE DOWN MUTE control. A dialog will appear on the screen to aid you in correcting the distortion. FREEZE MY BUTTON KEYSTONE...

  • Page 22: Freezing The Screen

    Operating Freezing the screen FREEZE button Press the FREEZE button on the remote control. The “FREEZE” indication will appear on the screen (however, COMPUTER the indication will not appear when the TURN OFF is selected VIDEO SEARCH ASPECT AUTO BLANK for the MESSAGE item in the SCREEN menu (41)), and MAGNIFY PAGE UP...

  • Page 23: Using The Menu Function

    Operating Using the menu function This projector has the following menus: PICTURE, IMAGE, INPUT, SETUP, SCREEN, OPTION, MIU, C.C. and EASY MENU. EASY MENU consists of functions often used, and the other menus are classified into each purpose and brought together as the Advanced Menu. COMPUTER VIDEO SEARCH...
  • Page 24 Operating Using the menu function (continued) In the Advanced Menu Use the ▲/▼ cursor buttons to select a menu. If you want to change it to the EASY MENU, select EASY MENU. Then press the ► cursor button, or ENTER button to select an item.

  • Page 25: Easy Menu

    EASY MENU EASY MENU From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table. Item Description Using the ◄/► buttons switches the mode for aspect ratio. ASPECT See the ASPECT item in IMAGE menu ( ...

  • Page 26: Filter Time

    EASY MENU EASY MENU (continued) Item Description Using the ◄/► buttons adjusts the brightness. BRIGHTNESS See BRIGHTNESS item in PICTURE menu (27). Using the ◄/► buttons adjusts the contrast. CONTRAST See CONTRAST item in PICTURE menu (27). Using the ◄/► buttons adjusts the strength of whole color. COLOR See COLOR item in PICTURE menu (28).

  • Page 27: Picture Menu

    PICTURE menu PICTURE menu From the PICTURE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. Item Description Using the ▲/▼...
  • Page 28 PICTURE menu PICTURE menu (continued) Item Description Using the ▲/▼ buttons switches the color temperature mode. #1 HIGH DEFAULT � #1 HIGH CUSTOM � #2 MID DEFAULT � � #2 MID CUSTOM #6 Hi-BRIGHT-3 CUSTOM � � #3 LOW DEFAULT #6 Hi-BRIGHT-3 DEFAULT �...
  • Page 29 PICTURE menu PICTURE menu (continued) Item Description Using the ▲/▼ buttons adjusts the sharpness. Strong ó Weak SHARPNESS • There may be some noise and/or the screen may flicker for a moment when an adjustment is made. This is not a malfunction. This projector has 4 memories for adjustment data (for all the items of PICTURE menu).

  • Page 30: Image Menu

    IMAGE menu IMAGE menu From the IMAGE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. Item Description Using the ▲/▼...
  • Page 31 IMAGE menu IMAGE menu (continued) Item Description Using the ▲/▼ buttons adjusts the horizontal position. Left ó Right • The H POSITION can not be adjusted for signals from the HDMI port. • Over-adjusting the horizontal position may cause noise to appear on the screen.

  • Page 32: Input Menu

    INPUT menu INPUT menu From the INPUT menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.
  • Page 33 INPUT menu INPUT menu (continued) Item Description The video format for S-VIDEO port and VIDEO port can be set. (1) Use the ◄/► buttons to select the input port. (2) Using the ▲/▼ buttons switches the mode for video format. AUTO ó...
  • Page 34 INPUT menu INPUT menu (continued) Item Description The resolution for the COMPUTER IN1 and IN2 input signals can be set on this projector. (1) In the INPUT menu select the RESOLUTION using the ▲/▼ buttons and press the ► button. The RESOLUTION menu will be displayed.

  • Page 35: Setup Menu

    SETUP menu SETUP menu From the SETUP menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or the ENTER button to execute the item. Then perform it according to the following table. Item Description Selecting this item performs the automatic keystone distortion...
  • Page 36 SETUP menu SETUP menu (continued) Item Description Using the ▲/▼ buttons turns off/on the whisper mode. NORMAL ó WHISPER WHISPER • When WHISPER is selected, acoustic noise and screen brightness are reduced. Using the ▲/▼ buttons switches the mode for mirror status. NORMAL ó...
  • Page 37 SETUP menu SETUP menu (continued) Item Description Allocates the audio ports. (1) Choose a picture input port using the ▲/▼ buttons. QUIT ó COMPUTER (IN)1 ó COMPUTER (IN)2 VIDEO ó S-VIDEO ó COMPONENT ó MIU ó HDMI (2) Select the audio port to be interlocked with the input port using the ◄/►...

  • Page 38: Screen Menu

    SCREEN menu SCREEN menu From the SCREEN menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. Item Description Using the ▲/▼...
  • Page 39 SCREEN menu SCREEN menu (continued) Item Description Using the ▲/▼ buttons switches the mode for the start-up screen. The start-up screen is a screen displayed when no signal or an unsuitable signal is detected. MyScreen ó ORIGINAL ó TURN OFF Feature Screen can be registered by the MyScreen item MyScreen...
  • Page 40 SCREEN menu SCREEN menu (continued) Item Description This item allows you to capture an image for use as a MyScreen image which can be used as the BLANK screen and START UP screen. Display the image you want to capture before executing the following procedure.
  • Page 41 SCREEN menu SCREEN menu (continued) Item Description Using the ▲/▼ buttons turns on/off the message function. TURN ON ó TURN OFF When the TURN ON is selected, the following message function works. “AUTO IN PROGRESS” while automatically adjusting “NO INPUT IS DETECTED” “SYNC IS OUT OF RANGE”...

  • Page 42: Option Menu

    OPTION menu OPTION menu From the OPTION menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item, except for the items LAMP TIME and FILTER TIME. Then perform it according to the following table.
  • Page 43 OPTION menu OPTION menu (continued) Item Description Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off. Long (max. 99 minutes) ó Short (min. 0 minute = DISABLE) When the time is set to 0, the projector is not turned off automatically. AUTO OFF When the time is set to 1 to 99, and when the passed time with no- signal or an unsuitable signal reaches at the set time, the projector...
  • Page 44 OPTION menu OPTION menu (continued) Item Description This item is to assign one of the following functions to MY BUTTON 1 and 2 on the remote control (6). Choose 1 or 2 on the MY BUTTON menu using the ◄/► button first. Then using the ▲/▼...
  • Page 45 OPTION menu OPTION menu (continued) Item Description FAN SPEED Using the ▲/▼ buttons the rotation speed of the cooling fans. The HIGH is the mode for use at highlands etc. Note that the projector is noisier when the HIGH is selected.
  • Page 46 OPTION menu OPTION menu (continued) Item Description KEY LOCK Using the ▲/▼ buttons turns on/off the key lock feature. When TURN ON is selected, the buttons on the projector except the STANDBY/ON button are locked. TURN ON ó TURN OFF •...
  • Page 47 OPTION menu OPTION menu (continued) Item Description This projector is equipped with security functions. User registration is required before using the security functions. Please contact your local dealer. 1. Using Security Features 1.1 Inputting the PASSWORD 1.1-1 Use the ▲/▼ buttons on the OPTION menu to select SECURITY and press the ►...
  • Page 48 OPTION menu OPTION menu (continued) Item Description 1.3 If you have forgotten your PASSWORD 1.3-1 Follow the procedure in 1.1-1 to display the ENTER PASSWORD box. 1.3-2 While the ENTER PASSWORD box is displayed, press and hold the RESET button for about 3 seconds or press and hold the INPUT and ►...
  • Page 49 OPTION menu OPTION menu (continued) Item Description 2.2-4 Move the cursor to the right side of the PASSWORD AGAIN box and press the ► button to display the PASSWORD for about 20 seconds, please make note of the PASSWORD during this time. Pressing the ENTER button will return to MyScreen PASSWORD on/off menu.
  • Page 50 OPTION menu OPTION menu (continued) Item Description 3.1-2 Use the ▲/▼ buttons on the PIN LOCK on/off menu to select TURN ON and the PIN BOX will be displayed. 3.1-3 Input a 4 part PIN Code using the ▲, ▼, ◄, ►, COMPUTER and INPUT buttons.
  • Page 51 OPTION menu OPTION menu (continued) Item Description 4. Using the Transition Detector Function While the Transition Detector function is ON, when power switch is started to supply to the projector, it might react as below. • Transition Detector alarm shown below might appear on screen, if the projector has been moved or re-installed.
  • Page 52 OPTION menu OPTION menu (continued) Item Description 4.2-4 Move the cursor to the right side of the PASSWORD AGAIN box and press the ► button to display the PASSWORD for about 20 seconds, please make note of the PASSWORD during this time. Pressing the ENTER button will return to the TRANSITION DETECTOR on/off menu.

  • Page 53: Miu Menu

    MIU menu MIU menu The MIU (Multi Information processing Unit) is a function to support the Network features and PC-LESS Presentation. Remember that incorrect network settings on this projector may cause trouble on the network. Be sure to consult with your network administrator before connecting to an existing access point on your network.
  • Page 54 MIU menu MIU menu (continued) Item Description The Presenter Mode that is set in the Live Viewer 3 software installed into your PC can be turned to off. A message, QUIT PRESENTER MODE, will be displayed in about 3 seconds when the function is performed.

  • Page 55: Button

    MIU menu MIU menu (continued) Item Description Selecting this item displays the Display User Name defined in the Live View3 software in the PC whose image is on screen. SINGLE PC mode The Display User Name will be shown in the DISPLAY USER NAME box.
  • Page 56 MIU menu MIU menu (continued) Item Description Use the ▲/▼ buttons to select an image or a folder, and press the ENTER button to display the image or turn into the DIRECTORY THUMBNAIL. To open or close the folder, press the ►/◄...
  • Page 57 MIUmenu MIU menu (continued) Item Description Use the ▲/▼/◄/► buttons to enter the IP ADDRESS. This function can only be used when DHCP is set to OFF. • The IP ADDRESS is the number that identifies this ADDRESS projector on the network. You cannot have two devices with the same IP ADDRESS on the same network.
  • Page 58 MIU menu MIU menu (continued) Item Description Use the ▲/▼ buttons to select the mode of the network communication system. Select it according to the setting of your MODE ADHOC ó INFRASTRUCTURE Use the ▲/▼ buttons to select the channel of the wireless LAN while using it.
  • Page 59 MIU menu MIU menu (continued) Item Description (2) To change an already inserted character, press the ▲/▼ button to move the cursor to one of the first 2 lines, and use the ◄ /► buttons to move the cursor on the character to be changed.
  • Page 60 MIU menu MIU menu (continued) Item Description (1) Use the▲/▼ buttons on the MIU menu to select the PROJECTOR NAME menu and press the ► button. The PROJECTOR NAME dialog will be displayed. (2) The current PROJECTOR NAME will be displayed on the first 3 lines. If not yet written, the lines will be blank.
  • Page 61 MIU menu MIU menu (continued) Item Description Selecting this item displays the e-SHOT menu. Insert the SD memory card or USB memory into the projector before you use the e-SHOT function. (61) The application software “PJTransfer” is required to store image(s) into the projector.
  • Page 62 MIU menu MIU menu (continued) Item Description Selecting this item displays the MIU-INFORMATION- dialog for confirming the network settings. • The PROJECTOR NAME is displayed. • Nothing (blank) is shown in the “PROJECTOR NAME” and “SSID” field until you setup those items. (58, 59, 60) •...

  • Page 63: C.c. (Closed Caption) Menu

    C .C . (Closed Caption) menu C.C. (Closed Caption) menu The closed caption setting can be changed through C.C. menu in the advance menu. Please select the item that you will change using ▲/▼ cursor buttons. The C.C. (Closed Caption) is the function that displays a •...

  • Page 64: Maintenance

    Maintenance Maintenance Replacing the lamp A lamp has finite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. Preparation of a new lamp and early replacement are recommended.
  • Page 65 Maintenance Replacing the lamp (continued) Lamp warning HIGH TEMPERATURE HIGH PRESSURE HIGH VOLTAGE WARNING ►The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.

  • Page 66: Cleaning And Replacing The Air Filter

    Maintenance Cleaning and replacing the air filter Please check and clean the air filter periodically. When the indicators or a message prompts you to clean the air filter, comply with it as soon as possible. Replace the air filter when it is damaged or too soiled. To prepare a new air filter, contact to your dealer and tell the air filter type number.
  • Page 67 Maintenance Cleaning and replacing the air filter (continued) Turn the projector on and reset the filter time using the FILTER TIME item in the EASY MENU. (1) Press the MENU button to display a menu. (2) Point at the FILTER TIME using the ▼/▲ button, then press the ► button. A dialog will appear.

  • Page 68: Replacing The Internal Clock Battery

    Take the old battery out from the battery case. Replace a new battery. Battery Case Replace battery with HITACHI MAXELL, Part No.CR2032 Battery only. Use of another battery may present a risk of fire or explosion.

  • Page 69: Other Care

    Maintenance Other care Inside of the projector In order to ensure the safe use of your projector, please have it cleaned and inspected by your dealer about once every year. Caring for the lens If the lens is flawed, soiled or fogged, it could cause deterioration of display quality.

  • Page 70: Troubleshooting

    Troubleshooting Troubleshooting If an abnormal operation should occur, stop using the projector immediately. WARNING ►Never use the projector if abnormal operations such as smoke, strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately turn off the power switch and then disconnect the power plug from the power outlet.

  • Page 71: Regarding The Indicator Lamps

    Troubleshooting Regarding the indicator lamps When operation of the LAMP, TEMP and POWER indicators differs from usual, check and cope with it according to the following table. POWER LAMP TEMP Description indicator indicator indicator Lighting Turned Turned The projector is in a standby state. Please refer to the section “Power on/off”.

  • Page 72: Shutting The Projector Down

    Troubleshooting Regarding the indicator lamps (continued) POWER LAMP TEMP Description indicator indicator indicator There is a possibility that the interior portion has become heated. Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make Blinking confirmation of the following items, and then turn the power on again.

  • Page 73: Phenomena That May Be Easy To Be Mistaken For Machine Defects

    Troubleshooting Phenomena that may be easy to be mistaken for machine defects About the phenomenon confused with a machine defect, check and cope with it according to the following table. Reference Phenomenon Cases not involving a machine defect page The electrical power cord is not plugged in. Correctly connect the power cord.
  • Page 74 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The signal cables are not correctly connected. Correctly connect the audio cables. The MUTE function is working. Restore the sound pressing MUTE or VOLUME button on the remote control.
  • Page 75 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The HDMI cable is not correctly connected. Correctly connect the HDMI cable. Your HDMI equipment is not compatible with the projector No pictures This projector can be connected with another equipment or disturbed...

  • Page 76: Xecute Specifications

    Specifications Specifications Specifications Specifications Item Product name Liquid crystal projector Panel size 1.6 cm (0.63 type) Liquid Crystal Drive system TFT active matrix Panel Pixels 786,432 pixels (1024 horizontal x 768 vertical) Lens Zoom lens F=1.6 ~ 1.8 f = 18.9~ 22.6 mm (approximately) Lamp 220W UHB Audio output...
  • Page 77 Specifications Specifications (continued) [unit: mm]...
