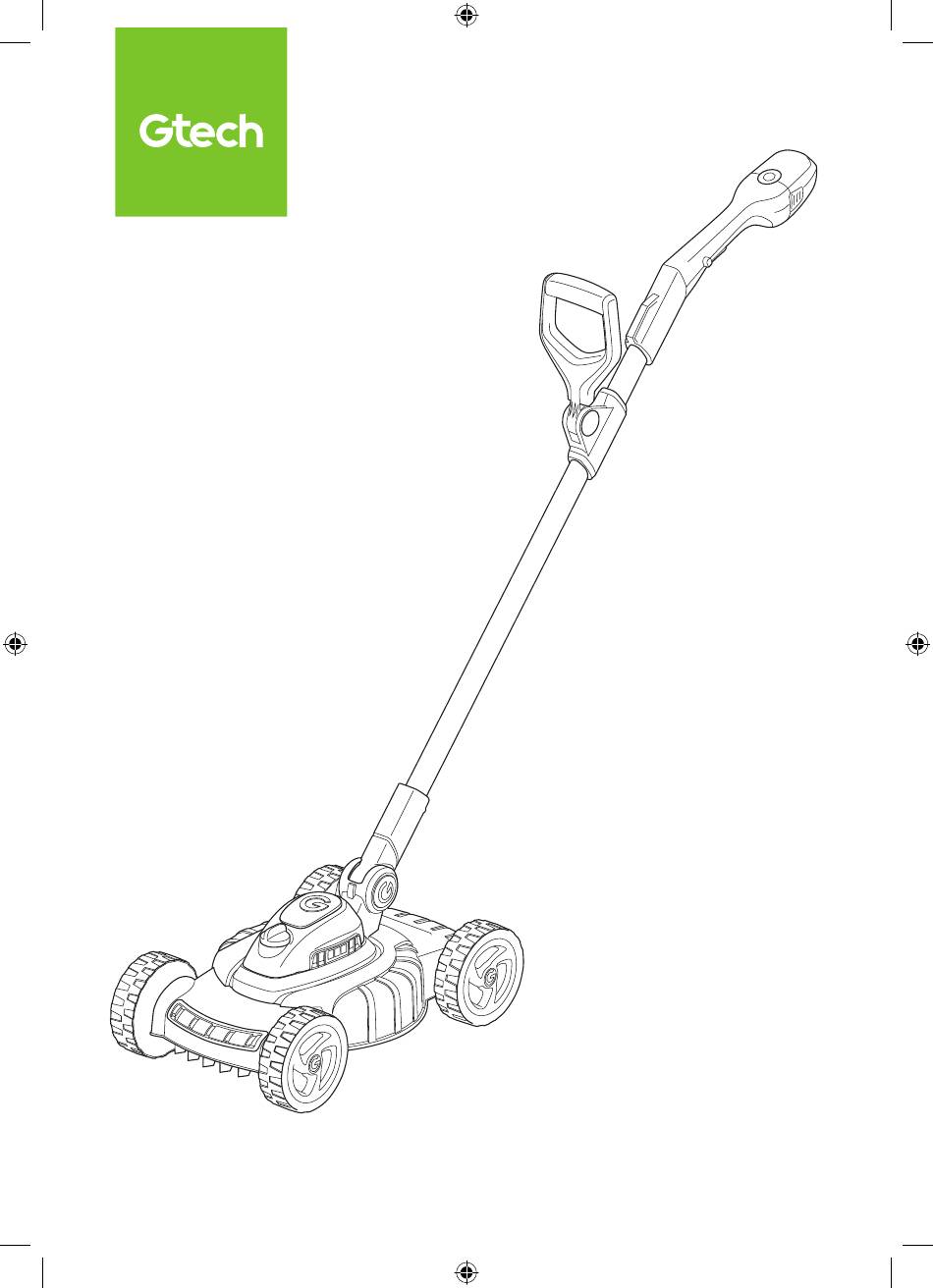

- Page 1 Small Lawnmower SLM50 Model number: OPERATING MANUAL Original Instructions 4969_MiniMower_manual_aw.indd 1 4969_MiniMower_manual_aw.indd 1 08/07/2021 10:20 08/07/2021 10:20...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS: IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. Do not use in rain or leave outdoors whilst raining. WARNING: Basic safety precautions should always be observed when using an electrical appliance to reduce the risk of fire, electrical shock or serious injury. -
Page 3: Electrical Safety
• Never open the charger. In case of • The operator is responsible for accidents defect, contact Gtech. or hazards occurring to other people at • This product contains Li-Ion batteries. their property. -
Page 4: Intended Use
• Do not attempt to repair any damaged parts on the mower unless you are qualified to do so. • Please contact Gtech on 01905 345891 if you have any queries about your product. Intended Use: • This product is intended for DOMESTIC USE ONLY. - Page 5 Warning Label Descriptions Remove safety key before servicing Warning/Caution. and cleaning. Beware of servering toes or hands. Switch off. Do not put hands or feet near a rotat- Remove the battery before ing blade. maintenance. Keep bystanders at a safe distance (at Read the instruction manual.
- Page 6 Thank you for choosing Gtech “Welcome to the Gtech family. I started Gtech to create sensible, easy to use products that do a great job, and hope you get many years of trouble-free performance from your new product.” Nick Grey –...
- Page 7 Assembly The shapes need to match or the handle will not fit. back view Insert the handle into the mower main unit, When the pole is fully inserted, the button (1) ensuring it is the right way up. will pop up into the aperture (2). Insert the battery which will click into place.
-
Page 8: Operation
The safety key The mower will not work without the safety The safety key can be removed and stored out key. Rotate it 90º clockwise to operate. of reach of children. WARNING: to reduce risk of injury remove the safety key when the mower is not in use, being transported, handled or stored, or carrying out any maintenance. - Page 9 When the handle is pushed forwards the Push the mower along as you walk behind it. motor will cut out as a safety feature. This is also the “parking” position for the mower. Off The mower has a safety cut-out feature when the handle is in parking mode.
-
Page 10: Adjusting The Cutting Height
Adjusting the cutting height There are two cutting heights. To change from The spring will keep the axle in position. one to the other, engage the safety switch and remove the battery, then turn the mower over. Pull the axle away from the blade and guide it into the other position. -
Page 11: Removing The Battery For Charging
Removing the battery for charging Press both buttons at the same time and pull to remove the battery. Checking the battery charge status 100% - 30% - 60% -10% - 1% Figures are approximate. Press the button to check how much charge The number of lit LEDs shows the charge. -
Page 12: Charging The Battery
Charging the battery Connect the charger to the battery where Plug the charger into an ordinary plug socket. indicated. hours While charging the LEDs will progressively The battery can be charged from flat in 4 pulse until all four are lit. hours. - Page 13 Disassembly To remove the handle, first remove the battery Then pull the handle out. then press the button at the back of the lower part of the handle. 13 13 4969_MiniMower_manual_aw.indd 13 4969_MiniMower_manual_aw.indd 13 08/07/2021 10:20 08/07/2021 10:20...
-
Page 14: Product Care
PLEASE NOTE: if the product needs to be repaired or replaced, only use replacement parts supplied by the manufacturer. Spare parts can be purchased from Grey Technology Ltd. Tel: 01905 345 891 Web: www.gtech.co.uk/support 14 14 4969_MiniMower_manual_aw.indd 14 4969_MiniMower_manual_aw.indd 14... -
Page 15: Troubleshooting
Troubleshooting Motor not running 1. Charge battery 2. Check safety key is inserted and switched on 3. Check switch operation It will click if operating correctly. Irregular running/machine 1. Blade may be defective vibrating strongly 2. Blade may be loose 3. -
Page 16: Technical Specification
If these initial tips do not solve your problem we please visit our support area where you can find troubleshooting help including online manuals, FAQs and how-to-videos, as well as genuine spares and replacement parts compatible with your product. Visit: www.gtech.co.uk/support Online Live chat support support@gtech.co.uk... - Page 17 Environmental and Product Recycling symbol indicates that this product is covered by legislation for waste electrical and electronic products (Directive 2012/19/EU)) When the product has reached the end of its life please do not dispose of it with general household waste. Consider the environment and take it to a recognised recycling facility. The product contains a Li-Ion battery which should not be disposed of with general household waste.
-
Page 18: Warranty Registration
If your product is within its warranty and has a fault that cannot be resolved from the troubleshooting section or online support, please do the following: • Contact our Gtech Customer Care Helpline on UK: 08000 308 794, who will go through any troubleshooting with you to identify the fault. -
Page 19: Ec Declaration Of Conformity
In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity Product’s name / function: Cordless Lawn mower / for cutting grass. Machine Type: SLM50 Rated voltage: 18VDC Measured sound power level: 84.5 dB(A) K= 1.98 dB (A) - Page 20 Grey Technology Limited Brindley Road, Warndon, Worcester, WR4 9FB, UK email: support@gtech.co.uk telephone: 01905 345891 www.gtech.co.uk/support 4969_MiniMower_manual_aw.indd 20 4969_MiniMower_manual_aw.indd 20 08/07/2021 10:20 08/07/2021 10:20...
