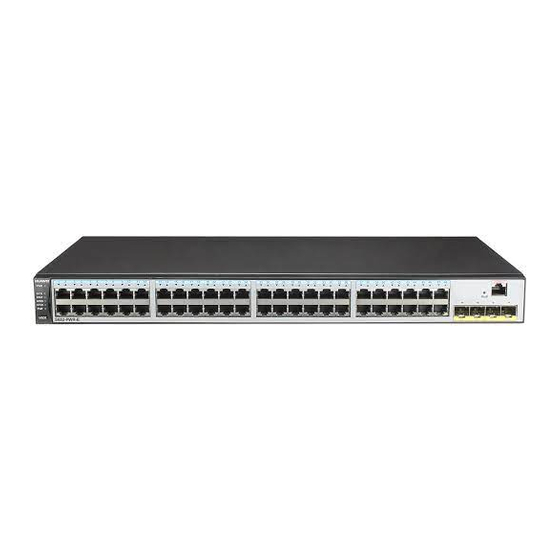

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Huawei S652-E L3 cerca il tuo prodotto tra le migliori offerte di Switch Quick Start Guide S600-E Education Network Series Switches Issue: 03 (2018-07-30) Part Number: 31507973 HUAWEI TECHNOLOGIES CO., LTD.
WARNING and CAUTION items do not cover all the safety precautions and are only supplementary to the safety precautions. Follow all the safety precautions and instructions provided by Huawei. The safety precautions outlined in this document are only requirements of Huawei and do not include general safety requirements. Huawei is not liable for any consequence that results from violation of regulations pertaining to safe operations or safety codes pertaining to design, production, and equipment use.
The S600-E series switches use forced or natural heat dissipation mode. If multiple switches are installed in a cabinet/rack, leave at least 1 U distance between each two switches (1 U = 44.45 mm). This distance is recommended for switches using forced heat dissipation, and is required for switches using natural heat dissipation.
Page 4
Scenario 3: Cabinet/Rack Mounting Before You Start An S600-E series chassis is 1 U high, and its width is standard. It can be installed in a standard 19 inch cabinet/rack. The cabinet/rack must have reliable ground points to ground the switch. A separately purchased non-standard cabinet/rack must have sufficient space for chassis installation.
Power cables and network cables laid indoors or buried underground, and cannot be routed aerially outdoors. Power cables must be more than 10 cm away from signal cables. The bend radius of an optical fiber must be 20 times larger than its diameter (generally no less than 40 mm). HUAWEI STAT SPED...
Start the web browser on the computer, enter https://192.168.1.253 in the address box, and press Enter to display the initial login page. Enter the default user name admin and default password admin@huawei.com and select the language on the login page. Then click GO or press Enter.
Page 7
Configuration Item Description Management IP Address Mandatory. Enter the management IP address of the switch, in dotted decimal notation. Mandatory. Select a subnet mask from the drop-down list box. Mask Old Password Mandatory. Enter the old password for the default web user. WEB User Password Mandatory.
You can run commands to configure the device. Enter a question mark (?) whenever you need help. For more information, see the Configuration Guide for your switch on the Huawei support website. 7 Obtaining Product Documentation and Technical Support Log in to Huawei enterprise technical support website (http://support.huawei.com/enterprise), and select a specific product model and version to...
