Related Manuals for Timex T235Y
Summary of Contents for Timex T235Y

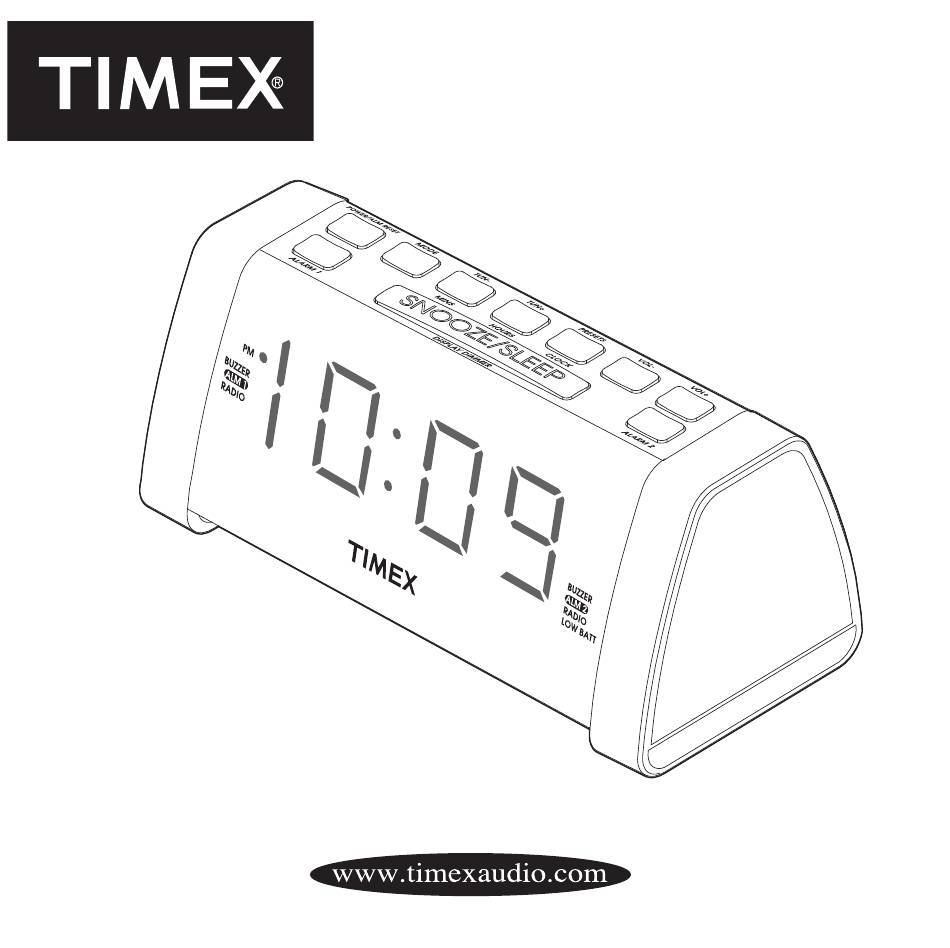

- Page 1 Model T235Y Jumbo Display AM/FM Clock Radio For additional information, online registration, and exclusive special offers visit our website: Questions? Contact Customer Service at 1-800-888-4491...
-
Page 2: Table Of Contents
Warranty Information ................................15 What’s in the Box This product ships with the following items. Make sure all are present. 1. T235Y Alarm Clock 2. Instruction book Product Care • Place the unit on a level surface away from sources of direct sunlight or excessive heat. -
Page 3: Controls Overview
Controls Overview Top Panel Tune – / Tune + / Radio Presets/ Mode Minutes Hours Clock Button Button Button Button Volume – / Power/ Volume + MODE VOL+ POWER/ALM RESET TUN- TUN+ PRESETS VOL- Alarm Reset Button Button MINS HOURS CLOCK Alarm 2 Alarm 1... -
Page 4: Display
When lit, indicates backup batteries should be replaced Installing and Replacing Backup Batteries Your new Timex Clock Radio includes a battery backup system that will maintain the time and alarm settings during a temporary power interruption. Press 1. Keep unit connected to AC power when changing batteries to avoid losing your settings. -
Page 5: Set Up
Set Up Connecting to Power Source Connect the AC plug into a working wall outlet that is not controlled by a wall switch. The unit does not operate on batteries (the battery back up system maintains clock settings during power failures). AUX IN Turning the Unit ON or OFF Press and release the Power/Alarm Reset... - Page 6 PRESETS 2 SECS CLOCK Press and hold the Presets/Clock Button until the time flashes on the display. PM indicator TUN + HOURS Press and release the Tun +/Hours Button to adjust the HOUR. NOTE: The PM indicator will light when the hour is set for PM. There is no AM indicator.
-
Page 7: Setting And Using Alarms
Setting and Using Alarms This unit has two independent alarms, Alarm 1 and Alarm 2. Each is set and operates in the same way. Instructions below show Alarm 1. Follow the same method to set Alarm 2. 2 SECS ALARM 1 Press and hold the Alarm 1 Button until current alarm time flashes on the display. - Page 8 ALARM 1 Press and release the Alarm 1 Button to complete alarm time setting. SELECTING YOUR ALARM SOURCE/DISARMING THE ALARM Alarm set to Buzzer Set alarm to Buzzer Set alarm to Radio ALARM 1 Alarm set to Radio Alarm OFF Disarm alarm (no indicator) Press and release the Alarm 1 Button repeatedly as needed to...
-
Page 9: Setting And Using The Radio
SNOOZE Press and release the Snooze/Sleep Button when the alarm sounds to silence it DISPLAY DIMMER for 9 minutes. Snooze can be used several times during alarm. Setting and Using the Radio BASIC RADIO OPERATION TIP: Extend FM antenna for best reception. POWER/ALM RESET Press and release the Power/Alarm Reset Button to turn unit On. - Page 10 PRESET RADIO SETTING AND OPERATION SETTING RADIO PRESETS This unit will store up to 20 station presets, 10 AM and 10 FM. POWER/ALM RESET Press and release the Power/Alarm Reset Button to turn unit On. MODE Press and release the Mode Button as needed to select AM or FM radio band. TUN –...
-
Page 11: Using In Aux-In Audio
Press and release the Presets/Clock PRESETS Button to confirm the preset number (P01 - P10) you want to assign to the CLOCK current station. Continue steps 1- 5 to set all desired presets. PRESET RADIO OPERATION To listen to a preset at any time, press and release the Presets/Clock Button as needed to select the desired preset station. -
Page 12: Sleep Mode
It allows you to fall asleep while listening to the radio or a device that is connected to the Aux In Jack. NOTE: It will power off the Timex unit, but it will not power off your AUX device. -
Page 13: Dimmer
Dimmer 2 SECS DISPLAY DIMMER Press and hold the Snooze/Sleep Button to toggle display brightness between high and low settings. Dimmer cannot be adjusted when alarm is sounding. Battery Cautions and Tips • Only use the recommended/supplied batteries or equivalent. •... -
Page 14: Safety Information
IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit. -
Page 15: Troubleshooting
Troubleshooting 1. The unit does not power ON. The unit is not connected to AC outlet, the AC outlet has no power, or is controlled by a wall switch that is “OFF”. Check AC outlet and wall switch. 2. Alarm does not come on? The alarm time AM or PM incorrectly set, Alarm was OFF, etc. -
Page 16: Warranty Information
Limited 90 Day Warranty Information Timex Audio Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of ninety (90) days from the date of original purchase.
