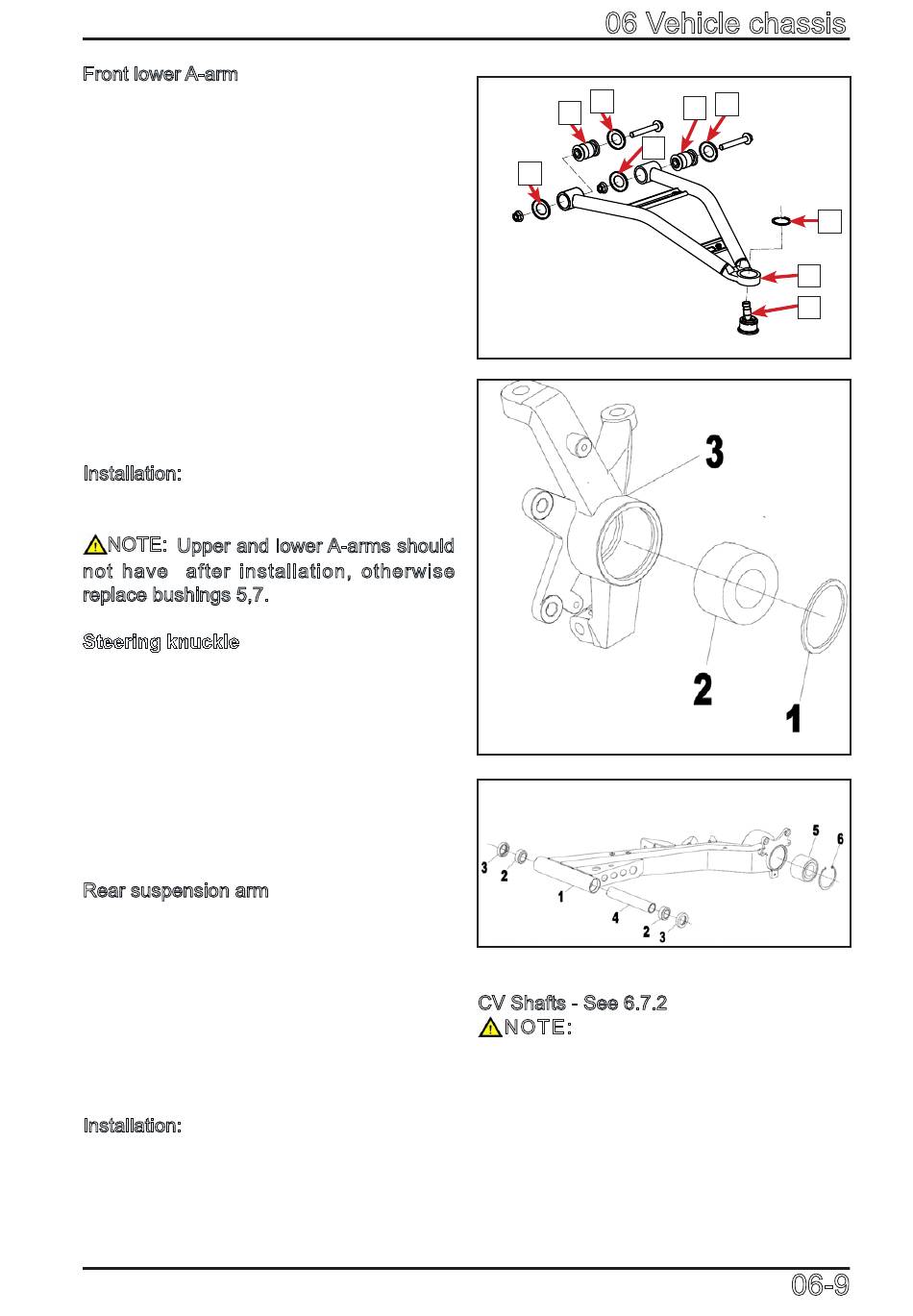

Front lower A-arm

Remove front Lower A-arm 2 (See picture
060901).
Remove the retainer 3 (if required).
Remove lower ball pin 1 (if required).
Inspect the ball joint 1 to make sure it
works smoothly. Push and pull on the ball
joint to check for clearance. If there is
clearance, replace the part.
Inspect the dust proof boot for wear or
cracking. Replace the ball joint if boot
damage or cracking is found.
Inspect for damage or wear. Replace if
necessary.
Remove bushings 5.
Check bushings for damage or aging.
Replace as necessary.
Installation:
Reverse procedures of disassembly. Use
special tool to press ball joint into A-arm.
NOTE: Upper and lower A-arms should
not have after installation, otherwise
replace bushings 5,7.

Steering knuckle

Remove steering knuckle 3.
Check hub bearing for damage, noise,
moves freely, or too large clearance.
Replace if necessary.
Remove retainer 1.
Use special tool to press hub bearing 2.
Reverse procedures of disassembly. Use
special tool to press bearing into knuckle.

Rear suspension arm

Remove rear suspension arm 1 (See
picture 060903)
Remove retainer 6.
Remove wheel bearing 5, oil seal 3,
suspension arm bearings 2.
Inspect the wheel bearing 5 and rear
suspension arm bearings 2 for damage,
noise, working freely. Replace the parts as
necessary.
Installation:
Reverse the removal procedure for
installation. Use special tool to press
bearing 5, suspension arm bearings 2, oil
seals 3, into the suspension arm.
06 Vehicle chassis
4
5
4
4
CV Shafts - See 6.7.2
NOTE: Method and procedure of
removal, inspection and installation
between front and rear drive shafts (LH &
RH) are similar.
Installation:
I n s t a l l a s r e v e r s e p r o c e d u r e s o f
disassembly.
4
5
3
2
1
060901
060902
060903
06-9
