Technical Guidance Notes

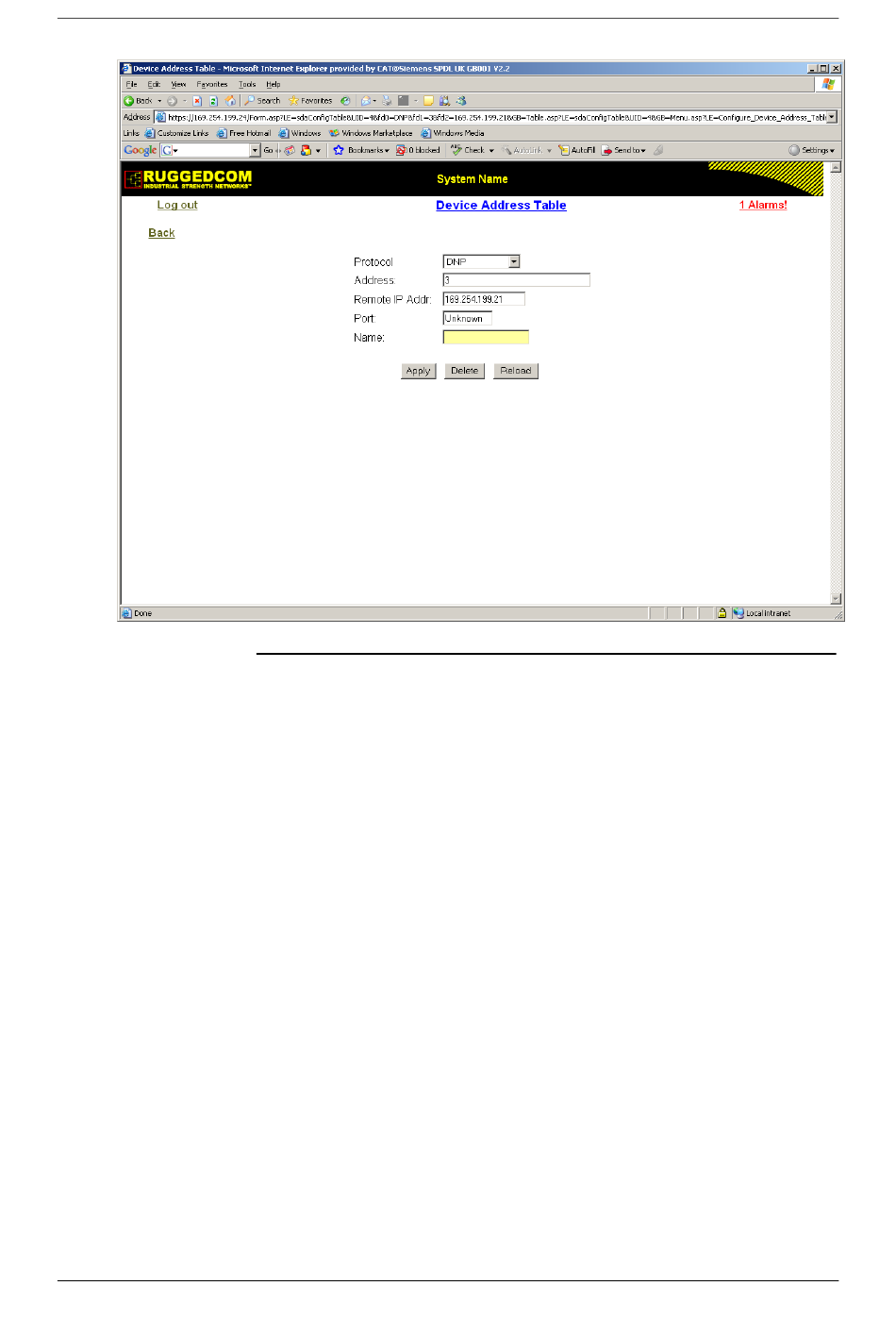

Figure 25 – RMC30 Browser Interface – PC DNP3 Device Entry
The IED was connected to communications port 1 (RS485).The address on the IED was set to 4. The
IP address is that of the RMC30, in this instance 169.254.199.24.
Page 24 of 29
©2007 Siemens Protection Devices Limited
