- Page 1 ASSEMBLY INSTRUCTIONS ITEM#: A102004110/A102004110B1/A102004110B2/ A102004110B3 SKU#: 810545276/810545279/810545278/810545277 Need help? We are here for you! 1(866)578-6569 24/7 • Toll Free...
- Page 2 • Please read and understand this entire manual before attempting to assemble or install the product. • Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. •...
- Page 3 3/31...
- Page 4 4/31...

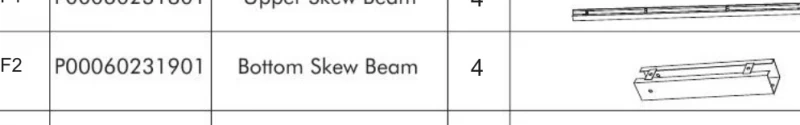

- Page 5 Label Part Number Description Part Image Post Base Cover Base eam 1 eam 2 P000600749 Middle Beam P000500620 Large op rame P000600746 Small Top P000500619 Connector Dome ecoration P005600125 rame 5/31...
- Page 6 Small oof P005600126 ecorative anel P005800001 Hook P000600752 P000600753 P000600750 P000600751 Small op over P000900044 P000700265 Small Roof Panel P000700266 P000700267 P000700268 P000700269 6/31...
- Page 7 P000700270 P000700271 Small oof nclined P000800120 eam over late P000800123 7/31...
- Page 8 Label Part Number Description Part Image H010020011 M6 X 15 Bolt H010020015 M6 X 25 Bolt H050030001 M6 Flat washer H040010004 M6 Nut M8 Spring H050020016 washer H010020010 M8 X 20 Bolt H070010003 8 X 180 Stake H010020285 M8 X 30 Bolt H050030002 M8 Flat washer H040010010...
- Page 9 • Tools needed and not included： • How many people needed for the installation work • Estimate assemble time : 150~180 Minutes How many people needed for the installation work 9/31...
- Page 10 Assembled View: Insert post (A) to base cover (B), secure base (C) to the post (A) using bolt (BB) and washer (CC), tighten with wrench (Z1). 10/31...
- Page 11 Assembled View: Connect beam 1 (D1) and beam 2 (D2) using bolt (FF), washer (JJ) and nut (KK), tighten with wrench (Z2). 11/31...
- Page 12 Assembled View: 12/31...
- Page 13 Assembled View: 13/31...
- Page 14 Assembled View: Connect top skew beam (F1) and bottom skew beam (F2) using bolt (AA) and flat washer (CC), tighten with wrench (Z1). 14/31...
- Page 15 Assembled View: Secure assembled skew beams (F1/F2) to post (A) using bolt (LL) and flat washer (CC). Connect assembled large top frames (H) to the assembled skew beams (F1/F2) using bolt (BB) and flat washer (CC), tighten with wrench (Z1). 15/31...
- Page 16 Assembled View: Connect middle beam (G), assembled large top frames (H) and assembled beam 16/31...
- Page 17 Assembled View: Secure lateral trabecula of the greater roof (P1/P2) to the bottom skew beam (F2) and the middle beam (G) using bolt (AA) and flat washer (CC), tighten with wrench (Z1). 17/31...
- Page 18 Assembled View: using push pin. small top inclined beam support rod (J) using push pin. 18/31...
- Page 19 Assembled View: Lock the small roof decorative panel (M) to the small top inclined beam support rod (J) as shown. 19/31...
- Page 20 Assembled View: Secure dome decoration frame(L) to small top inclined beam support rod (J) and small roof decorative panel (M) using bolt (BB) and flat washer (CC), tighten with wrench (Z1). 20/31...
- Page 21 Assembled View: Lock the small roof panel (S) to small top skew beam (I). 21/31...
- Page 22 Assembled View: Secure small roof inclined beam cover plate (U) to small top skew beam (I) using bolt (BB) and flat washer (CC), then secure small top cover (R) to small top connector (K) using bolt (AA) and flat washer (CC), tighten with wrench (Z1).
- Page 23 Assembled View: Secure small roof to big top frame (H) using bolt (AA) and flat washer (CC), tighten with wrench (Z1). Screw hook (N) to the small top connector (K). 23/31...
- Page 24 Assembled View: Secure big roof top beams (O1/O2) to the top skew beam (F1), assembled beam (D1/ D2) and the lateral trabecula of the greater roof (P1/P2) using bolt (AA) and flat washer (CC), tighten with wrench (Z1). 24/31...
- Page 25 Assembled View: Secure Large top and small cover (T1/T2) to the top skew beam (F1) using bolt (AA) and flat washer (CC), tighten with wrench (Z1). 25/31...
- Page 26 Assembled View: Secure Large top and small cover (T1/T2) to the top skew beam (F1) using bolt (AA) and flat washer (CC), tighten with wrench (Z1). 26/31...
- Page 27 Assembled View: Secure big top and large cover (T5/T6) to the big roof top beam (O1/O2) using bolt (BB) ,rubber washer(MM) and flat washer (CC), tighten with wrench (Z1). 27/31...
- Page 28 Assembled View: Secure center beam cover plate(W) to the middle beam (G) using bolt (GG) and flat washer (CC), tighten with wrench (Z1). 28/31...
- Page 29 Assembled View: Insert inclined beam top cover (V1) to the small top inclined beam support rod (J), then connect inclined beam top cover (V1), inclined beam lower cover plate (V2) and skew beam (F1/F2) using bolt (GG) and flat washer (CC), tighten with wrench (Z1). 29/31...
- Page 30 Assembled View: Connect lower baffle of inclined beam (Q), inclined beam lower cover plate (V2) and bottom skew beam (F2) using bolt (GG) and flat washer (CC), tighten with wrench (Z1). 30/31...
- Page 31 Assembled View: Lift the base cover (B), secure the gazebo to the ground using stakes (HH). 31/31...
