Sealey AP930M Instructions

thank you for purchasing a sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PlEasE rEaD tHEsE instruCtions CarEFully. notE tHE saFE oPErational rEQuirEMEnts, warninGs &
Cautions. usE tHE ProDuCt CorrECtly anD witH CarE For tHE PurPosE For wHiCH it is intEnDED. FailurE to Do so May
CausE DaMaGE or PErsonal inJury, anD will invaliDatE tHE warranty. PlEasE KEEP instruCtions saFE For FuturE usE.
1. saFEty instruCtions
1.1 GEnEral saFEty
warninG! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this trolley.

warninG! be careful to ensure that when closing the top you do not catch any part of your body in the lid or in the drawers.

Always load evenly with the centre of gravity of the load as near centre of the trolley as possible.

Keep the work area clean, uncluttered and ensure there is adequate lighting.

Keep the trolley clean and tidy in accordance with good workshop practice.

use the wheel locks to prevent the trolley from inadvertently moving.

Keep children and unauthorised persons away from the work area.

open one drawer at a time - unit may become unstable if multiple loaded drawers are open

Do not overload the trolley. Max capacity 150kg

Do not use the trolley for any purpose other than that for which it is designed.

Do not stand on the trolley, use it as a ladder or allow others to ride on the trolley.

Do not leave unattended, especially when loaded, unless the wheels are locked, chocked or the trolley otherwise secured.

Do not use trolley on uneven ground and do not run over curbs or steps - use a ramp.

Do not use trolley if any part is significantly damaged, paying particular attention to the wheels.

Note! Do not force the drawers open, they will open only when the top is open.
Note! The assembly will require assistance.
2. introDuCtion & sPECiFiCation
Garage or workshop trolley with an overall capacity of 150kg. Lined upper shelf has four cantilever trays and a lockable top with gas sprung
centre support. Lined lower shelf is ideal for larger parts or tools storage. four drawers with liners feature a rear locking mechanism which
engages when lid is closed giving added security. fitted with four large swivel castors, two locking.
size (H x W x L) . . . . . . . . . . . . . . . . . . . . . . . . . 965 x 787 x 445mm
total load capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150kg
3. ContEnts
3.1 carefully unpack the product and check the contents.
itEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Quantity
A) Main storage compartment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
B) uprights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
c) side supports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
D) side Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
E) Bottom tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
f) swivel Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
G) swivel, Locking Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
H) Bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
I) nuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
J) Long Handle Bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
K) Wheel Bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
L) Lock Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
4. assEMBly
4.1 remove trolley from the box and unlock the trolley with the
keys attached. open the main storage area and remove all
parts, check contents against contents list, if any parts are
missing contact you local sealey dealer immediately. close
the top storage area and lock the trolley before assembly.
4.2 take the base tray and turn it upside down then take two
swivel wheels (f) and two swivel, locking wheels (G) and
attach them using the wheel bolts nuts and lock washers, as
shown in fig.1.

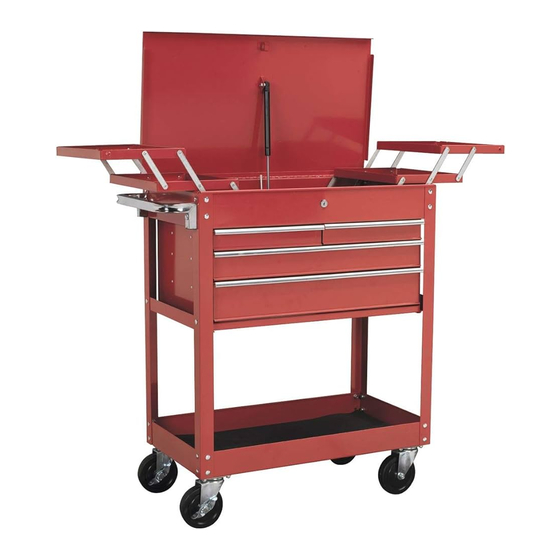

InstructIons for:
Extra HEavy-Duty trollEy 2-lEvEl
witH 4 DrawErs & CantilEvEr trays
aP930M
MoDEL:
Fig.1
AP930M - 1 - 071207
