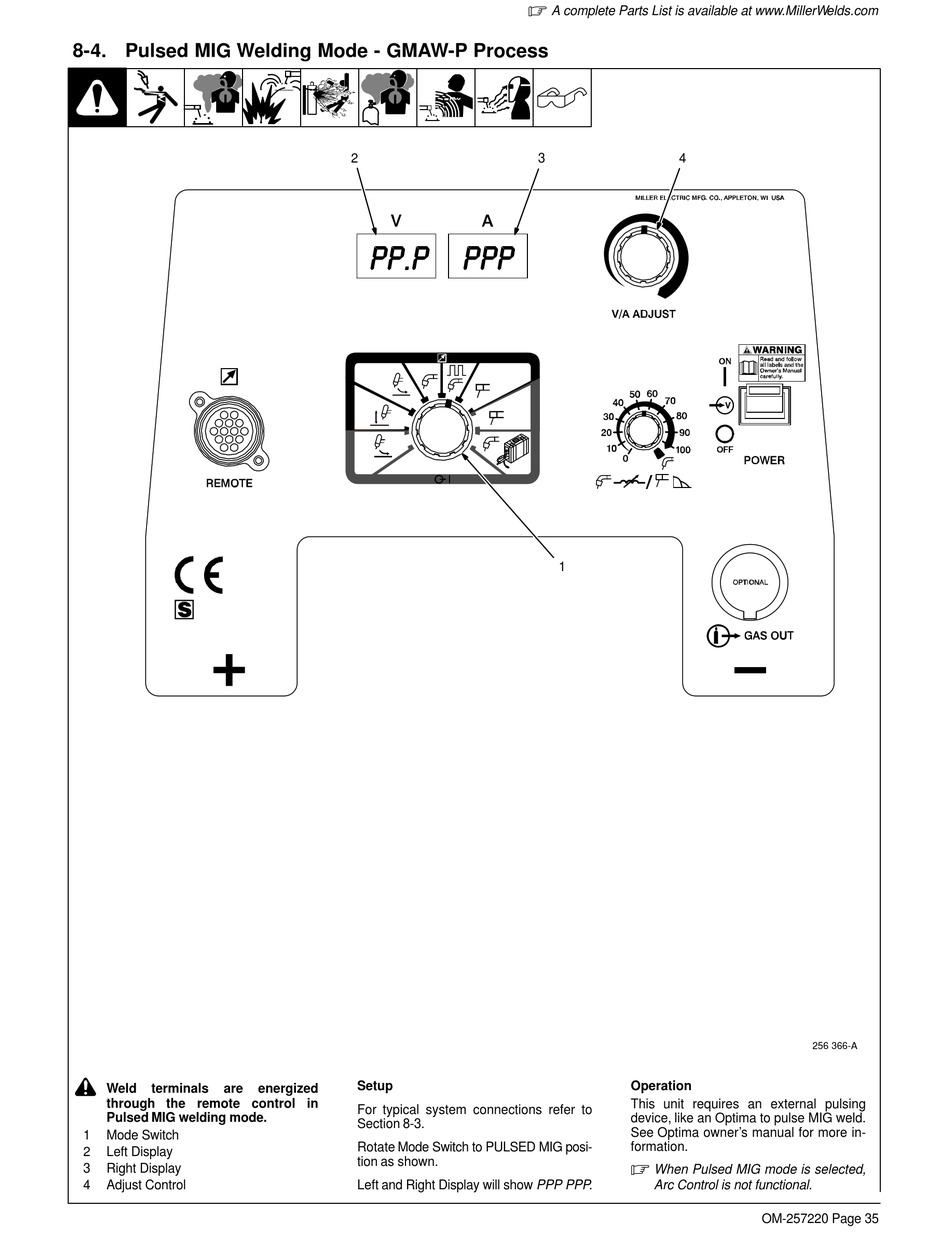

8-4. Pulsed MIG Welding Mode - GMAW-P Process

!
Weld terminals are
through the remote control in
Pulsed MIG welding mode.
1 Mode Switch
2 Left Display
3 Right Display
4 Adjust Control
2
PP.P PPP
Setup
energized
For typical system connections refer to
Section 8-3.
Rotate Mode Switch to PULSED MIG posi-
tion as shown.
Left and Right Display will show PPP PPP.
.
A complete Parts List is available at www.MillerWelds.com
4
3
1
Operation
This unit requires an external pulsing
device, like an Optima to pulse MIG weld.
See Optima owner's manual for more in-
formation.
.
When Pulsed MIG mode is selected,
Arc Control is not functional.
256 366-A
OM-257220 Page 35
