Chapter 3. Reference information
This section contains monitor specifications, instructions to manually install the
monitor driver, troubleshooting information, and service information.
Monitor specifications

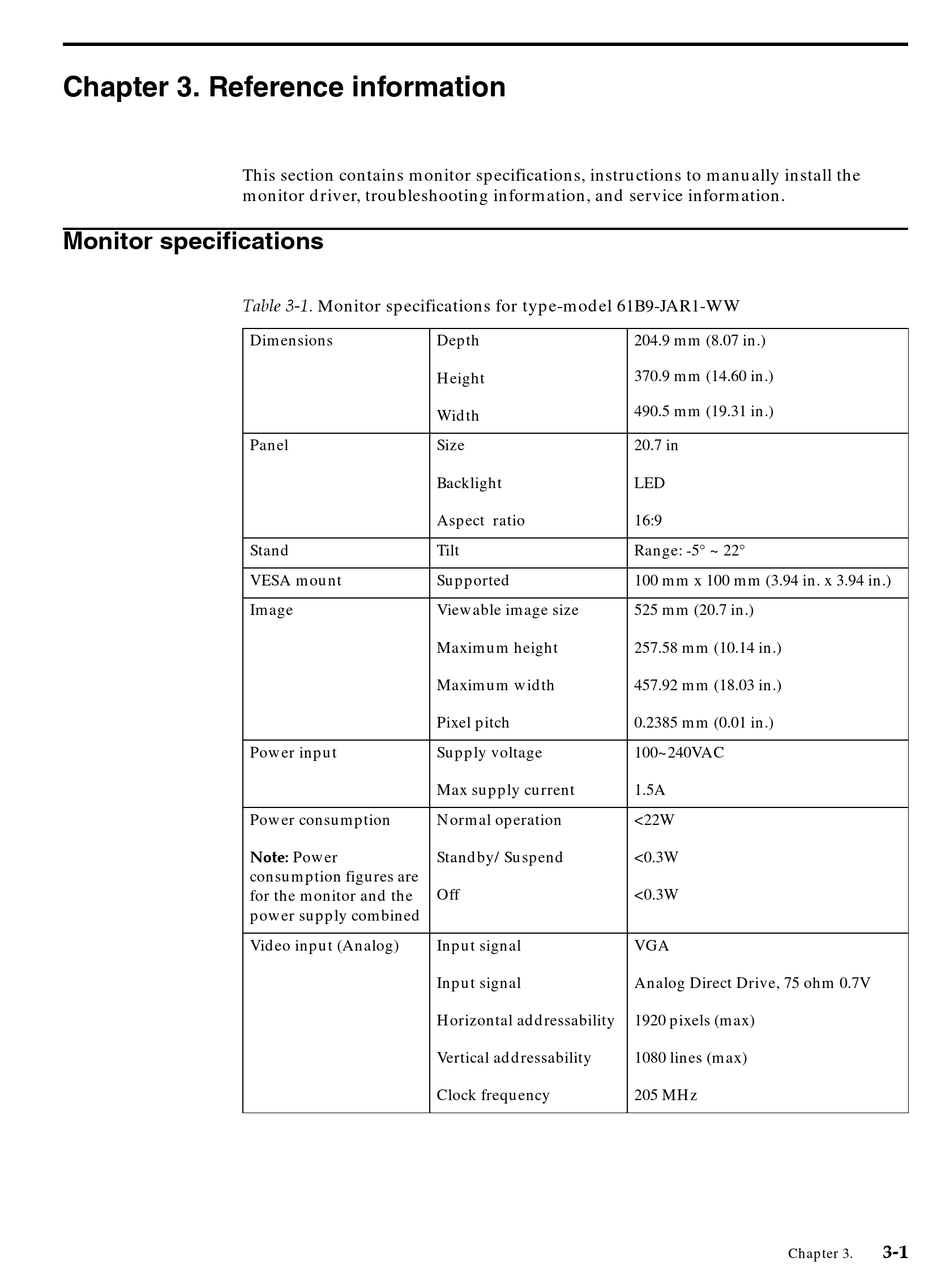

Table 3-1. Monitor specifications for type-model 61B9-JAR1-WW
Dimensions
Panel
Stand
VESA mount
Power input
Power consumption
Note: Power
consumption figures are
for the monitor and the
power supply combined
Video input (Analog)
Depth
Height
Width
Size
Backlight
Aspect ratio
Tilt
Supported
Viewable image size
Maximum height
Maximum width
Pixel pitch
Supply voltage
Max supply current
Normal operation
Standby/Suspend
Off
Input signal
Input signal
Horizontal addressability
Vertical addressability
Clock frequency
204.9 mm (8.07 in.)
370.9 mm (14.60 in.)
490.5 mm (19.31 in.)
20.7 in
LED
16:9
Range: -5~ 22
100 mm x 100 mm (3.94 in. x 3.94 in.)
525 mm (20.7 in.)
257.58 mm (10.14 in.)
457.92 mm (18.03 in.)
0.2385 mm (0.01 in.)
100~240VAC
1.5A
-
<22W
<0.3W
<0.3W
VGA
Analog Direct Drive, 75 ohm 0.7V
1920 pixels (max)
1080 lines (max)
205 MHz
