Related Manuals for Shark UV700 Series
Summary of Contents for Shark UV700 Series
- Page 1 Performance Lift-Away ® Upright Vacuum UV700 Series OWNER’S GUIDE Self-Cleaning Brushroll Technology...
-
Page 2: Important Safety Instructions
This device contains 10. DO NOT use without filters in place. Washing with cleaning chemicals 21. Your Shark® vacuum may not be electrical connections, electrical could damage the unit. 11. Only use Shark® branded filters designed to stand up on its own. - Page 3 ASSEMBLY 2 WAYS TO CLEAN WHAT’S INSIDE 1. UPRIGHT Power Wand Press the Power/Surface Selector button to Motorized Floor Nozzle turn the vacuum on or off. Handle & Hose Carpet Floor Setting Slide the Power/Surface Selector button up or Vacuum Pod Hard Floor down to choose floor type.
-
Page 4: Cleaning Modes
WHOLE-HOME CLEANING WHOLE-HOME CLEANING SETTINGS CLEANING MODES Carpet Carpet Hard Floor Hard Floor HARD FLOOR CARPET UPRIGHT Slide selector to Hard Floor, then press selector Slide selector to Carpet, then press selector button To engage brushrolls, turn power on, then button to turn on power. -
Page 5: Emptying The Dust Cup
EMPTYING THE DUST CUP CLEANING AND REPLACING THE FILTERS IMPORTANT: Unplug the power cord before performing any maintenance. CLEANING FILTERS Regularly rinse and replace the filters to maintain your vacuum’s suction power. To prevent damage from cleaning chemicals, rinse filters with cold water only. Allow all filters to air-dry for at least 24 hours before reinstalling them to prevent liquid from being drawn into electric parts. - Page 6 MAINTENANCE CHECKING FOR BLOCKAGES Self-Cleaning Brushroll Technology The self-cleaning brushroll actively removes hair wrap as you vacuum. If you run over a hard or sharp object or notice a noise change while vacuuming, check for blockages or objects caught in the brushroll. CLEANING THE BRUSHROLL Detach hose from vacuum pod, and check hose Detach wand from floor nozzle and handle, and...
-
Page 7: Available Accessories
AVAILABLE ACCESSORIES TROUBLESHOOTING Vacuum is not picking up debris. No suction or light suction. Crevice Tool This slender tool offers extended reach to • Check filters to see if they need cleaning. Follow instructions for rinsing and air-drying the access corners, baseboards, tight spaces, and filters before reinserting in the vacuum. -
Page 8: Five (5) Year Limited Warranty
REGISTER YOUR PURCHASE Benefits of registering your product and FIVE (5) YEAR LIMITED WARRANTY creating an account: registeryourshark.com • Get easier, faster product support and The Five (5) Year Limited Warranty applies to purchases made from authorized retailers of SharkNinja access to warranty information Scan QR code using Operating LLC. - Page 9 Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained herein are subject to change without notice. For SharkNinja U.S. Patent information, visit sharkninja.com/uspatents © 2020 SharkNinja Operating LLC. DUOCLEAN, LIFT-AWAY, and SHARK are registered trademarks of SharkNinja Operating LLC. UV700�IB�E�REV�Mv10...
Need help?
Do you have a question about the UV700 Series and is the answer not in the manual?
Questions and answers
How do you remove the motorized floor nozzle and replace on Shark UV700?
Having difficulty with suction from carpet/floor ... wand **** fine
To fix suction issues with the Shark UV700 Series on carpet and floors, follow these steps:
1. Check Suction Control:
- Adjust the Suction Control Collar on the handle.
- Slide to MIN for better maneuverability on carpets.
- Slide to MAX for stronger suction on bare floors.
2. Ensure Proper Assembly:
- Verify that the hose, wand, and handle are securely connected.
3. Clear Blockages:
- Turn off and unplug the vacuum.
- Check the hose, wand, and nozzle for any clogs or obstructions.
- Remove any debris if found.
4. Inspect the Brushroll Indicator Light:
- Solid Red or Flashing Red: Indicates a jam. Remove blockages and let the vacuum cool for 60 minutes if necessary.
5. Clean Filters:
- Refer to the Owner’s Guide for filter maintenance. Dirty filters can reduce suction.
6. Check Brushrolls:
- Ensure the wand is reclined for the brushrolls to spin properly.
If the issue persists, refer to the Troubleshooting section in the Owner’s Guide.
This answer is automatically generated
shark uv700 front roller not moving, its not clogged.
The front roller on the Shark UV700 Series vacuum may not be moving due to hair or debris wrapped around the brushroll. To resolve this, allow the self-cleaning brushroll to continue running to remove the debris. If fibers remain, open the brushroll garage lid and carefully remove them. Additionally, check for blockages in the nozzle and openings. If needed, remove the Soft Roller, hand wash it with water, let it air-dry completely for at least 24 hours, and reinsert it properly.
This answer is automatically generated
@Mr. Anderson
@Tony Kochanny
Shark uv700 front cloth roller not moving, took it out cleaned if and still not moving carpet cleaning rolling fine need for hard wood floors. no blockage.
The front cloth roller on the Shark UV700 Series vacuum may not be moving after cleaning due to improper reinstallation. Ensure the Soft Roller is completely air-dried for at least 24 hours before reinserting it. When reinstalling, place it under the rubber bumper in the front of the nozzle until it clicks securely into place. Also, check for any debris caught in the teeth behind the roller and remove it.
This answer is automatically generated
What Models are included in the UV700 series?
Ball stuck
To fix a stuck brushroll (referred to as a "ball") on the Shark UV700 Series:
1. Turn off the vacuum and unplug it.
2. Check the brushroll area for jams or blockages.
3. Remove any debris or obstructions from the nozzle or brushroll.
4. If the brushroll indicator light is flashing red, allow the vacuum to cool down for at least 60 minutes before restarting.
5. Ensure the brushroll garage lid is properly closed.
If the brushroll is still not working, refer to the troubleshooting section.
This answer is automatically generated

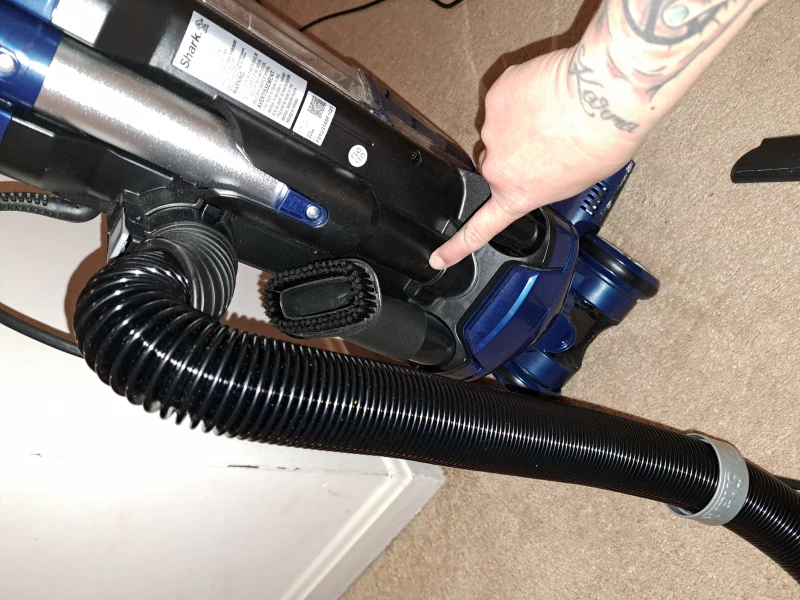

Kids toy ball stuck. No suction. How do I take the neck off?
To remove the neck of the Shark UV700 Series vacuum and fix a toy ball stuck with no suction:
1. Detach the wand from the floor nozzle.
2. Tilt the nozzle neck back.
3. Check the opening in the nozzle neck for blockages and remove the toy ball if found.
Also, detach the handle from the wand and hose from the vacuum pod, and check all openings for blockages.
This answer is automatically generated
