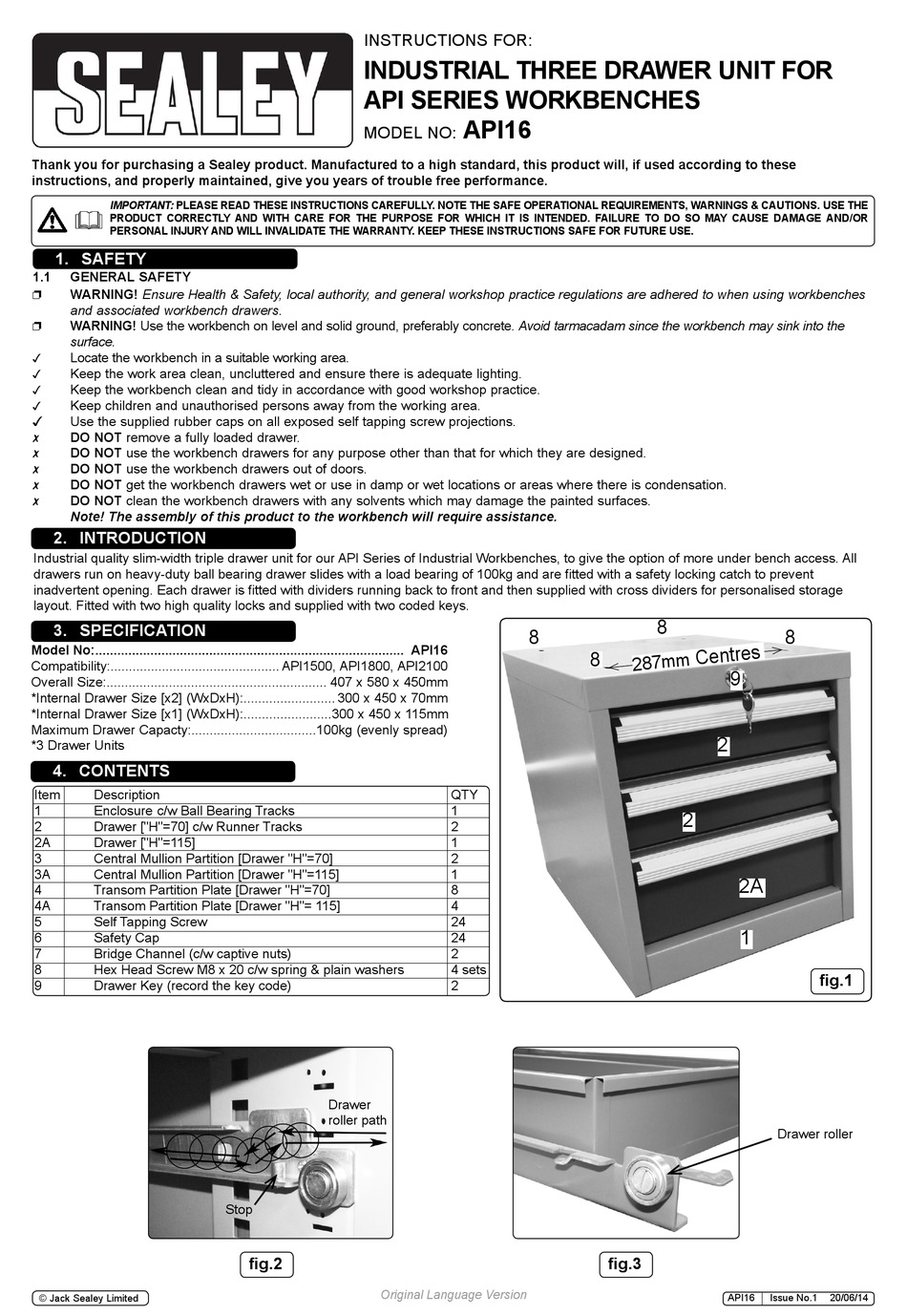

Sealey API16 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE
PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1 GENERAL SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using workbenches

and associated workbench drawers.
WARNING! Use the workbench on level and solid ground, preferably concrete. Avoid tarmacadam since the workbench may sink into the

surface.
Locate the workbench in a suitable working area.

Keep the work area clean, uncluttered and ensure there is adequate lighting.

Keep the workbench clean and tidy in accordance with good workshop practice.

Keep children and unauthorised persons away from the working area.

Use the supplied rubber caps on all exposed self tapping screw projections.

DO NOT remove a fully loaded drawer.

DO NOT use the workbench drawers for any purpose other than that for which they are designed.

DO NOT use the workbench drawers out of doors.

DO NOT get the workbench drawers wet or use in damp or wet locations or areas where there is condensation.

DO NOT clean the workbench drawers with any solvents which may damage the painted surfaces.

Note! The assembly of this product to the workbench will require assistance.
2. INTRODUCTION
Industrial quality slim-width triple drawer unit for our API series of Industrial Workbenches, to give the option of more under bench access. All
drawers run on heavy-duty ball bearing drawer slides with a load bearing of 100kg and are fitted with a safety locking catch to prevent
inadvertent opening. Each drawer is fitted with dividers running back to front and then supplied with cross dividers for personalised storage
layout. Fitted with two high quality locks and supplied with two coded keys.
3. SPECIFICATION
Model No:.................................................................................... API16
compatibility:.............................................. API1500, API1800, API2100
overall size:............................................................ 407 x 580 x 450mm
*Internal drawer size [x2] (WxdxH):......................... 300 x 450 x 70mm
*Internal drawer size [x1] (WxdxH):........................300 x 450 x 115mm
maximum drawer capacty:.................................. 100kg (evenly spread)
*3 drawer Units
4. CONTENTS
Item description
1 enclosure c/w Ball Bearing tracks
2 drawer ["H"=70] c/w runner tracks
2A drawer ["H"=115]
3 central mullion Partition [drawer "H"=70]
3A central mullion Partition [drawer "H"=115]
4 transom Partition Plate [drawer "H"=70]
4A transom Partition Plate [drawer "H"= 115]
5 self tapping screw
6 safety cap
7 Bridge channel (c/w captive nuts)
8 Hex Head screw m8 x 20 c/w spring & plain washers
9 drawer Key (record the key code)
© Jack sealey Limited
InstrUctIons For:
INDUSTRIAL THREE DRAWER UNIT FOR
API SERIES WORKBENCHES
modeL no:
drawer
roller path
stop
fig.2
Original Language Version
API16
8
8
QtY
1
2
1
2
1
8
4
24
24
2
4 sets
2
fig.3
8
8
9
2
2
2A
1
fig.1
drawer roller
API16 Issue no.1 20/06/14
