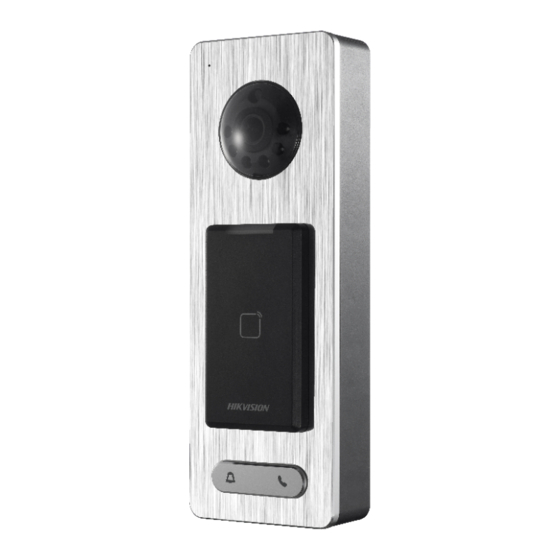

HIKVISION DS-K1T500 Quick Start Manual

Video Access Control Terminal
Quick Start Guide
UD04135B-B
©2018 Hangzhou Hikvision Digital Technology Co., Ltd.
It includes instructions on how to use the Product. The software
embodied in the Product is governed by the user license agreement
covering that Product.
About this Manual
This Manual is subject to domestic and international copyright protection.
Hangzhou Hikvision Digital Technology Co., Ltd. ("Hikvision") reserves all
rights to this manual. This manual cannot be reproduced, changed,
translated, or distributed, partially or wholly, by any means, without the
prior written permission of Hikvision.
Trademarks
and other Hikvision marks are the property of Hikvision and
are registered trademarks or the subject of applications for the same by
Hikvision and/or its affiliates. Other trademarks mentioned in this manual
are the properties of their respective owners. No right of license is given
to use such trademarks without express permission.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE
PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE,
IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION
MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A
PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO
EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR
AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL,
INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS,
DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR
LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF
THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF
PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT
TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY
LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER
ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS;
HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF
REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL
RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN
ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW.
HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS
USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
APPLICABLE LAW, THE LATER PREVAILS.
1
Appearance
No. Description DIP Switch Status
2: Secure Door
1 to 4 RS-485 Address Control Unit
0: Card Reader
RS-485 Direction under 1: Upstream
5
Terminal Mode 0: Downstream
1: Card Reader
6 Work Method
0: Terminal
12V Power
Wiegand Protocol 1: Wiegand 26
7
(Available when Bit 6 is 1) 0: Wiegand 34
Serial Port
Matched Resistance
1: Enable
8 (Available for RS-485
0: Disable
Protocol)
The DIP switch from left to right is from low bit to the high bit.
If the switch is towards ON, it means the binary value is 1, while OFF
means 0.
For Example, if the DIP switch is as the picture shown on the right, the
binary value is 0000 1100, which means the decimal value is 12.
2
Installation
Before You Start:
Make sure that the device in the package is in good condition and all the assembly parts are included.
Make sure that the wall is strong enough to withstand three times the weight of the terminal.
Set the DIP address before installation.
Cable Hole
Cable Hole
Plastic Sheet
Plastic Sheet
1. Connect the cables with the connector on the rear
panel of the device.
2. Route the cables through the cable hole of the
mounting plate. The cable holes are on the right side,
left side and lower side of the rear cover.
If the right/left side cable hole is selected, remove the
plastic sheet of the cable hole.
Network
Wiegand
Micro SIM Card Slot
Door Lock
and RS485
Alarm
3.Secure the mounting plate
on the wall with 4 supplied
screws.
4.Connect the corresponding
cables.
78mm
Mic
Camera
LED
Indicator
Network
Wiegand
Card Swiping
Micro SIM Card Slot
Door Lock
Area
Voice Talk
Doorbell
Button
Button
Back Front
6.Tighten the screws on the bottom of
5.Push the terminal in the
the terminal to fix the terminal on the
mounting plate from
mounting plate and complete the
bottom up.
installation.
41.6mm 41.6mm
Loud Speaker
Left Bottom
