Panasonic VF540-V Quick Start Manual

Key Features
• Up to 4 Groups (Up to 12 Monitors and 4 Individual Door Stations with 4 Electric Locks):
4 groups of monitors can be connected to support up to 4 households.
• Night Vision with LED Lights and Illumination Sensor:
The LED automatically lights up when the surrounding area gets dark, making it easier for visitors to see at night.
• 4 Name Plates:
You can show the name of each household on a name plate.
• Electric Lock Release:
The door lock can be easily and quick released. If an optional monitor is connected, you can release locks from any room.
• For Both Surface Mounting and Flush Mounting Supported:
Support for both surface mounting and flush mounting, to enable installation in various environments.
Wiring Schematic Diagram / System Configuration
Basic system

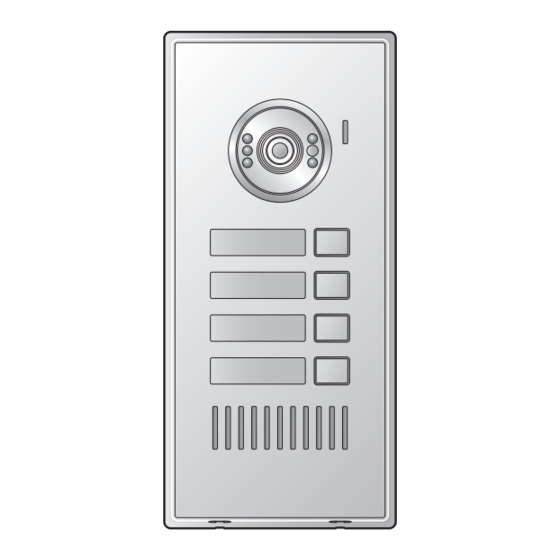

VL-VF540 door station
4
3
2
1
4-wire
4-wire
4-wire
TERMINATION
(SHORT)
1 : +V
2 : G
3 : AU
MONITOR
4 : Vi
5 : D
1 : +V
2 : G
MONITOR /
3 : AU
DOOR STATION 1
*
4 : Vi
5 : D
Monitor 1
AC adaptor
TERMINATION
(SHORT)
1 : +V
2 : G
3 : AU
MONITOR
4 : Vi
5 : D
1 : +V
2 : G
MONITOR /
3 : AU
DOOR STATION
* 1
4 : Vi
5 : D
Monitor 2
AC adaptor
TERMINATION
(SHORT)
1 : +V
2 : G
3 : AU
MONITOR
4 : Vi
5 : D
1 : +V
2 : G
MONITOR /
3 : AU
DOOR STATION 1
*
4 : Vi
5 : D
Monitor 3
AC adaptor
TERMINATION
(SHORT)
1 : +V
2 : G
3 : AU
MONITOR
4 : Vi
5 : D
1 : +V
2 : G
MONITOR /
3 : AU
DOOR STATION 1
4 : Vi *
5 : D
Monitor 4
AC adaptor
*1 5-pin connector with core
Accessory Information
Surface mounting base × 1
Flush mounting box × 1
Screws (4 mm x 12 mm) × 4
4-pin connector × 4
*1
2-pin connector (for electric lock ) × 1
Hex wrench × 1
*1 Electric lock (user supplied)
Fully expanded system
4-wire
VL-VF540 door station
Group 4
Group 3
Group 2
Group 1
* 2
*2 Electric lock (user supplied)
*3 Switch box (included with the optional VL-VF580, NOT included with the VL-SF70)
Wire type and length
From - To
Door station - Monitor
Electric lock - Door station
Monitor - Monitor
Optional Accessories
Door Station
(Doorphone)
VL-VF580
Optional Door Station
for Video Intercom System
VL-VF540
3
Switch box *
2
*
2
*
2
*
2
*
Max. distance Cable standard
50 m
100 m
5 m
10 m
50 m
100 m
Switch Box
Included with
the optional
VL-VF580
Cable type reference
0.5 mm²
RVV4 (4-wire)
0.75 mm²
1.0 mm²
RVV2 (2-wire)
1.5 mm²
0.5 mm²
RVV6 (6-wire)
0.75 mm²
Monitor
VL-MF70
