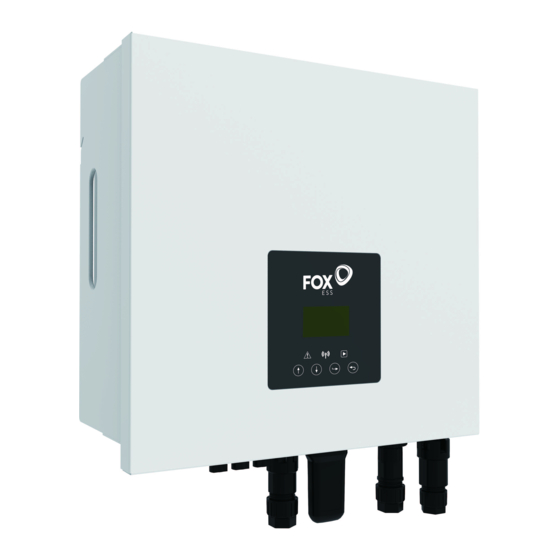

User Manual
H1/AC1 SERIES
In order to prevent improper operation before use, please carefully read this
manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H1 Series and is the answer not in the manual?

Questions and answers

Related Manuals for FoxESS H1 Series

Summary of Contents for FoxESS H1 Series

  • Page 1 User Manual H1/AC1 SERIES In order to prevent improper operation before use, please carefully read this manual.

  • Page 2: Table Of Contents

    Table of Contents Notes on This Manual ........................2 1.1 Scope of Validity ......................... 2 1.2 Target Group ..........................2 1.3 Symbols Used ..........................2 Safety ............................... 3 2.1 Appropriate Usage ........................3 2.2 PE Connection and Leakage Current ..................4 2.3 Surge Protection Devices (SPDs) for PV Installation ..............

  • Page 3: Notes On This Manual

    1. Notes on This Manual 1.1 Scope of Validity This manual describes the assembly, installation, commissioning, maintenance and troubleshooting of the following model(s) of Fox products: H1- 3.0-E H1- 3.7-E H1- 4.6-E H1- 5.0-E H1- 6.0-E AC1- 3.0-E AC1- 3.7-E AC1- 4.6-E AC1- 5.0-E AC1-6.0-E...

  • Page 4: Safety

    Danger. Risk of electric shock! Danger to life due to high voltage. There is residual voltage in the inverter which needs 5 min to discharge. Wait 5 min before you open the upper lid or the DC lid. Read the manual. Product should not be disposed as household waste.

  • Page 5: Pe Connection And Leakage Current

    Any time the inverter has been disconnected from the public network, please be extremely cautious as some components can retain charge sufficient to create a shock hazard. Prior to touching any part of the inverter please ensure surfaces and equipment are under touch safe temperatures and voltage potentials before proceeding.

  • Page 6: Introduction

    in rural areas where electricity is usually provided by long overhead lines. Surges may impact on both the PV array conduction and the AC cables leading to the building. Specialists in lightning protection should be consulted during the end use application. Using appropriate external lightning protection, the effect of a direct lightning strike into a building can be mitigated in a controlled way, and the lightning current can be discharged into the ground.

  • Page 7: Dimensions

    • Work modes: Work modes Description Priority: load>battery>grid Self-use The energy produced by the PV system is used to optimize self-consumption. (with PV Power) The excess energy is used to charge the batteries, then exported to gird. When no PV supplied, battery will discharge for local loads firstly, and grid will Self-use supply power when the battery capacity is not enough.

  • Page 8: Terminals Of Inverter

    3.3 Terminals of Inverter Item Description DC Switch (For Hybrid Only) PV1 (For Hybrid Only) PV2 (For Hybrid Only) Battery Connector METER/CT/RS485 Ethernet BACK-UP Note: Only authorized personnel are permitted to set the connection. AC Connector Waterproof Lock Valve WiFi / GPRS Grounding Screw...

  • Page 9: Technical Data

    4. Technical Data 4.1 PV Input (For Hybrid Only) Model H1-3.0-E H1-3.7-E H1-4.6-E H1-5.0-E H1-6.0-E Max. recommended DC power [W] 3900 4680 5980 6500 7800 Max. DC voltage [V] Nominal DC operating voltage [V] Max. input current A:13.5 / B:13.5 (input A / input B) [A] Max.

  • Page 10: Ac Output/Input

    4.3 AC Output/Input H1-3.0-E H1-3.7-E H1-4.6-E H1-5.0-E H1-6.0-E Model AC1-3.0-E AC1-3.7-E AC1-4.6-E AC1-5.0-E AC1-6.0-E AC OUTPUT Nominal AC power [VA] 3000 3680 4600 5000 6000 Max. apparent AC power 3300 3680/4048 (1) 4600/5060 (2) 5500 6000/6600 (4) [VA] Rated grid voltage 220 / 230 / 240 (180 to 270) (AC voltage range) [V] 50 / 60, ±...

  • Page 11: Efficiency, Safety And Protection

    4.5 Efficiency, Safety and Protection H1-3.0-E H1-3.7-E H1-4.6-E H1-5.0-E H1-6.0-E Model AC1-3.0-E AC1-3.7-E AC1-4.6-E AC1-5.0-E AC1-6.0-E EFFICIENCY MPPT efficiency 99.90% 99.90% 99.90% 99.90% 99.90% Euro-efficiency 97.00% 97.00% 97.00% 97.00% 97.00% Max. efficiency 97.80% 97.80% 97.80% 97.80% 97.80% Max. battery charge efficiency 98.50% 98.50% 98.50%...

  • Page 12: Installation

    5. Installation 5.1 Check for Physical Damage Make sure the inverter is intact during transportation. If there is any visible damage, such as cracks, please contact your dealer immediately. 5.2 Packing List Open the package and take out the product, please check the accessories first. The packing list shown as below.

  • Page 13: Mounting

    5.3 Mounting • Installation Precaution Make sure the installation site meets the following conditions: Not in direct sunlight. Not in areas where highly flammable materials are stored. Not in potential explosive areas. Not in the cool air directly. Not near the television antenna or antenna cable. Not higher than altitude of about 2000m above sea level.
  • Page 14 Step 1: Fix the bracket on the wall Choose the place you want to install the inverter. Place the bracket on the wall and mark the position of the 5 holes from bracket. Drill holes with electric drill, make sure the holes are at least 50mm deep, and then tighten the expansion tubes.

  • Page 15: Electrical Connection

    6.1 PV Connection (For Hybrid Only) Step 1: PV String Connection H1 series inverters can be connected with 2-strings of PV modules. Please select suitable PV modules with high reliability and quality. Open circuit voltage of module array connected should be less than 600V, and operating voltage should be within the MPPT voltage range.

  • Page 16: Battery Connection

    Step 2: PV Wiring • Turn off the DC switch. • Choose 12 AWG wire to connect the PV module. • Trim 6mm of insulation from the wire end. • Separate the DC connector (PV) as below. • Insert striped cable into pin contact and ensure all conductor strands are captured in the pin contact. •...

  • Page 17: Grid Connection

    • Separate the DC connector (battery) as below. Plug Pin contact cable nut • Insert striped cable into pin contact and ensure all conductor strands are captured in the pin contact. • Crimp pin contact by using a crimping plier. Put the pin contact with striped cable into the corresponding crimping pliers and crimp the contact.
  • Page 18 Step 2: Grid Wiring • Check the grid voltage and compare with the permitted voltage range (refer to technical data). • Disconnect the circuit-breaker from all the phases and secure against re-connection. • Trim the wires - Trim all the wires to 52.5mm and the PE wire to 55mm. - Use the crimping pliers to trim 12mm of insulation from all wire ends as below.
  • Page 19 • Loosen the cap on the terminal, pull the threaded sleeve out of the socket. AC Wiring • Separate the AC plug into three parts as below. - Hold middle part of the female insert, rotate the back shell to loosen it, detach it from female inset. - Remove the cable nut (with rubber insert) from the back shell.

  • Page 20: Earth Connection

    6.4 Earth Connection Screw the ground screw with screwdriver as shown below: 6.5 Communication Device Installation (Optional) H1/AC1 series inverter are available with multiple communication options such as WiFi, LAN, GPRS, RS485 and Meter with an external device. Operating information like output voltage, current, frequency, fault information, etc., can be monitored locally or remotely via these interfaces.
  • Page 21 • Meter/CT/RS485 The inverter has integrated export limitation functionality. To use this function, a power meter or a CT must be installed. The PIN definitions of Meter/CT/485 interface are as below. Definition Meter485A Meter485B 485B 485A CT2+ CT2- CT1- CT1+ Note: •...
  • Page 22 If there is another generator in the home, CT2 can be used to record the power generated by the generator and transmit the data to the website for monitoring. Note! For a precise reading and control of power, a meter can be used instead of a CT. If the CT is fitted in the wrong orientation, anti-backflow function will fail.
  • Page 23 The electricity meter is connected as follows: • DRM0 setting Settings Feature Parm DRM0 Enable/Disable DRM is provided to support several demand response modes by emitting control signals as below. Mode Requirement DRM0 Operate the disconnection device. DRM1 Do not consume power. DRM2 Do not consume at more than 50% of rated power.
  • Page 24 1) For data transmission: It can transmit the inverter data from inverter to PC or other monitoring equipment. 2) For monitoring: It can transmit the inverter data from inverter to Foxess monitoring website/APP though home router connected. Ethernet PIN Definition Definition •...
  • Page 25 Connection steps: Step 1: Prepare a standard network cable and cable connector, then insert the network cable through the cable connector. Step 2: Crimp the cable with a Rj45 plug which is inside of the cable connector. Step 3: Insert the cable connector into BMS port at the bottom of inverter and screw it tightly. •...
  • Page 26 Connection steps: Step 1: Open the lid cover. Step 2: Prepare a standard network cable and cable connector, then insert the network cable through the cable connector. Step 3: Crimp the cable with a Rj45 plug which is inside of the cable connector. Step 4: Insert the cable connector into COM port at the bottom of inverter and screw it tightly.

  • Page 27: Eps Connection

    • Reactive Power Regulation for Voltage Variation (Volt-VAr Mode) Details of how to enable this mode are contained in the “Advanced Configuration Guide”, which can be accessed at our website at https://www.foxess.com. • Power Derating for Voltage Variation (Volt-Watt Mode) Details of how to enable this mode are contained in the “Advanced Configuration Guide”, which can be...
  • Page 28 Notes: 1.Under On-grid mode, please ensure that the EPS loads power is lower than the inverter's maximum Bypass power. 2.Under Off-grid mode, ensure that the EPS loads power is lower than the inverter's maximum EPS power. 3. We suggest not connect the inductive loads on EPS port. •...

  • Page 29: Inverter Start-Up

    6.7 Inverter Start-Up Please refer to the following steps to start up the inverter. Ensure the inverter fixed well on the wall. Make sure all the DC wirings and AC wirings are completed. Make sure the CT/meter is connected well. Make sure the battery is connected well.

  • Page 30: Firmware Upgrading

    7. Firmware Upgrading User can upgrade inverter's firmware via a U-disk. • Preparation Please ensure the inverter is steadily powered on. Inverter must keep the battery on through whole procedure of upgrading. Please prepare a PC and make sure the size of U-disk is under 32G, and the format is fat 16 or fat 32. •...

  • Page 31: Operation

    8. Operation 8.1 Control Panel Object Name Function LCD screen Display the information of the inverter. Red: The inverter is in fault mode. Indicator LED Blue: The inverter is normally connected to the battery. Green: The inverter is in normal state. Up button: Move cursor to upside or increase value.

  • Page 32: Function Tree

    8.2 Function Tree 9. Maintenance This section contains information and procedures for solving possible problems with the Fox inverters and provides you with troubleshooting tips to identify and solve most problems that can occur. 9.1 Alarm List Fault Code Solution Grid is lost.
  • Page 33 Grid frequency out of range. • System will reconnect if the utility is back to normal. Grid Freq Fault • Or seek help from us, if not go back to normal state. The grid voltage is out of range for the last 10 Minutes. •...
  • Page 34 The inverter temperature is high. • Please check if the environment temperature. Temp Fault • Wait for a while to check if back to normal. • Or seek for help from us. The ground connection is failed. • Check the voltage of neutral and PE. •...
  • Page 35 Residual current detection device is failed. • Disconnect PV, grid and battery, then reconnect. Res Cur HW Fault • Or seek help from us, if not go back to normal state. The inverter eeprom is fault. • Disconnect PV, grid and battery, then reconnect. Inv EEPROM Fault •...
  • Page 36 The grid relay M1 keep close. • Disconnect PV, grid and battery, then reconnect. M1 Close Fault • Or seek help from us, if not go back to normal state. The grid relay M2 keep close. • Disconnect PV, grid and battery, then reconnect. M2 Close Fault •...
  • Page 37 Battery over voltage. Bms Volt High • Please contact battery supplier. Battery under voltage. Bms Volt Low • Please contact battery supplier. Battery charge over current. Bms ChgCur High • Please contact battery supplier. Battery discharge over current. Bms DchgCur High •...

  • Page 38: Troubleshooting And Routine Maintenance

    The cell manufacture is different. Bms Mfg Unmatch • Please contact battery supplier. The slave software and hardware are not match. Bms SwHw Unmatch • Please contact battery supplier. The software between Master and Slave are not match. Bms M&S Unmatch •...

  • Page 39: Decommissioning

    10. Decommissioning 10.1 Dismantling the Inverter Disconnect the inverter from DC (for hybrid only) Input and AC output. Wait for 5 minutes for the inverter to fully de-energize. Disconnect communication and optional connection wirings. Remove the inverter from the bracket. Remove the bracket if necessary.
  • Page 40 The copyright of this manual belongs to FOXESS CO., LTD WUXI BRANCH. Any corporation or individual should not plagiarize, partially or fully copy (including software, etc.), and no reproduction or distribution of it in any form or by any means is permitted. All rights reserved.

This manual is also suitable for:

Ac1 seriesH1-3.0-eH1-3.7-eH1-4.6-eH1-5.0-eH1-6.0-e ... Show all
