LASER DETECTOR OVERVIEW (CONTINUED)

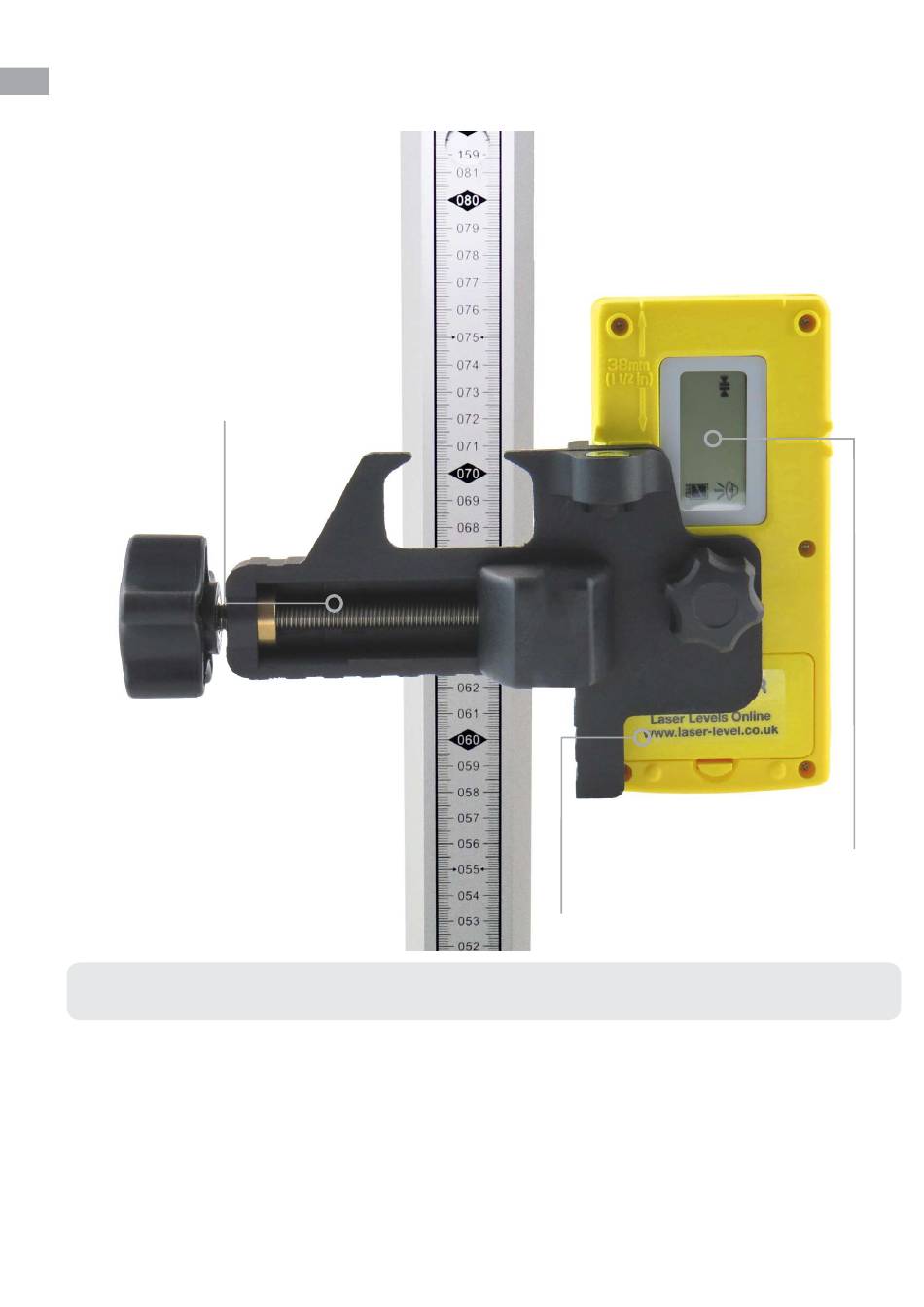

FMB-01 Staff Mounting

Using The Detector

Press the ON/OFF button once and the FRD300R-205 will power on.
●
Clamp the Detector onto the front face of the measuring staff and face towards the Laser.
●
If you are above the horizontal datum, a down arrow will be shown. Below the horizontal
datum an up arrow will be shown and when you are completely level or on the same datum,
a horizontal line will be shown on the display. When you have established the horizontal
datum, you can then use the mm scale on the rear of the measuring staff (which is zero mm
at ground level) to either measure a uniform distance down or a uniform distance up, to then
set your base level, deck level, ground level etc.
REAR
Rear LCD Display Screen
Battery Compartment
