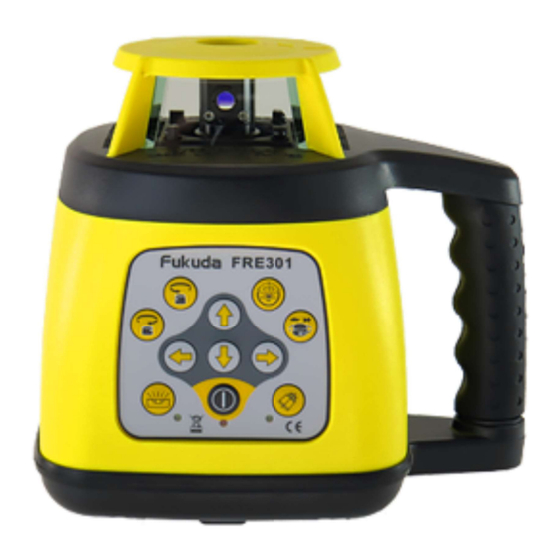

Thank you for purchasing the Fukuda FRE-301G Green beam rotary laser kit.
These instructions are intended to explain the quick basics to operating this
equipment. Please read them carefully.
For any more information, or if the laser requires calibration or repair; then
please contact our Service Department on Tel. 01246 260 007.
Email: sales@laser-level.co.uk We are here to help.
Power source:
This is a special battery pack located in the base of the laser. Remove & refit
via a central screw - finger tight (no tools are required).
It contains 4pc x "sealed for life" Ni-MH type C, 4000mAh, 1.2V cells. Please
note that this battery pack can be charged either in or outside of the laser.
The Mains Charger (supplied) will charge most batteries in around 7 hours to
give around 40 hrs of continuous use. It takes 4 to 5 charge/discharge cycles
for these battery packs to reach their maximum capacity.
Important: Do NOT allow battery to go completely dead before recharging.
1
Advertisement
Table of Contents
Related Manuals for Fukuda FRE-301G
Summary of Contents for Fukuda FRE-301G
- Page 1 Supplied by Laser Levels Online – The Laser Level Specialists www.laser-level.co.uk Tel: 08000 869 769 Thank you for purchasing the Fukuda FRE-301G Green beam rotary laser kit. These instructions are intended to explain the quick basics to operating this equipment. Please read them carefully.
- Page 2 NOT attempt to recharge them, otherwise serious damage will occur. Positioning the Laser: Mount the FRE-301G on a generally level, firm surface or 5/8” threaded tripod. To operate correctly this surface must be within +/-5 deg of true horizontal.
- Page 3 For Interior work, we suggest using slower speeds, where the laser beam is easier to see by eye; but for outdoor Groundworks – run the FRE-301G @ its maximum speed of 600rpm, which gives the best working range when used with the supplied Laser Detector.
- Page 4 Operated via bottom, right-hand yellow button, showing a "picture of a tilted instrument". Once the FRE-301G is ON and rotating in the auto (self) levelled mode, the automatic drift system can be activated. Press the button & the green LED will flash continually.
- Page 5 If the sun is low in the sky & shining into the green window, shield it with a cupped hand to prevent false readings. Positioning the FRE-301G itself in full sun is no problem, but the detector window can, in some instances, be affected by direct bright sunlight or reflections.
- Page 6 Laser accuracy +/-3mm @ 30m. Operating range 20m (visible) or 300m diameter with detector. IR Remote control range: 20m ...for full details, see website data for FRE-301G at www.laser-level.co.uk There are NO User Serviceable Parts. (This would void the warranty) We offer a full Back-up service including repairs, calibration &...
