Sealey VS2058.V3 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions and maintained properly, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Instruction
Wear Eye Protection
Manual
1. SAFETY
WARNING! Always use caution when working around fuel systems. The fuel in the fuel rail may be pressurised even if

the engine is not running.
WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using tools.

IMPORTANT: These instructions are provided as a guide only. Always refer to the vehicle manufacturer's service instructions,

or a proprietary manual, to establish the current procedure and data, also any warnings or cautions.
 Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
 Wear approved eye protection. A full range of personal safety equipment is available from your Sealey dealer.
Operate in a well ventilated area. Do not inhale fluid vapours.

Keep yourself, tools, and test equipment away from all moving / hot engine parts.

 Ensure the vehicle is in Neutral (manual transmission) or Park (automatic transmission), and that the parking brake is firmly
applied. Block the drive wheels.
 Always keep a fire extinguisher close by, that is suitable for fuel/electrical/chemical fires.
 Always turn vehicle's ignition to 'OFF' when connecting or disconnecting electrical components, unless otherwise instructed, and take
extreme caution when touching electrical components.
 Use a rag to cover fuel line fittings, when connecting or disconnecting fuel lines. Avoid contact with fuel.
 Clean up all fuel spills immediately.
 Dispose of all soiled rags properly.
 Keep away from engine cooling fan. On some vehicles, the fan may start up unexpectedly.
 You must follow the vehicle's service manual cautions when working around
the air bag system. If the cautions are not followed the air bag may deploy
unexpectedly, resulting in personal injury. Note that the air bag can still deploy
several minutes after the ignition is turned 'OFF' (or even if the battery is
disconnected) because of a special energy reserve module.
 Always relieve fuel pressure before disconnecting fuel lines from injectors.
 Never lay tools on the vehicle's battery. This may short the terminals together,
causing harm to yourself, the tools, or the battery.
 Never smoke or have open flames near vehicle. Vapours from fuel and
charging batteries are highly flammable and explosive.
 DO NOT use tester if damaged.
 Maintain tester in good and clean condition for best and safest performance.
After testing, ensure all connections on vehicle are restored.

 DO NOT place yourself or another person in line with the injector that is being
pressurised, as there will be high pressures involved and the spray from the
injector will be at high velocity and can potentially cause serious injury.
2. INTRODUCTION

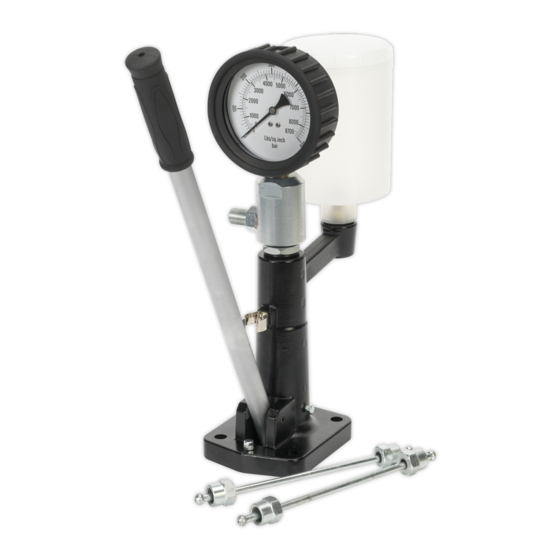

Enables the testing of injectors under pressure. Fitted with Ø88mm gauge
with rubber bumper, reading both PSI and Bar. Ideal for checking the
atomisation / spray pattern and injector cracking / opening pressure.
Transparent reservoir fitted with filter. Supplied with 2 injector connection pipes.
3. SPECIFICATION
Gauge scale: . . . . . . . . . . . . . . . . . . . . .0-600Bar
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-8700psi
Supplied Connection Pipes: . . . . . . . . .M12/M14
© Jack Sealey Limited
INSTRUCTIONS FOR:
DIESEL INJECTOR NOZZLE TESTER
VS2058.V3
MODEL No:
Original Language Version
VS2058.V3 Issue: 1 - 06/07/15
