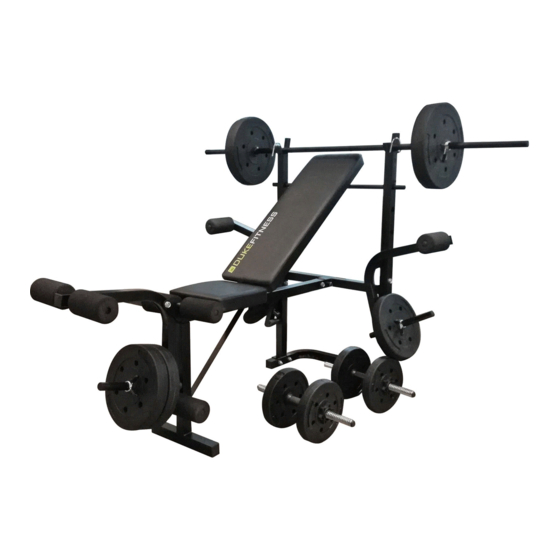

- Page 1 ASSEMBLY AND OPERATING INSTRUCTIONS max. 200 kg ~ 90 Min. 30 kg L 151 | W 160 | H 112 DUWB50.01.02 Art. No. DU-WB50 WEIGHT BENCH WB50...
- Page 2 WEIGHT BENCH WB50...
- Page 3 Dear customer, Thank you for choosing a Duke Fitness brand fitness equipment. Duke Fitness offers you fitness equipment that makes it easy to start exercising regularly, stay fit and lose weight. We want to help you to achieve your fitness goals quickly and sustainably and hope that your new fitness equipment will help you to do so.
- Page 4 This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. WEIGHT BENCH WB50...
-
Page 5: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions Folding Mechanism TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List... -
Page 6: General Information
61 cm x 119 cm x 163 cm Weight discs: 10 Pcs. (2 x 10 kg, 4 x 5 kg , 4 x 2.5 kg Maximum user weight: 150 kg Maximum weight load: 50 kg Maximum total load: 200 kg WEIGHT BENCH WB50... -
Page 7: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 8: Set-Up Place
(over 70%) like swimming pools. A floor protective mat/equipment underlay can help to protect high-quality floor coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness. WEIGHT BENCH WB50... -
Page 9: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 10: Scope Of Delivery
In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠ If parts of the scope of delivery are missing or damaged, the assembly must not be carried out. WEIGHT BENCH WB50... - Page 12 WEIGHT BENCH WB50...
-
Page 14: Assembly
Mount the left and right Safety Hook (23 & 24) to the left and right Upright Frame (1 & 2) using a total of two Washers (26) and two Nylon Locknuts (28). Tighten the Bolts and Nuts. WEIGHT BENCH WB50... - Page 16 Pass the Foam Tubes (10) through the openings on the left and right Butterfly Arms (8 & 9). Slide one Foam (17) over each Foam Tube (10). Place a Spring Clip (18) on the weight plate holders on the left and right Butterfly Arms (8 & 9). WEIGHT BENCH WB50...
- Page 17 Step 3: Assembly of the front Upright Frame Mount the Main Frame (5) to the rear Crossing Frame (4) using one Hex Bolt (19), two Washers (25), one Nylon Locknut (27) and the Pin (29). Mount the front Upright (6) to the Main Frame (5) using one Hex Bolt (20). Mount the Stabilizer Plate (7) to the Main Frame (5) and the front Upright (6) using a total of two Hex Bolts (19), four Washers (25) and two Nylon Locknuts (27).
- Page 18 Mount the Seat Cushion (15) to the Main Frame (5) using four Hex Bolts (21) and four Washers (26). Slide the Foam Tube (12) into the holder on the Main Frame (5) and slide Foam (17) on each side of the Foam Tube (12). Tighten the Bolts. WEIGHT BENCH WB50...
- Page 19 Step 5: Assembly of the Leg Extension Mount the Leg Extension (11) to the Main Frame (5) using one Hex Bolt (19), two Washers (25) and one Nylon Locknut (27). Tighten the Bolt and the Nut. Slide the Foam Tubes (12) into the upper and lower holes of the Leg Extension (11). Slide one Foam (17) onto each side of the Foam Tubes (12).
- Page 20 Slide two 5kg Weight Discs (38) onto the holder on the Leg Extension (11) and secure the Weight Discs (38) with a Spring Clip (18). Slide one 2.5kg Weight Disc (39) onto each side of the Dumbell Bars (41) and secure each Weight Disc (39) with one Screw Collar (40). WEIGHT BENCH WB50...
-
Page 21: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 22: Troubleshooting, Care And Maintenance
To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Screw connections Weights Cushions Legend: C = clean; I = inspect WEIGHT BENCH WB50... -
Page 23: Disposal
DISPOSAL At the end of its operational life, this equipment cannot be disposed of in normal household waste. Instead, it must be disposed of via an recycling centre. Further information can be obtained from your local authority‘s recycling service. The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment. -
Page 24: Ordering Spare Parts
The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Duke / weight bench Model Name: WB50 Article Number: DU-WB50 WEIGHT BENCH WB50... -
Page 25: Parts List
Parts List Name Qty. Name Qty. LEFT UPRIGHT FRAME HEX BOLT M6x40MM RIGHT UPRIGHT FRAME LEFT SAFETY HOOK REAR BASE FRAME RIGHT SAFETY HOOK REAR CROSSING FRAME WASHER M10 MAIN FRAME WASHER M6 FRONT UPRIGHT NYLON LOCKNUT M10 STABILIZER PLATE NYLON LOCKNUT M6 LEFT BUTTERFLY ARM RIGHT BUTTERFLY ARM... -
Page 26: Exploded Drawing
Exploded Drawing WEIGHT BENCH WB50... -
Page 27: Warranty
WARRANTY Training equipment from Duke® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. Error Descriptions Your fitness equipment is developed for long-term, high-quality training. - Page 28 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. WEIGHT BENCH WB50...
-
Page 29: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��... - Page 30 The company employs numerous sports scientists, fitness trainers and competitive athletes. Visit us also on our social media platforms or our blog! WEIGHT BENCH WB50...
- Page 32 WEIGHT BENCH WB50...
