Sealey TP9424.V2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to
these instructions, and properly maintained, give you years of trouble free performance.
I
MPORTANT: PLEASE READ THESE INSTRUcTIONS cAREFULLY. NOTE THE SAFE OPERATIONAL
REQUIREMENTS, WARNINGS & cAUTIONS. USE THE PRODUcT cORREcTLY AND WITH cARE FOR THE
PURPOSE FOR WHIcH IT IS INTENDED. FAILURE TO DO SO MAY cAUSE DAMAGE AND/OR PERSONAL
INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUcTIONS SAFE FOR FUTURE USE.
1. SAFETY
 WARNING! Pump must be used in accordance with Health & Safety, government, local authority, and water authority rules
and regulations.
 Familiarise yourself with application and limitations, as well as the potential hazards peculiar to the pump.
 WARNING! Disconnect the pump from the battery before changing accessories, servicing or performing any maintenance.
 Maintain the pump in good condition. Keep the pump clean.
 Replace or repair damaged parts (use an authorised service agent). Use genuine parts only. Non authorised parts may be
dangerous and will invalidate the warranty.
 If the bottom of the liquid container is covered with sludge, sand, gravel or mud etc, suspend the pump or place it on a raised
base to operate above the solid matter. Sand and such substances will reduce working life of pump, and invalidate your
warranty.
 In flood situations, user is responsible for ensuring that appropriate back up procedures, alarms etc are correctly installed in
case of pump failure.
 In swimming pool, fish ponds, etc, ensure location is clear of people and animals (including removal of fish from pond).
Note: this pump is not designed for continuous use in a fish pond or similar water feature or display.
 DO NOT use with petrol or other volatile liquids within flashpoint range -20°C to +80°C.
 DO NOT use to pump septic tanks or settling pits.
 DO NOT operate the pump if any parts are damaged or missing as this may cause failure and/or personal injury.
 DO NOT use the pump for any purpose other than for which it is designed.
 DO NOT operate pump out of liquid. The pump pick up area must be completely submerged during operation.
 DO NOT operate the pump during freezing temperatures. DO NOT leave the pump in water that may freeze.
 DO NOT carry the pump by its electrical cable, or outlet pipe.
 When not in use remove battery clips from terminals. Rinse pump, drain out any liquid and store in a frost free, safe location.
 WARNING! Whilst the pump may be used in dirty water, it is not to be used for water containing large particles e.g. mud, weed
etc.
 WARNING! DO NOT allow uncontrolled discharge of contaminated water/harmful chemicals thus polluting the environment.
 WARNING! This pump must only be connected to a 24Vdc battery. DO NOT attempt to connect to any other supply.
2. INTRODUcTION & SPEcIFIcATIONS
Robust and compact portable pump for use with diesel, non-aggressive chemicals and fresh or dirty water.
Suitable for re-fuelling/fluid transfer of plant, agricultural and marine equipment on site. The pump is supplied with a 3mtr outlet
hose and stainless steel nozzle plus a 4mtr battery cable with clips. Will fit through a Ø54mm aperture to allow emptying of
containers. end cap can be unscrewed for periodic cleaning of the filter.
Flow rate: ............................. 15 ltr/min
Voltage:................................ 24Vdc
Current:................................ 5∙3amp
Duty Cycle: .......................... 15min/hr
3. cONTENTS
unpack the product and check the contents.
ensure that there is no damage. If any problem is
noted, contact your supplier immediately.

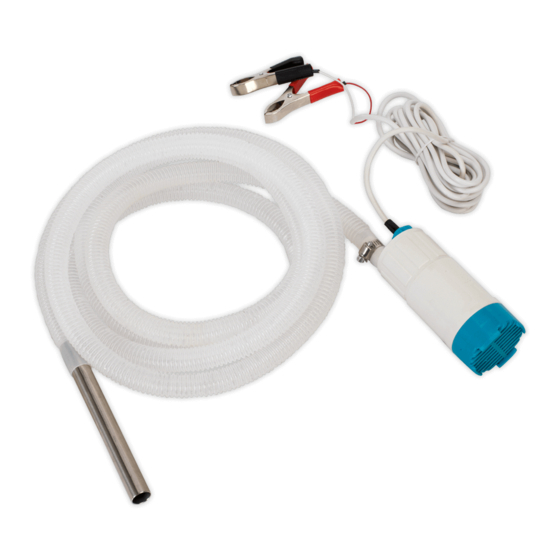

A ........ 3 metre outlet hose + stainless steel nozzle
B ........ Motor
C ........ Impeller guard
D ........ Filter
e ........ end cap
F ........ Battery clips
G ........ 4 metre battery cable
H ........ Seal cap
©Jack Sealey limited
NSTRuCTIoNS FoR:
I
SUBMERSIBLE TRANSFER PUMP
24V
TP9424.V2
MoDel No:
Original Language Version
TP9424.V2 Issue: 1 - 26/06/14
