Installation and External Connection

INSTALLATION

Upper
6-32 hole
1.7"
(4.31cm)
3.3"
6-32 or M3 Screws
(8.38cm)
1/2"hole
6-32 hole
Lower
Reader
Module
Bezel

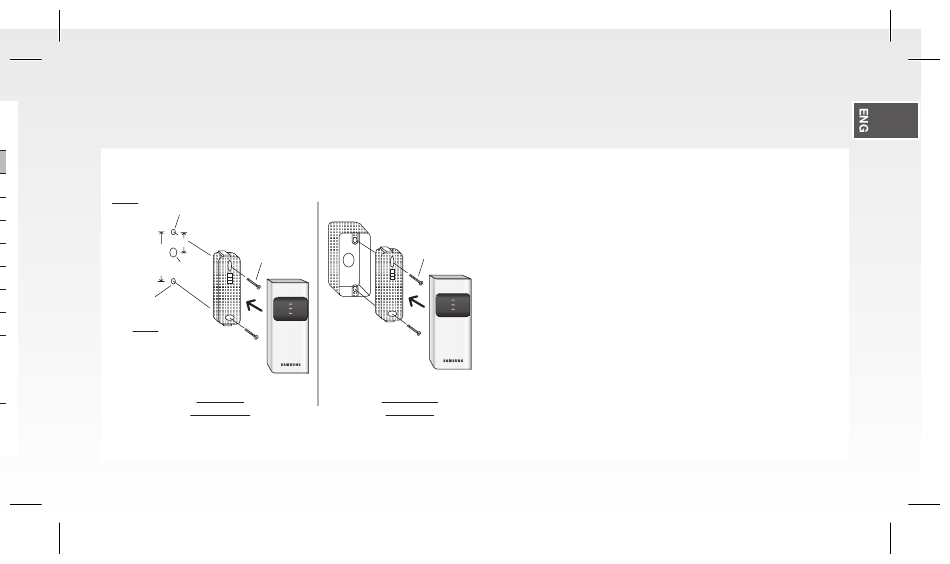

Wall Mount
Mullion Mount
6-32 or M3 Screws
Gang Box
Reader
Module
Bezel
Electric Gang
Box Mount
- Inserted in the doorframe / attached to the wall
1.
Two 6-32 or M3 holes are 3.3" (8.38 cm) away from
each other vertically; between the two exists one 1/2"
hole through which the reader cables are arranged.
The midway hole is located 1.7" (4.31cm) down from
the upper hole.
(If the product is already installed, you can skip the
follow step)
2.
Insert the reader cables to the midway hole and fi x the
reader module with two 6-32 or M3 screws.
3.
Insert the reader module into the bezel and push it up
until you hear a click.
QUICK GUIDE
7
English_
