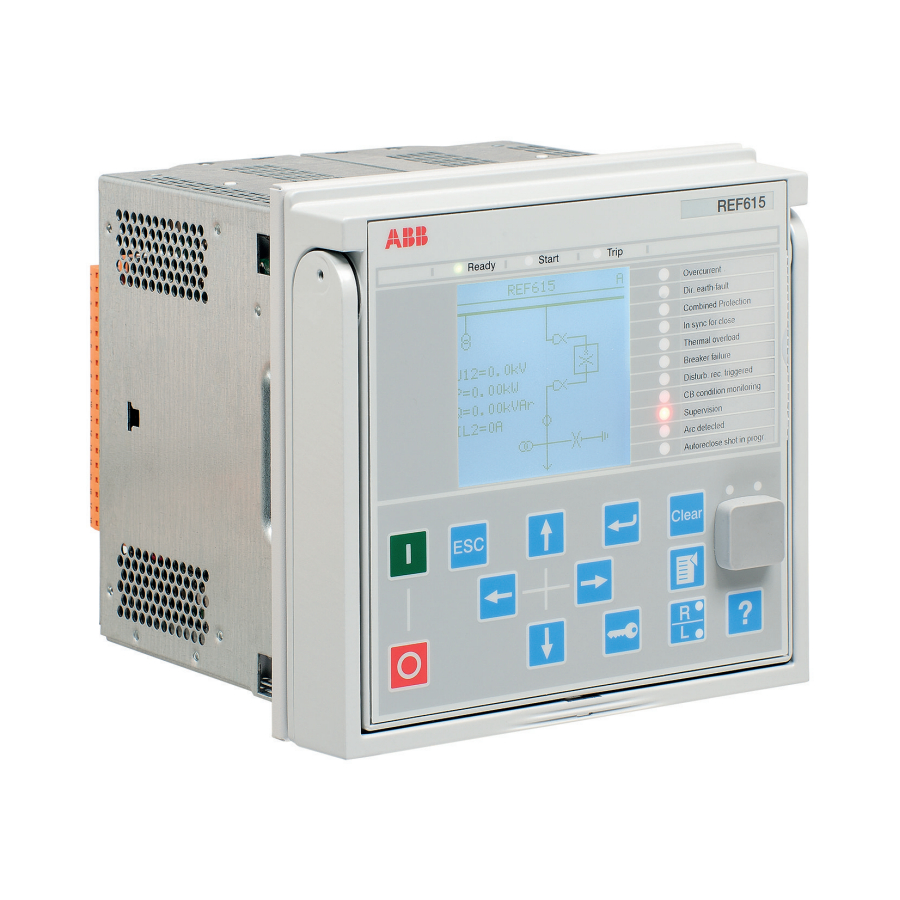

Relion
Protection and Control
615 series
DNP3 Communication Protocol Manual

Advertisement

Table of Contents
loading

Related Manuals for ABB Relion 615 Series

Summary of Contents for ABB Relion 615 Series

  • Page 1 ® Relion Protection and Control 615 series DNP3 Communication Protocol Manual...
  • Page 3 Document ID: 1MRS756709 Issued: 2012-05-11 Revision: D Product version: 4.0 © Copyright 2012 ABB. All rights reserved...
  • Page 4 Copyright This document and parts thereof must not be reproduced or copied without written permission from ABB, and the contents thereof must not be imparted to a third party, nor used for any unauthorized purpose. The software or hardware described in this document is furnished under a license and may be used, copied, or disclosed only in accordance with the terms of such license.
  • Page 5 In case any errors are detected, the reader is kindly requested to notify the manufacturer. Other than under explicit contractual commitments, in no event shall ABB be responsible or liable for any loss or damage resulting from the use of this manual or the application of the equipment.
  • Page 6 (EMC Directive 2004/108/EC) and concerning electrical equipment for use within specified voltage limits (Low-voltage directive 2006/95/EC). This conformity is the result of tests conducted by ABB in accordance with the product standards EN 50263 and EN 60255-26 for the EMC directive, and with the product standards EN 60255-1 and EN 60255-27 for the low voltage directive.

  • Page 7: Table Of Contents

    Table of contents Table of contents Section 1 Introduction...............3 This manual..................3 Intended audience................3 Product documentation...............3 Product documentation set............3 Document revision history.............4 Related documentation..............4 Symbols and conventions..............5 Symbols..................5 Document conventions..............5 Section 2 DNP3 overview..............7 DNP3 standard...................7 Documentation...................9 Section 3 Vendor-specific implementation........11 DNP3 link modes................11 DNP3 data objects...............11 DNP3 serial link mode..............11...

  • Page 9: Section 1 Introduction

    Section 1 1MRS756709 D Introduction Section 1 Introduction This manual The communication protocol manual describes a communication protocol supported by the IED. The manual concentrates on vendor-specific implementations. Intended audience This manual addresses the communication system engineer or system integrator responsible for pre-engineering and engineering for communication setup in a substation from an IED perspective.

  • Page 10: Document Revision History

    Content updated to correspond to the product series version D/2012-05-11 Content updated to correspond to the product series version Download the latest documents from the ABB Web site http://www.abb.com/substationautomation. 1.3.3 Related documentation Product-specific point list manuals and other product series- and product-specific manuals can be downloaded from the ABB Web site http://www.abb.com/substationautomation.

  • Page 11: Symbols And Conventions

    Section 1 1MRS756709 D Introduction Symbols and conventions 1.4.1 Symbols The caution icon indicates important information or warning related to the concept discussed in the text. It might indicate the presence of a hazard which could result in corruption of software or damage to equipment or property.

  • Page 13: Section 2 Dnp3 Overview

    Section 2 1MRS756709 D DNP3 overview Section 2 DNP3 overview DNP3 standard The DNP3 protocol was developed by Westronic based on the early versions of the IEC 60870-5 standard telecontrol protocol specifications. Now the protocol specification is controlled by the DNP Users Group at www.dnp.org. The ISO/OSI based model supported by this protocol specifies physical, data link and application layers only.
  • Page 14 Section 2 1MRS756709 D DNP3 overview Data link responsibilities: • Exchange of SDUs between peer DNP3 data links • Error notification to data link user • Sequencing of SDUs • SDU delivery quality. Link-layer confirm usage is deprecated. See the DNP technical bulletin TB1998-0402, section 3 for details at www.dnp.org.

  • Page 15: Documentation

    Section 2 1MRS756709 D DNP3 overview In the present implementation, the binary output object may not be assigned to generate events in classes 1, 2 or 3. Instead, the outputs are available as binary inputs, which may then be assigned to generate events. The actual status of the binary outputs can be read from the binary inputs.

  • Page 17: Section 3 Vendor-Specific Implementation

    Section 3 1MRS756709 D Vendor-specific implementation Section 3 Vendor-specific implementation DNP3 link modes 3.1.1 DNP3 data objects The DNP3 protocol in 615 series IEDs is built on top of the internal IEC 61850 data model. Thus, the DNP3 application data objects and Class events are derived from IEC 61850 data objects and data set reporting.

  • Page 18: Dnp3 Point List

    Section 3 1MRS756709 D Vendor-specific implementation DNP3 point list 3.2.1 Binary input points The binary input event buffer size is set to allow 200 events. Events that occur after buffer overflow are discarded. Table 1: Binary input points Description Value Static (steady-state) object number Change event object number Static variation reported when variation 0...
  • Page 19 Section 3 1MRS756709 D Vendor-specific implementation • it allows actual statuses to be included in class 0 polls, • it allows change event reporting of the actual statuses, which is a more efficient and time-accurate method of communicating control values, •...

  • Page 20: Analog Inputs

    Section 3 1MRS756709 D Vendor-specific implementation Table 5: CROB fields supported Point index Name/description Supported CROB fields See the point list manual. 1) In this IED implementation the pulse-on time cannot be commanded from the DNP3 master. A value in the variable pulse-on time field in the CROB command is ignored, but the command is accepted. It should be noticed that control pulse lengths for CB controls in this IED are configurable via PCM600.

  • Page 21: Analog Data Scaling

    Section 3 1MRS756709 D Vendor-specific implementation Table 6: Analog inputs Description Values Static (steady-state) object number Change event object number Static variation reported when variation 0 4 (16-bit analog input w/o flag) requested (default setting) Change event variation reported when variation 2 (16-bit analog change event w/o time) 0 requested (default setting) Table 7:...

  • Page 22: Dnp Points

    Section 3 1MRS756709 D Vendor-specific implementation In divisor scaling, argument four destMaxVal becomes a scale constant and argument three destMinVal becomes an offset.  sourceValue  DNPvalue destMinVal    destMaxVal  (Equation 3) GUID-01F26415-274B-4844-B861-DB7D6E56D91B V1 EN DNP points 3.3.1 Point configuration The DNP3 point map is configurable in PCM600.

  • Page 23: Accessing Non-Protocol Mapped Data

    Section 3 1MRS756709 D Vendor-specific implementation 3.3.3 Accessing non-protocol mapped data Since the 615 series version 4.0.0, the IED application includes a number of general purpose I/O data. By default, these data are mapped to this protocol. See the point list manual for the exact mappings. The general purpose objects can be connected to any internal object in the IED configuration application by ACT or SMT tool.

  • Page 25: Section 4 Dnp3 Parameters

    Section 4 1MRS756709 D DNP3 parameters Section 4 DNP3 parameters Parameter descriptions Link parameters DNP physical layer configures DNP3 for the TCP/IP or serial channel. Unit address is the slave 16 bit link address. This value should be set between 1 and 65519, since DNP3 reserves the top 16 addresses.
  • Page 26 Section 4 1MRS756709 D DNP3 parameters App confirm TO is the application layer confirmation timeout in milliseconds. Application layer confirmations received from the master after App confirm TO has expired are not acknowledged by the IED. App layer fragment is the application layer fragment size in bytes. Unsolicited mode parameters UR mode Unsolicited responses mode may be set to enable or disable.
  • Page 27 Section 4 1MRS756709 D DNP3 parameters Legacy master UR allows non-standards compliant behavior. Legacy master SBO provides compatibility to some older DNP3 masters for the Select Before Operate command. When disabled, DNP3 expects the application layer sequence of the operate command to be the select command sequence + 1 modulo 16.

  • Page 28: Parameter List

    Section 4 1MRS756709 D DNP3 parameters Deadbanding of the analog static values cannot be set in DNP3. Event generation is dependent on the functions employed in the IED, and the execution loops these functions belong to. See the IED’s technical manual for setting deadbands. As a result of the event generation mechanism in the IED, the events reported by DNP3 are very accurate and are the same events that can be retrieved over the WHMI or other protocols such as IEC 61850-8-1.
  • Page 29 Section 4 1MRS756709 D DNP3 parameters Parameter Values (Range) Unit Step Default Description UR mode 1=Disable 1=Disable Unsolicited responses mode 2=Enable UR retries 0...65535 Unsolicited retries before switching to UR offline mode UR TO 0...65535 5000 Unsolicited response timeout UR offline interval 0...65535 Unsolicited offline interval UR Class 1 Min events...

  • Page 31: Section 5 Glossary

    Section 5 1MRS756709 D Glossary Section 5 Glossary 615 series Series of numerical IEDs for low-end protection and supervision applications of utility substations, and industrial switchgear and equipment Analog input Binary input Binary output status Circuit breaker Cyclical redundancy check CROB Control relay output block Data flow control...
  • Page 32 Section 5 1MRS756709 D Glossary PCM600 Protection and Control IED Manager Remote terminal unit Service data unit TCP/IP Transmission Control Protocol/Internet Protocol Unsolicited response WHMI Web human-machine interface 615 series Communication Protocol Manual...
  • Page 36 Contact us ABB Oy Distribution Automation P.O. Box 699 FI-65101 VAASA, Finland Phone +358 10 22 11 +358 10 22 41094 www.abb.com/substationautomation...
