VIBRAPHONE VARIABLE-SPEED DRIVER YVD20 YVD10 取 扱 説 明 書 Owner’s Manual Benutzerhandbuch Mode d’emploi Manual de instrucciones Manual do Proprietário YVD20 『安全上のご注意』 (3 ページ ) を必ずお読みください。 Make sure to read the “PRECAUTIONS” on page 13. Lesen Sie unbedingt die “VORSICHTSMASSNAHMEN” auf Seite 22.
AC adapter and Doing so can cause fire or electrical shock. have the device inspected by Yamaha service personnel. - If the AC adapter or power cord becomes damaged. - If foreign objects or liquids have gotten into the unit.
• Use the bolts that comes with the vibraphone. Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument. Always turn the power off when the instrument is not in use.
Page 4
However, deterioration cannot be completely avoided. When replacing consumable parts, please contact your dealer or qualified Yamaha service personnel. • Do not place vinyl, plastic or rubber objects on the instrument, since this might dis- color the units.
After you have read the manual, keep it in a safe and handy place for future reference. * The illustrations in this manual show the YVD20, but the information applies to the YVD10 (except where indicated).
Page 6

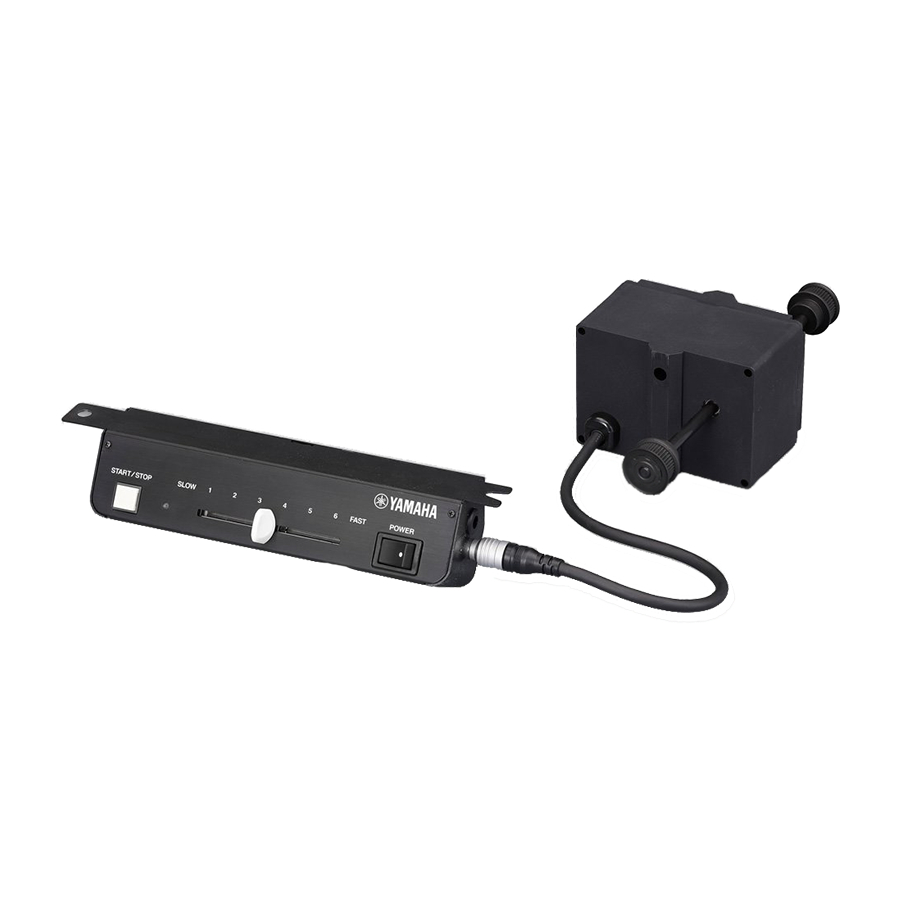

The shipping package of the VIBRAPHONE VARIABLE-SPEED DRIVER should con- tain the parts shown below. Before assembling the instrument, confirm that all parts are included as listed. * If a part is missing, please contact your dealer or qualified Yamaha service personnel. q Owner’s Manual e Driver × 1 (this document) ×...
Page 7
Pulley Cup head square (Fan belt) neck bolt Cable Driver In the case of the YVD20 4-2.Lower the position of the driver until the tension of the belt is suffi- cient. 4-3.Prepare a separately sold AC adaptor. Set the timing belt (fan belt).
Page 8
Prepare the power supply in the same does not move, and then rotate way as Steps 4-3 to 4-5 (page 18). the pulley on the fan side with your other hand (2). The assembly is now complete. YVD20 YVD10 Owner’s Manual...
Page 9
Fan belt PAUSE MEMORY FUNCTION SETTING (YVD20 only) The YVD20 is equipped with a PAUSE MEMORY FUNCTION which stops the fan always in exactly the same position when it is turned off (no vibrato applied). Set the PAUSE MEMORY to the desired fan stop position in the same way as Steps to 4-8 (page 19).
Yamaha website and then download the manual file. Since specifications, equipment or separately sold accessories may not be the same in every locale, please check with your Yamaha dealer. Information for users on collection and disposal of old equipment:...
