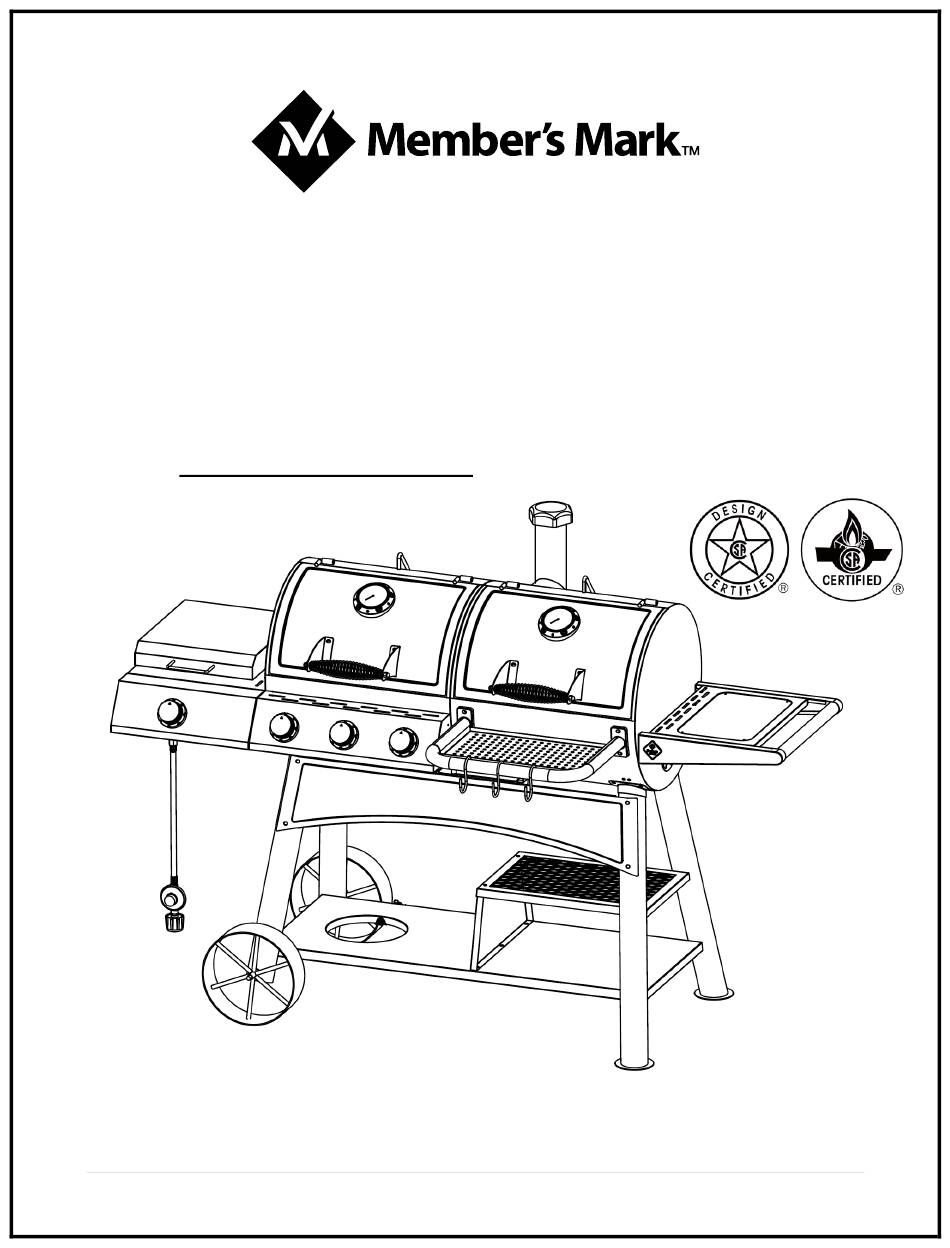

Assembly Instructions & User's Manual
for
Member's Mark Charcoal & Gas Combo Grill
Item Number: 980305021 / 980305488
Model Number: GR2310803-MM-00
Customer Assistance
: 1-888-837-1380
(spare/replacement parts)
or Email: customerservice@rankam.com
THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GR2310803-MM-00 and is the answer not in the manual?

Questions and answers

Related Manuals for Member's Mark GR2310803-MM-00

Summary of Contents for Member's Mark GR2310803-MM-00

  • Page 1 Assembly Instructions & User’s Manual Member’s Mark Charcoal & Gas Combo Grill Item Number: 980305021 / 980305488 Model Number: GR2310803-MM-00 Customer Assistance : 1-888-837-1380 (spare/replacement parts) or Email: customerservice@rankam.com THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    Table of Contents Quality Statement ............................. 3 Important Safety Information ........................ 3 Before Assembly ............................3 Care & Use .............................. 3-6 Package Contents ..........................7-8 Product Information ..........................8 Components ............................9-13 Hardware ..............................14 Tools ................................14 Step 1 – Step 29 ..........................15-29 Warning ..........................

  • Page 3: Quality Statement

    Quality Statement Important Safety Information • Please read all instructions carefully before assembling this product. • Where applicable, and for your safety, assembly by an adult is strongly recommended. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item.
  • Page 4 USE AND INSTALLATION OF LP GAS CYLINDER (PROPANE TANK) BEFORE INSTALLING: The installation must conform with local codes or (in the absence of local codes) with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2, or the Standard for Recreational Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as applicable.
  • Page 5 INSTALLING GAS CYLINDER 1. Check that the cylinder valve is closed by turning the knob clockwise. 2. Place the cylinder into cylinder holder and tighten the fixing bolt. Place cylinder such that the valve opening faces the side burner in such a way that the hose is not kinked/damaged.
  • Page 6 CONNECTION PROCEDURES 1. Make sure the tank valve is closed (turn valve clockwise until tight). 2. Check the tank valve to ensure it has the proper external male threads. 3. Make sure all burner valves are turned OFF. 4. Check valve connections, port, and regulator assembly for any damage or debris.

  • Page 7: Package Contents

    Package Contents P a g e...

  • Page 8: Product Information

    Component Description Quantity Component Description Quantity Warming Rack Front Handle Tray Cooking Grate Air Vent Flame Tamer Side Table Grill Body Cart Rack Assembly Smoke Stack Cart Rack Support Assembly Charcoal Tray Wheel Charcoal Tray Wheel Axle Holder Lid Handle Left Front Leg Side Burner Lid Left Rear Leg...

  • Page 9: Components

    Components Component 1 Component 2 Component 3 Warming Rack Cooking Grate Flame Tamer Part No. MET-3B0123 Part No. MET-3B0124 Part No. MET-3B0125 Qty 2 Qty 4 Qty 3 Component 4a Component 4b Component 4c Grill Body – Fire Box (Gas Grill) Grill Body –...
  • Page 10 Component 4j Component 4k Component 4l Grill Body – Side Burner Valve Grill Body – Control Panel Grill Body – Hose & Regulator Part No. GAS-3B0018 Part No. MET-3B0132 Assembly Qty 1 Qty 1 Part No. GAS-3B0019 Qty 1 Component 4m Component 4n Component 4o Grill Body –...
  • Page 11 Component 11 Component 12a Component 12b Side Burner – Side Burner Tray Side Burner – Side Burner Side Burner Grate Part No. MET-3B0140 Part No. MET-3B0141 Part No. GAS-3B0020 Qty 1 Qty 1 Qty 1 Component 12c Component 13 Component 14 Side Burner –...
  • Page 12 Component 21 Component 22 Component 23 Front Handle Tray Air Vent Side Table Part No. MET-3B0148 Part No. MET-3B0149 Part No. MET-3B0150 Qty 1 Qty 1 Qty 1 Component 24 Component 25 Component 26 Cart Rack Cart Rack Support Wheel Part No.
  • Page 13 Component 33 Component 34 Component 35 Cart Front Panel Tank Fixing Bolt Match Holder Part No. MET-3B0160 Part No. HAR-3B0006 Part No. MET-3B0161 Qty 1 Qty 1 Qty 1 Component 36 Component 37 Component 38 Side Burner Support Thermometer Thermometer Bezel Part No.

  • Page 14: Hardware

    Hardware Phillips Head Bolt, M6x12mm, Phillips Head Bolt, M6x20mm, M6 Nut, Item No. A Item No. B Item No. C Qty: 71 Qty: 4 Qty: 16 Phillips Head Bolt, M4x10mm, M10 Locking Nut, M10 Washer, Item No. D Item No. E Item No.

  • Page 15: Step 1 - Step 29

    Step 1 – Step 29 （Two person for assembly is recommended） Step 1. Attach the Legs (28, 29, 30 & 31) to the Grill Body Assembly (4) using 16 pcs M6x12 Bolts (A). Do not fully tighten the bolts. Step 2. Attach the Tank Fixing Bolt (34) to the Cart Base (32) using one M4 Flat Head Bolt (L) and one Tank Fixing Washer (K).
  • Page 16 Step 3. Attach the Cart Base (32) to the cart legs using 4 pcs M6x12 Bolts (A). Do not fully tighten the bolts. Step 4. Attach the Wheel Axle (27) and the Wheels (26) to the cart assembly using 2 pcs M10 Locking Nuts (E) and 4 pcs M10 Washers (F).
  • Page 17 Step 5. Attach the Cart Front Panel (33) to cart assembly using 4 pcs M6x12 Bolts (A). Step 6. Attach the Grease Cup Holders (18) to the grill body using 4 pcs M6x12 Bolts (A). 17 | P a g e...
  • Page 18 Step 7. Attach the Cart Rack Support (25) to the cart assembly using 3 pcs M6x12 Bolts (A). Step 8. Attach the Cart Rack (24) to the cart assembly using 4 pcs M6x12 Bolts (A). 18 | P a g e...
  • Page 19 Step 9. Fully tighten all the bolts on the cart assembly. Step 10. Remove the thermometer nuts from the Thermometers (37). Attach the Thermometers (37) and the Thermometer Bezels (38) to the lids using the removed nuts as shown below. 19 | P a g e...
  • Page 20 Step 11. Attach the Lid Handles (8) to the lids using 8 pcs M6x12 Bolts (A) and 8 pcs M6 Nuts (C). Step 12. Attach the Side Burner Control Panel (14) to the Side Burner Frame (13) using 3 pcs M6x12 Bolts (A). 20 | P a g e...
  • Page 21 Step 13. Screw 2 pcs M6x12 Bolts (A) to the left panel of grill body and adjust to 3/16” clearance as shown. Attach the side burner frame assembly to the grill body by using 6 pcs M6x12 Bolts (A). Step 14. Attach the valve to the Control Knob Bezel (15) and fix the side burner valve onto the control knob bezel by using 2 pcs M4x10mm Bolts (D).
  • Page 22 Step 15. Attach the Side Burner Assembly (12) to the side burner frame assembly using 3 pcs M4x10mm Bolts (D) and 3 pcs M4 Nuts (G). Step 16. Attach the Side Burner Lid (9) to the side burner frame assembly using 2 pcs Hinge Pins (H) and 2 pcs Cotter Pins (I).
  • Page 23 Step 17. Attach the Side Burner Support (36) and the Match Holder (35) to the grill body using 2 pcs M6x12 Bolts (A) as shown below. Step 18. Insert the connector of the ignition wire to the terminal of the ignition electrode on the side burner assembly, as shown below.
  • Page 24 Step 19. Attach the Side Burner Lid Handle (39) to the side burner lid using 2 pcs M5 Nuts (M) and 2 pcs M5 Washers (N) as shown below. Step 20. Attach the Charcoal Tray Holders (7) to the charcoal grill body using 8 pcs M6x12 Bolts (A).
  • Page 25 Step 21. Attach the Smoke Stack Assembly (5) to the grill body using 4 pcs M6x12 Bolts (A) and 4 pcs M6 Nuts (C). Step 22. Attach the Air Vent (22) to the grill body using 1 pc M6x12 Bolt (A) and 1 pc M6 Locking Nut (J).
  • Page 26 Step 23. Attach the Side Table (23) to the grill body using 4 pcs M6x12 Bolts (A). Step 24. Attach the Front Handle (19) to the grill body using 4 pcs M6x20 Bolts (B) and 4 pcs M6 Nuts (C). 26 | P a g e...
  • Page 27 Step 25. Slide the Grease Cup (17) into the holding bracket at the bottom of the grill body. Be sure the handle is facing outward. Step 26. Place the Flame Tamers (3) and Charcoal Tray (6) on the grill as shown. 27 | P a g e...
  • Page 28 Step 27. Place the Warming Racks (1), Cooking Grates (2), Griddle (10) and Side Burner Grate (11) on the grill as shown. Step 28. Place the Hooks (20) and Front Handle Tray (21) on the grill as shown. 28 | P a g e...
  • Page 29 Step 29. Your unit is fully assembled! Make sure to read and follow the Instruction Manual before using this appliance. Need Assistance? Visit us at: samsclub.com/membersmarkhelp 29 | P a g e...

  • Page 30: Warning

    Warning PROP 65 WARNING WARNING: This product can expose you to chemicals including benzene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. WARNING ⚫ The appliance is designed for outdoor use only.
  • Page 31 ⚫ The appliance is for household use only. DO NOT use this grill for other than its intended purpose. ⚫ Never use natural gas in a unit designed for liquid propane gas. Never use charcoal or wood briquettes in a gas grill. Flavoring chips must be ⚫...
  • Page 32 LEAK TEST Although all gas connections on the grill are leak tested at the factory prior to shipment, a complete gas tightness check must be performed after assembly to ensure fittings were not damaged after leaving the factory. Periodically check the entire system for leaks following the procedures listed below.
  • Page 33 3. If a leak is present, immediately turn off the gas supply and tighten the leaky fittings. 4. Turn the gas back on and recheck. 5. Should gas continue to leak from any of the fittings, turn off the gas supply and contact customer service department at 1- 888-837-1380, 8am - 5pm, PST, Monday - Friday.
  • Page 34 ⚫ For outdoor use only. Do not use this grill for other than its intended purpose. ⚫ For household use only. Do not use this grill for other than its intended purpose. We recommend the use of a Charcoal Chimney Starter to avoid the dangers ⚫...
  • Page 35 WARNING Use only a high grade plain charcoal or charcoal /wood mixture. WARNING Charcoal lighting fluid must be allowed to completely burn off prior to closing grill lid (approximately 20 minutes). Failure to do this could trap fumes from charcoal lighting fluid in grill and may result in a flash-fire or explosion when lid is opened.

  • Page 36: Danger

    Danger DANGER If you smell gas: 5. Shut off gas to the appliance. 6. Extinguish any open flame. 7. Open lid. 8. If odor continues, keep away from the appliance and immediately call your fire department. Failure to follow these instructions could result in fire or explosion which could cause property damage, personal injury or death.

  • Page 37: Troubleshooting

    Troubleshooting Problem Possible Cause Prevention / Solution Burner Will Not Light 1. LP cylinder fuel is used 1. Change a new, full LP cylinder. 2. Bad electrode spark. 2. Electrode or collector needs 3. Burner may not be adjustments. 3. Refer “To Reinstall The Main properly seated.

  • Page 38: Care & Use Instructions

    Care & Use Instructions LIGHTING INSTRUCTION: MAIN BURNER 1. Read instructions before lighting. 2. Open the lid before lighting. 3. Make sure all control knobs are in the "OFF" position. 4. Turn ON gas valve from source or tank. Light the IGNITION BURNER first. Push and turn burner control knob slowly to HI, burner should light immediately.
  • Page 39 LIGHTING INSTRUCTIONS: SIDE BURNER 1. Read instructions before lighting. 2. Open the lid during lighting. 3. Make sure the side burner control knob is in the "OFF" position. 4. Turn ON gas valve from LP tank. 5. Push and turn side burner control knob slowly to HI, burner should light immediately. 6.
  • Page 40 LIGHTING INSTRUCTION: MATCH HOLDER TO LIGHT MAIN BURNER Turn OFF all burner valves. Place a lit match through lighting hole in the left hand side of the grill to approximately 1/2” (1 to 2cm) from the burner. Turn the LEFT Control Knob to the “HI” position. Burner should light immediately. If ignition does NOT occur in 5 seconds, turn the burner controls off, wait 5 minutes, and repeat the lighting procedure.
  • Page 41 CHARCOAL GRILL OPERATION Curing your grill Prior to your first use of the Grill, follow the instructions below carefully to cure your grill. Curing your grill will minimize damage to the exterior finish as well as rid the grill of paint odor that can impart unnatural flavors to the first meal prepared on the grill.
  • Page 42 Step 4 With grill lid and doors open, stand back and carefully light charcoal through the doors. Allow to burn until covered with a light ash (approximately 20 minutes). Step 5 Place lump or briquette charcoal on top of grate in chimney starter until full. Underneath grate place balled up paper and light with match or lighter thru holes in bottom of chimney sides.
  • Page 43 Step 3 With grill lid and doors open, stand back and carefully light charcoal and allow to burn until covered with a light ash (approximately 20 minutes). Step 4 Place cooking grates on grill support lips. Use charcoal tray handle adjuster to position charcoal grates to desired cooking level.
  • Page 44 Adding Charcoal/Wood During Cooking Additional charcoal and/or wood may be required to maintain or increase cooking temperature. Step 1 Stand back and carefully open grill lid. Use caution since flames can flare-up when fresh air suddenly comes in contact with fire. Step 2 Wearing oven mitts/gloves, lift up the cooking grates and place them on a clean and non- combustible surface.
  • Page 45 GRILL BURNERS Extreme care should be taken when removing a burner, as it must be correctly centered before an attempt is made to relight the grill. Frequency of cleaning will depend on how often you use the grill. Spiders and small insects occasionally spin webs or make nests in the grill burner tubes during transit and warehousing.
  • Page 46 TO REINSTALL THE MAIN BURNERS: 1. Insert the burner into the burner valve. 2. Firmly seat the valve connector into the burner tube. Make sure connector is inserted STRAIGHT into the burner tube as shown below. 3. Position the main burner onto the burner support at the firebox. Insert the burner fixing pin through the holes and plug the cotter pin into the hole of the burner fixing pin.

  • Page 47: Technical Data

    Step 3 Step 2 PROPERLY INSTALL THE BURNER Firmly seat the valve orifice into the burner tube. Make sure the valve orifice is inserted STRAIGHT into the burner tube. Burner flames will be yellow, with excessive noise, lifting or flash back if the burner is not installed properly.

  • Page 48: Warranty Information

    Warranty Information 1. Manufacturer warrants this Product to be free from defects in workmanship and materials for a period of Ninety (90) days from the date of purchase, PROVIDED claims are submitted, in writing, with proof of purchase. 2. If any part of this item fails because of a manufacturing defect within the Limited Warranty Period, Manufacturer offers to replace such part(s) provided that such parts have not been improperly repaired, altered, or tampered with or subject to misuse, abuse or exposed to corrosive conditions.
  • Page 49 NOTE: Please consider recycling all applicable packaging material. Distributed by Sam’s West Inc. 2101 SE Simple Savings Dr. Bentonville, Arkansas 72716-0745 Made in China Need Assistance? Visit us at: samsclub.com/membersmarkhelp 49 | P a g e...
