SECTION 5 - APPENDIX
Device Configuration
External devices can be connected to the FlexPay IV system from the Device Configuration menu.
After the first start-up, verify that the devices are configured correctly. When a new device is configured, a
reboot is required.

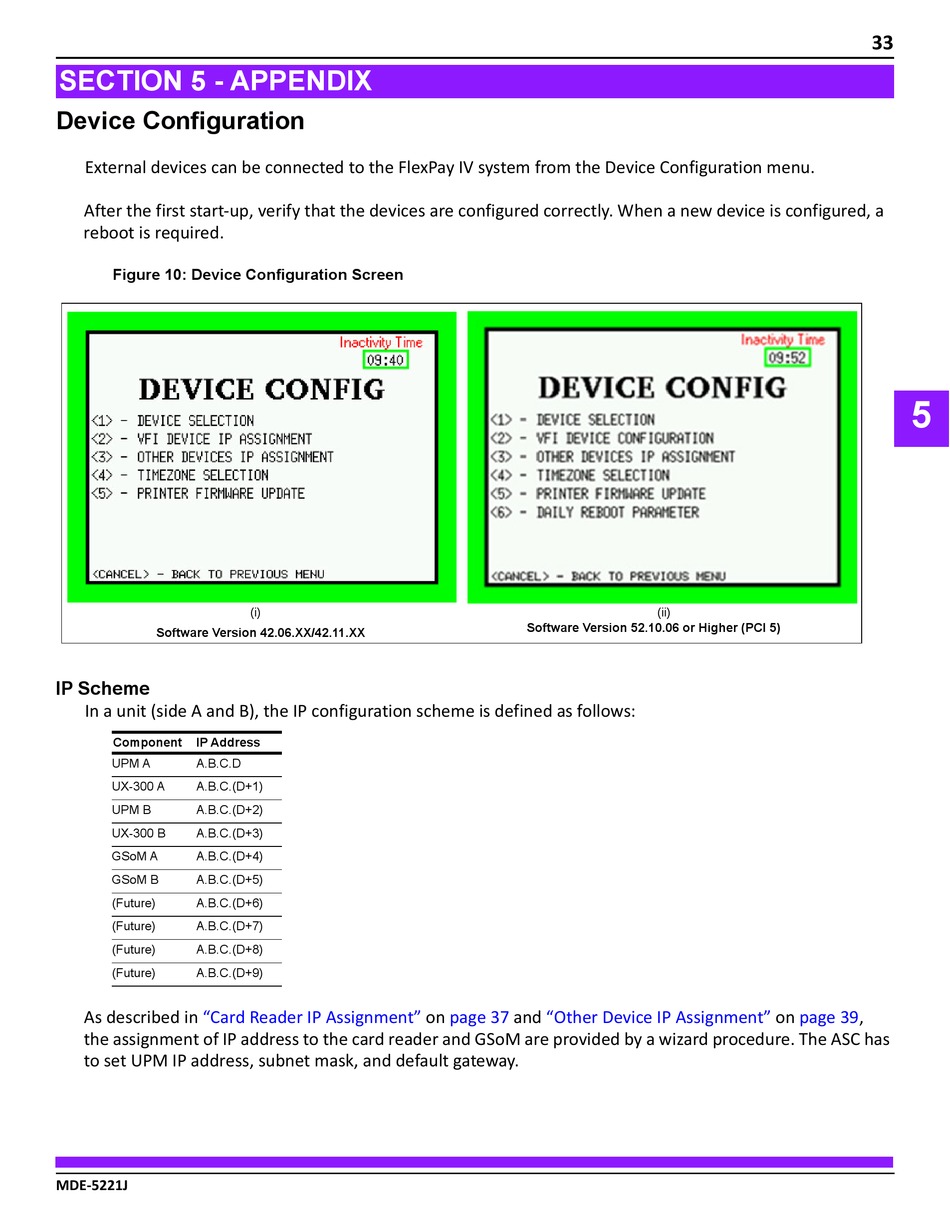

Figure 10: Device Configuration Screen
Software Version 42.06.XX/42.11.XX
IP Scheme
In a unit (side A and B), the IP configuration scheme is defined as follows:
Component
IP Address
UPM A
A.B.C.D
UX-300 A
A.B.C.(D+1)
UPM B
A.B.C.(D+2)
UX-300 B
A.B.C.(D+3)
GSoM A
A.B.C.(D+4)
GSoM B
A.B.C.(D+5)
(Future)
A.B.C.(D+6)
(Future)
A.B.C.(D+7)
(Future)
A.B.C.(D+8)
(Future)
A.B.C.(D+9)
As described in
"Card Reader IP Assignment"
the assignment of IP address to the card reader and GSoM are provided by a wizard procedure. The ASC has
to set UPM IP address, subnet mask, and default gateway.
MDE-5221J
(i)
on
Software Version 52.10.06 or Higher (PCI 5)
page 37
and
"Other Device IP Assignment"
(ii)
on
page
33
5
39,
