Sealey EFS07 Instructions

thank you for purchasing a sealey product. manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to
instruction
manual
1. safetY
1.1. generaL safetY
warning! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this
‰
equipment.
familiarise yourself with the application, limitations and potential hazards peculiar to the extractor.
9
warning! disconnect the unit from the air supply before servicing or performing any maintenance.
‰
maintain the extractor in good condition (use an authorised service agent).
9
replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
locate the extractor in a suitable working area, keep area clean and tidy and free from unrelated materials. ensure there is adequate
9
ventilation.
warning! use only on level ground or slopes not exceeding 8%.
‰
ensure there are no flammable or combustible materials near the work area.
9
Keep children and unauthorised persons away from the working area.
9
do not use the extractor for a task it was not designed to perform.
8
do not operate the extractor if any parts are damaged or missing as this may cause failure or possible personal injury.
8
do not get the extractor wet or use in damp or wet locations or areas where there is condensation.
8
do not allow untrained persons to operate the extractor.
8
do not operate the extractor when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
do not use the extractor where there are flammable liquids, solids or gases such as paint solvents, etc.
8
do not leave the extractor operating unattended.
8
2. introduction
ideal for small or large garages and workshops. features soft rubber cylindrical cone to suit most exhausts. Adjustable height for use on small cars or
commercial vehicles. compressed air flow creates vortex within extractor to ensure all fumes are dispersed (requires air supply). 1.2mtr body length with
additional 3mtr flexible ducting. mounted vertically on trolley with integral duct compartment for easy manoeuvrability and compact storage.
3. specification
model no: ........................................................................efs07
recommended air pressure: ............................................ 90psi
Air consumption: ..............................................................16cfm
minimum height: ............................................................185mm
maximum height: ...........................................................550mm
duct length: ....................................................................... 3mtr
overall length: ................................................................ 4.2mtr
4. air suppLY

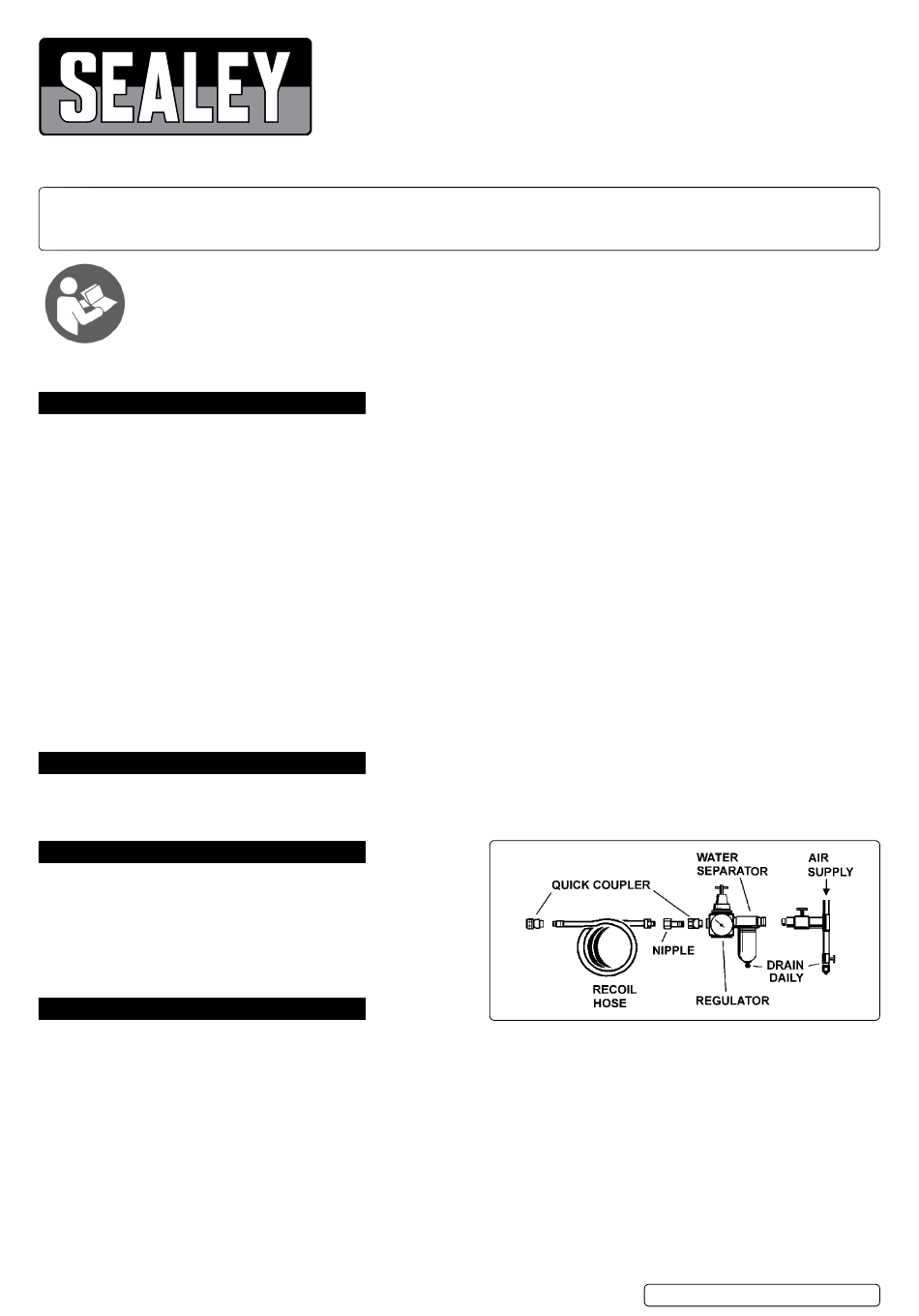

4.1. the recommended hook-up is shown to the right.
4.2. ensure that the air tap (fig.1) is in the "off" position before connecting to the air supply.
4.3. An air pressure of 90psi and an air flow of 16cfm is required.
warning! ensure that the air supply is clean and does not exceed the pressure quoted. too high an air pressure and/or unclean air
‰
will shorten the life of the extractor due to excessive wear and may be dangerous, causing damage and/or personal injury.
4.4. drain the compressor's air tank daily. Water in the air line will damage the extractor.
4.5. clean compressor air inlet filter weekly.
4.6. line pressure should be increased to compensate for unusually long air hoses (over 8 metres). the minimum bore for hose and fittings
is 1/4".
4.7. Keep hoses away from heat, oil and sharp edges. check hoses for wear and make certain that all connections are secure.
© Jack sealey limited
instructions for
exhaust fume extractor with 3mtr
ducting
efs07
model no:
Original Language Version efs07| issue: 3 (H,f) 20/02/18
