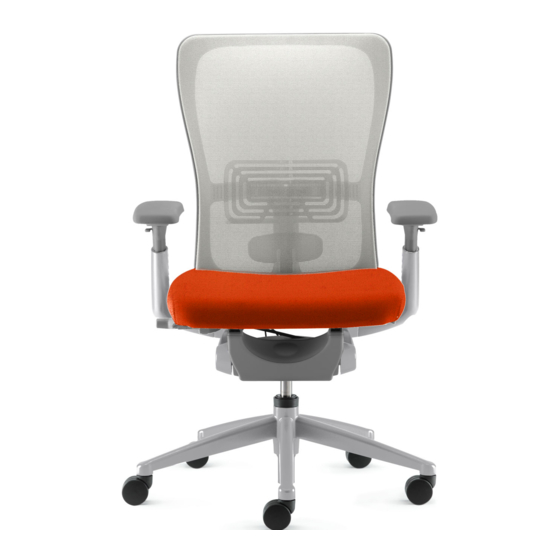

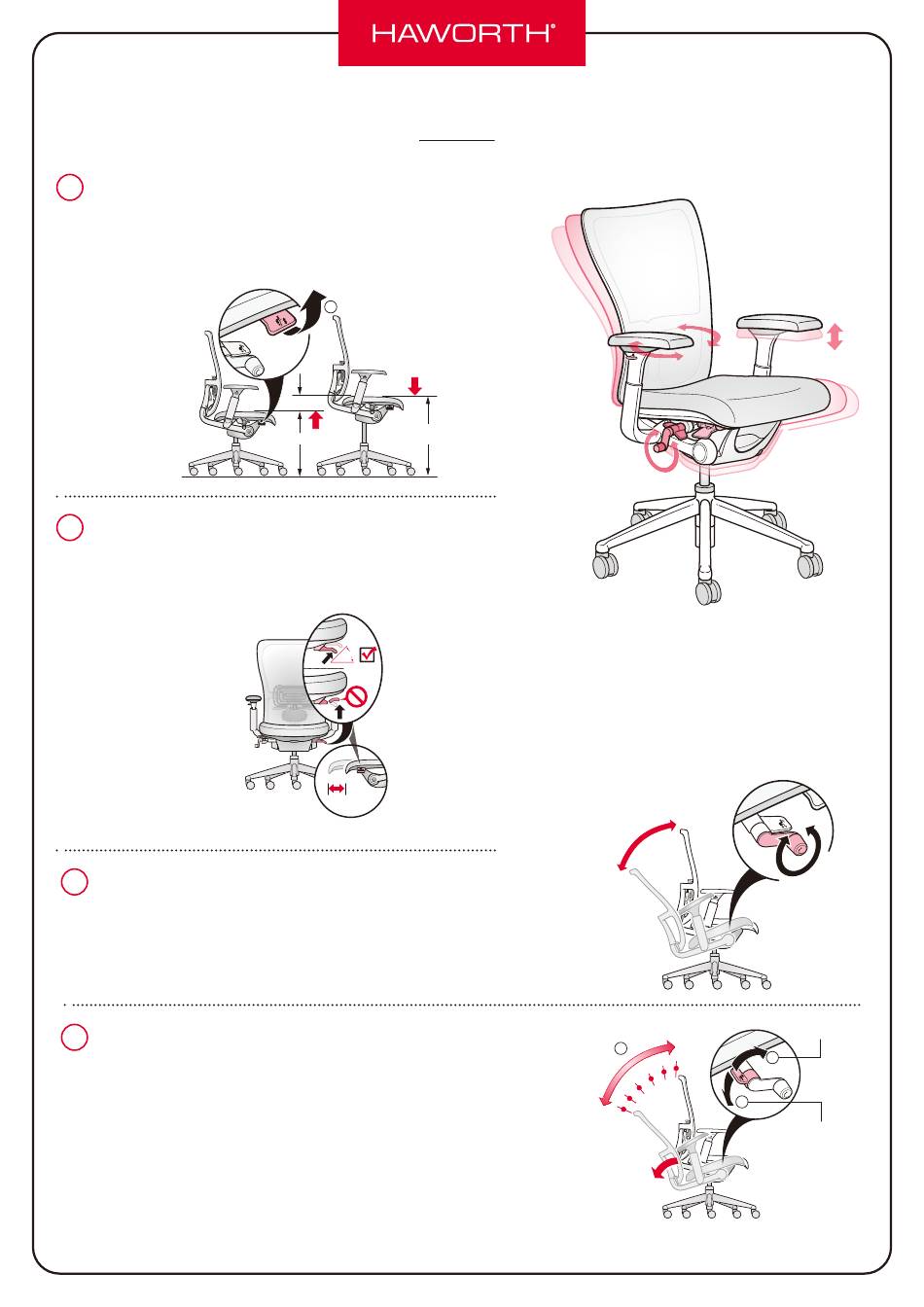

Haworth Zody User Manual

1
Pneumatic Height Adjustment
Pneumatic height adjustment is used to adjust the seat to fit
different user heights. (1) Pull the lever up and lift the body out of
the chair to raise the seat. To lower the seat, remain seated and
pull the lever up.
2
Seat Depth Adjustment
Seat depth adjustment moves the seat pan to accommodate
different leg lengths. Pull out and up on the lever at a 45 degree
angle, and slide the seat pan front to back.
3
Tilt Tension Control
Tilt tension adjusts the force necessary for a user to recline in the chair. Turn
the crank forward (clockwise) to tighten the tension and backward
(counter-clockwise) to loosen the tension. Once the tension has reached
its maximum in either direction, do not force the crank further.
4
Back Stop
Back stop allows users the choice of selecting an upright position or
limiting the amount of recline. (1) Recline to the desired stopping position
and (2) push down on the lever to activate the back stop. (3) Pull up on the
lever to release the back stop.
Zody®
User Guide
1
5"(127mm) 5"
21"
21"(533mm)
16"
16"(406mm)
45°
Front View
Detail(s)
3"(76mm)
Seat Depth
Adjustment
Side View Detail
(+)
(+) Tension (-)
1
3
2
Page: 1 of 2
(-)
Release
Activate
