Summary of Contents for ABB OPT-MF-001
- Page 1 MN1949 Analog I/O Option...
-
Page 3: Table Of Contents
Contents General Information Introduction Analog I/O option features ....... 2-1 2.1.1 Installation . - Page 4 ii Contents MN1949WEN...
-
Page 5: General Information
This manual is copyrighted and all rights are reserved. This document or attached software may not, in whole or in part, be copied or reproduced in any form without the prior written consent of ABB. ABB makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of fitness for any particular purpose. - Page 6 Product Notice Only qualified personnel should attempt the start-up procedure or troubleshoot this equipment. This equipment may be connected to other machines that have rotating parts or parts that are controlled by this equipment. Improper use can cause serious or fatal injury. Safety Notice Intended use: Drives incorporating this product are intended for use in stationary ground based applications in industrial power installations according to the standards EN60204 and VDE0160.
-
Page 7: Introduction

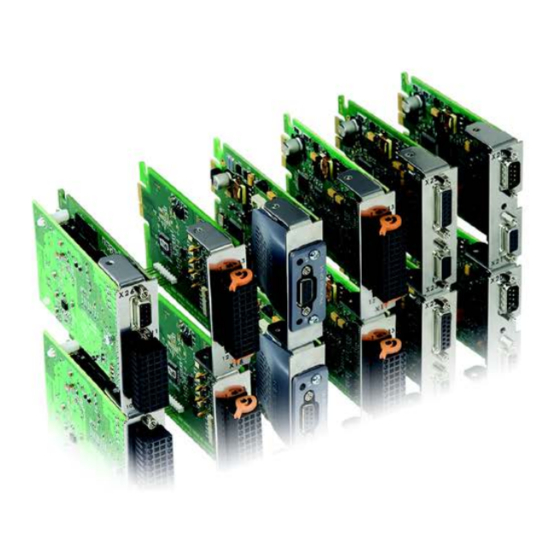

Introduction 2 Introduction 2.1 Analog I/O option features The Analog I/O option is available as a customer-fitted option for the MotiFlex e100 range of drives. The option adds a number of features to the drive: Four ±10 V differential analog inputs with 16-bit resolution. ... - Page 8 4. Confirm that the correct option card is being installed. The description is printed on the leading edge of the card, furthest from the mounting bracket. Insert the option card with the main component side facing towards the center of the drive. The edges of the option card should...
-
Page 9: Input / Output
Input / Output 3 Input / Output 3.1 Introduction All external connections to the Analog I/O option card are made using the 24-pin connector. The required Weidmüller Minimate B2L 3.5/24 mating connector is supplied. The analog inputs and outputs are described in the following sections. 3.1.1 Slot selection and input / output numbering The MotiFlex e100 implements a system of I/O ‘banks’, with each bank allowing up to 8 inputs and outputs. - Page 10 (NC) 1 13 (NC) AGND 2 14 AGND AOUT9 3 15 AOUT11 AOUT8 4 16 AOUT10 AGND 5 17 AGND AIN11- 6 18 AIN11+ AIN10- 7 19 AIN10+ AGND 8 20 AGND AIN9- 9 21 AIN9+ Shield 10 22 Shield AGND 11 23 AGND AIN8- 12...
-
Page 11: Analog Inputs
The overall shield should be connected to the chassis at one end only. No other connection should be made to the shield. OPT-MF-001 Analog I/O +15 V 120k... - Page 12 Figure 3-5: Typical input circuit to provide 0-10 V (approx.) input from a 24 V source NextMove e100 / controller OPT-MF-001 Analog I/O Analog out AIN8/16+ (Demand0) AGND AIN8/16- AGND Shield Connect overall shield at one end only Figure 3-6: Analog input - typical connection from an ABB NextMove e100 3-4 Input / Output MN1949WEN...
-
Page 13: Analog Outputs
Mint help file. The analog outputs may be used to drive loads of 1 kΩ or greater. Shielded twisted pair cable should be used. The shield connection should be made at one end only. OPT-MF-001 Analog I/O +15 V... - Page 14 3-6 Input / Output MN1949WEN...
- Page 15 MN1949WEN Input / Output 3-7...
- Page 16 3-8 Input / Output MN1949WEN...
- Page 17 If you have any suggestions for improvements to this manual, please let us know. Write your comments in the space provided below, remove this page from the manual and mail it to: Manuals ABB Ltd Motion Control 6 Bristol Distribution Park...
- Page 18 Thank you for taking the time to help us. Comments MN1949WEN...
- Page 20 Contact us ABB Oy ABB Inc. ABB Beijing Drive Systems Co. Ltd. Drives Automation Technologies No. 1, Block D, A-10 Jiuxianqiao Beilu P.O. Box 184 Drives & Motors Chaoyang District FI-00381 HELSINKI 16250 West Glendale Drive Beijing, P.R. China, 100015...
