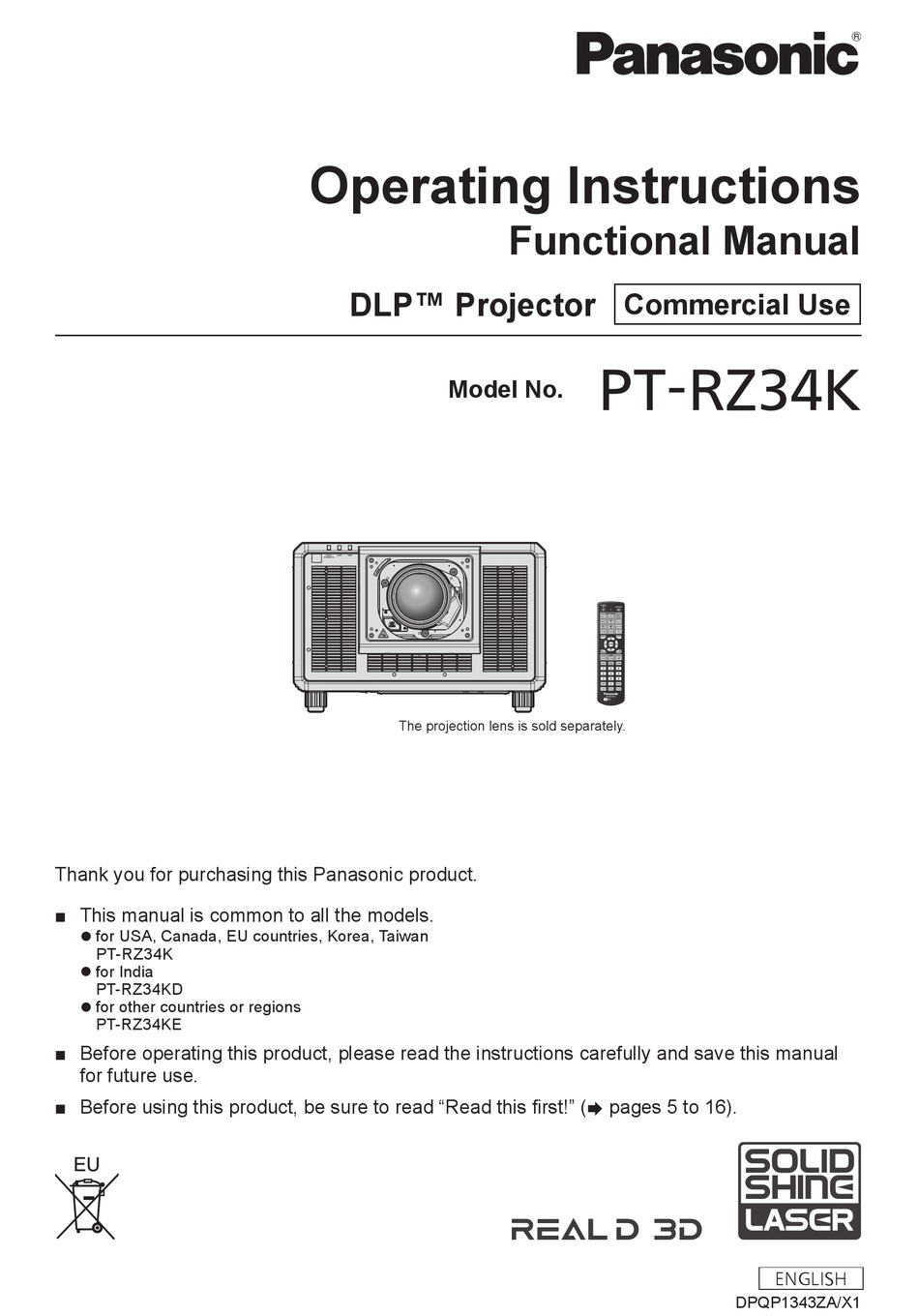

Thank you for purchasing this Panasonic product.

■ This manual is common to all the models.

z for USA, Canada, EU countries, Korea, Taiwan

PT-RZ34K

z for India

PT-RZ34KD

z for other countries or regions

PT-RZ34KE

■ Before operating this product, please read the instructions carefully and save this manual

for future use.

■ Before using this product, be sure to read "Read this first!" ( x pages 5 to 16).

Operating Instructions

DLP™ Projector

Model No.

The projection lens is sold separately.

Functional Manual

Commercial Use

PT-RZ34K

ENGLISH

DPQP1343ZA/X1

Table of Contents

Summary of Contents for Panasonic DLP PT-RZ34K

Page 1 DLP™ Projector Commercial Use PT-RZ34K Model No. The projection lens is sold separately. Thank you for purchasing this Panasonic product. ■ This manual is common to all the models. z for USA, Canada, EU countries, Korea, Taiwan PT-RZ34K z for India...
Page 2: Table Of Contents
Contents Contents Read this first! Connecting Before connecting Connecting example: AV equipment Chapter 1 Preparation Connecting example: Computers Connecting example using DIGITAL LINK Precautions for use Connecting example when using the Intended use of the product contrast synchronization function/shutter Installation and handling of the laser product synchronization function (for USA and Canada) Cautions when transporting...
Page 3 Contents Chapter 4 Settings [DISPLAY OPTION] menu [COLOR MATCHING] Menu navigation [SCREEN SETTING] Navigating through the menu [AUTO SIGNAL] Main menu [AUTO SETUP] Sub-menu [BACKUP INPUT SETTING] [PICTURE] menu [HDMI IN] [PICTURE MODE] [DVI-D IN] [CONTRAST] [SDI IN] [BRIGHTNESS] [DIGITAL LINK IN] [COLOR] [SLOT IN] [TINT]...
Page 4 Contents Chapter 6 Maintenance [SIGNAL LIST] menu Registering new signals Light source/temperature indicators Renaming the registered signal When an indicator lights up Deleting the registered signal Maintenance Expanding signal lock-in range Before maintenance Protecting the registered signal Maintenance Sub memory Troubleshooting [SECURITY] menu Self-diagnosis display...
Page 5: Read This First
Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflexions at visual display workplaces this device must not be placed in the direct field of view.
Page 6 Read this first! WARNING: RISK OF ELECTRIC SHOCK. DON’T OPEN Indicated on the projector The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
Page 7 Read this first! (for Taiwan) This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014. 第 1 類雷射產品 (for India) This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014. HAZARD DISTANCE: REFER TO THE OPERATING INSTRUCTIONS. DISTANCE DU RISQUE : CONSULTEZ LE MANUEL D’UTILISATION.
Page 8 FCC NOTICE (USA) Supplier’s Declaration of Conformity Model Number: PT-RZ34K Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, NJ 07102-5490 General Contact: http://www.panasonic.com/support Projector Contact: https://panasonic.net/cns/projector/ This device complies with Part 15 of the FCC Rules.
Page 9 Read this first! r Hazard distance (IEC 62471-5:2015) The distance from the projection lens surface, at which the level of exposure has reached the level of the applicable Exposure Limit Value, is known as the hazard distance (HD) or safety distance. Do not look into the projected light from inside the hazard distance (within RG3 range).
Page 10 Read this first! WARNING: r POWER The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock, or will cause visual impairment.
Page 11 Read this first! WARNING: Do not install the projector in a location where people pass through. People may bump into the projector or trip on the power cord, which may result in fire, electric shock, or injury. Do not cover the intake/exhaust vents or place anything within 500 mm (19-11/16") of them. Doing so will cause the projector to overheat, which can cause fire or damage to the projector.
Page 12 Read this first! CAUTION: r POWER When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result.
Page 13 Read this first! CAUTION: r ACCESSORIES When not using the projector for an extended period of time, remove the batteries from the remote control. Failure to observe this will cause the batteries to leak, overheat, catch fire or explode, which may result in fire or contamination of surrounding area.
Page 14 Read this first! To remove the battery Remote Control Battery 1. Press the guide and lift the cover. 2. Remove the batteries. (ii) Brazil Only Brasil Apenas r Manuseio de baterias usadas BRASIL Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada.
Page 15 Este equipo cumple con los requisitos esenciales asi como con otras disposiciones de la Directiva 2014/53/UE. El cliente puede descargar una copia de la DoC original de este producto desde nuestro servidor DoC: https:// www.ptc.panasonic.eu/ Contacto en la U.E.: Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Español Hamburg, Germany Este producto ha sido desarrollado para el uso en los siguientes países.
Page 16 Read this first! Това устройство отговаря на съществените изисквания и останалите приложими разпоредби на Директива Български 2014/53/EC. Toto zařízení je v souladu se základními požadavky a ostatními odpovídajícími ustanoveními Směrnice 2014/53/ Čeština Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante bestemmelser i Direktiv 2014/53/ Dansk Eesti See seade vastab direktiivi 2014/53/EL olulistele nõuetele ja teistele asjakohastele sätetele.
Page 17 For details, refer to “Web control function” (x page 232). At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL...
Page 18 rReference pages f Reference pages in this manual are indicated as (x page 00). rTerm f In this manual, the “Wireless/wired remote control unit” accessory is referred to as “Remote control”. 18 - ENGLISH...
Page 19 Features of the Projector Quick Steps For details, refer to the corresponding pages. 1. Set up the projector. High luminance and high contrast (x page 40) ▶ With a new-generation laser light source and a unique optical system enhancing the color reproduction, in addition to high 2.
Page 20: Chapter 1 Preparation
Preparation Chapter 1 This chapter describes things you need to know or check before using the projector. 20 - ENGLISH...
Page 21: Precautions For Use
The variance application to the U.S. Food and Drug Administration (FDA variance application) will be performed by Panasonic. The person responsible of the device or usage shall store the original or a copy of the FDA variance approval letter received from Panasonic.
Page 22 Chapter 1 Preparation — Precautions for use f Places with sharp temperature fluctuations such as near lights (studio lamps): Doing so may shorten the life of the light source, or result in deformation of the projector due to heat, which may cause malfunctions. Follow the operating environment temperature of the projector.
Page 23: Cautions When Setting Up The Projector
Chapter 1 Preparation — Precautions for use rProjection in all 360° direction is possible. 360° 360° 360° 360° vertically 360° horizontally 360° tilted (combination of vertical and horizontal) Cautions when setting up the projector f Install the projector in a place or with a mount that can sufficiently tolerate the weight. The position of the projected image may shift if the strength is not sufficient.
Page 24: Security
Failure to observe this may result in electric shocks. f Panasonic takes no responsibility for any damage to the product caused by an inappropriate choice of location for installing the projector, even if the warranty period of the product has not expired.
Page 25: Notes Regarding The Wireless Lan
Chapter 1 Preparation — Precautions for use f Panasonic Corporation or its affiliate companies will never ask for your password directly. Do not divulge your password in case you receive such inquiries. f The connecting network must be secured by a firewall, etc.
Page 26: Digital Link
Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers. This projector does not support audio transmission because it is not equipped with audio function.
Page 27: Storing
The input for HDMI, DVI-D, and SDI can be added by installing the optional Interface Board in the slot. “SLOT NX” is a name of the slot unique to Panasonic supporting the signal input for the 4K image. rViewing 3D images The projector can display the 3D video signal input in various formats such as “frame packing”, “side by side”, etc.
Page 28: Accessories
Chapter 1 Preparation — Precautions for use Accessories Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the number of accessories. Wireless/wired remote control unit <1> Lens hole cover <1> (N2QAYB001176) (1GE1RZ21K) (Attached to the product at the time of purchase) AA/R6 or AA/LR6 battery <2>...
Page 29: Optional Accessories
NFC function enabled from the time of factory shipment, and there are some countries or regions where the NFC Upgrade Kit cannot be applied. For the availability of the NFC function in the country or region where you purchased the product, visit the Panasonic website (https://panasonic.net/cns/projector/) or consult your dealer.
Page 30: About Your Projector
Chapter 1 Preparation — About your projector About your projector Remote control Front Bottom A strap can be attached depending on the usage. Remote control indicator 12 Input selection buttons (<HDMI>, <DISPLAYPORT>, <DVI-D>, <SDI>, <DIGITAL LINK>, <SLOT 1>) Blinks if any button in the remote control is pressed. Switches the input signal to project.
Page 31 Chapter 1 Preparation — About your projector 22 Remote control wired terminal 23 Strap hole This is a terminal used to connect to the projector via a cable when the remote control is used as a wired remote control. (x page 38) Attention f Do not drop the remote control.
Page 32: Projector Body
NFC function enabled from the time of factory shipment, and there are some countries or regions where the NFC Upgrade Kit cannot be applied. For the availability of the NFC function in the country or region where you purchased the product, visit the Panasonic website (https:// panasonic.net/cns/projector/) or consult your dealer.
Page 33 For the connection using the NFC function, use the application software “Smart Projector Control” which performs the setting and adjustment of the projector. For details on the “Smart Projector Control”, visit the Panasonic website (https://panasonic.net/cns/projector/). r Control panel Power standby <v> button...
Page 34 Chapter 1 Preparation — About your projector r Connecting terminals <REMOTE 1 IN> terminal/<REMOTE 1 OUT> terminal Slot (<SLOT>) These are terminals to connect the remote control for serial There is a SLOT NX-specification slot to install the optional control in a multiple projector environment. Interface Board internally.
Page 35: Names And Functions Of The Interface Board (Optional)
Chapter 1 Preparation — About your projector Names and functions of the Interface Board (optional) This projector is equipped with one SLOT NX-specification slot. The input for HDMI, DVI-D, and SDI can be added by installing the optional Interface Board in the slot. Attention f Requesting a qualified technician to install or remove the Interface Board is recommended.
Page 36 Chapter 1 Preparation — About your projector Interface Board for 12G-SDI (Model No.: ET-MDN12G10) This board supports the HD-SDI signal, the 3G-SDI signal, the 6G-SDI signal, and the 12G-SDI signal. <SDI 1 IN> terminal <SDI 3 IN> terminal This is a terminal to input SDI signal This is a terminal to input SDI signal (HD-SDI/3G-SDI/6G-SDI/12G-SDI).
Page 37: Preparing The Remote Control
Chapter 1 Preparation — Preparing the remote control Preparing the remote control Inserting and removing the batteries (ii) Fig. 1 Fig. 2 Open the cover. (Fig. 1) Insert the batteries and close the cover (insert the m side first). (Fig. 2) f When removing the batteries, perform the steps in reverse order.
Page 38: Connecting The Remote Control To The Projector With A Cable
Chapter 1 Preparation — Preparing the remote control Connecting the remote control to the projector with a cable If you control the multiple projectors with a single remote control, use commercially available M3 stereo mini jack cables to connect to the <REMOTE 1 IN>/<REMOTE 1 OUT> terminals of the projectors. The remote control is effective even in places where an obstacle stands in the light path or where devices are susceptible to outside light.
Page 39: Chapter 2 Getting Started
Getting Started Chapter 2 This chapter describes things you need to do before using the projector such as the setup and connections. ENGLISH - 39...
Page 40: Setting Up
Chapter 2 Getting Started — Setting up Setting up Usable outlet This projector supports AC 100 V to AC 120 V, and AC 200 V to AC 240 V as the power supply. A grounded outlet supporting 30 A is required when using the projector with AC 200 V to AC 240 V. A grounded outlet supporting 15 A is required when using the projector with AC 100 V to AC 120 V.
Page 41: Projected Image And Throw Distance
Chapter 2 Getting Started — Setting up Portrait setting and projecting forward Portrait setting and projecting from the rear (Using the translucent screen) Menu item Setting value Menu item Setting value [FRONT/REAR] [FRONT] [FRONT/REAR] [REAR] Set in accordance with the image Set in accordance with the image [FLOOR/CEILING] [FLOOR/CEILING]...
Page 42 Chapter 2 Getting Started — Setting up Figure of projected image and throw distance Projected image Screen L (LW/LT) L (LW/LT) Screen Note f This illustration is prepared on the assumption that the projected image size and position have been aligned to fit full in the screen. f This illustration is not in accurate scale.
Page 43 Chapter 2 Getting Started — Setting up ET-D3LEU100, ET-D3LEW200 Projected image Screen L (LW/LT) Lens optical axis L1 L2 Screen Note f This illustration is prepared on the assumption that the projected image size and position have been aligned to fit full in the screen. f This illustration is not in accurate scale.
Page 44 Chapter 2 Getting Started — Setting up ET-D75LE95 Projected image Screen Screen Note f This illustration is prepared on the assumption that the projected image size and position have been aligned to fit full in the screen. f This illustration is not in accurate scale. Projected image height Projected image width Projected image size...
Page 45 Chapter 2 Getting Started — Setting up ET-D3LEF70 Lens optical axis θ Screen Note f This illustration is prepared on the assumption that the projected image size and position have been aligned to fit full in the screen. f This illustration is not in accurate scale. f The lens optical axis is the symmetrical axis passing through the center of the optical image system.
Page 46 Chapter 2 Getting Started — Setting up r Maximum projection angle of view for optical lens center position θ Screen θ Projector θ (Unit: °) Maximum projection angle of view for projected θ 65.7 image horizontal axis Maximum projection angle of view for projected θ...
Page 47 Chapter 2 Getting Started — Setting up [GEOMETRY] projection range [VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above) Screen Screen Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above) Projection distance Projection distance Arc radius Arc radius Screen Screen...
Page 48 Chapter 2 Getting Started — Setting up Only [CURVED Only [KEYSTONE] used [KEYSTONE] and [CURVED CORRECTION] used together CORRECTION] used Projection Vertical Horizontal Vertical Horizontal lens Model keystone keystone keystone keystone Min. value of Min. value of Min. value of Min. value of correction correction correction...
Page 49 Chapter 2 Getting Started — Setting up Projection distance of each projection lens A ±5 % error in listed projection distances may occur. When [GEOMETRY] is used, distance is corrected to become smaller than the specified image size. r When the image aspect ratio is 16:10 (Unit: m) Lens type Zoom Lens...
Page 50 Chapter 2 Getting Started — Setting up Lens type Fixed-focus Lens Projection lens Model No. ET-D75LE95 Throw ratio 0.364:1 Distance from the Projection Projected image size projector to the screen distance Height Diagonal (SD) Width (SW) (L4) (A1) (L1) (SH) 1.78 (70") 0.942 1.508 ―...
Page 51 Chapter 2 Getting Started — Setting up Lens type Zoom Lens Fixed-focus Lens ET-D3LET80/ ET-D3LEW50/ Projection lens Model No. ET-D75LE30 ET-D3LET40 ET-D75LE40 ET-D3LEU100 ET-D75LE8 ET-D75LE50 Throw ratio 2.41-4.66:1 4.61-7.41:1 4.62-7.38:1 7.34-13.8:1 0.370:1 0.695:1 Projected image size Projection distance (L) Height Min. Max.
Page 52 Chapter 2 Getting Started — Setting up r When the image aspect ratio is 4:3 (Unit: m) Lens type Zoom Lens ET-D3LEW60/ ET-D3LES20/ Projection lens Model No. ET-D3LEW200 ET-D3LEW10 ET-D75LE10 ET-D3LET30 ET-D75LE6 ET-D75LE20 Throw ratio 0.778-1.02:1 1.12-1.32:1 1.52-2.07:1 1.56-2.01:1 2.00-2.90:1 2.88-5.61:1 Projected image size Projection distance (L) Height...
Page 53 Chapter 2 Getting Started — Setting up Lens type Fixed-focus Lens Projection lens Model No. ET-D75LE95 Throw ratio 0.436:1 Distance from the Projection Projected image size projector to the screen distance Height Diagonal (SD) Width (SW) (L4) (A1) (L1) (SH) 1.78 (70") 1.067 1.422 ―...
Page 54 Chapter 2 Getting Started — Setting up Formula for calculating the projection distance per projection lens To use a projected image size not listed in this manual, check the projected image size SD (m) and use the respective formula to calculate projection distance. The unit of all the formulae is m.
Page 55: Adjusting Adjustable Feet
Chapter 2 Getting Started — Setting up Adjusting adjustable feet Install the projector on a flat surface so that the front of the projector is parallel to the screen surface and the projection screen is rectangular. If the screen is tilted downward, extend the front adjustable feet so that the projected image becomes rectangular. The adjustable feet can also be used to adjust the projector to be level when it is tilted in the horizontal direction.
Page 56: Attaching/Removing The Projection Lens (Optional)
Do not attach the Fixed-focus Lens (Model No.: ET-D75LE5 (production discontinued)) to the projector. Attaching by mistake will cause malfunction of the projector. f Panasonic takes no responsibility for any damage or malfunction of the product resulting from the use of projection lenses which are not manufactured by Panasonic. Be sure to use the specified projection lenses.
Page 57: Attaching The Projection Lens
Chapter 2 Getting Started — Attaching/removing the projection lens (optional) Attaching the projection lens Attach the projection lens using the following procedure. Start from Step 3) when the lens hole cover is already removed. Screw Lens hole cover Lens release button Fig.
Page 58: Removing The Projection Lens
Chapter 2 Getting Started — Attaching/removing the projection lens (optional) Removing the projection lens Remove the projection lens using the following procedure. Lens release button Fig. 1 Screw Lens hole cover Fig. 2 Fig. 3 Remove the lens fixing screw. f Use a Phillips screwdriver to remove the first screw to the right of the mark on the projection lens (orange). Remove the projection lens by turning it counterclockwise while pressing the lens release button.
Page 59: Connecting
Chapter 2 Getting Started — Connecting Connecting Before connecting f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power of all devices before connecting cables. f Connect cables taking care of the following descriptions. Failure to do so may result in malfunctions. g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work.
Page 60 Chapter 2 Getting Started — Connecting f For the HDMI cable, use an HDMI High Speed cable that conforms to the HDMI standards. However, when the following 4K video signal exceeding the supported transmission speed of the HDMI High Speed cable is to be input, use the HDMI cable supporting the high speed transmission of 18 Gbps such as the one with Premium HDMI cable authentication.
Page 61 Chapter 2 Getting Started — Connecting f The <HDMI IN 1>/<HDMI IN 2> terminals can be connected to the external device with a DVI-D terminal by using the HDMI/DVI conversion cable. However, this may not function properly for some external devices, and image may not be projected. f The projector does not support VIERA Link (HDMI) and HDMI CEC (Consumer Electronics Control).
Page 62 Chapter 2 Getting Started — Connecting When [SDI MODE] is set to [OUTPUT]: 50 m (164'1") (When L-5.5CUHD is used, the cable length should be 90 m (295'3").) f When the [DISPLAY OPTION] menu → [SLOT IN] → [SDI MODE] is set to [OUTPUT], attach a terminating resistor (75 Ω) to the terminal with no device connected as an output destination.
Page 63: Connecting Example: Computers
Chapter 2 Getting Started — Connecting Connecting example: Computers This is an example when the optional Interface Board for DisplayPort 2 input (Model No.: ET-MDNDP10) is installed in <SLOT>. Control computer Computer Control computer Computer Computer Attention f When connecting the projector to a computer or an external device, use the power cord supplied with each device and commercially available shielded cables.
Page 64: Connecting Example Using Digital Link
Chapter 2 Getting Started — Connecting Connecting example using DIGITAL LINK Twisted-pair-cable transmitters based on the communication standard HDBaseT such as the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) use the twisted pair cable to transmit input images, Ethernet, and serial control signal, and the projector can input such digital signal to the <DIGITAL LINK>...
Page 65: Connecting Example When Using The Contrast Synchronization Function/Shutter Synchronization Function
(https://panasonic.net/cns/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Page 66 Chapter 2 Getting Started — Connecting Connecting example Connect all the projectors to be linked in a loop by daisy chain connection when using the contrast synchronization function/shutter synchronization function. The number of linked projectors is limited to the maximum of 64 projectors. Connecting terminals of the synchronization source Connecting terminals of the projector to synchronize...
Page 67: Chapter 3 Basic Operations
Basic Operations Chapter 3 This chapter describes basic operations to start with. ENGLISH - 67...
Page 68: Switching On/Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching on/off the projector Connecting the power cord Confirm that the <MAIN POWER> switch is on the <OFF> side before connecting the supplied power cord. Use the power cord matching with the power supply voltage and the shape of the outlet. For details of power cord handling, refer to “Read this first!”...
Page 69: Power Indicator
Chapter 3 Basic Operations — Switching on/off the projector Power indicator Indicate the status of the power. Check the status of the power indicator <ON (G)/STANDBY (R)> before operating the projector. Power indicator <ON (G)/STANDBY (R)> Indicator status Projector status The main power is switched off. The power is switched off.
Page 70: Switching On The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching on the projector Install the projection lens before switching on the projector. Remove the lens cover first. Connect the power cord to the projector. Connect the power plug to an outlet. Press the <ON>...
Page 71: When The Initial Setting Screen Is Displayed
Chapter 3 Basic Operations — Switching on/off the projector When the initial setting screen is displayed When the projector is switched on for the first time after purchase, or when the [PROJECTOR SETUP] menu → [INITIALIZE] → [FACTORY RESET] is executed, the focus adjustment screen is displayed after the projection starts, followed by the [INITIAL SETTING] screen and the [ADMINISTRATOR ACCOUNT] screen.
Page 72 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (operation setting) Set the items for the operating method depending on the projector’s application and duration of usage. After completed the initial setting, you can change the settings of each item from the [PROJECTOR SETUP] menu →...
Page 73 Chapter 3 Basic Operations — Switching on/off the projector Relationship between brightness and runtime The projector can be operated with arbitrary brightness and runtime by setting [LIGHT OUTPUT] to desired setting. The relationship between the [LIGHT OUTPUT] setting, brightness, and the estimated runtime is as follows. Make the initial setting (operation setting) depending on the desired brightness of the projected image and runtime.
Page 74 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (screen setting) Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can change the settings of each item from the [DISPLAY OPTION] menu → [SCREEN SETTING].
Page 75 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (time zone) Set [TIME ZONE] in accordance with the country or region where you use the projector. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [DATE AND TIME].
Page 76: When The Administrator Account Setting Screen Is Displayed
Chapter 3 Basic Operations — Switching on/off the projector When the administrator account setting screen is displayed When the projector is switched on for the first time after purchase, or when the [PROJECTOR SETUP] menu → [INITIALIZE] → [FACTORY RESET] is executed, the focus adjustment screen, the [INITIAL SETTING] screen, and then the [ADMINISTRATOR ACCOUNT] screen is displayed in order after the projection starts.
Page 77: Making Adjustments And Selections
Chapter 3 Basic Operations — Switching on/off the projector 10) Press as to select [STORE], and press the <ENTER> button. f The confirmation screen is displayed. 11) Press qw to select [OK], and press the <ENTER> button. Note f For limitation of the character string that can be set as a password, refer to “[PASSWORD POLICY]” (x page 76). f Pressing the <MENU>...
Page 78: Switching Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Press the <ZOOM> button to match the projected image size to the screen. Press the <FOCUS> button again to adjust the focus. 10) Press the <ZOOM> button again to adjust the zoom and match the projected image size to the screen. Note f When the projector is switched on for the first time after purchase, or when the [PROJECTOR SETUP] menu →...
Page 79: Projecting
Chapter 3 Basic Operations — Projecting Projecting Check the projection lens attachment (x page 57), external device connection (x page 59), and power cord connection (x page 68), and then switch on the power (x page 70) to start projecting. Select the video for projection, and adjust appearance of the projected image.
Page 80 Chapter 3 Basic Operations — Projecting Attention f Images may not be projected properly depending on the external device, or the Blu-ray disc or DVD disc, to be played back. Depending on the selected input, set the [PICTURE] menu → [SYSTEM SELECTOR] and the [DISPLAY OPTION] menu → [SLOT IN]. f Confirm the aspect ratio of the projection screen and the image, and switch to an optimum aspect ratio from the [POSITION] menu →...
Page 81: Adjusting The Focus, Zoom, And Lens Shift
Chapter 3 Basic Operations — Projecting Switching the input by displaying the input selection screen The input of the image for projection can be selected by displaying the input selection screen. Press the <INPUT MENU> button on the remote control or control panel. f Press the input selection button on the remote control and directly specify the input of the image to project.
Page 82: Adjusting The Focus Balance
Chapter 3 Basic Operations — Projecting CAUTION During the lens shift operation, do not insert your hand in any opening around the lens. Your hand may be caught in between, resulting to injury. Note f When the projection lens without the zoom function is attached, the zoom adjustment screen is not displayed. f When the Fixed-focus Lens (Model No.: ET-D3LEW50, ET-D75LE50) is used, do not adjust the lens shift, and use the projection lens in the home position.
Page 83 Chapter 3 Basic Operations — Projecting Tighten the lock screw. f Periphery focus adjustment ring is fixed. Note f When the projector is used for the first time or when the projection lens is replaced, confirm that the setting in the [PROJECTOR SETUP] menu →...
Page 84: Setting The Lens Type
Chapter 3 Basic Operations — Projecting Check the focus at the center of the image again and make fine adjustments. Tighten the lock screw. f Periphery focus adjustment ring is fixed. Note f When the projector is used for the first time or when the projection lens is replaced, confirm that the setting in the [PROJECTOR SETUP] menu →...
Page 85: Executing The Lens Calibration
Chapter 3 Basic Operations — Projecting Press as to select the lens type. f Select the type of projection lens attached to the projector. Press the <ENTER> button. Note f For details of operation, refer to the [PROJECTOR SETUP] menu → [LENS] → [LENS TYPE] (x page 168). Executing the lens calibration Detect the lens adjustment limit value, and perform the calibration in the adjustment range.
Page 86: Moving The Projection Lens To The Home Position
Chapter 3 Basic Operations — Projecting Press the <ENTER> button. f The [LENS] screen is displayed. Press as to select [LENS CALIBRATION]. Press the <ENTER> button. f The [LENS CALIBRATION] screen is displayed. Press as to select an item. Executes the calibrations for the lens shift, focus, and zoom. [SHIFT/FOCUS/ZOOM] After completing the calibration in the adjustment range, the projection lens will move to the home position.
Page 87 Chapter 3 Basic Operations — Projecting f The home position does not match with the optical image center position. f The home position varies depending on the projection lens type. For details, refer to “Lens shift range” (x page 88). f The home position of the Fixed-focus Lens (Model No.: ET-D75LE95) may deviate from the designed position. When operating from the lens shift adjustment screen Press the <DEFAULT>...
Page 88: Lens Shift Range
Chapter 3 Basic Operations — Projecting Lens shift range The projector can adjust the position of the projected image within the lens shift range for each projection lens based on the position of the projected image in the home position (standard projection position). Perform the lens shift adjustment within the range indicated in the following illustration.
Page 89 Chapter 3 Basic Operations — Projecting Projection lens Model No. ET-D75LE95 ET-D3LEF70 Projected image width H 0.12 H 0.12 H Projected image width H 0.12 H 0.12 H Lens shift range Origin position of the lens mounter Origin position of the lens Standard projection position mounter Standard projection position...
Page 90: Adjusting The Lens Mounter When The Focus Is Unbalanced
Chapter 3 Basic Operations — Projecting Adjusting the lens mounter when the focus is unbalanced Focus balance Relationship between the tilt of the lens and the screen focus surface When the projection lens is tilted in contrast with the image forming surface, tilting the front side (screen side) of the projection lens downwards (in the direction of the dotted arrow line), the upper side of the screen focus surface will tilt inwards and the lower side will tilt outwards as shown in the example.
Page 91 Chapter 3 Basic Operations — Projecting Adjustment procedure r Relationship between the adjustment location and adjustment screws Adjustment location: (b)+(c) Location where the just focus point of the screen is in the inner side of the screen When the just focus point of When the just focus point of the When the just focus point of When the just focus point of the...
Page 92: Using The Usb Memory
Chapter 3 Basic Operations — Using the USB memory Using the USB memory This projector supports the attachment of the USB memory. Attach the USB memory to the <USB> terminal when using the data cloning function, the firmware update function, etc. Note f For the data cloning function, refer to the [PROJECTOR SETUP] menu →...
Page 93: Operating With The Remote Control
Chapter 3 Basic Operations — Operating with the remote control Operating with the remote control Using the shutter function If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the image temporarily. button Press the <SHUTTER>...
Page 94: Using The Automatic Setup Function
Chapter 3 Basic Operations — Operating with the remote control Note f The hide condition of the on-screen display can also be canceled by pressing the <MENU> button on the control panel for at least three seconds while the on-screen display is off (hidden). Using the automatic setup function The image position and the signal level can be automatically adjusted when HDMI/DisplayPort/DVI-D signal is input.
Page 95: Displaying Internal Test Pattern
Chapter 3 Basic Operations — Operating with the remote control Displaying internal test pattern The projector has ten types of internal test patterns to check the condition of the projector. To display test patterns, perform the following steps. button Press the <TEST PATTERN> button. Press qw to select the test pattern.
Page 96 Chapter 3 Basic Operations — Operating with the remote control Attention f Since the ID number of the remote control can be set without the projector body, do not press the <ID SET> button on the remote control carelessly. If the <ID SET> button is pressed and no number (<0> - <9>) buttons are pressed within five seconds, the ID number returns to its original value before the <ID SET>...
Page 97: Chapter 4 Settings
Settings Chapter 4 This chapter describes the settings and adjustments you can make using the on-screen menu. ENGLISH - 97...
Page 98: Menu Navigation
Chapter 4 Settings — Menu navigation Menu navigation The on-screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button Press the <MENU> button on the remote control or control panel. f The [MAIN MENU] screen is displayed.
Page 99: Main Menu
Chapter 4 Settings — Menu navigation Press as to select a sub-menu, and press qw or the <ENTER> button to change or adjust settings. f Some items will switch in order as follows each time you press qw. f For some items, press qw to display an individual adjustment screen with a bar scale as shown below. CONTRAST ADJUST Note...
Page 100: Sub-Menu
Chapter 4 Settings — Menu navigation Main menu item [SIMPLE] mode Page [DISPLAY LANGUAGE] [3D SETTINGS] ― [DISPLAY OPTION] [PROJECTOR SETUP] [TEST PATTERN] [SIGNAL LIST] [SECURITY] ― [NETWORK] Sub-menu The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu. The menu item with l in the [SIMPLE] mode column indicates that this is displayed in the menu screen (OSD) when the [DISPLAY OPTION] menu →...
Page 101 Chapter 4 Settings — Menu navigation [ADVANCED MENU] Sub-menu item Factory default [SIMPLE] mode Page [DIGITAL CINEMA REALITY] [AUTO] ― [BLANKING] ― ― [EDGE BLENDING] [OFF] ― [FRAME RESPONSE] [NORMAL] ― [FRAME DELAY] [+0.00ms] ― [FRAME LOCK] ― ― [RASTER POSITION] ―...
Page 102 Chapter 4 Settings — Menu navigation [PROJECTOR SETUP] Sub-menu item Factory default [SIMPLE] mode Page [PROJECTOR ID] [ALL] [PROJECTION METHOD] ― [LENS] ― [OPERATION SETTING] ― [LIGHT OUTPUT] [100.0%] [BRIGHTNESS CONTROL] ― ― [NO SIGNAL SETTING] ― ― [INITIAL STARTUP] [LAST MEMORY] ―...
Page 103 NFC function enabled from the time of factory shipment, and there are some countries or regions where the NFC Upgrade Kit cannot be applied. For the availability of the NFC function in the country or region where you purchased the product, visit the Panasonic website (https:// panasonic.net/cns/projector/) or consult your dealer.
Page 104: [Picture] Menu
Chapter 4 Settings — [PICTURE] menu [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 98) for the operation of the menu screen. [PICTURE MODE] You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
Page 105: [Brightness]
Chapter 4 Settings — [PICTURE] menu Attention f Adjust [BRIGHTNESS] first when you need to adjust the black level. [BRIGHTNESS] You can adjust the dark (black) part of the projected image. Press as to select [BRIGHTNESS]. Press qw or the <ENTER> button. f The [BRIGHTNESS] individual adjustment screen is displayed.
Page 106 Chapter 4 Settings — [PICTURE] menu [USER1] Adjusts white balance as desired. Refer to “Adjusting desired white balance” (x page 106) for details. [USER2] [3200K] - [13000K] Allows you to set in increments of 100 K. Select so that images become natural. Note f When [PICTURE MODE] (x page 104) is set to [USER] or [DICOM SIM.], [DEFAULT] cannot be selected.
Page 107: [Gamma]
Chapter 4 Settings — [PICTURE] menu Press the <ENTER> button. f The confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. f The [USER1] or [USER2] data is overwritten. f If you press qw to select [CANCEL] and then press the <ENTER> button, the data will not be overwritten. f The [WHITE BALANCE HIGH] screen is displayed.
Page 108 Chapter 4 Settings — [PICTURE] menu [1.0] [1.8] Set so that images become as you like. [2.0] - [2.8] can be set in increments of 0.1. [2.0] - [2.8] *1 When [PICTURE MODE] is set to [DYNAMIC], [USER], or [DICOM SIM.], [DEFAULT] cannot be selected. Note f DICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine”...
Page 109: [System Daylight View]
Chapter 4 Settings — [PICTURE] menu [SYSTEM DAYLIGHT VIEW] You can correct the image to the optimal vividness even if it is projected under a bright light. Press as to select [SYSTEM DAYLIGHT VIEW]. Press qw or the <ENTER> button. f The [SYSTEM DAYLIGHT VIEW] individual adjustment screen is displayed. Press qw to switch the item.
Page 110 Chapter 4 Settings — [PICTURE] menu [OFF] Disables the dynamic contrast function. Adjusts the light source and compensates signals to a small extent. Adjusts the light source and compensates signals to a moderate extent. Adjusts the light source and compensates signals to a large extent. Set any desired correction.
Page 111: [Color Space]
Chapter 4 Settings — [PICTURE] menu Setting item Details Sets the contrast synchronization function. This setting item is common with the following menu item. f The [PROJECTOR SETUP] menu → [MULTI PROJECTOR [MULTI PROJECTOR SYNC] SYNC] Refer to the [PROJECTOR SETUP] menu → [MULTI PROJECTOR SYNC] (x page 194) for details.
Page 112: Srgb-Compliant Video
Chapter 4 Settings — [PICTURE] menu Terminal System format <HDMI IN> terminal, 480/60p or 576/50p signal Select [AUTO], [RGB], or [YC <DIGITAL LINK> terminal, <HDMI IN 1> terminal, <HDMI Signals other than above Select [AUTO], [RGB], or [YP IN 2> terminal <DVI-D IN>...
Page 113: [Position] Menu
Chapter 4 Settings — [POSITION] menu [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 98) for the operation of the menu screen. Note f When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK>...
Page 114: [Zoom]
Chapter 4 Settings — [POSITION] menu Displays images with the aspect ratio converted to 16:9 when standard signals are input . When [16:9] wide-screen signals are input , the images are displayed without changing the aspect ratio. Displays images without changing the aspect ratio when standard signals are input .
Page 115: [Geometry]
Software” . Up to three correction data can be saved. [PC-3] *1 “Geometric & Setup Management Software” can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/pass/). It is necessary to register and login to PASS to download. Note f The menu, logo, or waveform monitor display may run off the screen when [GEOMETRY] is set.
Page 116 Chapter 4 Settings — [POSITION] menu [KEYSTONE] [LENS THROW RATIO] Set the throw ratio. Select the value close to the actual projection distance divided by projected image width here. [VERTICAL KEYSTONE] [HORIZONTAL KEYSTONE] [VERTICAL BALANCE] [HORIZONTAL BALANCE] Adjust the setting according to the lens shift range in the vertical Adjust the setting according to the lens shift range in the horizontal direction.
Page 117 Chapter 4 Settings — [POSITION] menu Setting [CORNER/PINCUSHION] Press as to select [GEOMETRY]. Press qw to select [CORNER/PINCUSHION]. Press the <ENTER> button. f The [GEOMETRY:CORNER/PINCUSHION] screen is displayed. Press as to select the item to adjust, and press the <ENTER> button. f When [LINEARITY] is selected, press qw to select either adjustment method ([AUTO] or [MANUAL]).
Page 118 Chapter 4 Settings — [POSITION] menu Press asqw to adjust. Adjusting distortion with [FREE GRID] Press as to select [GEOMETRY]. Press qw to select an item other than [OFF]. Press the <ENTER> button. f The screen for the selected item is displayed. Press as to select [FREE GRID].
Page 119 Chapter 4 Settings — [POSITION] menu [WHITE] [BLACK] [RED] [GREEN] Displays the pattern of the selected color. (Factory default setting: [RED]) [BLUE] [CYAN] [MAGENTA] [YELLOW] [OFF] Does not display the pattern. 15) Press as to select [CONTROL POINTS COLOR]. 16) Press qw to switch the item. f The items will switch each time you press the button.
Page 120: [Convergence]
Chapter 4 Settings — [POSITION] menu Press the <ENTER> button. f The screen for the selected item is displayed. Press as to select [FREE GRID]. Press qw to select [ON]. Press the <ENTER> button. f The [FREE GRID] screen is displayed. Press as to select [INITIALIZE].
Page 121: [Advanced Menu] Menu
Chapter 4 Settings — [ADVANCED MENU] menu [ADVANCED MENU] menu On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 98) for the operation of the menu screen. [DIGITAL CINEMA REALITY] The picture quality is enhanced by raising the vertical resolution higher performing the cinema processing when interlace signal for moving image is input.
Page 122: [Edge Blending]
Chapter 4 Settings — [ADVANCED MENU] menu Blanking correction Item Operation Adjustment Range of adjustment The blanking zone Press w. moves to the right. Left side of the [LEFT] screen The blanking zone Press q. moves to the left. Left and right 0 - 3838 The blanking zone Press q.
Page 123 Chapter 4 Settings — [ADVANCED MENU] menu 11) Press qw to switch to [ON]. f A marker for image position adjustment is displayed. The position where the red and green lines overlap for the projectors to be joined will be the optimal point. Make sure to set the correction width for the projectors to be joined with the same value.
Page 124 Chapter 4 Settings — [ADVANCED MENU] menu 23) Press qw to switch the item. f The items will switch each time you press the button. Adjusts the shape of the border at points on both ends. Adjusts the shape of the border at three points Adjusts the shape of the border at five points Adjusts the shape of the border at nine points [17]...
Page 125: [Frame Response]
Chapter 4 Settings — [ADVANCED MENU] menu Note f [BLACK LEVEL ADJUST] is a function that makes the increased brightness in black level of the overlapping image area difficult to notice when [EDGE BLENDING] is used to structure a multi-display screen. The optimal point of correction is set by adjusting [NON- OVERLAPPED BLACK LEVEL] so that the black level of the overlapping image area will be the same level as the non-overlapping area.
Page 126: [Frame Delay]
Chapter 4 Settings — [ADVANCED MENU] menu [NORMAL] Standard setting. [FAST] Simplifies the image processing to reduce image frame delay. [FIXED] Sets image frame delay to be constant regardless of the image position or magnification. *1 [FAST] can be set when the input signal is the interlaced signal *2 Only when moving image signals and still image signals with the vertical scanning frequency of 50 Hz or 60 Hz are input Note f When [FRAME RESPONSE] is set to [FAST], the [DIGITAL CINEMA REALITY] setting becomes disabled and is fixed to [OFF].
Page 127: [Display Language] Menu
Chapter 4 Settings — [DISPLAY LANGUAGE] menu [DISPLAY LANGUAGE] menu On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-menu. Refer to “Navigating through the menu” (x page 98) for the operation of the menu screen. Changing the display language You can select the language of the on-screen display.
Page 128: [3D Settings] Menu
Chapter 4 Settings — [3D SETTINGS] menu [3D SETTINGS] menu On the menu screen, select [3D SETTINGS] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 98) for the operation of the menu screen. [3D SYSTEM SETTING] Set the image display method to be used during 3D signal input, according to the 3D system in use.
Page 129: [3D Simul Input Setting]
3D trigger output is selected. Note f [11] in [3D SYNC MODE] is the setting when the 3D IR transmitter TY-3DTRW of Panasonic (production discontinued) is used with the projector. Consult your dealer regarding the connection method. f The following settings are disabled and the contrast synchronization function and shutter synchronization function cannot be used when [3D SYNC SETTING] is set to anything other than [OFF].
Page 130: [Left/Right Swap]
Chapter 4 Settings — [3D SETTINGS] menu [NATIVE] Forcibly displays 2D images regardless of input image signals. [SIDE BY SIDE] Forcibly displays 3D images in side by side format regardless of input image signals. [TOP AND BOTTOM] Forcibly displays 3D images in top and bottom format regardless of input image signals. [FRAME SEQUENTIAL] Forcibly displays 3D images in frame sequential format regardless of input image signals.
Page 131: [3D Test Mode]
Chapter 4 Settings — [3D SETTINGS] menu Note f This function is disabled when [3D SYSTEM SETTING] is set to anything other than [SINGLE]. f The crosstalk may get larger or the displayed image may get darker when the setting does not match with the 3D system in use. [3D TEST MODE] Set the image display mode for use with 3D system adjustments.
Page 132: [3D Safety Precautions]
Chapter 4 Settings — [3D SETTINGS] menu [3D SAFETY PRECAUTIONS] Show the safety precautions message related to 3D viewing. Press as to select [3D SAFETY PRECAUTIONS]. Press the <ENTER> button. f The [3D SAFETY PRECAUTIONS] screen is displayed. f Press qw to switch the page. 3D SAFETY PRECAUTIONS 3D SAFETY PRECAUTIONS If you view 3D images, please note below.
Page 133: [Display Option] Menu
Chapter 4 Settings — [DISPLAY OPTION] menu [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 98) for the operation of the menu screen. [COLOR MATCHING] Correct the color difference between projectors when using multiple projectors simultaneously.
Page 134 Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to select [MEASURED]. Press the <ENTER> button. f The [MEASURED MODE] screen is displayed. Press as to select [MEASURED DATA]. f The adjustment condition can be reset by selecting [RESET]. For details regarding [RESET], refer to “Resetting the adjustment condition of the color matching”...
Page 135: [Screen Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu Press asqw to select [OK], and press the <ENTER> button. f The value for color matching is overwritten. [SCREEN SETTING] Set the screen format (aspect ratio) and the display position of the image. Correct to the optimum image position for the set screen when the aspect ratio of a projected image is changed. Set as necessary for the screen in use.
Page 136: [Auto Signal]
Chapter 4 Settings — [DISPLAY OPTION] menu [AUTO SIGNAL] Set whether to execute automatic setup of signals automatically. The screen display position or signal level can be adjusted automatically without pressing the <AUTO SETUP> button on the remote control on each occasion if you input unregistered signals frequently at meetings, etc. Press as to select [AUTO SIGNAL].
Page 137: [Backup Input Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu Note f The automatic setup can also be executed by pressing the <AUTO SETUP> button on the remote control. [BACKUP INPUT SETTING] Set the backup function that switches the signal to the backup input signal as seamless as possible when input signal is disrupted.
Page 138: [Hdmi In]
Chapter 4 Settings — [DISPLAY OPTION] menu f When [AUTOMATIC SWITCHING] is set to [ENABLE], and [BACKUP INPUT STATUS] shows [ACTIVE], the signal is switched to the backup input if a disruption occurs in the input signal. f When [AUTOMATIC SWITCHING] is set to [ENABLE], the indication in [BACKUP INPUT STATUS] will change to [INACTIVE] if the input signal is disrupted and automatically switched to the backup input.
Page 139 Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [AUTO GAMMA SELECT]. Press qw to switch the item. f The items will switch each time you press the button. Select this item when the gamma mode is to be automatically set to the one compatible with HDR (High Dynamic Range) based on the InfoFrame information added to the video signal.
Page 140 Chapter 4 Settings — [DISPLAY OPTION] menu Note f Switch the setting to [4K/30p] when proper image is not projected while [EDID SELECT] is set to [4K/60p/HDR] or [4K/60p/SDR] and the 4K video signal is input. f Switch the setting to [2K] when proper image is not projected while [EDID SELECT] is set to [4K/60p/HDR], [4K/60p/SDR], or [4K/30p] and the 2K video signal or lower is input.
Page 141: [Dvi-D In]
Chapter 4 Settings — [DISPLAY OPTION] menu [DVI-D IN] Set this item in accordance with the video signal input to the <DVI-D IN> terminal. Setting [SIGNAL LEVEL] in [DVI-D IN] Press as to select [DVI-D IN]. Press the <ENTER> button. f The [DVI-D IN] screen is displayed. Press as to select [SIGNAL LEVEL].
Page 142: [Sdi In]
Chapter 4 Settings — [DISPLAY OPTION] menu [SCREEN FIT] Changes the EDID data according to the [SCREEN FORMAT] setting. [USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items to EDID. f Proceed to Step 10) when [DEFAULT] or [SCREEN FIT] is selected. Press the <ENTER>...
Page 143: [Digital Link In]
Chapter 4 Settings — [DISPLAY OPTION] menu Note f This function does not operate when the HD-SDI signal is input. Setting [SYSTEM SELECTOR] in [SDI IN] Press as to select [SDI IN]. Press the <ENTER> button. f The [SDI IN] screen is displayed. Press as to select [SYSTEM SELECTOR].
Page 144 Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [DIGITAL LINK IN] screen is displayed. Press as to select [SIGNAL LEVEL]. Press qw to switch the item. f The items will switch each time you press the button. [AUTO] Automatically sets the signal level.
Page 145 Chapter 4 Settings — [DISPLAY OPTION] menu Note f Even if [AUTO GAMMA SELECT] is set to [ENABLE], when the information required for the HDR (High Dynamic Range) support is not included in the InfoFrame information added to the displayed video signal, the color space is not automatically set and follows the setting in the [PICTURE] menu →...
Page 146: [Slot In]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to select [VERTICAL SCAN FREQUENCY]. f The setting is fixed to [30Hz] when [3840x2400p] is selected for [RESOLUTION]. f Select [120Hz], [60Hz], [50Hz], [30Hz], [25Hz], or [24Hz] when [1920x1080p] is selected for [RESOLUTION].
Page 147 Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [SLOT IN] screen is displayed. Press as to select [HDMI1] or [HDMI2], and press the <ENTER> button. f The [HDMI1] screen or the [HDMI2] screen is displayed. Press as to select [AUTO GAMMA SELECT]. Press qw to switch the item.
Page 148 Chapter 4 Settings — [DISPLAY OPTION] menu [2K] Switches to EDID corresponding to the 2K video signal (maximum 1 920 x 1 200 dots) or lower. Switches to EDID corresponding to the 4K video signal (maximum 4 096 x 2 160 dots, maximum [4K/60p/HDR] vertical scanning frequency 60 Hz).
Page 149 Chapter 4 Settings — [DISPLAY OPTION] menu Note f The settings in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] are displayed in [EDID STATUS]. f The resolution and vertical scanning frequency settings may also be required on your computer or video device. f The computer, video device, or projector in use may require the power to be turned off and on again after configuring settings. f A signal may not be output with the resolution and vertical scanning frequency that have been set, depending on your computer or video device.
Page 150 Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [SLOT IN] screen is displayed. Press as to select [DVI-D1] or [DVI-D2], and press the <ENTER> button. f The [DVI-D1] screen or the [DVI-D2] screen is displayed. Press as to select [EDID MODE]. Press the <ENTER>...
Page 151 Chapter 4 Settings — [DISPLAY OPTION] menu [AUTO] Automatically sets the signal level. Select this item when the signal output from the HDMI terminal of the external device (such as a Blu- [64-940] ray disc player) is input to the <DisplayPort IN 1> terminal or the <DisplayPort IN 2> terminal using a conversion cable, etc.
Page 152 Chapter 4 Settings — [DISPLAY OPTION] menu Note f Even if [AUTO COLOR SPACE SELECT] is set to [ENABLE], when the information required for the HDR (High Dynamic Range) support is not included in the InfoFrame information added to the displayed video signal, the color space is not automatically set and follows the setting in the [PICTURE] menu →...
Page 153 Chapter 4 Settings — [DISPLAY OPTION] menu Press asqw to select [RESOLUTION]. f Select [1024x768p], [1280x720p], [1280x800p], [1400x1050p], [1600x900p], [1600x1200p], [1920x1080p], [1920x1200p], or [3840x2400p]. Press the <ENTER> button. f The [VERTICAL SCAN FREQUENCY] screen is displayed. 10) Press qw to select [VERTICAL SCAN FREQUENCY]. f Select [60Hz], [50Hz], or [30Hz] when [3840x2400p] is selected for [RESOLUTION].
Page 154 Chapter 4 Settings — [DISPLAY OPTION] menu [AUTO] Automatically selects the single link or the dual link. Sets the SDI1 input, the SDI2 input, the SDI3 input, and the SDI4 input of the Interface Board to [SINGLE] single link. (Factory default setting) [DUAL] Sets the SDI1 input and the SDI3 input of the Interface Board to dual link.
Page 155 Chapter 4 Settings — [DISPLAY OPTION] menu [AUTO] Automatically selects [TYPE1/LEVEL A] or [TYPE2/LEVEL B]. [TYPE1/LEVEL A] Fixes the mapping method to Type 1 or Level-A. [TYPE2/LEVEL B] Fixes the mapping method to Type 2 or Level-B. Note f This function does not operate when the HD-SDI signal is input. f [SDI MAPPING] cannot be set when [SDI LINK] is set to [AUTO].
Page 156 Chapter 4 Settings — [DISPLAY OPTION] menu Setting [BIT DEPTH] in [SLOT IN] (SDI input) Press as to select [SLOT IN]. Press the <ENTER> button. f The [SLOT IN] screen is displayed. Press as to select [SINGLE LINK SETTING] or [DUAL LINK SETTING], and press the <ENTER> button.
Page 157 Chapter 4 Settings — [DISPLAY OPTION] menu Select this item when the input signal to the <SDI OPT 1 IN> terminal or the <SDI OPT 2 IN> terminal [ENABLE] that is selected for input is to be output from the <SDI OPT 1/2 OUT> terminal. [DISABLE] Does not output the signal from the <SDI OPT 1/2 OUT>...
Page 158: [On-Screen Display]
Chapter 4 Settings — [DISPLAY OPTION] menu Setting [BIT DEPTH] in [SLOT IN] (OPT input) Press as to select [SLOT IN]. Press the <ENTER> button. f The [SLOT IN] screen is displayed. Press as to select [SDI OPT1] or [SDI OPT2], and press the <ENTER> button. f The detailed setting screen for the selected item is displayed.
Page 159 Chapter 4 Settings — [DISPLAY OPTION] menu Sets to the upper left of the screen. Setting [OSD ROTATION] Set the orientation of the menu screen (OSD). Press as to select [ON-SCREEN DISPLAY]. Press the <ENTER> button. f The [ON-SCREEN DISPLAY] screen is displayed. Press as to select [OSD ROTATION].
Page 160: [Menu Mode]
Chapter 4 Settings — [DISPLAY OPTION] menu Setting [INPUT GUIDE] Set whether to display the input guide in the position set in [OSD POSITION]. The input guide is the screen to display information such as the currently selected input terminal name, signal name, memory number, and [BACKUP INPUT STATUS].
Page 161: [Startup Logo]
The [BACK COLOR] setting item is common with the following menu item. g The [PROJECTOR SETUP] menu → [NO SIGNAL SETTING] → [BACK COLOR] f To create and register the [USER LOGO] image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/).
Page 162: [Shutter Setting]
The correction value in the projector can be changed using the “Geometric & Setup Management Software”. “Geometric & Setup Management Software” can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/pass/). It is necessary to register and login to PASS to download.
Page 163 Chapter 4 Settings — [DISPLAY OPTION] menu f When [MECHANICAL SHUTTER] is set to [ENABLE], it will take approximately 0.5 seconds from when the shutter function is enabled (shutter: closed) to the shutter function is disabled (shutter: opened). f Even if [MECHANICAL SHUTTER] is set to [DISABLE], the projector will go into the standby status with the mechanical shutter closed when [SHUT-OFF] is set to [CLOSE] and the power is turned off.
Page 164 Chapter 4 Settings — [DISPLAY OPTION] menu Note f Even if [MECHANICAL SHUTTER] is set to [DISABLE], the projector will go into the standby status with the mechanical shutter closed when [SHUT-OFF] is set to [CLOSE] and the power is turned off. Setting the shutter synchronization function The shutter synchronization function is a function to synchronize the shutter operation of the specified projector to other projectors, and the effect using the shutter function including the fade in/fade out operation can be...
Page 165: [Freeze]
Chapter 4 Settings — [DISPLAY OPTION] menu f The operation of the mechanical shutter is not included in the shutter synchronization function. f When the input signal to each linked projector is not synchronized, the timing of the shutter operation between the projectors may shift up to 1 frame while using the shutter synchronization function.
Page 166: [Cut Off]
Chapter 4 Settings — [DISPLAY OPTION] menu Select “Select line (luminance)” on the waveform monitor. Adjust black level. f Adjust the black level 0 % of the video signal to the 0 % position of the waveform monitor using the [PICTURE] menu → [BRIGHTNESS]. Adjust white level.
Page 167: [Projector Setup] Menu
Chapter 4 Settings — [PROJECTOR SETUP] menu [PROJECTOR SETUP] menu On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 98) for the operation of the menu screen. [PROJECTOR ID] The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous control or individual control via a single remote control.
Page 168: [Lens]
Chapter 4 Settings — [PROJECTOR SETUP] menu Select this item when installing the projector with the top surface of the projector facing down such as [CEILING] ceiling attachment. Projected image is inverted upside down. Note f Refer to “Angle sensor” (x page 41) for details on the range of the installation attitude that can be detected by the built-in angle sensor. [LENS] Perform the setting and operation regarding the projection lens.
Page 169 Chapter 4 Settings — [PROJECTOR SETUP] menu [LENS INFORMATION SETTING] Confirming the projection lens information Press as to select [LENS]. Press the <ENTER> button. f The [LENS] screen is displayed. Press as to select [LENS INFORMATION SETTING]. Press the <ENTER> button. f The [LENS INFORMATION SETTING] screen is displayed.
Page 170 Chapter 4 Settings — [PROJECTOR SETUP] menu Press as to select [LENS INFORMATION SETTING]. Press the <ENTER> button. f The [LENS INFORMATION SETTING] screen is displayed. Press as to select [LENS NAME]. Press the <ENTER> button. f The [LENS NAME INPUT] screen is displayed. Press asqw to select the character, and press the <ENTER>...
Page 171 Chapter 4 Settings — [PROJECTOR SETUP] menu f If you press asqw to select [DEFAULT] and press the <ENTER> button, the entered name will not be registered and the default name will be used. f If you select [OK] without entering any characters and press the <ENTER> button, the default name will be used.
Page 172 Chapter 4 Settings — [PROJECTOR SETUP] menu Press as to select [LENS MEMORY DELETE]. Press the <ENTER> button. f The [LENS MEMORY DELETE] screen is displayed. f The name of the saved lens memory and its lens position information ([VERTICAL POSITION]/ [HORIZONTAL POSITION]/[FOCUS POSITION]/[ZOOM POSITION]) are displayed in the [LENS MEMORY DELETE] screen.
Page 173 Chapter 4 Settings — [PROJECTOR SETUP] menu [LENS HOME POSITION] Operate in following procedure to move the projection lens to the home position. Press as to select [LENS]. Press the <ENTER> button. f The [LENS] screen is displayed. Press as to select [LENS HOME POSITION]. Press the <ENTER>...
Page 174 Chapter 4 Settings — [PROJECTOR SETUP] menu g When the [PROJECTOR SETUP] menu → [LENS] → [ACTIVE FOCUS OPTIMIZER] → [FOCUS OFFSET SETUP] → [INITIALIZE] is executed g When the <DEFAULT> button is pressed while [FOCUS OFFSET BRIGHT] or [FOCUS OFFSET DARK] is selected f To reduce the shift in focus caused by the change in the brightness of the image, set [FOCUS OFFSET BRIGHT] and [FOCUS OFFSET DARK] following the guidance in [SETUP ASSISTANT].
Page 175 Chapter 4 Settings — [PROJECTOR SETUP] menu 16) Press qw to select [INTERNAL]. f The items will switch each time you press the button. [INTERNAL] Uses the internal focus test pattern of signal level approximately 100 % for focus adjustment. [EXTERNAL] Select this item when using the input image from an external device for focus adjustment.
Page 176 Chapter 4 Settings — [PROJECTOR SETUP] menu Performing simplified setting using the external input image Input any focus adjustment still image from the external device connected to the projector, and set the parameters for [FOCUS OFFSET BRIGHT] and [FOCUS OFFSET DARK] following the guidance of [SETUP ASSISTANT]. Switch to the input to display the focus adjustment image.
Page 177 Chapter 4 Settings — [PROJECTOR SETUP] menu 18) Press asqw to select [NEXT], and press the <ENTER> button. f The [SETUP ASSISTANT] screen (page 4/8) is displayed. f It will return to previous screen by selecting [BACK] and pressing the <ENTER> button. 19) Wait until [Waiting time] turns [0s].
Page 178 Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [LENS] screen is displayed. Press as to select [ACTIVE FOCUS OPTIMIZER]. Press the <ENTER> button. f The [ACTIVE FOCUS OPTIMIZER] screen is displayed. Press as to select [FOCUS OFFSET SETUP]. Press the <ENTER>...
Page 179 Chapter 4 Settings — [PROJECTOR SETUP] menu Press as to select [INITIALIZE], and press the <ENTER> button. f The confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. [LENS CALIBRATION] Detect the lens adjustment limit value, and perform the calibration in the adjustment range. Execute the lens calibration after attaching the projection lens.
Page 180: [Operation Setting]
Chapter 4 Settings — [PROJECTOR SETUP] menu Executes the calibrations for the lens shift and focus. [SHIFT/FOCUS] After completing the calibration in the adjustment range, the projection lens will move to the home position. [ZOOM] Executes the calibration of the zoom adjustment range. Press the <ENTER>...
Page 181 Chapter 4 Settings — [PROJECTOR SETUP] menu Setting [MAX LIGHT OUTPUT LEVEL] Adjust the maximum level to correct screen brightness according to the changes in brightness of the light source. Press as to select [OPERATION SETTING]. Press the <ENTER> button. f The [OPERATION SETTING] screen is displayed. Press as to select [MAX LIGHT OUTPUT LEVEL].
Page 182 Chapter 4 Settings — [PROJECTOR SETUP] menu Relationship between brightness and runtime The projector can be operated with arbitrary brightness and runtime by combining the settings of [MAX LIGHT OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP]. The relationship between the [LIGHT OUTPUT] setting, brightness, and the estimated runtime is as follows. Make the setting depending on the desired brightness of the projected image and runtime.
Page 183: [Light Output]
[PC] Synchronizes nine or more projectors using a computer and “Multi Monitoring & Control Software” *1 “Multi Monitoring & Control Software” can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). f Proceed to Step 9) when [PC] is selected. Press as to select [LINK].
Page 184 Chapter 4 Settings — [PROJECTOR SETUP] menu Press qw to switch the item. f The items will switch each time you press the button. Performs corrections by the brightness sensor on a single projector without synchronizing with the other projectors. [OFF] The duration that the constant brightness is kept will become longer by setting the value of [LIGHT OUTPUT] smaller.
Page 185 Chapter 4 Settings — [PROJECTOR SETUP] menu [BRIGHTNESS CONTROL STATUS] screen display example When [CONSTANT MODE] is set to [OFF] The screen shows the status that the brightness control is disabled. BRIGHTNESS CONTROL STATUS CONSTANT MODE PROJECTOR RETURN MENU When [CONSTANT MODE] is set to [AUTO], and [LINK] is set to [OFF] The screen shows the status of the brightness control in one projector.
Page 186 There is a problem with the brightness sensor. If problems persist even after switching on the [Brightness Sensor Error] power, consult your dealer. *1 “Multi Monitoring & Control Software” can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). Note f If the synchronized projectors are not displayed in the list, check the following:...
Page 187: [No Signal Setting]
Chapter 4 Settings — [PROJECTOR SETUP] menu maximum value that can be set. 12) Adjust [LIGHT OUTPUT] of each projector. f Adjust [LIGHT OUTPUT] of all the other projectors so that the brightness will be the same as the projector with the least brightness. 13) Set [CONSTANT MODE] of [BRIGHTNESS CONTROL SETUP] to [AUTO], and [LINK] to [GROUP A] in all projectors.
Page 188 Chapter 4 Settings — [PROJECTOR SETUP] menu Note f The [BACKUP INPUT SETTING] setting item is common with the following menu item. g The [DISPLAY OPTION] menu → [BACKUP INPUT SETTING] f The backup function is enabled when [BACKUP INPUT MODE] is set to anything other than [OFF] and same signal is input to the primary input and the secondary input.
Page 189 The [BACK COLOR] setting item is common with the following menu item. g The [DISPLAY OPTION] menu → [BACK COLOR] f To create and register the [USER LOGO] image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/).
Page 190: [Initial Startup]
The no signal lights-out function is disabled in following cases. g When [BACK COLOR] is set to [DEFAULT LOGO] or [USER LOGO], and the Panasonic logo or the image registered by the user is displayed in the projected image...
Page 191: [Date And Time]
Sets the input to SDI OPT1 of the Interface Board. [SDI OPT2 [SLOT]] Sets the input to SDI OPT2 of the Interface Board. Sets the input to DIGITAL LINK, and switches the input of the Panasonic twisted-pair-cable [INPUT1] - [INPUT10] transmitter to the specified input.
Page 192: [Schedule]
Chapter 4 Settings — [PROJECTOR SETUP] menu Note f The replacement of the battery inside the projector is required when the time goes out of alignment right after correcting the time. Consult your dealer. Setting the date and time automatically To set the date and time automatically, the projector must be connected to the network. Press as to select [DATE AND TIME].
Page 193 [SDI OPT2 [SLOT]] Switches the input to SDI OPT2 of the Interface Board. Switches the input to DIGITAL LINK, and switches the input of the [INPUT1] - [INPUT10] Panasonic twisted-pair-cable transmitter to the specified input. [NORMAL] Prioritizes brightness. [ECO] Prioritizes the life of the light source.
Page 194: [Multi Projector Sync]
Chapter 4 Settings — [PROJECTOR SETUP] menu Note f To delete a command that has been already set, press the <DEFAULT> button on the remote control while the screen in Step 5) is displayed, or select [DELETE] at the screen in Step 6) and press the <ENTER> button. f If multiple commands have been set for the same time, they are executed in chronological order starting from the smallest command number.
Page 195 Chapter 4 Settings — [PROJECTOR SETUP] menu Press qw to switch the item. f The items will switch each time you press the button. [OFF] Select this item when the contrast synchronization function is not used. [ON] Select this item when the contrast synchronization function is used. Note f The contrast synchronization function will operate when all of the following conditions are fulfilled.
Page 196 Chapter 4 Settings — [PROJECTOR SETUP] menu [RS-232C] Set the communication conditions of the <SERIAL IN>/<SERIAL OUT> terminals. For details on the connection method for RS-232C communication, refer to “<SERIAL IN>/<SERIAL OUT> terminal” (x page 300). Setting the communication condition of the <SERIAL IN> terminal Press as to select [RS-232C].
Page 197: [Remote2 Mode]
Chapter 4 Settings — [PROJECTOR SETUP] menu Setting the response Press as to select [RS-232C]. Press the <ENTER> button. f The [RS-232C] screen is displayed. Press as to select [RESPONSE(ID ALL)]. Press qw to switch the item. [ON] Returns the response when an ID is designated as ALL. [OFF] Does not return the response when an ID is designated as ALL.
Page 198: [Status]
Chapter 4 Settings — [PROJECTOR SETUP] menu Switches the [SYSTEM SELECTOR] setting according to the input signal of the image being projected. f When the input is SDI1 to SDI4 on the Interface Board g The [DISPLAY OPTION] menu → [SLOT IN] → [SINGLE LINK SETTING] → [SDI1]/[SDI2]/ [SDI3]/[SDI4] →...
Page 199 Chapter 4 Settings — [PROJECTOR SETUP] menu [LENS TYPE] Displays the type name (type of the projection lens) set to the projection lens. [LENS ID] Displays the ID set to the projection lens. [LENS NAME] Displays the name set to the projection lens. [LENS THROW RATIO] Displays the range of the throw ratio supported by the projection lens.
Page 200 Chapter 4 Settings — [PROJECTOR SETUP] menu [TOTAL LINES] Displays the total line count of the input signal. [DISPLAY LINES] Displays the number of input signal display lines. [SAMPLING] Displays the sampling information and the color format of the input signal. [BIT DEPTH] Displays the gradation of the input signal.
Page 201: [Info Monitor Setting]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The detailed screen of the temperature information is displayed (English only). Note f Select [ERROR INFORMATION] in Step 2) to display the detailed screen of the error information (English only). Sending status content via E-mail The status content can be sent to the E-mail address (up to two addresses) set in “[E-mail set up] page”...
Page 202 Chapter 4 Settings — [PROJECTOR SETUP] menu Note f Even if [DEFAULT] is set to [OFF], the content of an error or a warning is automatically displayed when it occurs. f This can also be set with operation in the information monitor. For details, refer to “Using the information monitor function” (x page 261). Setting the information to display Set the items to display on the information monitor during no operation.
Page 203: [Data Cloning]
Chapter 4 Settings — [PROJECTOR SETUP] menu Setting the brightness of the information monitor Set the brightness of the information monitor. Press as to select [INFO MONITOR SETTING]. Press the <ENTER> button. f The [INFO MONITOR SETTING] screen is displayed. Press as to select [BRIGHTNESS]. Press qw to adjust the level.
Page 204: [Initialize]
Chapter 4 Settings — [PROJECTOR SETUP] menu [INITIALIZE] Return the various user data settings to the factory default settings. Press as to select [INITIALIZE]. Press the <ENTER> button. f The [SECURITY PASSWORD] screen is displayed. Enter a security password and press the <ENTER> button. f The [INITIALIZE] screen is displayed.
Page 205: [Firmware Update]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [USER SETTINGS] screen is displayed. Press as to select an item. The [PROJECTOR SETUP] menu → [OPERATION SETTING] → [OPERATING MODE] and [MAX [OPERATION SETTING] LIGHT OUTPUT LEVEL] are initialized. [LIGHT OUTPUT] is not initialized.
Page 206: [Test Pattern] Menu
Chapter 4 Settings — [TEST PATTERN] menu [TEST PATTERN] menu On the menu screen, select [TEST PATTERN] from the main menu. Refer to “Navigating through the menu” (x page 98) for the operation of the menu screen. [TEST PATTERN] Display the test pattern built-in to the projector. Settings of position, size, and other factors will not be reflected in test patterns.
Page 207: [Signal List] Menu
Chapter 4 Settings — [SIGNAL LIST] menu [SIGNAL LIST] menu On the menu screen, select [SIGNAL LIST] from the main menu. Refer to “Navigating through the menu” (x page 98) for the operation of the menu screen. r Registered signal details Memory number: A1 (1-2) Sub memory number...
Page 208: Expanding Signal Lock-In Range
Chapter 4 Settings — [SIGNAL LIST] menu f To cancel the deletion, press the <MENU> button to return to the [REGISTERED SIGNAL LIST] screen. Press the <ENTER> button. f The selected signal will be deleted. Note f A registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen. Expanding signal lock-in range Press asqw to select the signal to set.
Page 209: Sub Memory
Chapter 4 Settings — [SIGNAL LIST] menu f A lock icon is displayed at the right of the [REGISTERED SIGNAL LIST] screen when [LOCK] is set to [ON]. A1: 720/60p-A1 RGB2 A2: XXXXXX XXXX RGB2 A3: XGA75-A3 Note f When [LOCK] is set to [ON], signal deletion, image adjustment, and automatic setup are not available. To perform these operations, set [LOCK] to [OFF].
Page 210: [Security] Menu
Chapter 4 Settings — [SECURITY] menu [SECURITY] menu On the menu screen, select [SECURITY] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 98) for the operation of the menu screen. f When the projector is used for the first time Initial password: Press awsqawsq in order, and press the <ENTER>...
Page 211 Chapter 4 Settings — [SECURITY] menu Press the <ENTER> button. f The [CONTROL DEVICE SETUP] screen is displayed. Press as to select [CONTROL PANEL] or [REMOTE CONTROL]. [CONTROL PANEL] You can set the limitation on the control from the control panel. [REMOTE CONTROL] You can set the limitation on the control from the remote control.
Page 212 Chapter 4 Settings — [SECURITY] menu f When [INPUT SELECT BUTTON] is selected in Step 7), the item that can be set varies depending on the selected button. Refer to “Item that can be set with [INPUT SELECT BUTTON]” (x page 212) for details. Once the switching of the item is completed, press the <MENU>...
Page 213: [Control Device Password Change]
Chapter 4 Settings — [SECURITY] menu r [SDI BUTTON] The items from [SDI1 [SLOT]] to [SDI4 [SLOT]] can be selected when the optional Interface Board for 12G-SDI (Model No.: ET-MDN12G10) is installed in <SLOT>. Switches the input in turn between all the SDI inputs including the SDI input equipped on the projector as [TOGGLE] standard and the SDI input on the Interface Board when the button is operated.
Page 214: [Network] Menu
Chapter 4 Settings — [NETWORK] menu [NETWORK] menu On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 98) for the operation of the menu screen. [ETHERNET TYPE] Set the transmission path of the Ethernet signal.
Page 215 Chapter 4 Settings — [NETWORK] menu [LONG REACH] ― [ETHERNET] ― ― ― *1 Communication via a twisted-pair-cable transmitter is not available. Connect the projector to the network directly. Note f For the signal with resolution of 1 920 x 1 200 dots or less, the maximum transmission distance is 100 m (328'1") when connected with the DIGITAL LINK communication method.
Page 216: [Wired Lan]
Chapter 4 Settings — [NETWORK] menu Press as to select [EXTRON XTP]. Press qw to switch the item. f The items will switch each time you press the button. Select this item when connecting the optional DIGITAL LINK output supported device (Model No.: [OFF] ET-YFB100G, ET-YFB200G) to the <DIGITAL LINK>...
Page 217: [Projector Name]
Chapter 4 Settings — [NETWORK] menu f Maximum number of devices that can be connected simultaneously to the projector via wireless LAN is four devices. Setting the connection key Press as to select [WIRELESS LAN]. Press qw to select [ENABLE]. Press the <ENTER> button. f The [WIRELESS LAN] screen is displayed.
Page 218: [Nfc Setting]
NFC function enabled from the time of factory shipment, and there are some countries or regions where the NFC Upgrade Kit cannot be applied. For the availability of the NFC function in the country or region where you purchased the product, visit the Panasonic website (https:// panasonic.net/cns/projector/) or consult your dealer.
Page 219 Chapter 4 Settings — [NETWORK] menu Press as to select [PASSWORD POLICY], and press the <ENTER> button. f The [PASSWORD POLICY] screen is displayed. PASSWORD POLICY Reusing passwords is not recommended. Password cannot be blank. A password consisting of at least eight half-width characters and contaning characters of at least three of the following four types is recommended.
Page 220 Chapter 4 Settings — [NETWORK] menu Changing the setting of the administrator account Change the user name and password of the account with administrator rights. Press as to select [ADMINISTRATOR ACCOUNT]. Press the <ENTER> button. f The [ADMINISTRATOR ACCOUNT] screen is displayed. Press as to select [USER NAME] in [CURRENT], and press the <ENTER>...
Page 221: [Network Control]
Chapter 4 Settings — [NETWORK] menu f The user name and password of the standard user account without administrator rights can be set in “[Set up password] page (when accessed by administrator account)” (x page 256) of the web control screen. [NETWORK CONTROL] Set the controls of the projector via the network.
Page 222 Chapter 4 Settings — [NETWORK] menu Press as to select [PASSWORD] in [NEW], and press the <ENTER> button. f The [PASSWORD] screen is displayed. Press asqw to select the text, and press the <ENTER> button to enter the text. f Enter the new password. f Up to 32 alphanumeric symbols can be entered.
Page 223: [Art-Net]
Chapter 4 Settings — [NETWORK] menu [Art-Net] Set the Art-Net function. f To use the Art-Net function with the projector, it is necessary to set the password of the administrator account. (x page 220) Note f When a password is not set for the administrator account (when blank), the network function of the projector cannot be used. When using the web control function or the communication control via LAN (including operation by application software), set a password.
Page 224 Chapter 4 Settings — [NETWORK] menu Uses the channel assignment with the setting that can numerically control the lens position. [USER] Changes the channel assignment. Uses the channel assignment with DZ21K series compatible. DZ21K series: DZ21K series, DS20K series, DW17K series, DZ16K series *1 This item can be selected in the following case.
Page 225 Chapter 4 Settings — [NETWORK] menu [Art-Net STATUS] Display the content of control assigned to each channel and the received data of that channel. Press as to select [Art-Net]. Press the <ENTER> button. f The [Art-Net] screen is displayed. Press as to select [Art-Net STATUS]. Press the <ENTER>...
Page 226: Chapter 5 Operations
Operations Chapter 5 This chapter describes how to use each function. 226 - ENGLISH...
Page 227: Network Connection
The application software “Smart Projector Control” can be used, which enables to set and adjust the projector connected via LAN using a smartphone or tablet device. Visit the Panasonic website (https://panasonic.net/cns/projector/) for details. f Multi Monitoring & Control Software “Multi Monitoring & Control Software”, a software application to monitor and control multiple display devices (projector or flat panel display) connected to intranet, can be used.
Page 228 (https://panasonic.net/cns/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Page 229: Connecting Via Wireless Lan
Chapter 5 Operations — Network connection Press the <MENU> button to open the [NETWORK] menu from the main menu. f The [NETWORK] screen is displayed. Press as to select [WIRED LAN], and press the <ENTER> button. f The [WIRED LAN] screen is displayed. Perform the [WIRED LAN] setting.
Page 230 For the devices that the operation has been verified with this projector, visit the Panasonic website (https://panasonic.net/cns/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified.
Page 231 Chapter 5 Operations — Network connection Press qw to switch the displayed screen and display [WIRELESS LAN] (page 2/3). f The QR code is displayed. NETWORK STATUS WIRELESS LAN SSID Proj1234_xxxxxxxxxxxxx ******** AUTHENTICATION WPA2-PSK ENCRYPTION CHANGE DISPLAY KEY ENTER RETURN MENU Note f To use the wireless LAN function with the projector, it is necessary to attach the optional Wireless Module (Model No.: AJ-WM50 Series) to the <USB>...
Page 232: Web Control Function
Chapter 5 Operations — Web control function Web control function Following operation is possible from a computer using the web control function. f Setting and adjustment of the projector f Display of the projector status f Sending E-mail messages when there is a problem with the projector The projector supports “Crestron Connected”, and the following application software of Crestron Electronics, Inc.
Page 233 Chapter 5 Operations — Web control function g Symbols (~!@#$%^&*()_+\|}{][<>.,/?`) In [Password(Retype)], enter the password entered in Step 4). Click [Change]. f The setting of the administrator account will be completed. Enter the user name and password in the displayed login screen. f Enter the user name and password of an account with administrator rights or the user name and password of a standard user account without administrator rights.
Page 234 Chapter 5 Operations — Web control function Rights for each account The administrator account can use all functions. The standard user account has limits on the functions it can use. Select the account to use depending on the purpose. The function that has l in the administrator/standard user column indicates that it can be operated with that account.
Page 235 Chapter 5 Operations — Web control function Descriptions of items Page tab [Set up password] Switches pages by clicking this item. The [Set up password] page is displayed by clicking this item. [Status] [Crestron Connected(TM)] The status of the projector is displayed by clicking this item. The operation page of Crestron Connected is displayed by clicking this item.
Page 236 Chapter 5 Operations — Web control function [Remote preview] page The output image from the projector can be simply viewed on the web control screen. Click [Status] → [Remote preview]. Preview window [AC VOLTAGE] Simply displays the output image equivalent to the projected Displays the input supply voltage.
Page 237 Chapter 5 Operations — Web control function r Status display icon The power is switched off. (Standby status) [POWER] In the projection mode The shutter function is enabled (shutter: closed). [SHUTTER] The shutter function is disabled (shutter: opened). The on-screen display is set to on (display). [OSD] The on-screen display is set to off (hide).
Page 238 Chapter 5 Operations — Web control function Switching the input Click [INPUT SELECT] in the [Remote preview] page. [INPUT SELECT] [SIGNAL NAME] Switches to the input to view the image. Displays the input signal name. The display content for the input selection button varies [SIGNAL FREQUENCY] depending on the Interface Board installed in the slot.
Page 239 Chapter 5 Operations — Web control function [Projector status] page Click [Status] → [Projector status]. Display the status of the projector for the following items. [PROJECTOR TYPE] 11 [AC VOLTAGE] Displays the type of the projector. Displays the input supply voltage. [MAIN VERSION] 12 [LIGHT OUTPUT] Displays the main version of the firmware of the projector.
Page 240 Chapter 5 Operations — Web control function Error information page When [Error (Detail)] or [Warning (Detail)] is displayed in the [SELF TEST] display field of the [Projector status] screen, click it to display the content of the error/warning. f The projector may go into the standby status to protect the projector depending on the contents of the error. Display of error information Error code Displays the alphanumeric symbols and content of errors/...
Page 241 Chapter 5 Operations — Web control function [Mail error log] page Click [Status] → [Mail error log]. E-mail error log is displayed if periodic E-mail sending has failed. Note f [Access error log] and [Mail error log] display the recent few thousand accesses/requests. All information may not be displayed when many accesses/requests are made at once.
Page 242 Chapter 5 Operations — Web control function [Detail control] page Click [Projector control] → [Detail control]. Control of the projector [LENS] The projector is controlled by clicking the buttons in the same Displays the [LENS] page. way as the buttons on the remote control. After control, the on- [TEST PATTERN] screen display of the projector at the right of the control page is Displays the test pattern.
Page 243 Chapter 5 Operations — Web control function Lens position setting page Click [Projector control] → [Detail control] → [LENS] → [SET POSITION]. [Get] [Back] Acquires the current lens position and displays the acquired Returns to the [LENS] page. values in the lens position information field. [Apply] Lens position information field Moves to the lens position displayed in the lens position...
Page 244 Chapter 5 Operations — Web control function For wired LAN connection [DHCP ON], [DHCP OFF] [DNS2] To enable the DHCP client function, set to [DHCP ON]. Enter the DNS2 server address. Available characters for the entry of DNS2 server address [IP ADDRESS] (secondary): Enter the IP address when not using a DHCP server.
Page 245 Chapter 5 Operations — Web control function [Adjust clock] page Click [Detailed set up] → [Adjust clock]. [Time Zone] [Date] Select the time zone. Enter the date to change when [NTP SYNCHRONIZATION] is set to [OFF]. [Set time zone] Updates the time zone setting. [Time] Enter the time to change when [NTP SYNCHRONIZATION] is [NTP SYNCHRONIZATION]...
Page 246 Chapter 5 Operations — Web control function [Https set up] page Set this page when HTTPS (Hypertext Transfer Protocol Secure) communication encrypted with the SSL/TLS protocol is to be performed between the computer and the projector while the web control function is used. To perform the HTTPS communication, it is necessary to install the certificate for authentication into the projector.
Page 247 Chapter 5 Operations — Web control function r Flow for setting The flow for setting differs depending on which certificate is to be used as the security certificate used for the HTTPS communication, either the server certificate or the self-signed certificate. Generate the CRT key.
Page 248 Chapter 5 Operations — Web control function Click [OK]. f CRT key will be generated and the following message will be displayed. “CRT key - Generated” Click [OK]. f Clicking [Https set up] → [CRT Key generate] → [Execute] again can confirm the key length and generation date and time of the current CRT key with the [RSA key size] and [Last modified] of [Current CRT key] at the upper row of the CRT key generation page.
Page 249 Chapter 5 Operations — Web control function Generating the signing request When using the server certificate issued by the certification organization as a security certificate used for the HTTPS communication, generate a signing request necessary for application of issuing to the certification organization.
Page 250 Chapter 5 Operations — Web control function Installing the certificate Install the server certificate and the intermediate certificate issued by the certification organization into the projector. Click [Https set up] → [Server Certificate install] → [Browse]. f A dialog to select the file is displayed. Select the server certificate file and click [Open].
Page 251 Chapter 5 Operations — Web control function Generating the self-signed certificate When the server certificate issued by the certification organization is not to be used as the security certificate used for HTTPS communication, it is possible to use the self-signed certificate generated in the projector. Generate the self-signed certificate after generating the CRT key.
Page 252 Chapter 5 Operations — Web control function Note f The generated self-signed certificate can be deleted by clicking [Https set up] → [Self-signed Certificate] → [Delete]. However, it cannot be deleted when [Connection] is set to [HTTPS]. Delete it after changing the setting to perform the HTTP communication. [E-mail set up] page Send an E-mail to preset E-mail addresses (up to two addresses) when a problem has occurred.
Page 253 Chapter 5 Operations — Web control function [Authentication set up] page Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail. Click [Detailed set up] → [Authentication set up]. [Auth] [Password] Select the authentication method specified by your Internet Enter the password for the POP server or the SMTP server.
Page 254 Example of the E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been established. f Example: When [MAIL CONTENTS] is set to [SIMPLE] in the [E-mail set up] page === Panasonic projector report(CONFIGURE) === Projector Type : PT-RZ34K...
Page 255 Chapter 5 Operations — Web control function [User function set up] page Set the function limitation for the user rights. Click [Detailed set up] → [User function set up]. [Remote preview] [Submit] To disable the remote preview function with the user rights, set Updates the setting.
Page 256 Chapter 5 Operations — Web control function [Set up password] page (when accessed by administrator account) Click [Set up password]. [Administrator] [PJLink] Select this item when changing the setting of the administrator Select this item when changing the setting of the PJLink account.
Page 257 Chapter 5 Operations — Web control function [User] [Account] [Change] Displays the account to change. Determines the change of password. [New] [User name]: Enter the desired new user name. (Up to 16 characters in single byte) [Password]: Enter the desired new password. (Up to 16 characters in single byte) [Password(Retype)]: Enter the desired new password again.
Page 258 Chapter 5 Operations — Web control function [Set up password] (when accessed by standard user account) Change the user name and password of the standard user account. [Old Password] [Retype] Enter the current password. Enter the desired new password again. [New Password] [Change] Enter the desired new password.
Page 259 Chapter 5 Operations — Web control function [Tools] page Click [Tools] in the operation page. [Control System] Network status Set the information required for communicating with the Displays the settings of wired LAN. controller to be connected with the projector. [DHCP] Displays the current setting.
Page 260 Chapter 5 Operations — Web control function [Help] page Click [Help] in the operation page. The [Help Desk] window is displayed. [Help Desk] A message can be sent/received with the administrator using the Crestron Connected. License download page [Download] The license for the open source software used in the projector is downloaded by clicking this item.
Page 261: Using The Information Monitor Function
Chapter 5 Operations — Using the information monitor function Using the information monitor function Status of the projector can be checked in the information monitor on the control panel. Screen mode Information monitor is categorized into following four modes. This is one of the screen modes in normal status, and is a mode to be selected when not displaying Hide mode information on the screen during no operation.
Page 262: Basic Operation Procedure In The Menu Operation Mode
Chapter 5 Operations — Using the information monitor function Basic operation procedure in the menu operation mode Press the <INFO> button on the control panel. f The top menu screen is displayed. USER VIEW SETUP STATUS Press as to select a top menu item. f The selected item is displayed inverted.
Page 263: [Setup] Menu
Chapter 5 Operations — Using the information monitor function [SHUTTER] Status of the shutter ([CLOSE]: Shutter function enabled; [OPEN]: Shutter function disabled) [OSD] Status of the on-screen display function ([ON]: Display; [OFF]: Hide) [IP ADDRESS(WIRED)] IP address of the wired LAN *1 The representative input terminal is displayed when one image is displayed with multiple input signals.
Page 264 Chapter 5 Operations — Using the information monitor function Press qw to switch the setting item. f The items will switch each time you press the button. Sets the screen mode during no operation to the USER VIEW mode. [USER VIEW] Displays the items set in the menu operation mode →...
Page 265 Chapter 5 Operations — Using the information monitor function Press as to select [INFO MONITOR]. Press the <ENTER> button. f The detailed setting item is displayed. Press as to select [DIRECTION]. Press the <ENTER> button. f Setting can be changed. Press qw to switch the setting. f The items will switch each time you press the button.
Page 266 Chapter 5 Operations — Using the information monitor function Press the <ENTER> button. f The network selection item is displayed. Press as to select [WIRED LAN]. Press the <ENTER> button. f The detailed setting item is displayed. Press as to select [DHCP]. f The current setting is displayed.
Page 267: [Status] Menu
Chapter 5 Operations — Using the information monitor function r Connecting via wireless LAN Set the wireless LAN function. f To use the wireless LAN function with the projector, it is necessary to attach the optional Wireless Module (Model No.: AJ-WM50 Series) to the <USB> terminal. Press as to select [SETUP].
Page 268 Chapter 5 Operations — Using the information monitor function Sub-menu item Detailed item Details [PROJECTOR ID] Displays the ID number set to the projector. [PROJECTOR TYPE] Displays the type of the projector. [SERIAL NUMBER] Displays the serial number of the projector. Converts the total runtime of the light sources with [OPERATING MODE] set to each item into the time used with the [NORMAL] setting.
Page 269: Error Notification Mode
Chapter 5 Operations — Using the information monitor function Network selection item Detailed item Details [PROJECTOR NAME] Displays the [PROJECTOR NAME]. Displays the use status of the DHCP server. ([ON]: Used; [OFF]: [DHCP] Not used) [IP ADDRESS] Displays the [IP ADDRESS]. [WIRED LAN] [SUBNET MASK] Displays the [SUBNET MASK].
Page 270 Chapter 5 Operations — Using the information monitor function Press the <ENTER> button. f The self-diagnosis information is displayed as the error/warning symbol. U200 ［TEMP.］ Press w. f The detailed information is displayed. Intake air temp. warning f Press the <INFO> button on the control panel to return to the [SELF TEST] screen in Step 2). 270 - ENGLISH...
Page 271: Using The Data Cloning Function
Chapter 5 Operations — Using the data cloning function Using the data cloning function Perform the operation of the data cloning function. Data such as the settings and adjustment values of the projector can be copied to multiple projectors via LAN or using the USB memory. r Data that cannot be copied The following settings cannot be copied.
Page 272 Chapter 5 Operations — Using the data cloning function Press as to select [SELECT PROJECTOR]. Press the <ENTER> button. f The projectors in the same subnet are displayed as a list. 10) Press as to select the copy destination projector. 11) Press the <ENTER> button. f To select multiple projectors, repeat Steps 10) to 11).
Page 273: Copying The Data To Another Projector Using Usb
Chapter 5 Operations — Using the data cloning function Copying the data to another projector using USB Copying projector data to USB memory Insert the USB memory into the <USB> terminal. Press as to select [DATA CLONING]. Press the <ENTER> button. f The [SECURITY PASSWORD] screen is displayed.
Page 274 Chapter 5 Operations — Using the data cloning function 11) Turn on the power of the projector. f The copied content is reflected to the projector. Note f The security password is the password set in the [SECURITY] menu → [SECURITY PASSWORD CHANGE]. Initial password of the factory default setting: awsqawsq f The light source indicator <LIGHT>...
Page 275: Updating The Firmware
The firmware of the projector can be updated via LAN or using a USB memory. Check the Panasonic website (https://panasonic.net/cns/projector/pass/) for availability of the firmware that can be updated. Customer can update the firmware if a newer version than the current firmware version is published.
Page 276 When other software has started up or operating g When the computer has gone into sleep/pause status Acquiring the firmware Download the firmware update tool for this projector (compressed file in zip format) from the Panasonic website (https://panasonic.net/cns/projector/pass/). f File name (example): FirmUpdateTool_RZ34K_101_102.zip (Update tool for the PT-RZ34K with main version 1.01/network version 1.02)
Page 277 Chapter 5 Operations — Updating the firmware Double-click the executable file generated by extracting. f The update tool is started up, and the confirmation screen is displayed. Confirm the status of the projector. f Confirm that the projector to be updated is in the standby mode. Confirm the connection status.
Page 278 Chapter 5 Operations — Updating the firmware Select [I accept]. Click [Next]. f The connection setting screen is displayed. Enter the setting details of the projector. f Enter the details set in the projector to be updated. Item Details [IP Address] The [NETWORK] menu →...
Page 279 Chapter 5 Operations — Updating the firmware Click [Next]. f The update confirmation screen is displayed. 10) Click [Start]. f Update is started. f The light source indicator <LIGHT> and the temperature indicator <TEMP> on the projector blink in red alternately while updating. f Elapsed time and rough progress can be confirmed in the update status display screen.
Page 280: Updating The Firmware Using The Usb Memory
Only the cards formatted in FAT16 or FAT32 can be used. f Only the single partition structure is supported. Acquiring the firmware Download the firmware data for this projector (compressed file in zip format) from the Panasonic website (https:// panasonic.net/cns/projector/pass/). f File name (example): RZ34K_USER_101_102.zip (Firmware data for PT-RZ34K with main version 1.01/network version 1.02)
Page 281 Chapter 5 Operations — Updating the firmware 10) Confirm the firmware version. f Update is completed when the light source indicator <LIGHT> and the temperature indicator <TEMP> stop blinking and turn off. f Turn on the power of the projector and confirm the firmware version in the [STATUS] screen. Attention f Do not disconnect the main power supply of the projector while updating.
Page 282: Chapter 6 Maintenance
Maintenance Chapter 6 This chapter describes inspection methods when there are problems, and maintenance methods. 282 - ENGLISH...
Page 283: Light Source/Temperature Indicators
Chapter 6 Maintenance — Light source/temperature indicators Light source/temperature indicators When an indicator lights up If a problem occurs inside the projector, the light source indicator <LIGHT> or temperature indicator <TEMP> will inform you by lighting or blinking in red. Check the status of the indicators and take following measures. Attention f When switching off the projector to deal with problems, make sure to follow the procedure in “Switching off the projector”...
Page 284 Chapter 6 Maintenance — Light source/temperature indicators Temperature indicator <TEMP> Indicator status Status Solution f Wait five minutes when the power is turned on while the temperature is low (approximately 0 °C (32 °F)). f Warm-up status f Install the projector in a location with the operating environment temperature Lighting red between 0 °C (32 °F) and 45 °C (113 °F) f Internal temperature is high...
Page 285: Maintenance
Chapter 6 Maintenance — Maintenance Maintenance Before maintenance f Make sure to turn off the power before performing the maintenance of the projector. f When switching off the projector, make sure to follow the procedures in “Switching off the projector” (x page 78). Maintenance Outer case Wipe off dirt and dust with a soft, dry cloth.
Page 286: Troubleshooting
Chapter 6 Maintenance — Troubleshooting Troubleshooting Review the following points. For details, see the corresponding pages. Problems Points to be checked Page f Is the power plug firmly inserted into the outlet? ― f Is the <MAIN POWER> switch set to <OFF>? f Is the wall outlet supplying electricity? ―...
Page 287 Chapter 6 Maintenance — Troubleshooting Problems Points to be checked Page f If connecting the projector to a computer that uses an early-type chipset or graphics card compatible with DisplayPort, the projector or computer may not be operated properly. Image output from f The graphics accelerator driver of the computer may need to be updated to the DisplayPort of the ―...
Page 288: Self-Diagnosis Display
Chapter 6 Maintenance — Self-diagnosis display Self-diagnosis display The content of an error or warning is automatically displayed in the information monitor at the side of the projector when it occurs. (x page 261) The following list shows the alphanumeric symbol that is displayed when an error or a warning has occurred and its details.
Page 289 Chapter 6 Maintenance — Self-diagnosis display r Measure for error and warning Action Measure number The operating environment temperature is too high. Use the projector in an appropriate operating environment temperature The operating environment temperature is too high, or the exhaust vent may be blocked. Use the projector in an appropriate operating environment temperature .
Page 290: Chapter 7 Appendix
Appendix Chapter 7 This chapter describes the specification of the projector, how to install the optional Interface Board, and after-sales service. 290 - ENGLISH...
Page 291: Technical Information
37 38 Returns the name set in the [NETWORK] menu → NAME ? Projector name query xxxxx [PROJECTOR NAME]. Manufacturer name INF1 ? Panasonic Returns manufacturer name. query INF2 ? Model name query PT-RZ34K Returns model name. Other information INF0 ? xxxxx Returns information such as version number.
Page 292 Chapter 7 Appendix — Technical information Parameter/response Class Command Control details Remark string 31 / HDMI 32 / DVI-D 33 / SDI 34 / DIGITAL LINK SLOT-1 (name of the input 1 of the Interface Board installed in 35 / SLOT-1 Input terminal name <SLOT>) INNM ?
Page 293: Using Art-Net Function
Chapter 7 Appendix — Technical information Using Art-Net function Since the network function of the projector supports the Art-Net function, you can control the projector settings with the DMX controller and application software using the Art-Net protocol. Note f To use the Art-Net function with the projector, it is necessary to set the password of the administrator account. (x page 220) Channel definition The following table lists the channel definitions used for controlling the projector with the Art-Net function.
Page 294 Chapter 7 Appendix — Technical information Art-Net channel setting Control details [USER] LENS V SHIFT LSB ― ― ― LENS FOCUS MSB ― ― LENS FOCUS LSB ― ― LENS ZOOM MSB ― ― LENS ZOOM LSB ― ― ENABLE/DISABLE *1 These items can be controlled in following case. When the standard DC motor unit installed in the Zoom Lens (Model No.: ET-D75LE6, ET-D75LE8, ET-D75LE10, ET-D75LE20, ET-D75LE30, ET-D75LE40) is replaced with the stepping motor unit using the Stepping Motor Kit (Model No.: ET-D75MKS10), or when a projection lens with the stepping motor is attached.
Page 295 Chapter 7 Appendix — Technical information r LENS FUNCTION SELECT Operate together with LENS CONTROL. Performance Parameter Default value No operation 0-15 LENS H SHIFT 16-31 LENS V SHIFT 32-47 LENS FOCUS 48-63 LENS ZOOM 64-79 Move to the home position 80-95 Load LENS MEMORY 1 96-111...
Page 296 Chapter 7 Appendix — Technical information r POWER Performance Parameter Default value Standby 0-63 No operation 64-191 Power on 192-255 r SHUTTER Performance Parameter Default value SHUTTER: Opened 0-63 No operation 64-191 SHUTTER: Closed 192-255 r FADE-IN, FADE-OUT Operate together with SHUTTER. Performance Parameter Default value...
Page 297 Chapter 7 Appendix — Technical information r FREEZE Performance Parameter Default value No operation 0-31 32-95 No operation 96-159 160-223 No operation 224-255 r COLOR, TINT Performance Parameter Default value No operation 0-31 Factory default setting 32-63 … … 128-129 … …...
Page 298: Control Commands Via Lan
“ENABLE/DISABLE” of channel 11 to “Disable” and then back to “Enable”. f To create and register the USER LOGO image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/).
Page 299 Chapter 7 Appendix — Technical information f Example: Transmission of power supply status acquisition command (hash value is calculated from the user name and password of the administrator account, and acquired random number) “dbdd2dabd3d4d68c5dd970ec0c29fa6400QPW” (CR) r Received data Termination Header Data section symbol Command ‘0’...
Page 300: Serial In>/ Terminal
Chapter 7 Appendix — Technical information <SERIAL IN>/<SERIAL OUT> terminal The <SERIAL IN>/<SERIAL OUT> terminal of the projector conforms with RS-232C so that the projector can be connected to and controlled from a computer. Connection Single projector Projector connecting terminals Computer D-Sub 9p (female) D-Sub 9p (male) D-Sub 9p (male)
Page 301 Chapter 7 Appendix — Technical information D-Sub 9-pin (male) Pin No. Signal name Details Outside view ― Received data Transmitted data ― Earth ― Connected internally ― Communication conditions (Factory default) Signal level RS-232C-compliant Sync. method Asynchronous Baud rate 9 600 bps Parity None Character length...
Page 302 Chapter 7 Appendix — Technical information Attention f If a command is sent after the light source starts lighting, there may be a delay in response or the command may not be executed. Try sending or receiving any command after 60 seconds. f When transmitting multiple commands, be sure to wait until 0.5 seconds has elapsed after receiving the response from the projector before sending the next command.
Page 303 Chapter 7 Appendix — Technical information Control command The following table lists the commands that can be used to control the projector using a computer. r Projector control command Parameter/response Command Details Remark (parameter) string Power on ― To check if the power is on, use the “Power query” command. Power standby STANDBY Power query...
Page 304: Remote 2 In> Terminal
Chapter 7 Appendix — Technical information <REMOTE 2 IN> terminal It is possible to control the projector remotely (by contact control) from a control board located away from the projector where remote control signals cannot reach. Use the <REMOTE 2 IN> terminal on the connecting terminals of the projector to connect to the control board. Remote control Contact control Remote control/contact control...
Page 305: Specifications
Chapter 7 Appendix — Specifications Specifications The specifications of the projector are as follows. Display system 3-chip DLP projection system Size of effective display 24.4 mm (0.96") x 3 (aspect ratio 16:10) area Display device Number of pixels 2 304 000 pixels (1 920 x 1 200 dots) Supplied projection Optional lens...
Page 306 Chapter 7 Appendix — Specifications <HDMI IN> terminal HDMI x 1, HDCP 2.2 compatible, Deep Color compatible <DVI-D IN> terminal DVI-D 24 p x 1, single link, DVI 1.0 compliant, HDCP compatible RJ-45 x 1, for network and DIGITAL LINK connections (HDBaseT compliant), PJLink <DIGITAL LINK>...
Page 307 Chapter 7 Appendix — Specifications 100 V - 120 V / 200 V - 240 V ~ (100 V - 120 V / 200 V - 240 V alternating current), Power requirements 50 Hz/60 Hz Maximum power consumption 1 050 W / 2 450 W Standby mode power consumption 13 W Width...
Page 308: Dimensions
Chapter 7 Appendix — Specifications Dimensions Unit: mm 299 (11-25/32") 246 (9-11/16") 699 (27-17/32") 492 (19-3/8") 598 (23-17/32") * Actual dimensions may differ depending on the product. 308 - ENGLISH...
Page 309: List Of Compatible Signals
Chapter 7 Appendix — Specifications List of compatible signals The following table specifies the video signals that the projector can project. For details of DisplayPort signal, refer to “List of DisplayPort compatible signals” (x page 313). For details of SDI signal, refer to “List of single link SDI compatible signals” (x page 314), “List of dual link SDI compatible signals”...
Page 310 Chapter 7 Appendix — Specifications Scanning freq. Compatible signal Signal name Resolution Dot clock freq. Horizontal Vertical DIGITAL (SIGNAL FORMAT) (Dots) (MHz) HDMI DVI-D (kHz) (Hz) LINK 1920 x 1200/50 1 920 x 1 200 61.8 49.9 158.3 1920 x 1200/60RB 1 920 x 1 200 74.0 60.0...
Page 311 Chapter 7 Appendix — Specifications List of plug and play compatible signals The following table specifies the video signals compatible with plug and play. Signal with l in the plug and play compatible signal column is the signal described in the EDID (extended display identification data) of the projector.
Page 312 Chapter 7 Appendix — Specifications Scanning Plug and play compatible signal Dot clock freq. Signal name Resolution freq. (SIGNAL FORMAT) (Dots) DIGITAL LINK HDMI DVI-D Horizontal Vertical (MHz) (kHz) (Hz) 4K/60p 4K/30p 4K/60p 4K/30p EDID1 EDID2 EDID3 1920 x 1200/60RB 1 920 x 1 200 74.0 60.0 154.0...
Page 313 Chapter 7 Appendix — Specifications List of DisplayPort compatible signals The following table specifies the DisplayPort signals that the projector can project. This is supported when the optional Interface Board for DisplayPort 2 input (Model No.: ET-MDNDP10) is installed in the slot. Signal with l in the plug and play compatible signal column is the signal described in the EDID (extended display identification data) of the projector.
Page 314 Chapter 7 Appendix — Specifications List of single link SDI compatible signals The following table specifies the single link SDI signals that the projector can project. f The content of the 4K division column is as follows. g IL: Interleave (transmission format of 2-Sample Interleave Division) Scanning freq.
Page 315 Chapter 7 Appendix — Specifications Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 2 048 x 1 080 28.1 25.0 74.3 ― 3G-SDI Level-A 4:4:4 10bit 2 048 x 1 080 28.1 25.0 74.3...
Page 316 Chapter 7 Appendix — Specifications Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 4 096 x 2 160 67.5 30.0 297.0 6G-SDI Type 2 4:2:2 10bit 4 096 x 2 160 67.5 30.0 297.0...
Page 317 Chapter 7 Appendix — Specifications List of dual link SDI compatible signals The following table specifies the dual link SDI signals that the projector can project. This is supported when the optional Interface Board for 12G-SDI (Model No.: ET-MDN12G10) is installed in the slot.
Page 318 Chapter 7 Appendix — Specifications Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 3 840 x 2 160 56.3 25.0 297.0 6G-SDI Type 1 4:2:2 12bit 3 840 x 2 160 56.3 25.0 297.0...
Page 319 Chapter 7 Appendix — Specifications List of 3D compatible signals The following table specifies the 3D compatible video signals that the projector can project. f Abbreviations for input formats and 3D formats in the table have the following meanings. g FP: Frame packing format g SBS: Side by side format g TB: Top and bottom format g FS: Frame sequential format...
Page 320 Chapter 7 Appendix — Specifications Scanning freq. Signal name Resolution Dot clock freq. H1-2 D1-2 S1-3 Horizontal Vertical (SIGNAL FORMAT) (Dots) (MHz) (kHz) (Hz) 720/60p 1 280 x 720 45.0 60.0 74.3 720/50p 1 280 x 720 37.5 50.0 74.3 1080/60i 1 920 x 1 080i 33.8 60.0...
Page 321: Installing The Interface Board (Optional)
Chapter 7 Appendix — Installing the Interface Board (optional) Installing the Interface Board (optional) This projector is equipped with one SLOT NX-specification slot. The input for HDMI, DVI-D, and SDI can be added by installing the optional Interface Board in the slot. Requesting a qualified technician to install or remove the optional Interface Board is recommended.
Page 322: How To Remove The Interface Board
Chapter 7 Appendix — Installing the Interface Board (optional) How to remove the Interface Board Handle Fig. 1 Remove the Interface Board. (Fig. 1) f Remove the four screws fixing the Interface Board by rotating counterclockwise with a Phillips screwdriver. The removed screws are used to fix the slot cover. f Hold the handle of the Interface Board and remove it slowly.
