ZCS Azzurro 3PH HYD5000 ZSS User Manual page 51

4. Connect the wire to the terminal, according to the identification on the terminal.
5. Connect the terminal to the machine port and turn the clamp in a clockwise direction.
User Manual 3PH HYD5000-HYD20000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1. of 16/03/2021 - Application: GID

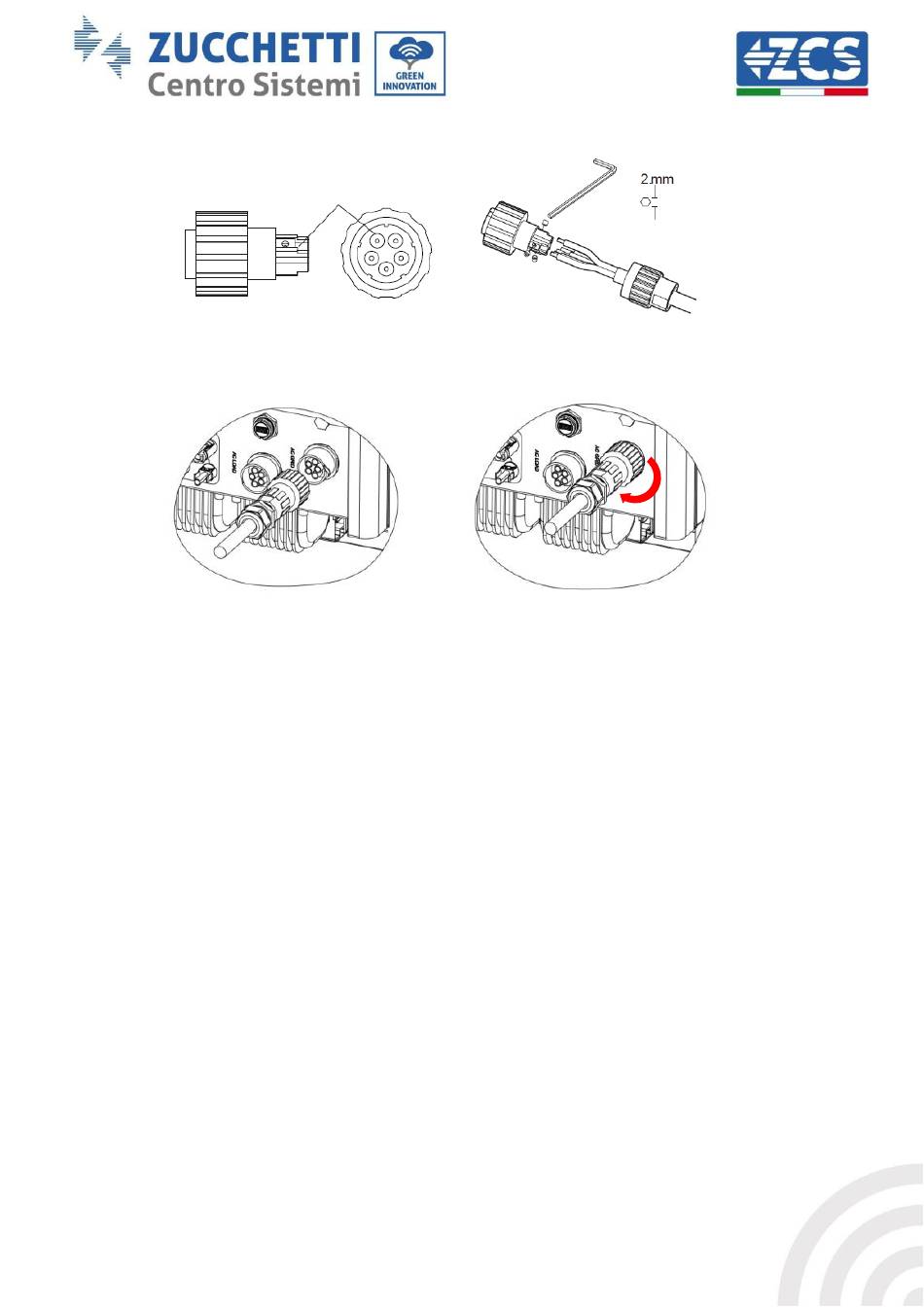

Figure 54 - Connecting the wire to the terminal
Figure 55 - Connecting the terminal to the machine
