S
HOWER
IMPORTANT
DreamLine
reserves the right to alter, modify or redesign products at any time without prior notice.
®
For the latest up-to-date technical drawings, manuals, warranty information or additional details
please refer to your model's web page on DreamLine.com

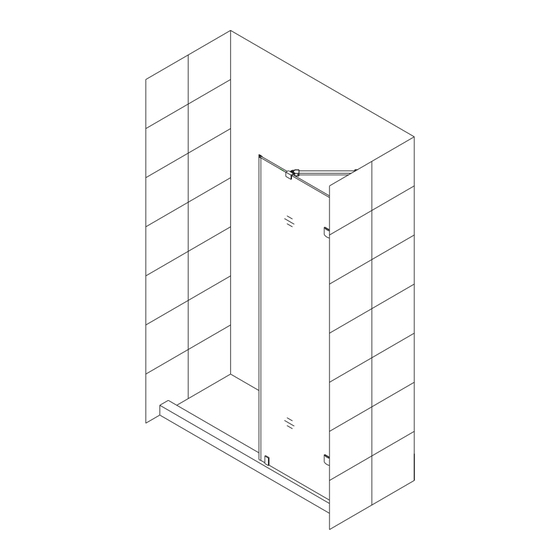

Right side panel installation shown
Please read these instructions carefully before installing. If you have any questions regarding
installation, please contact our technical support specialists Monday through Friday 8AM –
7PM and Saturday 9AM-5PM EST at Phone: 1-866-731-2244, Fax: 1-866-857-3638 or e-mail our
technical support group at
For more information about DreamLine
UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016
UNIDOOR LUX (STYLE D)
D
G
P
OOR
LASS
Support@DreamLine.com
®
I
ANEL
NSTALLATION
Style D
Style D
products please visit
I
NSTRUCTIONS
DreamLine.com
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dreamline Unidoor Lux D SHDR -23297210 Series
Summary of Contents for Dreamline Unidoor Lux D SHDR -23297210 Series
- Page 1 ® For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer to your model’s web page on DreamLine.com Style D Style D Right side panel installation shown Please read these instructions carefully before installing.
- Page 2 Model #s SHDR-23297210-## SHDR-23307210-## SHDR-23317210-## SHDR-23327210-## SHDR-23337210-## SHDR-23347210-## SHDR-23357210-## SHDR-23367210-## SHDR-23377210-## SHDR-23387210-## SHDR-23397210-## SHDR-23407210-## SHDR-23417210-## SHDR-23427210-## SHDR-23437210-## SHDR-23447210-## SHDR-23457210-## SHDR-23467210-## SHDR-23477210-## SHDR-23487210-## SHDR-23497210-## SHDR-23507210-## SHDR-23517210-## SHDR-23527210-## SHDR-23537210-## SHDR-23547210-## SHDR-23557210-## SHDR-23567210-## SHDR-23577210-## SHDR-23587210-## SHDR-23597210-## SHDR-23607210-## ##=finish 01- Chrome 04- Brushed Nickel 06- Oil Rubbed Bronze 09- Satin Black UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016...
- Page 3 “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within 3 business days of the delivery date. Please note that DreamLine will not replace any ®...
-
Page 4: Tools Required
Tools Required Tape Drill bit Phillips Drill bit Measure Pencil Caulk Screwdriver (Ø=1/8") (Ø=5/16") Caulk Electric Knife Hammer Level Drill UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016... -
Page 5: Packing List
Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine for replacement. The shipping boxes may contain extra parts not used in your model ®... - Page 6 Specific size information can be found on our website at Dreamline.com. NOTE: The 22” In-Line Stationary Glass Panel is the primary example shown throughout this installation manual. Use the following installation procedures when installing a 6”...
- Page 7 NOTE: Use parts from “Detailed Diagram of Glass Panel Components” for the Stationary Glass assembly and installation 2. Mount the two Wall brackets (24) through the outside outside notches on the Stationary glass (11). Press the Anti-water strip (inline panel) (19) onto the vertical edge of the Stationary glass.
- Page 8 4. While securely holding the Stationary glass (11) Stationary outside close the Glass Door and align the Stationary glass glass Door to it. Use the door mark that was made in step #1 inside on the threshold as a reference to ensure that the 1/16"-1/8"...
- Page 9 6. Drill the hole into the shower base or threshold for the Bottom bracket (18) using Ø 1/8” drill bit at the drill mark that was made in step #4. Use the Round head screw ST4.2x35 (16) along with a raised white washer to attach the Bottom Bracket to the shower base or threshold.
- Page 10 outside inside ATTENTION: If width of the Stationary glass (11) is 12” or inside larger, the Support bar (12) must be installed for stability. 8. Locate the Support bar (12). Adjust the Support bar at an angle that will provide adequate support for the glass to the wall.
- Page 11 . 10 9. Apply good quality mildew-resistant silicone along the connection of the Stationary glass (11) with the walls and the threshold. Allow 24 hours for the silicone to fully cure before using the shower. See Fig. 11 for details. waterproof silicone inside...
-
Page 12: Product Maintenance
NOTE: To maximize the life of your door, it is important to regularly inspect the glass and other hardware for misalignment, proper attachment, and/or damage. Contact DreamLine with any questions or concerns. UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016... - Page 13 TEL: 866-731-2244 FAX: 866-857-3638 REAM INE.COM For more information on DreamLine ® Shower Doors Enclosures please visit DreamLine.com UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016...
