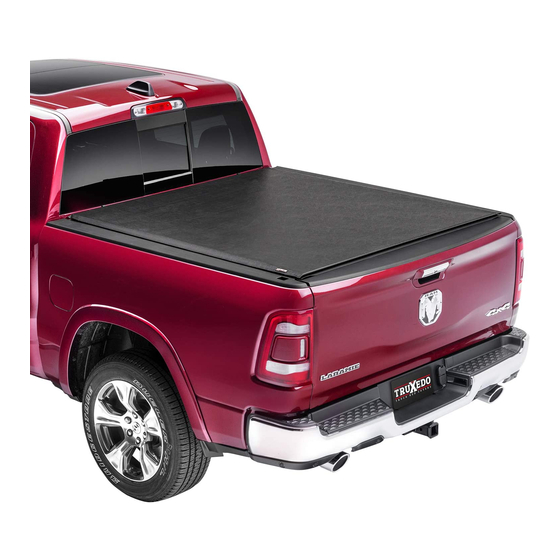

- Page 1 SOFT ROLLING TRUCK BED COVER WITHOUT TRAIL RAIL SYSTEM Proceed to pages 3-5, and 8-12 for complete install. • DRIVER SIDE SHOWN WITH TRAIL RAIL SYSTEM Proceed to page 3,pages 6-11 and page 13 for • complete install. DRIVER SIDE SHOWN P/N 1118428 Rev B...
-
Page 2: Lifetime Warranty
COVER MAINTENANCE Vinyl cover can be hand washed with mild soap and TruXedo products are sold without any express warranty except as set forth above. TruXedo is not obligated to honor warranty claims if Genuine TruXedo water or cleaned in a car wash. Thoroughly rinse cover to parts are not utilized. - Page 3 Components: Front Driver Bracket Rear Driver/ Passenger Front Passenger Bracket Non-Trail Rail Spacer Non-Trail Rail Spacer Bracket Bracket Passenger Rear Bracket Driver Rear Tools Correct 7/16” 1/8” T-27 WEATHER SEAL INSTALLATION FOR WITH TRAIL RAIL AND WITHOUT TRAIL RAIL: If your pickup has factory bed caps you will need to install the bulkhead seal supplied in the shipping box.
- Page 4 WITHOUT TRAIL RAIL SYSTEM INSTALLING BRACKETS WITHOUT TRAIL RAIL: Item Part # Description 1. 1705596 BUTTON HEAD SCREW 1/4”-20 2. 1700427 FLAT WASHER_1/4”_USS 3. 1701543 HEX NUT_FULL_NYLON LOCK_1/4”-20 4. 1705880 5/16” RAIL SYSTEM NUT 5. 1705954 CAP SCREW HEX HEAD 5/16-18 6.
- Page 5 INSTALLING BRACKETS AND RAILS WITHOUT TRAIL RAIL CONT: 6: Locate the Mounting hole in rail at the front Locate the Mounting hole in rail at the rear. Proceed by lining up that hole with the slot in Proceed by lining up the mounting hole with the front bracket from step 5 and assemble the slot in rear bracket from step 4 and hardware as shown.
- Page 6 WITH TRAIL RAIL SYSTEM INSTALLING BRACKETS AND RAILS WITH TRAIL RAIL: ATTENTION: SIDE RAIL SITS ON TOP OF TRUCK BED RAIL ATTENTION: RAIL SITS ON TOP OF TRUCK BED RAIL. Loosen both tie down anchors in each Trail Rail, slide them to the front of the cab and remove Tie down anchors will come out of the them from the Rail.
- Page 7 INSTALLING BRACKETS AND RAILS WITH TRAIL RAIL CONT: Assembly bolt/washer and bracket as Insert nut into Trail Rail system shown and leave loose at this time. and slide nut to the rear of truck. TRAIL RAIL BY CAB ATTENTION: 7: Locate the Mounting hole in rail at the front. Proceed by lining up that hole with the slot in At this time, reinstall the the front bracket from step 6 and assemble...
- Page 8 INSTALLING BRACKETS AND RAILS WITH TRAIL RAIL CONT: Apply downward pressure on the rail and the bracket Apply downward pressure on the rail and towards the to compress the rail seal and tighten the two bolts that outside of the bed while tightening the bolt to hold rail go into the front bulkhead.
-
Page 9: Closing The Cover
CLOSING THE COVER Always close cover before closing tailgate. Unhook and roll cover to the tailgate. Unroll cover toward tailgate and rest bows on side rails. Rotate header into header stops and press down to lock toggle into header. Header Header Stop Cover Header Seal... - Page 10 CAUTION / ATTENTION/ PRECAUCIÓN COUVERTURE DE ROULEAU SERRÉ ET GARANTIR ENVUELVE CUBIERTA FIRMEMENTE, Y ASEGURA ROLL COVER TIGHT AND SECURE BOTH RETAINER NE PAS DEUX SANGLES DE SÉCURITÉ. RANGER LA AMBAS CORREAS DE LA SEGURIDAD. GUARDE DO NOT STRAPS. STOW COVER AGAINST CAB WINDOW. COUVERTURE CONTRE LA FENÊTRE DE LA CABINE.
- Page 11 TROUBLESHOOTING VINYL/ VINYL CARE 1. Vinyl top surface has wrinkles after rolling cover closed. - Pull fabric taut from each side. For best results, the help of a second person pulling on the opposite side is preferable. 2. Vinyl top surface sags between cross tubes. - Adjustment to automatic tension control may be required, refer to Step 22.
- Page 12 WITHOUT TRAIL RAIL SYSTEM 3” Replacement Parts Without Trail Rail 15 1118097 Right Hand Rail Endplug 1 ___*___ Replacement Cover 30 1703332 Pin, Hitch_1/16” Dia.x 1-5/16” long. 16 ___*___ Hook and Loop Fasteners 2 ___*___ Black Front Header 31 1706277 Cap Screw Button Head M8 17 1706273 3 ___*___ Header Seal Front Driver Front Bracket...
- Page 13 WITH TRAIL RAIL SYSTEM 3” Replacement Parts With Trail Rail 15 1118097 Right Hand Rail Endplug 1 ___*___ Replacement Cover 30 1703332 Pin, Hitch_1/16” Dia.x 1-5/16” long. 16 ___*___ Hook and Loop Fasteners 2 ___*___ Black Front Header 31 1706277 Cap Screw Button Head M8 17 1706273 3 ___*___ Header Seal Front Driver Front Bracket...
