• OWNER'S MANUAL
• MODE D'EMPLOI
• MANUAL DE OPERACIÓN
CONTENTS
ACCESSORIES ....................................................... 1
Introduction ........................................................... 2
WARNING .............................................................. 2
CAUTION ............................................................... 3
INSTALLATION ...................................................... 4
CONNECTIONS ...................................................... 6
OPERATION METHOD ......................................... 13
IN CASE OF DIFFICULTY ...................................... 21
SYSTEMS ............................................................ 22
SPECIFICATIONS ................................................. 24
ACCESSORIES
• End Cover ........................................................... 1
• Terminal Cover ................................................... 1
• Bracket ............................................................... 3
• Hexagon Wrench ......................................... 1 SET
• Self-Tapping Screw ............................................ 4
• Machine Screw ................................................... 6
• Hexagon Screw .................................................. 2
• Double Face Tape ........................................ 1 SET
• Cushion ....................................................... 1 SET
• Insulation Tube ............................................ 1 SET
• Fuse Box ........................................................... 1
• Fuse (80A) .......................................................... 1
• Rubber Pipe ......................................................... 1
English
MRD-M1000

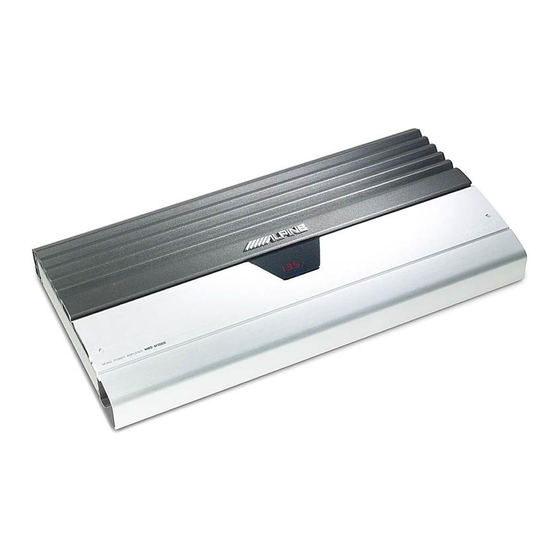

MONO POWER AMPLIFIER
Please read this manual to maximize your enjoyment of the outstanding
performance and feature capabilities of the equipment, then retain the
manual for future reference.
Veuillez lire ce mode d'emploi pour tirer pleinement profit des excellen-
tes performances et fonctions de cet appareil, et conservez-le pour toute
référence future.
Lea este manual, por favor, para disfrutar al máximo de las excepciona-
les prestaciones y posibilidades funcionales que ofrece el equipo, luego
guarde el manual para usarlo como referencia en el futuro.
English
TABLE DES MATIERES
ACCESSOIRES ........................................................... 1
Introduction ............................................................... 2
AVERTISSEMENT ...................................................... 2
ATTENTION ................................................................ 3
INSTALLATION .......................................................... 4
CONNEXIONS ............................................................ 6
METHODE DE FONCTIONNEMENT .......................... 13
EN CAS DE PROBLEME ............................................ 21
SYSTEMES ............................................................... 22
SPECIFICATIONS ..................................................... 24
• Couvercle d'achèvement ........................................ 1
• Couvercle cache-bornes ........................................ 1
• Support ................................................................. 3
• Clé hexagonale ............................................... 1 JEU
• Vis autotaraudeuse ................................................ 4
• Vis à métaux .......................................................... 6
• Vis à six pans ........................................................ 2
• Ruban adhésif double face ............................. 1 JEU
• Coussin .......................................................... 1 JEU
• Tube d'isolation .............................................. 1 JEU
• Boîte à fusibles ...................................................... 1
• Fusible (80A) .......................................................... 1
• Conduite en caoutchouc ........................................... 1
Français
Français
ACCESSOIRES
ÍNDICE
ACCESORIOS ........................................................ 1
Introducción .......................................................... 2
ADVERTENCIA ....................................................... 2
PRUDENCIA .......................................................... 3
INSTALACIÓN ........................................................ 4
CONEXIONES ........................................................ 6
MÉTODO DE OPERACIÓN .................................... 13
EN CASO DE DIFICULTAD ....................................... 21
SISTEMAS ............................................................ 22
ESPECIFICACIONES ............................................ 24
ACCESORIOS
• Cubierta de acabado ........................................... 1
• Cubierta de terminales ....................................... 1
• Soporte .............................................................. 3
• Llave hexagonal ...................................... 1 JUEGO
• Tornillo autorroscante ........................................ 4
• Tornillo para metales .......................................... 6
• Tornillo hexagonal .............................................. 2
• Cinta de doble cara ................................. 1 JUEGO
• Almohadilla ............................................ 1 JUEGO
• Tubo de aislamiento ............................... 1 JUEGO
• Caja de fusibles .................................................. 1
• Fusible (80A) ....................................................... 1
• Tubo de goma ...................................................... 1
Español
R
Español
1
