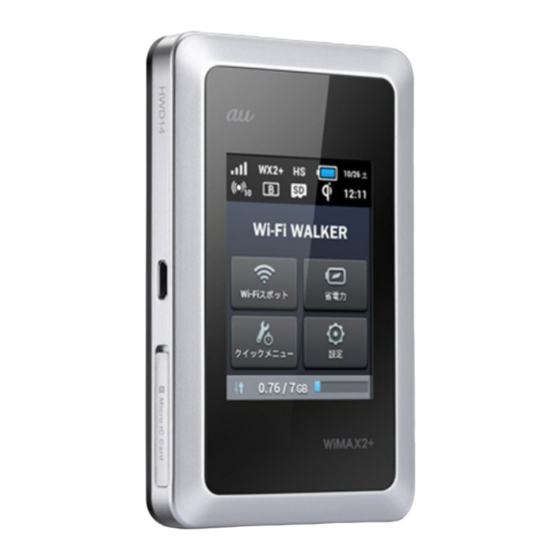

Huawei Wi-Fi WALKER WiMAX 2+ HWD14 Notes Of Usage

• As an instruction manual of this product, refer to the supplied "Quick start guide", "Notes on usage" (this guide), or "取扱説明書 詳細版 (Full
Instruction Manual)" (Japanese) available on the au homepage. In this guide, "Instruction Manual" includes "Quick start guide", "Notes on usage" (this
guide), and "取扱説明書詳細版 (Full Instruction Manual)" (Japanese).
• In this guide, "Wi-Fi WALKER WiMAX2+ HWD14" is reffered to as the "product" or "Wi-Fi WALKER WiMAX2+".
• In this guide, "microSD
TM memory card" and "microSDHC
Exemptions
• The Company is not liable for any damages arising from earthquakes, lightning, storms, floods or other natural disasters,
as well as fires, actions by third parties, other accidents, intentional or mistaken misoperation by the customer, or use under
other unusual conditions outside the responsibility of the Company.
• The Company is not liable for any incidental damages (change/disappearance of described content, loss of business
income, disruption of business, etc.) arising from use of or inability to use the product.
• The Company is not liable for any damages arising from failure to observe the described content of the "Instruction Manual".
• The Company is not liable for any damages arising, for example, from malfunction caused by combination with connected
devices or software not related to the Company.
• Settings etc. may sometimes be altered or lost due to faults, repair or other mishandling of the product. The Company is not
liable for any damage or lost income resulting from altered or lost data.
• It is recommended you keep a copy of important data in your PC's hard disk, etc. Whatever the cause of fault or malfunction
may be, the Company assumes no responsibility for alteration or loss of saved information.
• The product is used under UQ/WiMAX network environment; however, UQ/WiMAX Communications Inc. is not liable for
quality of the product etc.
* "The Company" as appears in this manual refers to the following companies:
Sold by: KDDI CORPORATION·OKINAWA CELLULAR TELEPHONE COMPANY
Imported by: HUAWEI Technologies Japan K.K.
Manufactured by: HUAWEI TECHNOLOGIES CO., LTD
Safety Precautions (Observe Strictly)
■ Before using this product, thoroughly read these "safety precautions" for proper use. After reading, store the precautions in
a safe place.
● These "Safety Precautions" describe instructions that should be observed to prevent damage to property or injury to the
customer or others using the product.
● These instructions are divided into the following categories.
■ Explanation of indications used in this manual
DANGER
This symbol indicates "the potential and imminent danger of death or serious injury
WARNING
This symbol indicates "the possibility of death or serious injury
CAUTION
This symbol indicates "the possibility of personal injury
*1 Serious injury: This refers to loss of sight, injury, burns (high- and low-temperature), electric shock, broken bones, injuries
with residual aftereffects from poisoning, etc., and injuries requiring hospital admission for treatment or long
term hospital attendance as an outpatient.
*2 Injury: This refers to injuries, burns (high- and low-temperature), electric shock, etc. that do not require hospital admission
for treatment or long-term hospital attendance as an outpatient.
*3 Physical damage: This refers to extended damage to buildings, furniture, livestock, or pets.
■ Explanation of graphic symbols used in this manual
Indicates an action that is not allowed.
Indicates that handling with wet hands is not
allowed.
Indicates that disassembly is not allowed.
■ Common to the main unit, charging equipment, au Micro IC Card (LTE), peripheral devices
DANGER
Be sure to read the following hazards before use.
Be sure to use only the specified peripheral devices. Use of other devices might cause overheating, ignition,
rupture, fault, or leakage of liquid.
Do not use, store or leave the product in hot places (e.g. by the fire, near a heater, under a kotatsu, in direct
sunlight, in a car in the hot sun). Doing so might cause ignition, rupture, fault, fire or injury.
Before entering an area where flammable gas is generated such as a gas station, be sure to turn off the product
and stop charging the battery. Failure to observe these precautions might cause the gas to catch fire.
Do not put the product in a cooking apparatus such as microwave oven or a pressure vessel. Doing so might cause
ignition, rupture, fault, fire or injury.
Do not throw the product into a fire or heat it. Doing so might cause fire, rupture or fire.
Do not short-circuit the connection terminals. Do not allow conductive foreign objects (metal fragments, pencil
leads, etc.) to come into contact with or get inside the connection terminals. Doing so might cause fire or a fault.
When using a metal accessory etc., take sure not to allow the metal part come in contact with the connection
terminals or power outlet. Doing so might cause electric shock, ignition, injury or a fault.
The customer is not allowed to disassemble, modify or repair the product. Doing so might cause a fault, ignition,
electric shock, or injury. The Company is not liable even in the event of any nonconformities arising on the product
or PC as a result of modification, etc. Modification of the product is in violation of the Wireless Telegraphy Act.
WARNING
Be sure to read the following warnings before use.
Do not put any metal products (including stickers with metal materials) on surface of wireless charger or back side
of the product (Qi mark side). Failure to do so might cause overheating, ignition, or malfunction.
Do not put a metal accessory between wireless charger and the product. Failure to do so might cause overheating,
ignition, or malfunction.
Do not drop or subject to strong impact, such as dropping and throwing. Doing so might cause rupture, overheating,
ignition, or a fault.
Do not use outside when you can hear thunder. Doing so might risk lightning strikes and electric shock.
Do not let your hands, fingers and other parts of the body touch the connection terminals. Doing so might cause
electric shock, injury or a fault.
If the product is damaged because it is dropped or something, and its display is cracked or internal parts are
exposed, do not touch the cracked display or exposed parts with your hands. Doing so might cause electric shock or
injury from damaged parts. Contact an au shop or Secure cell phone support center.
If the main unit is wet, charging cause electric shock, short-circuiting or corrosion of electronic circuits, resulting in fire
from heat or a fault.
Do not splash with water or other liquids. Also, never use in places subject to direct splashing with water or pet urine,
etc. or in humid places such as bath areas, or use with wet hands. Doing so might cause electric shock or fault from
short-circuiting or corrosion of electronic circuits. In the event that the product is splashed with liquid, immediately
disconnect the specified charger's power plug and external device. Faults caused by wetting with water or humidity
are not covered by the warranty and charges will be incurred for repair.
Do not operate the product while driving an automobile or motorized bicycle, riding a bicycle or walking. Doing so
may compromise traffic safety and cause an accident.
If charging is not completed after the specified charging time, stop charging. Failure to do so might cause leakage
of liquid, overheating, rupture or ignition.
Do not leave in places within the reach of small children. Small children might swallow small parts, etc. by mistake
and choke on them, or might drop them by mistake and cause accidents or injury.
CAUTION
Be sure to read the following cautions before use.
Do not store the product in places subject to direct sunlight (e.g. in automobiles), places that get hot, places that
get extremely cold, and in humid or dusty places. Doing so might cause overheating, ignition, deformation or a
fault.
Do not leave on unstable places such as rocky stands or tilting surfaces. Dropping the product may cause injury or
damage. Also, pay sufficient attention to impact, etc.
Do not cover or wrap the product with bedding, etc. while using or charging the product. Doing so might cause fire,
fault or injury.
Do not touch the main unit or specified charger for a long time while power is being supplied from an external
source. Doing so might cause low-temperature burns.
The product may become hot by prolonged use especially in high-temperature environment. Be careful when using
the product touching your skin for a long time, as it might cause low-temperature burns.
Do not use power outlets or wiring apparatus beyond its rating. Also, exceeding rating, for example, by connecting
multiple devices to a single power strip might cause overheating and fire.
Do not place near corrosive chemicals or in places where corrosive gas is generated. Doing so might cause a fault
or loss of internal data.
Do not leave or store with the microSD memory card slot cover and Micro IC Card slot cover opened. Doing so
might allow dust or other foreign objects to get inside and cause a fault.
Do not use if there is smoke, abnormal odor or noise, excessive overheating, or other abnormalities. If an
abnormality occurs, disconnect the specified charger from the power outlet if you are charging the battery, make
sure that the product is not overheating before turning the power off, and contact an au shop or Secure cell phone
support center. If you have dropped or damaged the product, do not continue to use it in that state, and contact an
au shop or Secure cell phone support center.
When using the specified AC adapter or external device, insert/remove the connector straight to/from the terminal.
Make sure the orientation of the connector is correct. Failure to do so might cause damage or a fault.
Do not charge the battery with wireless charger when a cover or case are attached to the product. Doing so might
cause failure of charging, overheating, ignition, or malfunction.
■ Main unit
WARNING
Be sure to read the following warnings before use.
Do not use the product while driving a car or riding a motorbike or bicycle. It might cause a traffic accident. Use of
the product while driving a car or motorbike is prohibited by law. Use of the product while riding a bicycle may be
punishable by some regulations.
Do not use this product while you are aboard an airplane. Use of electric devices transmitting radio waves in airplane
is prohibited by law.
Some airline companies, however, allow their passengers to use the product. For details, contact the airline company
you use.
Turn the product off near .high precision electronic device. Failure to do so might affect the electronic devices.
(Examples of electronic devices that might be affected by the product include cardiac pacemakers, hearing aids,
other electronic medical devices, fire alarms, and automatic doors. If you are using an electronic medical device,
contact the device manufacturer or retailer for information about the possible affect of radio waves.)
When using the product near an implanted pacemaker, implanted cardioverter-defibrillator or other electronic
medical device, radio waves might affect these units and devices. So, please observe the following.
1. Those with an implanted pacemaker or implanted cardioverter-defibrillator should carry or use the product at
least 15cm away from the pacemaker or cardioverter-defibrillator.
2. Turn the product off when it may be difficult to keep at least 15cm away such as in a situation you cannot move
freely, since there may be people with a cardiac pacemaker or implanted cardioverter-defibrillator nearby.
3. Pay attention to the following points when using the product inside medical institutions.
• Do not bring the product into operating theaters, intensive-care units (ICU) and coronary care units (CCU).
• Turn the product off in hospital wards.
• Even if you are in a lobby, etc., be sure to turn the product off when there are electronic medical devices
nearby.
• When a medical institution has laid down designated areas where use of the product is prohibited or is not
allowed to be brought in, abide by the instructions of that medical institution.
4. When using electronic medical devices other than an implanted pacemaker and implanted cardioverter-
defibrillator outside a medical institution (e.g. home medical treatment), check individually with the manufacturer
of the electronic medical device regarding the influence of radio waves.
Notes on usage
HWD14
TM memory card" are abbreviated as "microSD memory card".
(*1) to a person."
(*2) to a person or physical damage
Indicates that use in a place where the product is
likely to get wet or allowing the product to get wet is
not allowed.
Indicates an action that must be done.
I n d i c a t e s t h a t t h e p o w e r p l u g m u s t b e
disconnected from the power outlet.
CAUTION
Be sure to read the following cautions before use.
Use of the main unit in an automobile sometimes affects on-vehicle electronic devices, though this rarely happens.
If this happens, stop use since this may impair safe travel.
If you feel any abnormality with your skin, immediately consult a dermatologist. Itching, rashes, eczema, etc.
sometimes occurs depending on your physical constitution and condition.
The materials of parts used on the product are as follows.
Display panel
Exterior case
Power button
Micro IC Card slot cover
microSD memory card slot cover
Do not allow liquids, metal pieces, burnable items, and other foreign matter to get inside the micro SD memory card
slot and Micro IC Card slot. Doing so might cause fire, electric shock or fault.
Do not swing the product around by holding the strap, etc. Doing so might cause an accident or damage.
Use the micro SD memory card slot cover and Micro IC Card slot.cover closed. If the covers are open, dirt or water
may get inside causing a fault.
Do not place the product directly on sand at a beach, etc. If sand or other small particles gets inside the main unit
through micro USB connector etc., it might cause overheating or a fault.
When using the product for data communication, be careful not to keep the product in direct contact with your skin
for a prolonged period, or not to cover the product with paper, cloth, bedding, etc. The main unit might get hot,
causing fire, burns or a fault.
■ Internal Battery
(The internal battery of Wi-Fi/WALKER/WiMAX2+ is a lithium-ion battery)
When you purchase your product, the internal battery is not fully charged. Charge the battery before using
the product.
DANGER
Be sure to read the following hazards before use.
If the leaked liquid gets on your skin or clothes, immediately rinse it off with water to avoid injury. If the liquid gets
into your eyes, do not rub but wash your eyes with water, and immediately consult a doctor to avoid the risk of
losing your eyesight. If the liquid gets on a device, wipe it off without touching it.
Internal battery is a consumable item. If the performance of internal battery does not recover (e.g. the usable time
after each charge has become extremely short), the battery is at the end of service life, so stop use. Failure to do so
might cause overheating, ignition, rupture or leakage. Battery is built into the product. For repair, the product must
be collected to au shop etc. and charges will be incurred. And you may not use the product during certain period
of time. Please be forewarned. Note that the length of service life varies depending on the usage condition, etc.
(*1) to a person."
■ Charging equipment
WARNING
Be sure to read the following warnings before use.
(*3) ."
Do not use at other voltages than the specified power supply voltage. Doing so might cause ignition, fire,
overheating, or electric shock.
AC adapter is is compatible with 100 VAC to 240 VAC. The product is available only in Japan.
Firmly insert the specified charger's power plug into the power outlet down to the base of its pins. Incomplete
insertion of the power plug might result in electric shock or fire caused by overheating and ignition. Do not use
when a specified charger is damaged, or a power outlet is loose.
Do not damage, modify, twist, pull or place a heavy object on the cable of the specified charger. Do not use a
damaged cable. Doing so might cause an electric shock, short circuit or fire.
Do not let your hands, fingers and other parts of the body touch the connection terminals. Doing so might cause
electric shock, injury or a fault.
If you hear thunder, do not touch the power plug. Doing so might cause an electric shock as a result of a lightning
strike.
Before cleaning the charging equipment, unplug its power plug of the specified charger from the outlet. If the plug
remains plugged in when you clean the equipment, it might cause an electric shock or short-circuit.
Wipe off dust on the power plug. Failure to do so might cause fire, burns or electric shock.
When the AC adapter is not to be used for a long time, disconnect the specified charger's power plug from the
power outlet. Failure to do so might cause electric shock, fire or a fault.
Do not use in places subject to splashing with water, pet urine or other liquids. Doing so might result in faults
resulting from overheating, fire, electric shock, or short-circuiting of electronic circuits. In the event that the product is
splashed with liquid, immediately disconnect the specified charger's power plug.
CAUTION
Be sure to read the following cautions before use.
Do not use in humid places such as bath areas, or connect/disconnect the specified charger with wet hands. Doing
so might cause electric shock or a fault.
Charge the battery in a stable place. If placed on an inclined surface or wobbly stand, the product might fall
causing injury or damage. In addition, do not cover or wrap the product with a cloth or bedding. Doing so might
cause fire or a fault.
When unplugging the specified charging equipment's power plug from the outlet, hold and pull the power plug. If
you pull the cable, the cable might be damaged.
If you feel any abnormality with your skin, immediately consult a dermatologist. Itching, rashes, eczema, etc.
sometimes occurs depending on your physical constitution and condition.
The materials of parts used on AC adopter are as follows.
Exterior case
Power plug
USB Cable
USB plug (shield part)
USB plug (resin part)
micro USB connector (shield part)
micro USB connector (resin part)
■ HUAWEI power supply conversion cable 01
WARNING
Be sure to read the following warnings before use.
Do not use at other voltages than the specified power supply voltage. Doing so might cause ignition, fire,
overheating, or electric shock.
Firmly insert the connection terminal of the power supply conversion cable into au cell phone or peripherals to the
base of its pins. Incomplete insertion might result in electric shock or fire caused by overheating and ignition. Do not
use if the connection terminal is damaged or loosened.
Do not damage, modify, twist, pull or place a heavy object on the cable of the specified charger. Doing so might
cause fire, electric shock or fault.
Strictly observe warnings and cautions indicated by the manufacturer of peripherals you are using.
CAUTION
Be sure to read the following cautions before use.
Do not touch an au cell phone or a peripheral device for a long time while power is being supplied from an external
source. Doing so might cause low-temperature burns.
When unplugging the power supply conversion cable, hold and pull the power plug. If you pull the cable, the cable
might be damaged.
■ au Micro IC Card (LTE)
WARNING
Be sure to read the following warnings before use.
Do not put the au Micro IC Card (LTE) in a cooking apparatus such as a microwave oven or a pressure vessel. Doing
so might cause melting, overheating, fuming, loss of data or a fault.
CAUTION
Be sure to read the following cautions before use.
Be careful when attaching/removing the au Micro IC Card (LTE). Doing so might injure your hands or fingers.
Use only the devices specified by the Company to insert the au Micro IC Card (LTE) in. Using a device not specified
by the Company might cause loss of data or a fault. For the specified devices, contact an au shop or Customer
Service Center.
Do not disassemble or modify the au Micro IC Card (LTE). Doing so might cause loss of data or a fault.
Do not use or leave the au Micro IC Card (LTE) in hot places such as by the fire or a heater. Doing so might cause
melting, overheating, fuming, loss of data or a fault.
Do not throw the au Micro IC Card (LTE) into a fire or heat it. Doing so might cause melting, overheating, fuming,
loss of data or a fault.
Do not touch the IC (metal) part of the au Micro IC Card (LTE) or short-circuit it. Doing so might cause loss of data
or a fault.
Do not drop the au Micro IC Card (LTE) or subject it to strong impact. Doing so might cause a fault.
Do not fold, bend or place a heavy object on the au Micro IC Card (LTE). Doing so might cause a fault.
Do not wet the au Micro IC Card (LTE). Doing so might cause a fault.
Do not scratch the IC (metal) part of the au Micro IC Card (LTE). Doing so might cause a fault.
Do not store the au Micro IC Card (LTE) in dusty places. Doing so might cause a fault.
Do not store the au Micro IC Card (LTE) in places exposed to direct sunlight or hot and humid places. Doing so
might cause a fault.
Store the au Micro IC Card (LTE) out of reach of small children. Failure to do so might cause injury, etc. if they
accidentally swallow and choke on it.
Handling precautions
These precautions are provided to ensure that performance can be fully demonstrated. Thoroughly read these precautions to
ensure correct use.
■ Precautions common to the main unit, internal battery, charging equipment, au Micro IC
Card (LTE), peripheral devices
● Do not apply excessive force to the product during use. Be sure not to put the product into a tightly packed bag or place
a heavy object on the product in a bag. Sitting on the product in your pocket might damage the display or internal circuit
board resulting in a malfunction.
Keeping an external device connected to the external connection might damage the connector resulting in a malfunction.
Such damage and malfunction are not covered by the warranty, even if there is no external damage.
● Do not use the product in extremely hot, cold or humid places. (Use within an ambient temperature range of 5
and humidity range of 35% to 85%.)
● Do not use in places subject to lots of dust or vibration.
● Clean the connection terminals with dry cotton swabs, etc. every now and then. Soiled terminals might cause poor
connection. Do not exert a strong force to clean the connection terminals to prevent deformation.
● Clean the product with a dry soft cloth (such as the type used for eyeglasses). Forceful rubbing with a dry cloth may
scratch the display. Drops of water or dirt left on the display may cause stains. Wiping the product using alcohol, thinner,
benzine, detergent, etc. might erase the printing on the outer casing or cause discoloration.
● Use as far away as possible from land-line phones, TVs and radios. Use nearby might affect them.
● The product may become warm while charging or communicating, depending on the situation, but this is not abnormal.
Note that there are times when it comes to use the product in a bag or bag heat up, the temperature of the product is
increased.
Part Material <Surface treatment>
Glass
PC resin <coating>
PC resin <coating>
Outside: PC resin <coating> Inside: TPU resin
Outside: PC resin <coating> Inside: TPU resin
Part Material <Surface treatment>
PC resin
Copper alloy <Nickel plating>
PVC resin
Iron <Nickel plating>, PBT resin
PVC resin
Stainless steel <Nickel plating>, LCP resin
PVC resin
C to 35 C
O O
