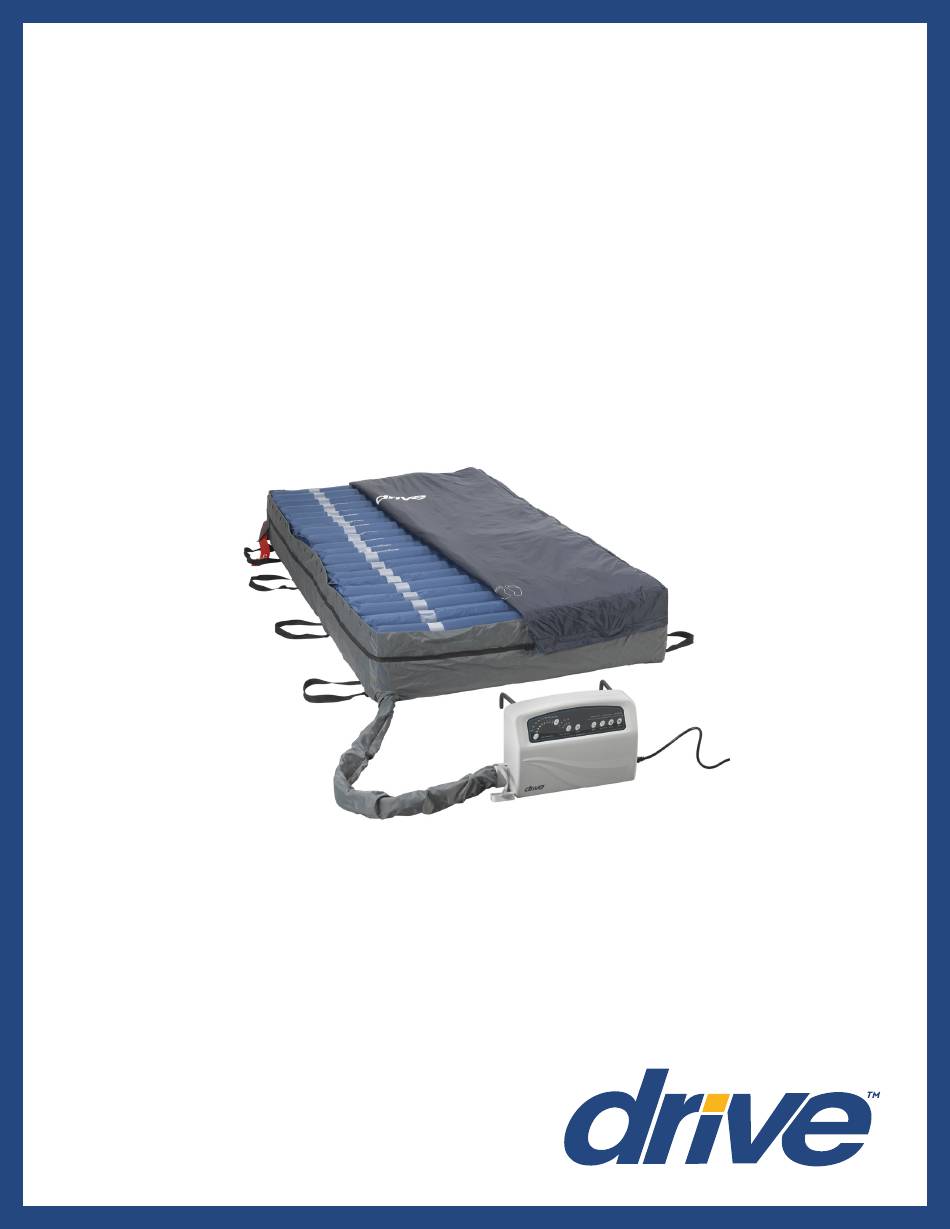

- Page 1 Med Aire Plus 10” Alternating Pressure and Low Air Loss Bariatric Mattress Replacement System USER MANUAL Item #s 14030, 14048, 14054, 14060 (Control unit 14030XP) www.drivemedical.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT PRECAUTIONS ......................3 DOCUMENT SYMBOLS ........................3 INTRODUCTION ..........................5 UNPACKING YOUR MED AIRE PLUS 10" ...................6 PRODUCT FEATURES ........................7 Control Unit ...........................7 Mattress............................8 PRODUCT FUNCTION ........................9 Control Unit ...........................9 Mattress............................10 OPERATION............................12 CPR Function ..........................12 Low Presure Indicator .........................13 PATIENT POSITIONING AND COMFORT ..................13 CLEANING AND MAINTENANCE .....................14 TROUBLESHOOTING ........................16... -
Page 3: Important Precautions
• Do not place or store product where it can fall or be pulled into a tub or sink. • Do not place in or drop into water or other liquids. • Do not open the control unit without referring to Drive DeVilbiss technical service department first. - Page 4 This system is NOT to be used when such gaps are present. User/Facility staff are responsible for ensuring that all mattresses properly fit the bed frames. Drive DeVilbiss is not responsible for the improper placement of its systems on ill-fitting bed frames. Health care professionals assigned to each patient should make the final determination whether side or assist rails are warranted after assessing patient risks based on the individual’s needs and condition.
-
Page 5: Introduction
INTRODUCTION Pressure injuries are defined as localized injuries of the skin and/or underlying tissue over a bony Support surfaces or prominence as a result of pressure or pressure in combination with shear. specialized mattress systems are used as part of an overall, multi-disciplinary, multi-dimensional care plan intended to prevent and treat pressure injuries. -
Page 6: Unpacking Your Med Aire Plus 10
INTRODUCTION Shear strain occurs when tissue is deformed or damaged due to shear stress or force exerted parallel to the plane of interest. The Med Aire Plus 10” cover is constructed of quilted nylon material with low shear and low friction properties to protect skin integrity. 3) Spinal Cord Injury: The Med Aire Plus 10”... -
Page 7: Product Features
PRODUCT FEATURES The Med Aire Plus 10” mattress replacement system is comprised of two components: 1) Therapy air cell mattress replacement with 10” high air cells and static 5” air cell base 2) Therapy control unit The Med Aire Plus 10” control unit is available in one configuration: Control Unit 14030XP: Digital System Control Unit (Figure 1) Figure 1... -
Page 8: Mattress
PRODUCT FEATURES Mattress Warning When using a therapy mattress system, always ensure that the patient is positioned properly within the confines of the bed. The patient’s head should be positioned in the center of the top section of the therapy mattress. -
Page 9: Product Function
PRODUCT FUNCTION Control Unit 14030XP Power switch is located on the side of the control unit. Use the power switch to turn the system off and on. Cycle Time (1) • The cycle time can be selected from the panel to choose the appropriate cycle time of the inflation modes. -
Page 10: Mattress
PRODUCT FUNCTION Lock Button (7) • Auto: control unit panel automatically locks in 5 minutes without operation. • Manual: press lock button for 3 seconds to lock the panel, press again for 3 seconds to unlock the panel. (4) (6) (5) (7) Mattress The Med Aire Plus 10”... - Page 11 Switch the power switch on the side of the control unit on. The mattress replacement system may take up to 40 minutes for full inflation regardless of the control unit being used. For rapid inflation an external pump may be used such as Drive’s electric quick fill pump, item #: 14427QF.
-
Page 12: Operation
OPERATION Note Always read the operating instructions in this manual before use. General This product is designed to provide pressure redistribution while maximizing comfort to patients. Please be sure to operate this equipment as instructed to optimize its value. Please be sure to follow the instructions corresponding to the control unit being used. -
Page 13: Cpr Function
OPERATION CPR Function When there is an emergency requirement to perform CPR on the patient, pull the CPR strap at the head section of the mattress to release the air quickly from the mattress. Pressure Range Selection (+/-) Users can adjust the pressure level of the air mattress, using the (+) and (-) buttons, to a desired firmness based on personal comfort or weight setting. -
Page 14: Cleaning And Maintenance
CLEANING & MAINTENANCE Recommended Linen: Drive DeVilbiss Healthcare bed support surfaces are designed to be used with appropriate linens. Deep pocketed fitted or flat sheets are recommended. Multiple layering of linens or underpads beneath the patient should be avoided, when possible, for the prevention and treatment of pressure injuries. - Page 15 CLEANING & MAINTENANCE Mattress 8) Remove any soiled or used bedding. 9) Examine the mattress for visible soilage of bodily fluids. 10) If no disinfection is required, brush off or wipe down all surfaces of the cover sheet with soap and water before wetting with any liquid disinfectant.
-
Page 16: Troubleshooting
TROUBLESHOOTING • Make sure the mattress tube is well connected. • Check the control unit and make sure both power indicators are off when the switch is turned off. Low pressure Examine if there is any air leakage between the control unit and the mattress connections or from the air mattress tubes: 1) Check connectors between the air mattress and control unit. -
Page 17: Specifications
SPECIFICATION Control Unit Mattress Item: 14030XP Item: 14030MN, 14048MN, 14054MN, 14060MN Power supply: 120V/60Hz Size: 42” W x 80” L x 10” H (14030 model) 48” W x 80” L x 10” H (14048 model) Air output: 12 liter/min 54” W x 80” L x 10” H (14054 model) 60”... -
Page 18: Warranty
WARRANTY 14030 | 14048 | 14054 | 14060: 18 months for control unit and mattress Your Drive brand product is warranted to be free of defects in materials and workmanship for 18 months of the original consumer purchaser. This device was built to exacting standards and carefully inspected prior to shipment. This 18 month Limited Warranty is an expression of our confidence in the materials and workmanship of our products and our assurance to the consumer of years of dependable service. - Page 20 99 Seaview Boulevard Port Washington, NY 11050 Phone: 516-998-4600 Fax: 516-998-4601 www.drivemedical.com VER.B.12.20...
