Summary of Contents for iHealth PT2L
-
Page 2: Table Of Contents
Thermometer User’s Manual Infrared Digital No-Touch Thermometer（PT2L） Contents PRODUCT INTRODUCTION ..................1 NOTICE .......................... 1 OVERALL DESCRIPTION ....................3 LCD SCREEN INSTRUCTIONS..................3 PRODUCT PERFORMANCE ..................4 INTENDED USE ......................4 CONTRAINDICATIONS ....................5 INSTRUCTION FOR USE ....................5 PRODUCT ERRORS AND TROUBLESHOOTING ............ -
Page 3: Product Introduction
Product Name: Infrared Digital No-Touch Thermometer Product Model: PT2L NOTICE Use of this thermometer is not intended as a substitute for consultation with your physician. Please consult your doctor if you have any doubt about the temperature reading. - Page 4 cellphone in-use) as EM interference may cause errors in the reading or even device failure. 14. This product should be considered a personal device. Clean and sanitize the product properly to prevent cross contamination. If performance of the instrument may be adversely affected should one or more of the following occur: Operation outside of the manufacturer-specified subject temperature range.
-
Page 5: Overall Description

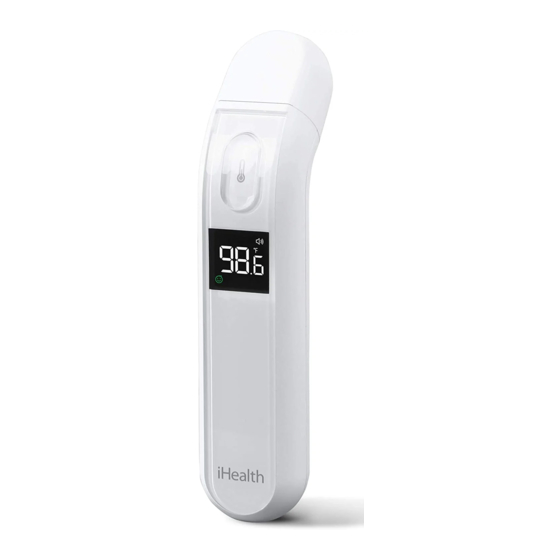

Overall Description The thermometer is mainly comprised of a plastic housing, IR temperature sensor, LCD display screen and batteries. LCD screen instructions... -
Page 6: Product Performance
Low power reminder Buzzer Celsius/Fahrenheit Temperature display area Temperature state indication Device dimensions：Approx 141mm×32mm×48mm (5.55in×1.26in×1.89in) Product weight：Approx 53 g (exclude batteries) Product performance Measurement position: Centre of the forehead surface Forehead Measurement distance: ≤3 cm(1.18in) Power source: DC 3V; 2 x 1.5V AAA batteries Measurement range: 34.0℃-43.0℃(93.2℉-109.4℉) ±0.2℃（±0.4℉）... -
Page 7: Contraindications
Contraindications It is not recommended for people whose measuring part has local lesions, such as inflammation, trauma, postoperative, etc. Instruction For Use 1. Installing the product Insert the two batteries into the battery compartment at the back of the device. The thermometer will initiate a self-check, LCD displaying the... - Page 8 3) The buzzer will beep once a reading is obtained (Buzzer switch function is optional, please refer to "4. Buzzer prompt switch" for settings). The reading will be displayed on the screen. If the measurement is failed, the beeper will not beep and the screen displays [ ] instead.
- Page 9 Release the button when"℃" appears,the unit set as ℃ ; Release the button when"℉" appears,the unit set as ℉. Indication of temperature status When the measured temperature T<37.5℃(99.5 ℉), " " appears on the LCD. When the measured temperature 37.5℃≤T﹤38.0℃(99.5 ℉≤T＜100.4℉), " " appears on the LCD.
-
Page 10: Product Errors And Troubleshooting
Product errors and troubleshooting Problem Item to detect Solution Battery depleted Replace old batteries with new ones Batteries have been installed Take out the batteries and re- with the wrong polarity install them correctly. Batteries are not installed properly Unable to carry out Replace the batteries measurement as current battery capacity is too low. -
Page 11: Care And Cleaning
Care and Cleaning The probe (sensor) is the most intricate part of the thermometer and should be kept clean and intact to acquire accurate readings. Use the following method to clean the probe: Gently swab the surface of the probe using a cotton bud soaked in > 95% medical alcohol. -
Page 12: Included In Delivery
20 °C (68 °F ). Included in delivery Use only accessories provided by the original manufacturer, and check for any missing accessories. 1 Infrared Digital No-Touch Thermometer 2 x 1.5 V AAA batteries 1 instruction manual Signs and symbols The following symbols appear in these instructions for use and on the device: Symbol for “THE OPERATION GUIDE MUST BE READ”... -
Page 13: Electromagnetic Compatibility Information
General requirements for basic safety and essential performance - Collateral standard: Electromagnetic compatibility - Requirements and Tests),IEC 60601-1-11 (Medical electrical equipment – Part 1-11: General requirements for basic safety and essential performance – Collateral Standard: Requirements for medical electrical equipment and medical electrical systems used in the home healthcare environment),the ASTM (American Society for Testing and Materials) E 1965 - 98 , ISO 80601-2-56 ( Medical Electrical Equipment -- Part 2-56: Particular Requirements For The Basic Safety And... -
Page 14: Warranty
Table 3 – Proximity fields from RF wireless communications equipment Test frequency Band Immunity test levels (MHz) (MHz) Professional healthcare facility environment 380-390 Pulse modulation 18Hz, 27V/m FM, ±5kHz deviation, 1kHz sine, 28V/m 430-470 704-787 Pulse modulation 217Hz, 9V/m 800-960 Pulse modulation 18Hz, 28V/m 1720 1700-1990... - Page 15 Labs, Inc. www.ihealthlabs.com 120 San Lucar Ct., Sunnyvale, CA 94086, USA +1-855-816-7705 Europe: iHealth Labs Europe SAS www.ihealthlabs.eu support@ihealthlabs.eu 36 Rue de Ponthieu, 75008, Paris, France iHealthLabs Europe SAS 36 Rue de Ponthieu, 75008, Paris, France ANDON HEALTH CO., LTD.
