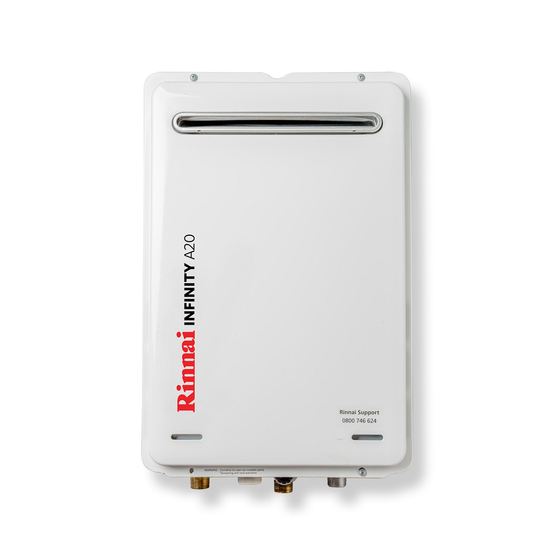

- Page 1 Suitable for the following Rinnai INFINITY models: • A16 (REU-A1620WG-ZK) • A20 (REU-A2024WG-ZK) • A24 (REU-A2426WG-ZK) • A26 (REU-A2626WG-ZK) • EF26 (REU-E2626W-ZK) INFINITY EF26 and A-Series continuous flow water heaters Installation guide...
- Page 2 Warning Improper installation, adjustment, alteration, service and maintenance can cause property damage, personal injury or loss of life. For more information about buying, using, and servicing of Rinnai appliances call: 0800 RINNAI (0800 746 624). Rinnai New Zealand Limited 105 Pavilion Drive, Mangere, Auckland...
-
Page 3: Table Of Contents
Contents Specification ............4 Connections and fittings ........5 Dimensions ............6 Appliance location ..........8 General installation information ......9 Water delivery temperature ........10 Controller installation ..........11 EF26 condensate neutraliser tank and drain ..12 Commissioning .............14 Sideways flue diverter dip switch changes ...15 PCB interface and functions .........16 A-Series controller communication cables ...18 EF26 controller communication cables....19 Before installation... -
Page 4: Specification
Specification Designed and made in Japan, the Rinnai INFINITY EF26 and A-Series are continuous flow gas hot water heaters with inbuilt frost protection. The EF26 is a condensing model. They have electronic ignition and require electricity to operate. They are factory preset to 55 °C (maximum set temperature is 65 °C). -
Page 5: Connections And Fittings
Purge gas and cold water supply lines to remove air and swarf before final connection. Swarf in the gas or water supplies may cause damage, a common problem, which is not covered by warranty. Rinnai INFINITY EF26 and A-Series installation guide 01-20 | 5... -
Page 6: Dimensions
Dimensions (mm) A26 & A24 175.5 164.5 17.7 EF26 6 | Rinnai INFINITY EF26 and A-Series installation guide 01-20... - Page 7 5.5 x 24 5.5 x 24 long hole long hole Ø13 hole 29.5 5.5 x 16 5.5 x 24 long hole long hole 13.9 Ø13 hole 30.5 Rinnai INFINITY EF26 and A-Series installation guide 01-20 | 7...
-
Page 8: Appliance Location
IMPORTANT conditions. Rinnai recommend a maximum pipe run of 10 m. Power point can be within the pipe cover if a pipe cover is installed—must comply with AS/NZS Wiring rules 8 | Rinnai INFINITY EF26 and A-Series installation guide 01-20... -
Page 9: General Installation Information
All hot water pipe work should be insulated to insulate the frost protection circuit will not work optimise performance and energy efficiency. correctly. Rinnai INFINITY EF26 and A-Series installation guide 01-20 | 9... -
Page 10: Water Delivery Temperature
(TLD = Temperature Limiting Device) When the Rinnai INFINITY is set to deliver water at a temperature higher than 55 °C, it will be necessary to fit a Temperature Limiting Device for delivery to areas used for the purposes of personal hygiene. -
Page 11: Controller Installation
Other manufacturers water controllers are NOT compatible with Rinnai water heaters. Water controllers MUST NOT be used with any solar boost water heater. Rinnai water controllers bought in from other countries are not compatible with Rinnai appliances sold in New Zealand. -
Page 12: Ef26 Condensate Neutraliser Tank And Drain
EF26 condensate neutraliser tank and drain The Rinnai INFINITY EF26 water heater generates condensate continuously at a rate of up to 5 litres per hour as a by-product of a highly efficient gas burner. This condensate has been neutralised by having an inbuilt condensate neutraliser kit. - Page 13 300 mm in length. It shall discharge into a tundish through an air gap of not less than 75 mm and not more than 150 mm measured from the outlet of the drain pipe to the rim of the tundish. Rinnai INFINITY EF26 and A-Series installation guide 01-20 | 13...
-
Page 14: Commissioning
Confirm the water flow and hot water delivery temperature using a thermometer. If water controllers are fitted, it is necessary to test their operation through the complete range of functions, refer separate instructions provided with the water controllers. 14 | Rinnai INFINITY EF26 and A-Series installation guide 01-20... -
Page 15: Sideways Flue Diverter Dip Switch Changes
The dip switch change for a sideways flue diverter is required to increase the combustion fan speed, which helps overcome the friction losses from having a sideways flue diverter installed on the water heater. Rinnai INFINITY EF26 and A-Series installation guide 01-20 | 15... -
Page 16: Pcb Interface And Functions
SW1 and SW3 are only set to ON when a sideways flue diverter is fitted, otherwise they MUST remain set in the OFF position. SW2 and SW4 are not used and MUST remain set in the OFF position. 16 | Rinnai INFINITY EF26 and A-Series installation guide 01-20... - Page 17 480 sec Outside temp. ≤ 15 °C → 120 sec. Post fan revolution X (Hz), X depends on the model, X (Hz) X(Hz) + 50 X(Hz) + 50 e.g. 180 Hz Rinnai INFINITY EF26 and A-Series installation guide 01-20 | 17...
-
Page 18: A-Series Controller Communication Cables
Cable clamp 5. Return the cable connector to the original position, taking care not to damage the cable wires in the process, and replace the retaining screw. 18 | Rinnai INFINITY EF26 and A-Series installation guide 01-20... -
Page 19: Ef26 Controller Communication Cables
Accessory port socket 6. Plug the mini-plug into the accessory port connection socket, the plug and socket are keyed so that they can only be plugged into the one direction). Rinnai INFINITY EF26 and A-Series installation guide 01-20 | 19... - Page 20 Rinnai.co.nz Installation guide Tel: 0800 746 624 http://www.youtube.com/rinnainz U340-1336X02(00) http://facebook.com.rinnainz REU-A/E(NZ)
Need help?
Do you have a question about the INFINITY A-Series and is the answer not in the manual?
Questions and answers
Hi Have an A16 about 6 months old. It is only producing luke warm water, There are no controllers on it. When a tap is opened it stars with a good flow then cuts back to half. The filter is not blocked and i have tried a new regulator.
The Rinnai INFINITY A-Series A16 may be only producing lukewarm water and experiencing reduced flow when a tap is opened due to the controller safe program being active. If a controller was connected for more than six hours and then disconnected, the unit defaults to controller-only mode. In this mode, the built-in safe program limits the water temperature to a maximum of 42 °C. This could result in lukewarm water. To resolve this, the safe program (Menu 6) needs to be turned off by changing the setting from A (ON) to b (OFF).
