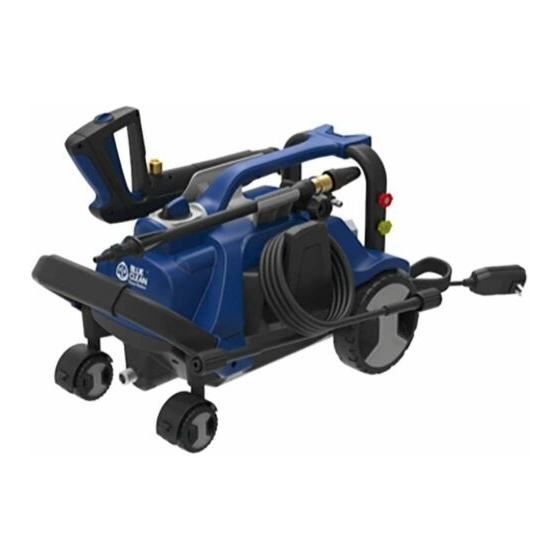

1900 PSI
Electric Pressure Washer
94630-KN
94630_Take-Along_1900PSI_IM_EN.indd 1
ASSEMBLY, CARE AND
USE INSTRUCTIONS
Model Take-Along
READ CAREFULLY
IMPORTANT:
RETAIN THESE INSTRUCTIONS
AND
ATTACH RECEIPT TO MANUAL FOR FUTURE
REFERENCE.
Questions, problems, missing parts?
Before returning to your retailer, call (1-866-235-5112)
or email (info@arnorthamerica.com) our customer ser-
vice department. They are available from 8:00 a.m. -
5:00 p.m., CST, Monday - Friday. www.arblueclean.com
17/11/22 下午3:42
Advertisement
Table of Contents
Related Manuals for Blue Clean Take-Along
Summary of Contents for Blue Clean Take-Along
- Page 1 1900 PSI Electric Pressure Washer ASSEMBLY, CARE AND USE INSTRUCTIONS Model Take-Along READ CAREFULLY IMPORTANT: RETAIN THESE INSTRUCTIONS ATTACH RECEIPT TO MANUAL FOR FUTURE REFERENCE. Questions, problems, missing parts? Before returning to your retailer, call (1-866-235-5112) or email (info@arnorthamerica.com) our customer ser- vice department.
-
Page 2: Table Of Contents
Troubleshooting ....................... 14 Limited Warranty ......................15 Replacement Parts List ....................16 PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS SPECIFICATIONS Max PSI Max GPM Frequerry Weight (lbs.) Model (lbs/sq. in.) (Gal/per min) Cold Water Volts Amps Take-Along 1900 25.6 ✔ 94630_Take-Along_1900PSI_IM_EN.indd 2 17/11/22 下午3:42... -
Page 3: Package Contents
PACKAGE CONTENTS PACKAGE CONTENTS PACKAGE CONTENTS PW909TAKE-ALONG Soap – Black 0° – Red 15° – Yellow 25° – Green PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Quick Connect Nozzles Power Washer Unit Spray Gun Rear Wheels Spray Gun Trigger Lock Front Wheels O-Ring Replacement Kit High Pressure Hose Foam Cannon... -
Page 4: Safety Information
SAFETY INFORMATION SAFETY INFORMATION SAFETY INFORMATION Please read and understand this entire manual before 9. DO NOT use your power washer when you are under attempting to assemble and operate the product. the influence of alcohol or drugs. Use this power tool carefully and only when you are alert. - Page 5 35. NEVER use lances or other parts that are not to protect pumps. compatible for this specific AR Blue Clean unit. 36. NEVER use an extension power cord since it defeats 27. NEVER use hot water with your power washer. It will the effectiveness of the GFCI and increases the overheat and damage the high pressure pump.
-
Page 6: Assembly Instructions
Power Unit Assembly Line up handle (E) so you can see screw holes in body of This step does not require any screws. the Take-Along unit (A). Then place Handle Connects (F) Note: over the handle and secure with screws (AA). - Page 7 ASSEMBLY INSTRUCTIONS Install real wheels (B) to power washer unit (A). HIGH PRESSURE HOSE ASSEMBLY Screw high pressure hose (D) clockwise onto bottom This step does not require any screws. front of power washer unit (A). Pull back collar and Note: insert o-ring post into water outlet far enough so collar can thread onto outlet threads until hand tight.
- Page 8 PREPARATION ASSEMBLY INSTRUCTIONS Unlocked Locked Locking Spray Gun (Before Lance Installation) Lance Installation To lock trigger of spray gun (J), point gun away While spray gun (J) is in the locked position, firmly insert from you and turn dial to lock (“3” and “9” position). lance (H) into the end of spray gun and turn clockwise Squeeze or pull trigger to make sure it is locked.
- Page 9 OPERATING INSTRUCTIONS ASSEMBLY INSTRUCTIONS 750ml 600ml 450ml 300ml 150ml Foam Cannon Installation The foam cannon (M) comes with a straw which is Insert foam cannon (M) into extension lance (H), by fitted into high pressure top. If you do not see the pushing in until it clicks.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS • Make sure the “ON/OFF” switch is in the “OFF” Always test a small area to avoid chance of damaging position. The power switch has international symbols the surface. for ‘on’ and ‘off’: On (|) Off (O). •... - Page 11 OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS • The power washer will pull a ratio of water to detergent of 10:1 or 10 parts water to 1 part detergent. The detergent concentration can be adjusted by turning the detergent knob on the top of the cannon.
-
Page 12: Care And Maintenance
OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS Detergents • Use detergents designed for power washers. pre-soak area. Wetting the surface first dilutes the Hardware stores or home centers also have power detergent and reduces its cleaning ability. Do not washer detergents for different cleaning projects. The allow detergent to dry on surface. -
Page 13: Pump Saver
5) Turn power off when pump saver exits the machine’s while being stored in ALL climates. It also assists with water outlet. protection from internal corrosion. The AR Blue Clean part #is: PW64511(16oz. bottle). Order online at Note: Instructions on Pump Saver Bottle are generic and www.arblueclean.com... -
Page 14: Troubleshooting
CARE AND MAINTENANCE TROUBLESHOOTING If you have any questions regarding the product, please call customer service at 1-866-235-5112 PROBLEM CORRECTIVE ACTION Unit will not turn on. 1. The GFCI module on the end of the power cord must be plugged directly into an outlet. 2. -
Page 15: Limited Warranty
CARE AND MAINTENANCE TROUBLESHOOTING LIMITED WARRANTY This product has a 2 (two) year warranty. Please read the following carefully to understand what each warranty entails: This product is under warranty to the original retail consumer against defects in material and workmanship for a period 1 (one) year and is a complete “bumper to bumper”... -
Page 16: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-866-235-5112, 8:00 a.m. - 5:00 p.m., CST, Monday - Friday or order online at www.arblueclean.com 0°– Red 15˚ – Yellow 25° – Green Soap – Black PW909TAKE-ALONG PART DESCRIPTION PART # PART...
