IoT_ZTB-DK006 Development Kit User Guide
Rev.1.0 — 20 April 2020
Document information
Info
Content
Keywords
IoT_ZTB DK, User Guide
Abstract
This document is a user guide for the IoT_ZTB Development Kit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IoT ZTB-DK006 and is the answer not in the manual?

Questions and answers

Summary of Contents for NXP Semiconductors IoT ZTB-DK006

  • Page 1 UM11393 IoT_ZTB-DK006 Development Kit User Guide Rev.1.0 — 20 April 2020 Document information Info Content Keywords IoT_ZTB DK, User Guide Abstract This document is a user guide for the IoT_ZTB Development Kit...
  • Page 2 20200420 Initial release Contact information For more information, please visit: http://www.nxp.com UM1393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 —20 Apr 2020 User Guide 2 of 21...
  • Page 3: Introduction

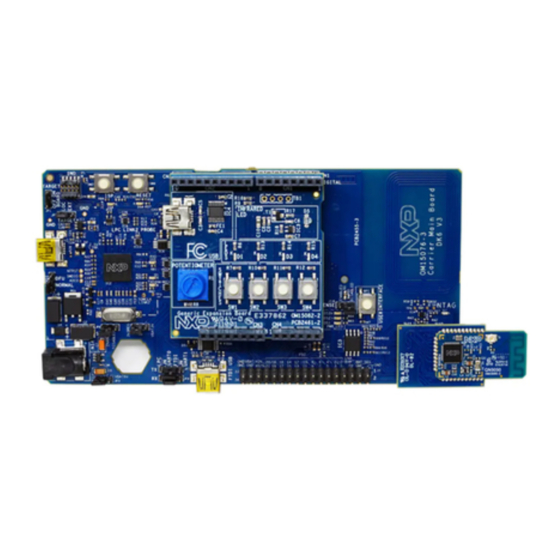

    Generic expansion board • Lighting expansion board Figure 1 Board overview UM11393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 — 20 Apr 2020 User Guide 3 of 21...
  • Page 4: Carrier Main Board

    Support for external debug probes. • Power, Reset, ISP and UART Tx/Rx LEDs. UM11393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 — 20 Apr 2020 User Guide 4 of 21...
  • Page 5: Board Layout And Settings

    K32W061 Reset LED – LED is on anytime the Target RESET is pulled low. UM11393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 — 20 Apr 2020 User Guide...
  • Page 6 Expansion connectors, including Arduino Uno rev3 compatible connectivity. CN3, CN4 JM1, JM2 K32W061 module headers UM11393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 — 20 Apr 2020 User Guide 6 of 21...
  • Page 7: Led Indicators

    K32W061 Reset LED – LED is on anytime the Target RESET is pulled UM11393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 — 20 Apr 2020 User Guide...
  • Page 8: Arduino Connectors

    Target is to be debugged from the on board Link2 probe, the USB mini B-type connector UM11393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 — 20 Apr 2020 User Guide...
  • Page 9: Debug Configurations

    To use an external debug probe: • connect the probe to the SWD (P1) connector UM11393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 — 20 Apr 2020 User Guide 9 of 21...
  • Page 10: On-Board Link2 Flash Programming

    Fit jumper JP2 across pins 2 - 3 (External Target). UM11393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 — 20 Apr 2020 User Guide 10 of 21...
  • Page 11: K32W061 Modules

    Potentiometer connected to K32W061 ADC0, with a 0-1.8V DC voltage swing UM11393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 — 20 Apr 2020 User Guide 11 of 21...
  • Page 12: Light Expansion Board

    2 Digital Microphones connected to DMIC interface in the module UM11393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 — 20 Apr 2020 User Guide 12 of 21...
  • Page 13: K32W061 Usb Dongle

    NXP QTool for BLE. Figure 9 K32W061 USB Dongle UM11393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 — 20 Apr 2020 User Guide 13 of 21...
  • Page 14: Current Measurement On The Dk6

    Figure 10 is the circuit for the power supply to the module. The signal VBAT is used to power the module UM11393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 — 20 Apr 2020 User Guide 14 of 21...
  • Page 15 To measure the current using multimeter, remove R51 and place the multimeter across J14 pins 1 and 2. UM11393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 — 20 Apr 2020 User Guide 15 of 21...
  • Page 16 JS6. Figure 13 Voltage Sense Circuit UM11393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 — 20 Apr 2020 User Guide 16 of 21...
  • Page 17: Io Considerations

    Negligible current drawn if not pressed. See buttons Table for Sleep current measurement UM11393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 — 20 Apr 2020 User Guide 17 of 21...
  • Page 18: Running The Dk6 Board At Different Voltages

    3V3OUT signal otherwise this will continue to supply 3.3V to the board. The circuit is shown below in Figure 14 Figure 14 FTDI Interface UM11393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 — 20 Apr 2020 User Guide 18 of 21...
  • Page 19 It is important to leave C49 connected to Pin10 of the FT230A. To achieve this modify the boards as shown in Figure 15 Figure 15 3V3OUT modification UM11393 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.0 — 20 Apr 2020 User Guide 19 of 21...
