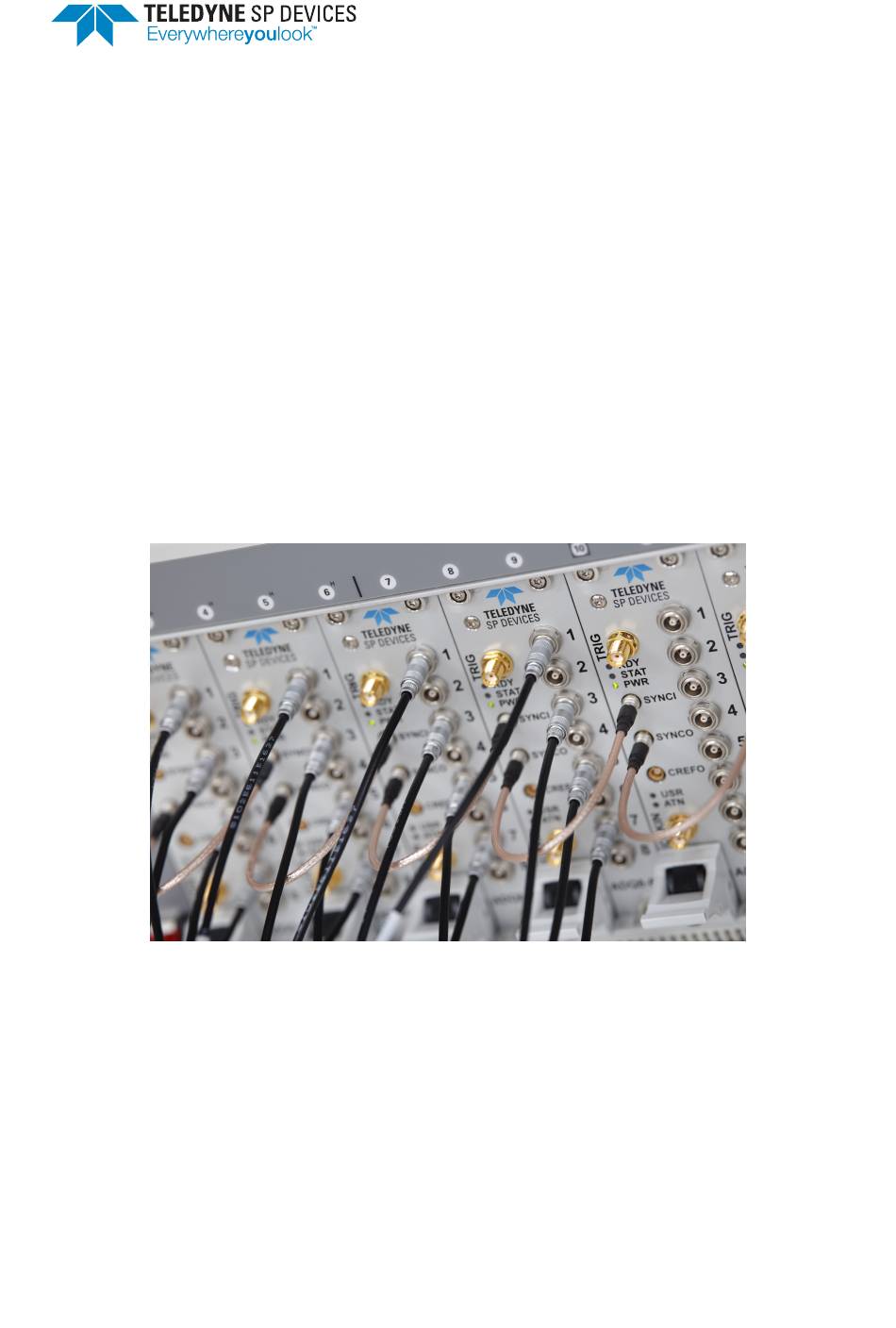

- Page 1 Quick Start Guide for Windows Author(s): Teledyne SP Devices Document ID: 14-1276-11 Classification: Public Revision: Print date: 2020-09-21...
-
Page 2: Installing The Software
14-1276-11 2020-09-21 1 Introduction Congratulations on having purchased a Teledyne SP Devices digitizer product. To get the most out of the digitizer we recommend that you read the documentation set carefully. Disclaimers and Safety Ground the antistatic package before removing the device from the package. Electrostatic ... - Page 3 Read the license agreement, and then press I Agree to continue. Choose the components to be installed, and then press Next. We recommend installing all the preselected components. ADQ — Quick Start Guide for Windows spdevices.com Page 2 of 10...
- Page 4 Digitizer Studio is an easy-to-use stand-alone program which allows for configuration and operation of ADQ digitizers from Teledyne SP Devices. The application is able to collect and plot data, and to calculate key performance metrics such as SNR and SFDR. Collected data can be stored on disk for later use, e.g.
- Page 5 With a Windows operating system, the driver for the digitizer is installed automatically when running TSPD-SDK-installer_rXYZAB.exe. Manual installation is only needed if the automatic installation fails. The driver installation is similar for all supported Windows operating systems. Below is an example ADQ — Quick Start Guide for Windows spdevices.com Page 4 of 10...
- Page 6 Open the Device Manager by typing Device Manager in the search field of the start menu. Locate and right click on the Unknown device. Select Update Driver Software. ADQ — Quick Start Guide for Windows spdevices.com Page 5 of 10...
- Page 7 Press Browse and select Drivers\ADQUSB\X64_WIN7 in the installation directory, then press Next. Note If you are running a 32-bit version of Windows, select Drivers\ADQUSB\x86_win7 instead. Your ADQ digitizer will now appear in the device manager. ADQ — Quick Start Guide for Windows spdevices.com Page 6 of 10...
- Page 8 (Only ADQ412) Short flashes of red light indicate the device is calibrating after startup or that the sample frequency is changing. Solid green light indicates power and status OK. ADQ — Quick Start Guide for Windows spdevices.com Page 7 of 10...
- Page 9 Provides feedback on the Hot Swap state of the digitizer. Solid—safe to disconnect the digitizer. Blinking—wait before disconnecting the digitizer. Off—the digitizer is operational and unsafe for extraction. Pull hot swap pin gently to activate indicator. ADQ — Quick Start Guide for Windows spdevices.com Page 8 of 10...
-
Page 10: Using The Digitizer
[3] Teledyne Signal Processing Devices Sweden AB, 20-2381 Digitizer Studio Datasheet. Technical Specification. [4] Teledyne Signal Processing Devices Sweden AB, 20-2382 Digitizer Studio User Guide. Technical Manual. GUIs for FWATD and FWPD have separate installers. https://www.spdevices.com/documentation ADQ — Quick Start Guide for Windows spdevices.com Page 9 of 10... -
Page 11: Common Resources
Resource Description UG 13-1130 Describes how to manage firmware files. UG 08-0214 The ADQAPI user guide RG 14-1351 The ADQAPI reference guide, documents the functions in the ADQAPI. ADQ — Quick Start Guide for Windows spdevices.com Page 10 of 10... - Page 12 Phone: +46 (0)13 645 0600 Fax: +46 (0)13 991 3044 Email: spd_info@teledyne.com Copyright © 2020 Teledyne Signal Processing Devices Sweden AB All rights reserved, including those to reproduce this publication or parts thereof in any form without permission in writing from Teledyne SP Devices.
