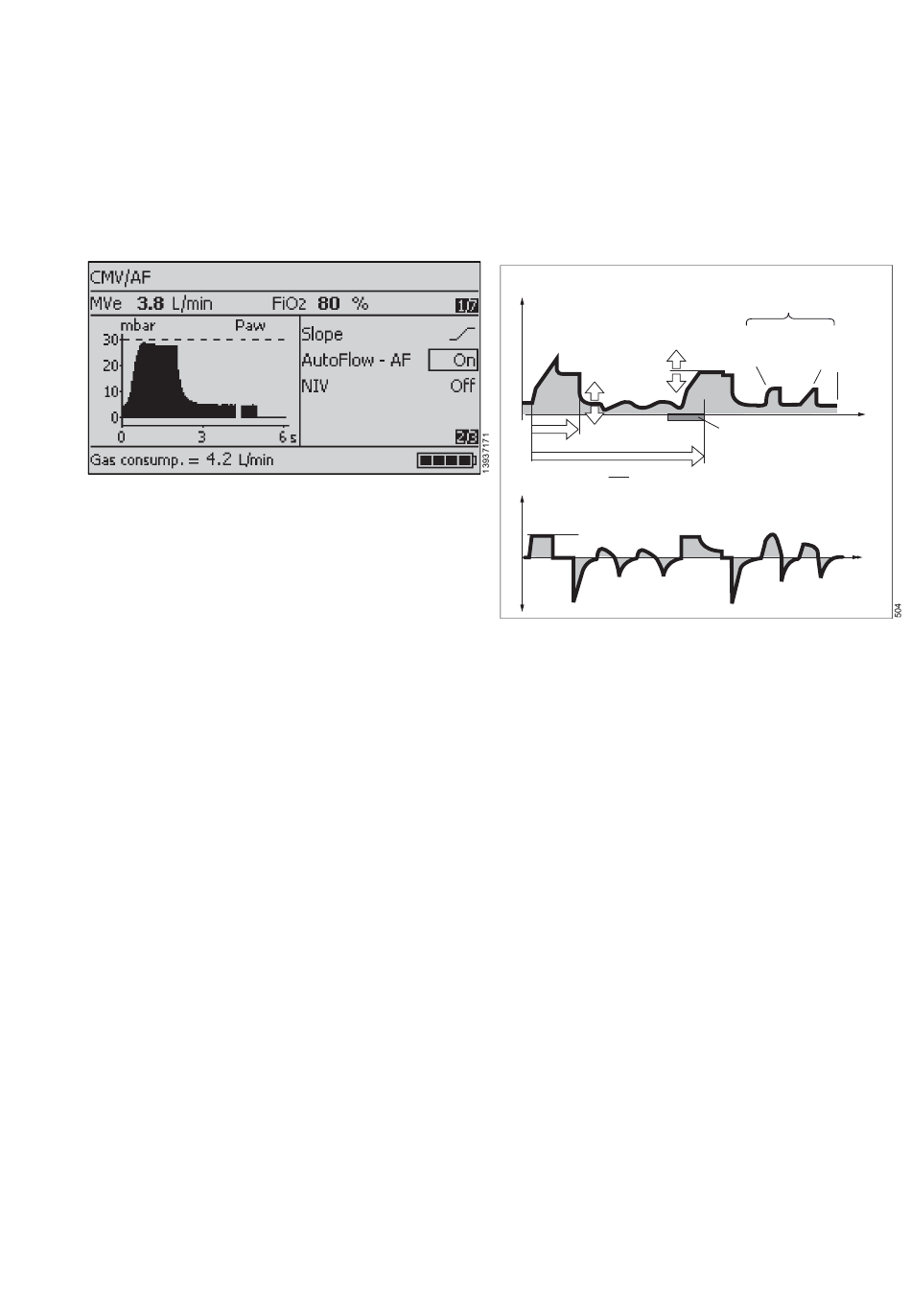

Setting AutoFlow (optional)
The following can also be set on the display for VC-CMV
and VC-AC:
– The AutoFlow function AutoFlow-AF.
When AutoFlow is switched on, the setting Tplat% is no
longer valid, and Slope must be set.
Pocket Guide Oxylog 3000 plus

VC-SIMV, VC-SIMV/PS

Volume Controlled - Synchronized Intermittent
Mandatory Ventilation
Paw
P
PEEP
T
i
1
Flow
RR
Insp. Flow
For patients with inadequate spontaneous breathing, or
for patients who are to be weaned gradually.
Fixed mandatory minute volume MV is set with tidal vo-
lume VT and ventilation respiratory rate RR. The patient
can breathe spontaneously between the mandatory
ventilation strokes and thus contribute to the total minu-
te volume. Spontaneous breathing can be assisted with
PS.
Set the ventilation pattern with the controls below the
display:
– Tidal volume VT.
– Respiratory rate RR.
(minimum possible respiratory rate: 2 per min).
– Maximum airway pressure Pmax.
– O concentration FiO
2
The following can be set on the display:
– Positive end expiratory pressure PEEP.
Δ
– Pressure support Psupp above PEEP.
– Sensitivity Trigger.
– Ventilation time ratio I:E or inspiration time Ti.
– Plateau time Tplat %, in % of the inspiration time.
– AutoFlow (optional).
Operation
Pressure
support PS
max rapid slow
rise time rise time
Trigger window
.
2
t
t
23
