Summary of Contents for Polypipe SmartStat

  • Page 1 SmartStat...

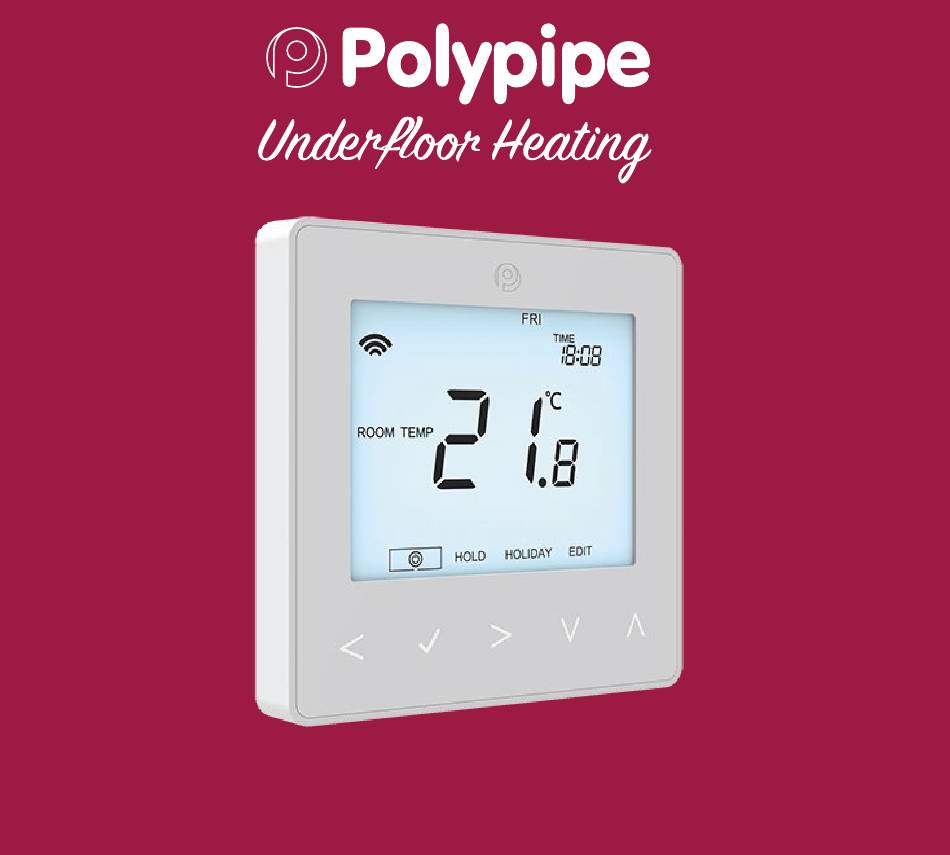

  • Page 2: Product Image

    SmartStat Model: Smart Series...

  • Page 3: Table Of Contents

    Optional Features Installation Procedure Re-calibrating the Thermostat Mode Select Error Codes Pairing the SmartHub Floor Temp Sensor Probe Type Pairing the SmartStat 29-32 Diagrams What is a Mesh Network? Factory Reset Approach Sensor Mode 1 - Thermostat Mode 2 - Time Clock...

  • Page 4: What Is A Programmable Room Thermostat

    What is a Programmable Room Thermostat? A programmable room thermostat is both a programmer and a room thermostat. A programmer allows you to set “On” and “O ” periods to suit your own lifestyle. A room thermostat works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it o once this set temperature has been reached.
  • Page 5 Programmable room thermostats need a free ow of air to sense the temperature, so they must not be covered by curtains or blocked by furniture. Nearby electric res, televisions, wall or table lamps may also prevent the thermostat from working properly. SmartStat...

  • Page 6: Installation Procedure

    Do not push hard on the LCD screen as this may cause irreparable damage. The SmartStat is designed to be ush mounted and requires a back box of 35mm (minimum depth) to be sunk into the wall prior to installation.
  • Page 7 SmartStat...

  • Page 8: Mode Select

    Mode 2 = Time Clock • Press the Tick key to con rm selection ................The SmartStat will revert to the main display screen for the selected mode. For time clock mode instructions, rst pair the time clock with the SmartHub as explained on page 8, then turn to page 33.

  • Page 9: Pairing The Smarthub

    • When successfully connected, enter a title for the location (e.g. Home). Pairing the SmartStat The next step is to join the SmartStat to the Hub, we recommend joining the thermostat located nearest to the SmartHub rst. To add a SmartStat, follow these steps;...

  • Page 10: What Is A Mesh Network

    SmartHub has been lost. Approach Sensor The SmartStat uses proximity to detect when you are about to use the touch keys. As you approach the thermostat, the touch keys and backlight will light up.

  • Page 11: Mode 1 - Thermostat

    Mode 1 - Thermostat SmartStat...
  • Page 12 Smart Series...

  • Page 13: Lcd Display

    13. Temperature – Displays the current sensor temperature. 14. Temperature Format - Degrees Celsius or Fahrenheit. 15. Hold Left - Displayed when a temperature hold is active, the remaining time will be shown. 16. Time/Day/Month/Year - Displays when setting the Clock/Calendar or a Holiday Period. SmartStat...

  • Page 14: Temperature Display

    “Room Temp” or “Floor Temp” before the actual temperature value. Room Temperature Floor Temperature When the SmartStat is set to use both the air & the oor sensor, the room temperature will be displayed by default. To view the current oor temperature, press and hold the Left and Right arrow keys for 5 seconds, the oor temperature will then be displayed ....

  • Page 15: Setting The Clock

    • Repeat the steps to set the Month, Date & Time ............• Press Tick to con rm the new clock settings ............... • Use the down arrow to scroll to .................. • Press Tick to turn the display on ..................Time SmartStat...

  • Page 16: Setting The Comfort Levels

    Comfort Levels Explained The SmartStat o ers three program mode options; Weekday/Weekend programming, 7 Day programming and 24 Hour programming. There is also the option to use the thermostat as a Non-Programmable thermostat. When thermostats are connected to the mesh network, the program mode for the system is con gured by using the Polypipe SmartApp.
  • Page 17 Press Tick to alter LEAVE settings ..................• Repeat these steps to set all comfort levels. • For any unused periods set time to --:-- • Use the Left / Right keys to scroll to DONE and press Tick ..... SmartStat...

  • Page 18: Setting The Temperature

    Temperature Control The Up / Down keys allow you to adjust the set temperature ........When you press either key, you will see the word SET and the desired temperature value. Use the Up / Down keys to adjust the SET value ..... Press Tick to con rm settings and return to the main display ...........

  • Page 19: Temperature Hold

    The time will countdown the set duration and then revert to the normal program. Hold Left Indicator Hold Time Remaining To cancel a temperature Hold, with hold selected on the main menu, press the tick key and then press tick again while Cancel is highlighted. SmartStat...

  • Page 20: Locking/Unlocking The Neostat

    Note: The keypad lock indicator is only displayed when the lock is active. Unlocking the Display To unlock the SmartStat press Tick once. The display will show 00:00 and you will need to enter the four digit pin number you set previously.

  • Page 21: Frost Protection

    The frost icon will toggle ON/OFF each time Tick is pressed ..........In this mode, the SmartStat will display the frost icon and will only turn the heating ON should the room temperature drop below the set frost temperature (see page 23).

  • Page 22: Power On/Off

    When the ame icon is absent, there is no requirement for heating to achieve the set temperature but the thermostat remains active. To turn the SmartStat o completely, scroll to the Power Icon and hold the Tick key for approximately 3 seconds until the display goes blank ....

  • Page 23: Holiday Programming

    Note: The holiday period will start immediately, and will return to the normal program at the time & date you have con gured. • Use the Left / Right keys to scroll to HOLIDAY and press Tick ......... • CANCEL will be highlighted, Press Tick to cancel ..............SmartStat...

  • Page 24: Optional Features

    Feature 06 – Sensor Selection: On SmartStat, you can select which sensor should be used. You can select between air temperature only, oor temperature, or both. When you enable both sensors, the oor sensor is used as a oor limiting sensor and is designed to prevent the oor from overheating.
  • Page 25 7 Day Program Mode - Each day has 4 comfort levels that can be programmed independently. 24 Hour Mode - All days are programmed the same and repeat continuously. Feature 13 - Temperature Format: This function allows you to select between °C and °F. SmartStat...
  • Page 26 Adjusting the Optional Settings • Use the Left / Right keys to scroll to ................• Press and hold the Tick button for 3 seconds .............. • SETUP will be highlighted, now press the tick key once ......... Feature Number Setting Value •...
  • Page 27 Not used on this model Not used on this model Program Mode 00 = Non - Programmable 01 = Weekday/Weekend (Default) 02 = 7 Day Programming 03 = 24 Hour Mode Temperature Format 00 = °C, 01 = °F (00 = Default) SmartStat...

  • Page 28: Re-Calibrating The Thermostat

    Re-calibrating the Thermostat If you need to re-calibrate the thermostat, follow these steps. • Use the Left / Right keys to scroll to the ..........• Press and hold Tick to turn the display OFF ............• Press and hold the Tick and Down keys together for 10 seconds ....•...

  • Page 29: Floor Temp Sensor Probe Type

    Floor Temperature Sensor Probe Type The SmartStat is configured as default for compatibility with 10K sensor probes. The thermostat is also compatible with two other common probe values which are 12K or 15K. To change the neoStat to use a di erent probe type, follow these steps;...

  • Page 30: Diagrams

    Wiring Diagram - SmartStat to Boiler S/L UFHSMARTW 230VAC TO CONNECT BOILER CONSULT BOILER MAKERS DIAGRAM A2 A1 LIVE 230V SUPPLY IN NEUTRAL SWITCHED LIVE TO BOILER This product must only be installed by a quali ed electrician and comply with local installation regulations.
  • Page 31 Wiring Diagram - SmartStat to Boiler Volt free UFHSMARTW 230VAC TO CONNECT BOILER CONSULT A2 A1 BOILER MAKERS DIAGRAM VOLT FREE TO BOILER LIVE 230V SUPPLY IN LS & LR ARE NORMALLY THE NEUTRAL ROOM THERMOSTAT CONNECTIONS This product must only be installed by a quali ed electrician and comply with local installation regulations.
  • Page 32 Wiring Diagram - SmartStat to Valve UFHSMARTW 230VAC TO CONNECT BOILER CONSULT RT2 RT1 - A2 A1 BOILER MAKERS DIAGRAM LIVE 230V SUPPLY IN NEUTRAL TO BOILER NEUTRAL LS & LR ARE NORMALLY THE HEATING VALVE ROOM THERMOSTAT CONNECTIONS This product must only be installed by a quali ed electrician and comply with local installation regulations.
  • Page 33 Wiring Diagram SmartStat to UFH8ZW and Optional Remote Probe Connections UFHSMARTW 230VAC A2 A1 FLOOR PROBE (Optional) REMOTE AIR PROBE (Optional) This product must only be installed by a quali ed electrician and comply with local installation regulations. SmartStat...

  • Page 34: Factory Reset

    Mode 2 = Time Clock • Press the Tick key to con rm selection ..............The SmartStat will revert to the main display screen for the selected mode. Note: Factory reset will cancel all parameters that were entered during the set-up and pairing operations.

  • Page 35: Mode 2 - Time Clock

    Mode 2 - Time Clock SmartStat...

  • Page 36: Lcd Display

    LCD Display Mesh Symbol - Displayed when connected to the SmartHub. Day Indicator - Displays the day of the week. Holiday – Displayed when the time clock is in holiday mode. Set - Displayed when changes are being made to the current set point. Program Indicator - Displayed during programming to show which level is being altered.

  • Page 37: Setting The Switching Times

    • Repeat the steps above to set all periods. For any unused periods enter -- : - • When complete, use the Left / Right keys to scroll to DONE and press Tick to con rm all changes ..................SmartStat...

  • Page 38: Timer Override

    Timer Override To override the timed output on, follow these steps. • Use the Up/Down keys to set the override duration e.g. 02:00 hours ..• Press Tick to con rm settings and return to main display ........Hold Left and the remaining time will now be displayed. HOLD LEFT Indicator Hold Time Remaining Smart Series...

  • Page 39: Optional Features

    24 Hour Mode - All days are programmed with the same on/o switching times. Optional Settings - Feature Table FEATURE DESCRIPTION SETTING Used to pair to the SmartHub Pairing Program Mode 01 = Weekday/Weekend Programming (Default) 02 = 7 Day Programming 03 = 24 Hour Mode SmartStat...

  • Page 40: Time Clock Mode Wiring Diagram

    Wiring Diagram - Time Clock Mode SmartStat 230VAC RT2 RT1 A2 A1 VOLT FREE OUTPUT LIVE 230V SUPPLY IN NEUTRAL FOR 230V OUTPUT ON A2 LINK LIVE TO A1 This product must only be installed by a quali ed electrician and comply with local installation regulations.
  • Page 41 Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................SmartStat...
  • Page 42 Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................Smart Series Model: Manual REF...
  • Page 43 Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................SmartStat...
  • Page 44 Want More Information? Call our telephone support team on: 01709 772200 Or view technical speci cations directly on our website: www.polypipeufh.com Polypipe Building Products Broomhouse Lane Edlington Doncaster DN12 1ES Rev. 1.0...
