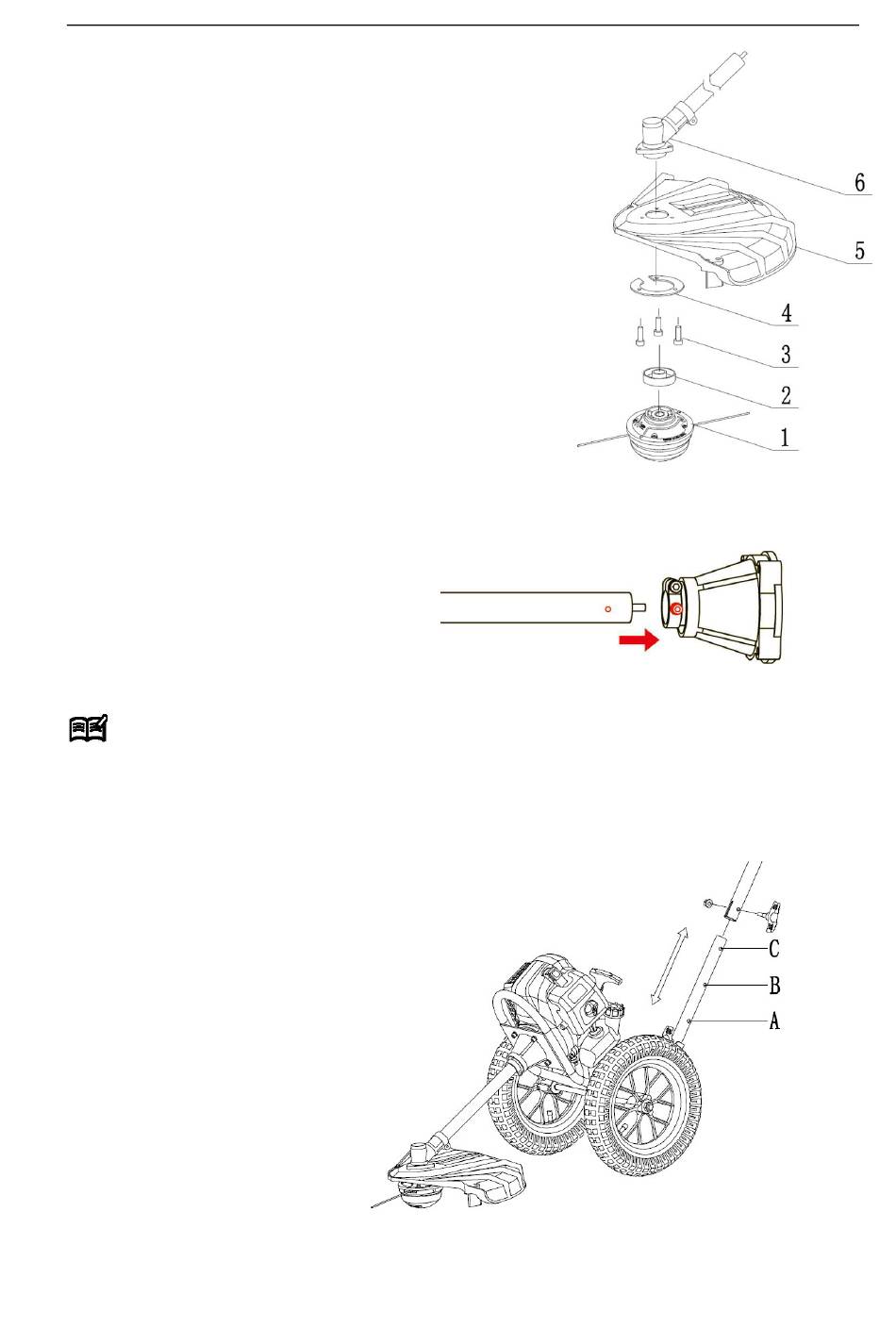

■ Mounting the protective shield
Attach the protective shield (5) and gear unit cover (4)
with the gear unit (6) using the screws (3) supplied
and tighten these screws.
■ Assembly thread head
Place the holder (2) on the shaft under the protective
shield (5)
Use the tool provided to lock the gear assembly and
tighten the thread head by hand (Note: left-hand
thread)
■ Mounting driveshaft
Push the shaft into the clutch bell. Make sure that the hole on the shaft is on the screw
side of the housing and tighten the screw.
■ Height adjustment
NOTE
This device has the possibility of height adjustment to be adapted to different users and
thus ensure better working conditions.
Use the screws of holes A, B, C on the lower tube and adjust the device to your height
by tightening the screws by hand.
