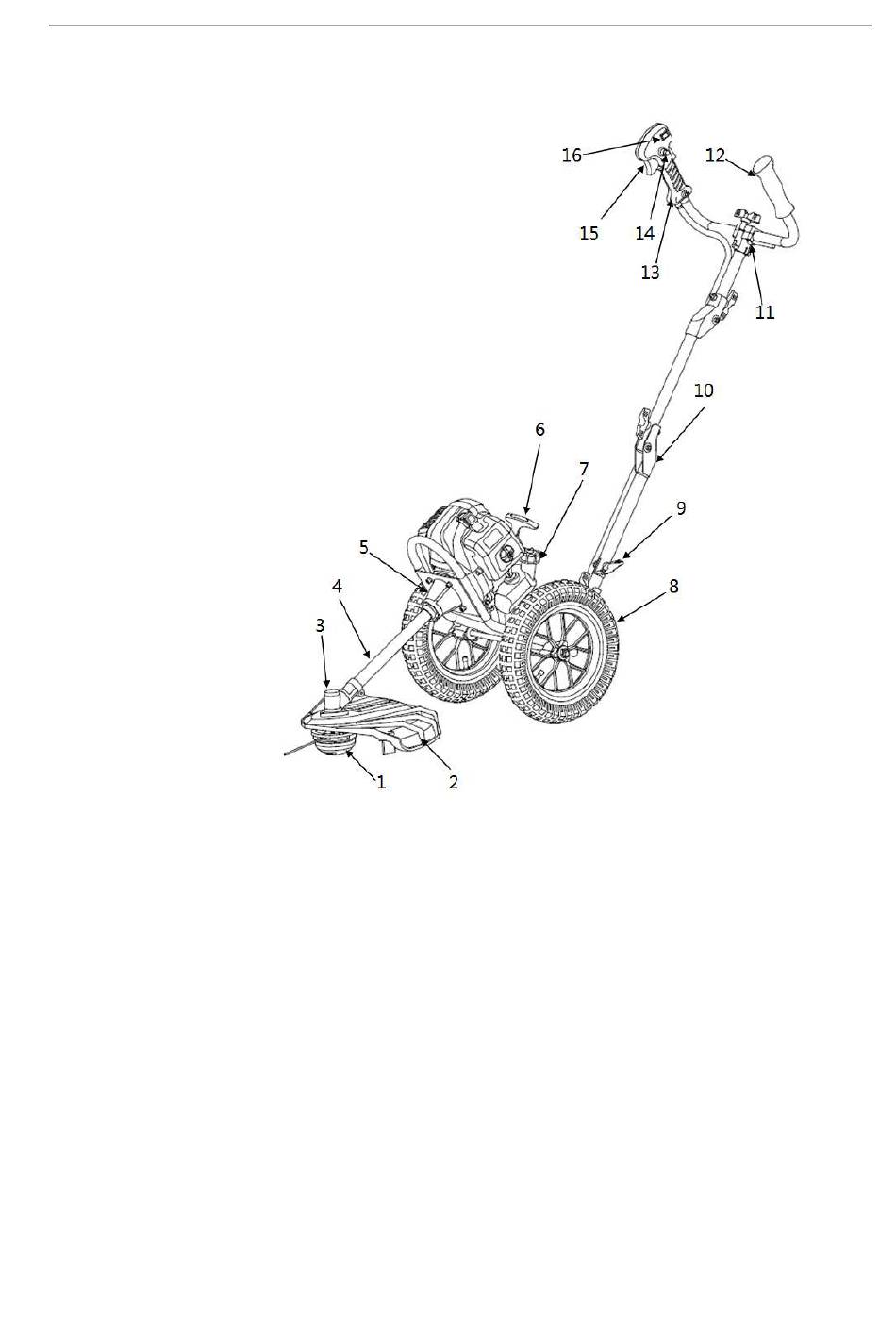

6. Component overview

1) Nylon thread head
2) Protective shield
3) Gearbox
4) Drive axle
5) Clutch bell
6) Starter hoist
7) Tank
8) Wheel
9) Connector
10) Rotary connectors
11) Handle connector
12) Left-hand handle
13) Right-hand handle
14) Throttle lever lock*
15) Throttle lever
16) Start/stop switch
*14 Throttle lock prevents accidental acceleration of the engine. The throttle stick can only be pressed when the
throttle stick lock is pressed
.
