INSTALLATION

NOTICE: DO NOT DISCARD THE INCLUDED MAC ADDRESS LABLES AFFIXED TO THE DEVICE. THESE WILL BE REQUIRED LATER FOR COMMISSIONING.
(SEE STEP (5) BELOW)
1.
Turn power off at the service panel before beginning installation.
2.
Mount the Room Controller to the outside of a 1/2" knockout in a 4" square or larger steel electrical junction box using the Room Controller's
extended 1/2" chase nipple. Secure to the junction box using the enclosed EMT lock nut. (See Figure 1 below for reference)
3.
Following the applicable wiring diagram provided in Figure 2, connect wires to line voltage feed, neutral, and corresponding loads.
4.
If applicable for dimming loads, connect low voltage violet and gray dimming wires to 0-10VDC dimming ballast or LED driver. NOTE: 0-10VDC
Wires have 600V rated insulation
5.
Remove the MAC address labels affixed to the outside of the unit. Place the provided MAC address label(s) in a log book and record the location
of the Room Controller with the circuit(s) it controls. The MAC address will be needed later during the system setup process
6.
If NX control devices (e.g. occupancy sensors, daylight sensors, or wall stations) are going to be utilized connect them using a CAT5 device cable
to one of the two ports labeled SmartPORT (SP). If using digital NXSMP sensors these devices can be connected, or daisy chained to either a FX
Bus Port or SmartPORT (SP).
7.
If connecting multiple Room Controllers or NX enabled luminaires together all connections must be made utilizing one of the two FX ports
provided on the device. Up to 32 NX Room Controllers or NX enabled luminaires can be connected per zone segment utilizing the FX ports.
8.
Once wiring is complete reapply power at the service panel.
Copyright © 2020 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identifiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
2

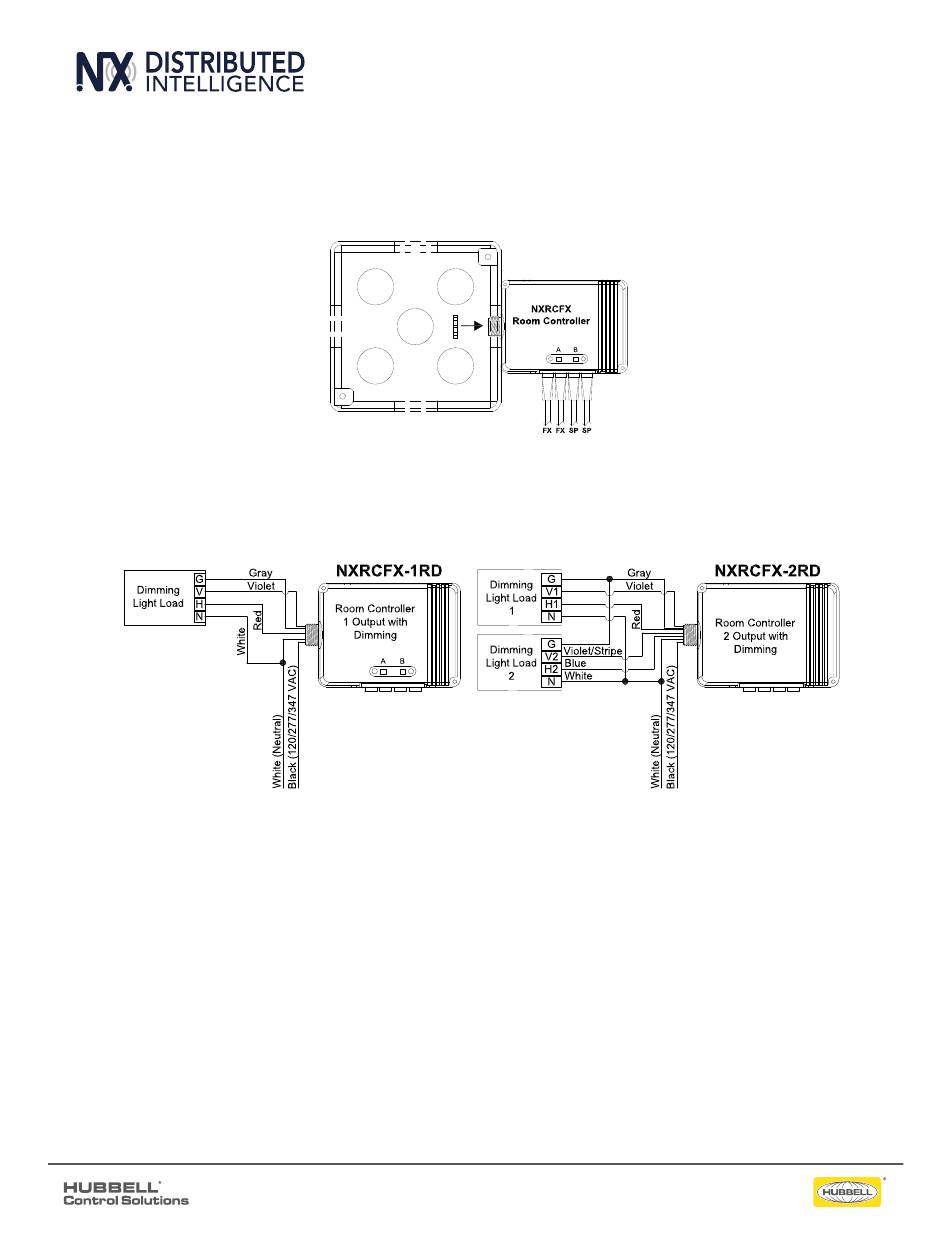

FIGURE 1: NXRCFX ROOM CONTROLLER MOUNTED TO 4x4 Junction Box
