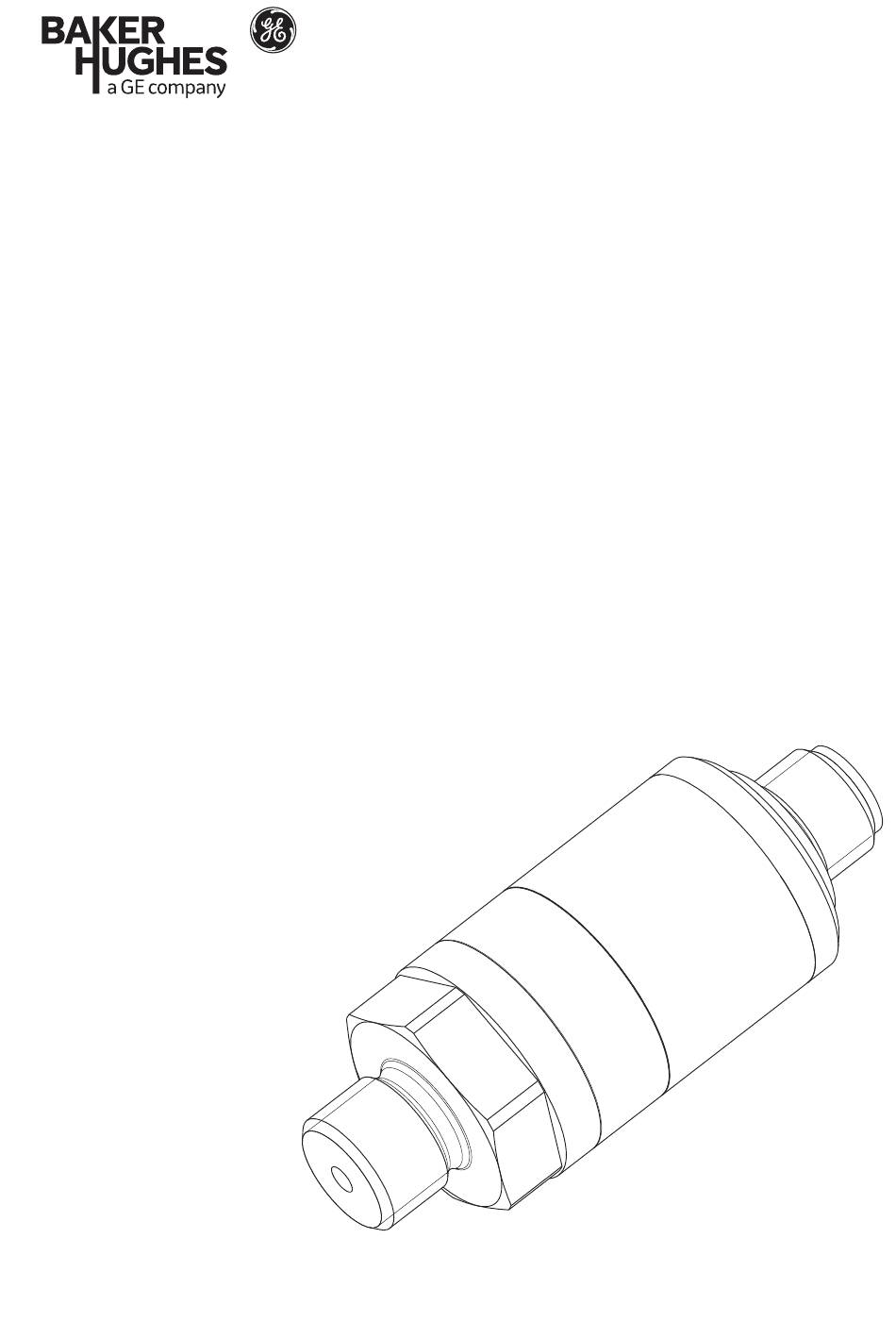

DPS 5000 Series
CAN bus Pressure Transducer
Instruction Manual
www.gemeasurement.com
BHGE Data Classification: Public
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Related Manuals for GE BAKER HUGHES DPS 5000 Series
Accessories GE DPS 5000 Series User Manual
I2c-bus pressure transducer (36 pages)
Transducer GE Bently Nevada 7200 Series Installation Manual
14 mm proximity transducer system (45 pages)
Transducer GE C-PT Installation Manual
Ultrasonic flow transducer (72 pages)
Transducer GE CModel C-RS Installation Manual
Ultrasonic flow transducer (58 pages)
Transducer GE T17 Installation Manual
Ultrasonic flow transducer (94 pages)
Transducer GE Sensing RPT 301 User Manual
Digital output pressure transducer (36 pages)
Transducer GE Baker Hughes Masoneilan 4411 Instruction Manual
Electropneumatic transducer (16 pages)
Transducer GE T9 Installation Manual
Ultrasonic flow transducer (44 pages)
Summary of Contents for GE BAKER HUGHES DPS 5000 Series
Page 1
DPS 5000 Series CAN bus Pressure Transducer Instruction Manual www.gemeasurement.com BHGE Data Classification: Public...
Page 3
A qualified technician must have the necessary technical knowledge, documentation, special test equipment and tools to carry out the required work on this equipment. © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | i...
Page 4
COB-Identifier. Identifies a COB uniquely in a Network and determines the priority of the COB. Differential (Pressure version) Direct Current Digital Pressure Sensor European Economic Community Electromagnetic Compatibility European Norm °F Fahrenheit (Degrees) ii | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 5
Process Value Service Data Object Sales Data Sheet Système International Serial Number Unified Fine (a thread standard) V dc Volts Direct Current © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | iii...
Page 6
| DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 7: Table Of Contents
0x220D to 0x2218 – The Filter System 3.7.11 0x2304 – The Tag for the Type of Data To Change the Operation – Objects: 0x6000 – 0x6FFFF © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | v...
Page 8
A.1.12 Object 1014h: COB-ID EMCY A.1.13 Object 1015h: Inhibit Time Emergency A.1.14 Object 1017h: Producer Heartbeat Time A.1.15 Object 1018h: Identity Object vi | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 9
Object 6121h: AI Input Scaling 1 PV A.3.6 Object 6122h: AI Input Scaling 2 FV A.3.7 Object 6123h: AI Input Scaling 2 PV © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | vii...
Page 10
Object 6148h: AI Span Start A.3.12 Object 6149h: AI Span End A.3.13 Object 6150h: AI Status Appendix B. Alternative Pressure Units Appendix C. Bibliography viii | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 11: Introduction
• Monitor the number of times the temperature is not in the specified limits. • Restore all the factory default values for the CANopen Object Dictionary. © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 1...
Page 12: Summary Of The Canopen Set Of Functions
PDO Linking PDO Mapping Default Emergency Message CANopen Version DS-301 V4.01 Framework Certified Device Profile DSP-404 V1.0 Maximum Baud Rate 1 Mbit/s 2 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 13: Installation
Read all relevant instructions and procedures in the applicable system installation manual. Read the following installation procedures before installing the pressure transducer. © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 3...
Page 14: Installation - Procedures
Do all the applicable tests and checks (refer to System Installation Manual). After completing installation, the pressure transducer is ready for use. 4 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 15: Operation
Use the CANopen software package to receive the PDO and get access to the CANopen Object Dictionary. Use the CANopen software package to change these values: © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 5...
Page 16: Quick Start
3.6.2 0x1017 – Error Control: Heartbeat Option To use Heartbeat for error control, set applicable value for this object: • 0x1017 (Heartbeat Time). 6 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 17: 0X1010 01 - To Save Changes To The Data Dictionary
3.6.7 0x1F80 - NMT Start-up Use object 0x1F80 to set the start-up mode of the sensor. Status Description Sensor power-up in pre-operational mode. © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 7...
Page 18: To Change The Operation - Objects: 0X2000 - 0X2Ffff
+ one year. After each calibration, set a new date (refer to Chapter 4., “Maintenance,” on page 15). 8 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 19: 0X2207 - The Pressure Calibration Gain
Object 0x6130 02: Compensated Temperature Gain Temperature Value source temperature Process Value (°C) x Gain correction (°C) Figure 3-4: Temperature Calibration Gain © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 9...
Page 20: 0X220A - The Temperature Calibration Offset
Field Value (FV) units and the Process Value (PV) units. To change the relation between FV and PV, use the scale-factor 10 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 21: 0X6131 01 - The Units For The Pressure Output
Temperature is More than the Limit” on page 13). • Sub-index 01 sets the pressure. • Sub-index 02 sets the temperature limit. © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 11...
Page 22: To Monitor The Operation - Objects: 0X1000 - 0X1Ffff
If x < y, Then n = n + 1 Figure 3-8: Pressure Span Underflow Count Reset the count when applicable. For example, after calibration. 12 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 23: 0X2008 - The Count: Temperature Is More Than The Limit
The individual bits of the status byte are used as follows: • Data is not valid. • Value more than the limit. © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 13...
Page 24
The value is in the limits of 0x6148 and 0x6149. The value is more than the limit of 0x6149. The value is less than the limit of 0x6148. 14 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 25: Maintenance
• Examine the electrical connections. Do all the applicable tests and checks (refer to the System Installation Manual). • If necessary, install a new pressure transducer. © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 15...
Page 26: Maintenance - Cleaning
Record the Field Value (FV1) that appears in object 0x6100 01 (Pressure Value). Record the value in mbar. Second calibration point: 16 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 27: Two-Point Pressure Calibration - Results
4.5 Approved Service Agents Find the approved service agents at: www.gemeasurement.com © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 17...
Page 28
Chapter 4. Maintenance 18 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 29: Appendix A. Canopen Object Dictionary
OBJECT DESCRIPTION INDEX 1000 Name Device Type Object Code Variable Data Type UNSIGNED32 ENTRY DESCRIPTION Access CONST PDO Mapping Default Value 0x00020194 © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 19...
Page 30: Object 1001H: Error Register
INDEX 1003 Name Pre-defined Error Field Object Code Array Data Type UNSIGNED32 ENTRY DESCRIPTION Sub-Index Description Number of Errors Access PDO Mapping 20 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 31: Object 1005H: Cob-Id Sync
Data Type UNSIGNED32 ENTRY DESCRIPTION Access PDO Mapping Default Value 0x00000000 Unit μs A.1.6 Object 1008h: Manufacturer Device Name Contains the device name. © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 21...
Page 32: Object 100Ch: Guard Time
0. OBJECT DESCRIPTION INDEX 100D Name Life Time Factor Object Code Variable Data Type UNSIGNED8 ENTRY DESCRIPTION Access PDO Mapping Default Value 22 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 33: Object 1010H: Store Parameter Field
The following group is distinguished. Sub-Index Parameter Group All parameters. For restoring the signature “load” (0x64616f6c) must be written. OBJECT DESCRIPTION INDEX 1011 © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 23...
Page 34: Object 1012H: Cob-Id Time Stamp
A.1.12 Object 1014h: COB-ID EMCY COB-ID used for emergency message (emergency producer). OBJECT DESCRIPTION INDEX 1014 Name COB-ID EMCY Object Code Variable Data Type UNSIGNED32 24 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 35: Object 1015H: Inhibit Time Emergency
OBJECT DESCRIPTION INDEX 1017 Name Producer Heartbeat Time Object Code Variable Data Type UNSIGNED16 ENTRY DESCRIPTION Access PDO Mapping Default Value 0x00000000 © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 25...
Page 36: Object 1018H: Identity Object
Default Value 0x50 Sub-Index Description Product Code Data Type UNSIGNED32 Access PDO Mapping Default Value 0x1388 Sub-Index Description Revision number Data Type UNSIGNED32 26 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 37: Object 1019H: Synchronous Counter Overflow Value
OBJECT DESCRIPTION INDEX 1019 Name Synchronous counter overflow value Object Code Variable Data Type UNSIGNED8 ENTRY DESCRIPTION Access PDO Mapping Default Value 0x00000000 © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 27...
Page 38: Object 1800H To 1803H: Transmit Pdo Communication Parameter
A.1.18 Object 1A00h to 1A03h: Transmit PDO Mapping Parameter 1 Contains the mapping for the PDO the device is able to transmit. There are 4 PDOs available. 28 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 39
Data Type UNSIGNED32 Access PDO Mapping Default Value 0x20040020 Sub-Index Description Mapping Entry 3 Data Type UNSIGNED32 Access PDO Mapping Default Value 0x00000000 © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 29...
Page 40: Object 1F80H: Nmt Start-Up
Current Time is 6 bytes TIME_OF_DAY. OBJECT DESCRIPTION INDEX 2003 Name Current Time Object Code Variable Data Type UNSIGNED48 ENTRY DESCRIPTION Access PDO Mapping Default Value 0x00 30 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 41: Object 2004H: Acquisition Time
OBJECT DESCRIPTION INDEX 2006 Name Pressure Span Overflow Count Object Code Variable Data Type UNSIGNED16 ENTRY DESCRIPTION Access PDO Mapping Default Value 0x00 © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 31...
Page 42: Object 2007H: Pressure Span Underflow Count
OBJECT DESCRIPTION INDEX 2009 Name Temperature Span Underflow Count Object Code Variable Data Type UNSIGNED16 ENTRY DESCRIPTION Access PDO Mapping Default Value 0x00 32 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 43: Object 210Ch: Node Id
The PIN to enable calibration. OBJECT DESCRIPTION INDEX 2200 Name Calibration Access Pin Object Code Variable Data Type UNSIGNED16 ENTRY DESCRIPTION Access PDO Mapping Default Value © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 33...
Page 44: Object 2201H: Last Calibration Year
OBJECT DESCRIPTION INDEX 2203 Name Last Calibration Day Object Code Variable Data Type UNSIGNED16 ENTRY DESCRIPTION Access PDO Mapping Default Value 0x00 34 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 45: Object 2204H: Next Calibration Year
OBJECT DESCRIPTION INDEX 2206 Name Next Calibration Day Object Code Variable Data Type UNSIGNED16 ENTRY DESCRIPTION Access PDO Mapping Default Value 0x00 © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 35...
Page 46: Object 2207H: Pressure Gain
Requires calibration PIN (refer to “Object 2200h: Calibration Access Pin” on page 33). OBJECT DESCRIPTION INDEX 2209 Name Temperature Gain Object Code Variable Data Type REAL32 ENTRY DESCRIPTION Access PDO Mapping Default Value 36 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 47: Object 220Ah: Temperature Offset
0x00 A.2.22 Object 220Eh: FIR Sample Data Data for the Finite Impulse Response filter. OBJECT DESCRIPTION INDEX 220E Name FIR Sample Data © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 37...
Page 48: Object 2210H: Fir2 Sample Data
A.2.25 Object 2214h: FIR4 Sample Data Data for the Finite Impulse Response filter. OBJECT DESCRIPTION INDEX 2214 Name FIR4 Sample Data Object Code Variable 38 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 49: Object 2216H: Fir5 Sample Data
0x02 A.2.28 Object 2218h: FIR Pre-scaler OBJECT DESCRIPTION INDEX 2218 Name FIR Prescaler Object Code Array Data Type UNSIGNED16 ENTRY DESCRIPTION Sub-Index © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 39...
Page 50
FIR4 pre-scaler Data Type UNSIGNED16 Access PDO Mapping Default Value Sub-Index Description FIR5 pre-scaler Data Type UNSIGNED16 Access PDO Mapping Default Value 40 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 51: Object 2300H: Pdcr Min Pressure
Object Code Variable Data Type UNSIGNED8 ENTRY DESCRIPTION Access PDO Mapping Default Value 0x80 A.2.32 Object 2304h: PDCR Text OBJECT DESCRIPTION INDEX 2304 © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 41...
Page 52: Device Profile Segment
Access PDO Mapping Default Value Sub-Index Description AI Input FV 1 Data Type REAL32 Access PDO Mapping Default Value 42 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 53: Object 6101H: Ai Input Unit
Default Value 0x00000000 A.3.3 Object 6110h: AI Sensor Type Specifies the type of sensor connected to the analogue input. OBJECT DESCRIPTION INDEX 6110 © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 43...
Page 54: Object 6120H: Ai Input Scaling 1 Fv
AI Input scaling 1 FV Object Code Array Data Type REAL32 ENTRY DESCRIPTION Sub-Index Description number of entries Access PDO Mapping Default Value 44 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 55: Object 6121H: Ai Input Scaling 1 Pv
AI Input scaling 1 PV 1 Data Type REAL32 Access PDO Mapping Default Value Sub-Index Description AI Input scaling 1 PV 2 © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 45...
Page 56: Object 6122H: Ai Input Scaling 2 Fv
This object defines the process value of the second calibration point for the analogue input channel. It is scaled in physical unit of process value. 46 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 57: Object 6124H: Ai Input Offset
OBJECT DESCRIPTION INDEX 6124 Name AI Input offset Object Code Array Data Type REAL32 ENTRY DESCRIPTION Sub-Index Description number of entries Access © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 47...
Page 58: Object 6130H: Ai Input Pv
Access PDO Mapping Default Value Sub-Index Description AI Input PV 1 Data Type REAL32 Access PDO Mapping Default Value 48 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 59: Object 6131H: Ai Physical Unit Pv
Access PDO Mapping Default Value 0xFD4E0000 Sub-Index Description AI Physical unit PV 2 Data Type UNSIGNED32 Access PDO Mapping Default Value 0x002D0000 © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 49...
Page 60: Object 6148H: Ai Span Start
OBJECT DESCRIPTION INDEX 6149 Name AI Span end Object Code Array Data Type REAL32 50 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 61: Object 6150H: Ai Status
Array Data Type UNSIGNED8 ENTRY DESCRIPTION Sub-Index Description number of entries Access PDO Mapping Default Value 0x02 Sub-Index Description AI Status 1 © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 51...
Page 62
Appendix A. CANopen Object Dictionary Data Type UNSIGNED8 Access PDO Mapping Default Value Sub-Index Description AI Status 2 Data Type UNSIGNED8 Access PDO Mapping Default Value 52 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 63: Appendix B. Alternative Pressure Units
The CANopen value 0x00A00000 shows that the pressure unit is not an SI unit (refer to Appendix C., “Bibliography,” on page 55). If other units are necessary, set the applicable values to agree with local conditions. © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 53...
Page 64
Appendix B. Alternative Pressure Units 54 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 65: Appendix C. Bibliography
- CiA Draft Standard Proposal DSP-305 (Version 1.0) CANopen Representation of SI Units and Prefixes - CiA Draft Recommendation DRP-303-2 (Version 1.1) © 2018 Baker Hughes, a GE company – All rights reserved. DPS 5000 Series Instruction Manual-English | 55...
Page 66
Appendix C. Bibliography 56 | DPS 5000 Series Instruction Manual-English © 2018 Baker Hughes, a GE company – All rights reserved.
Page 68
Contact your BHGE representative for the most current information. The Baker Hughes logo is a trade mark of Baker Hughes, a GE company. The GE Monogram is a trademark of the General Electric Company.
Table of Contents
Print
Rename the bookmark
Delete bookmark?
Delete from my manuals?
Login
Sign In
OR
Sign in with Facebook
Sign in with Google
Upload manual
Upload from disk
Upload from URL
