Quick Start Guide
PortServer® TS M MEI
1 Verify your components

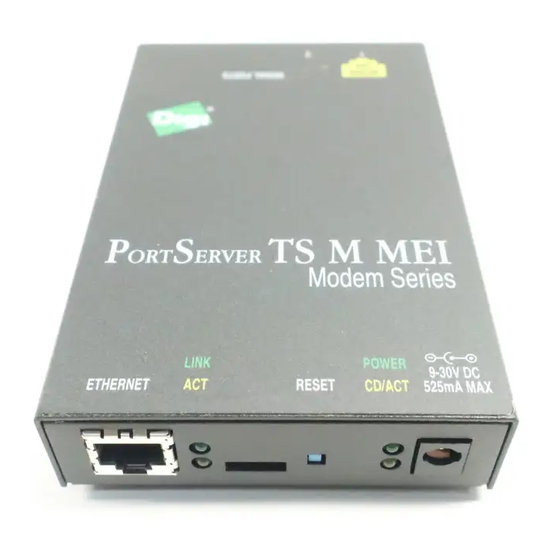

PortServer TS M MEI
Note A loose label sticker that includes the unique device password is included in the box. Retain this label sticker with your hardware records.
This default password will be needed if the device is factory reset and you want to access the web UI on the device.
2 Set DIP Switch
For each serial port on the PortServer, set the serial DIP switch according to your serial device requirements (EIA-232/422/485). Pinout information is included in this Quick
Start Guide. For initial configuration, via the serial port, use of the EIA-232 settings is recommended.
Note If switch 4 is up, the termination resistor is connected. If switch 4 is down, the termination resistor is not connected.
PortServer TS 1-4 port DIP Switch settings
Switch settings
Up/On
Down/Off
3 Connect the hardware
1. Connect phone line to modem.
LEDs and startup status: All LEDs flash on startup.
© 2019 Digi International Inc.
Digi, Digi International, and the Digi logo are trademarks or registered trademarks in the United States and other countries worldwide. All other trademarks mentioned in this document are the
property of their respective owners.
Welcome to your Digi product
Get started: This guide helps you with initial product setup. Need more? Find additional supporting material for
this product at www.digi.com/support/portservertsmmei. Or connect to the online documentation by scanning
this code:
Digi Technical Support: Digi offers multiple support plans to help you get the most out of your product. For
information on Technical Support plans and pricing, contact us at 877.912.3444 or visit www.digi.com/support.
Documentation feedback: To provide feedback on this documentation, send your comments to
techcomm@digi.com.
DB-9 - RJ-45 adapter
RJ-11 phone cord
(available with some models)
Required additional equipment
2. Connect serial device and a
straight through CAT 5 cable.
Included equipment
2 Ethernet cable
3. Connect Ethernet cable.
Power supply Power supply adapters
4. Connect power supply.
